Rimage Printer Family™

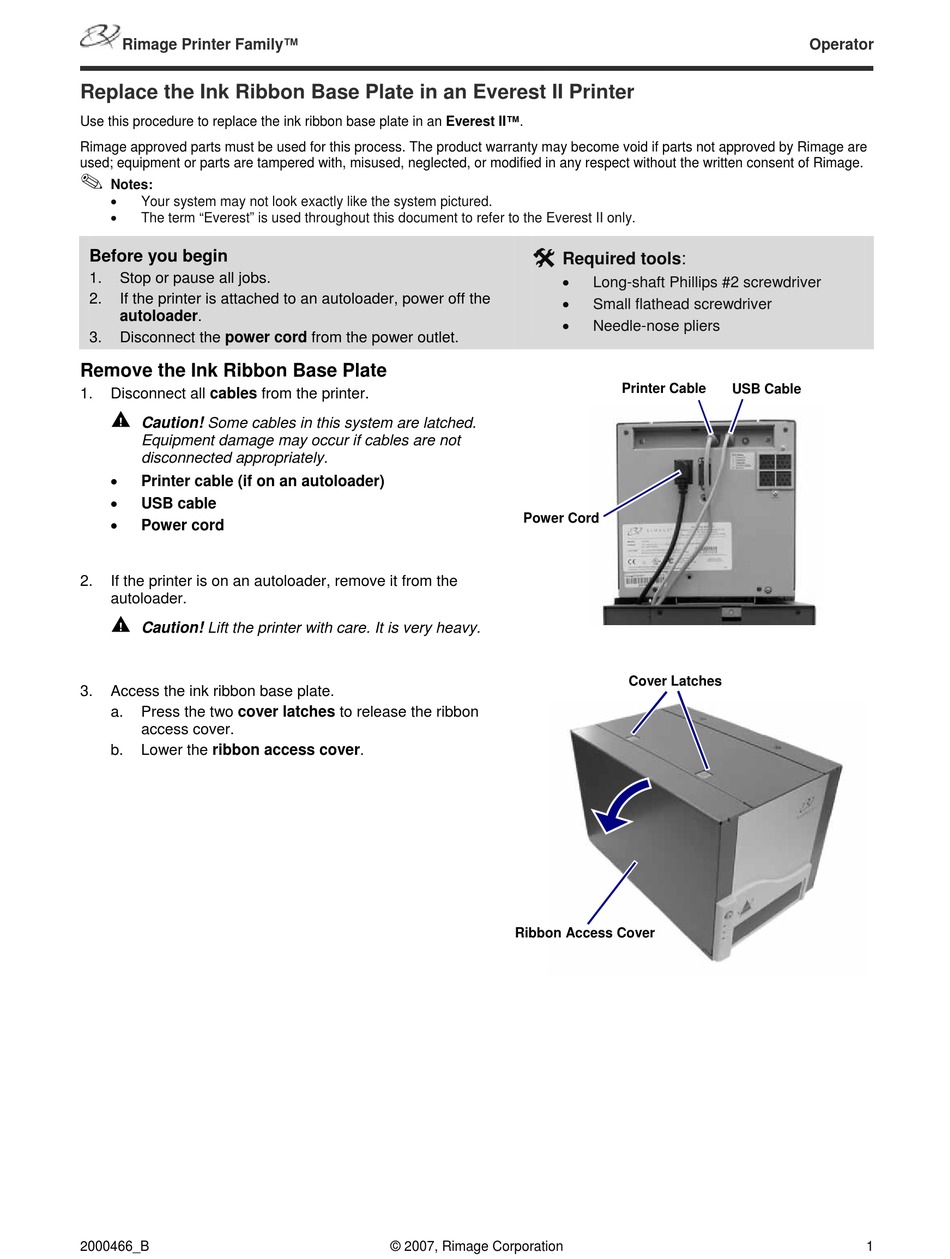

Replace the Ink Ribbon Base Plate in an Everest II Printer
Use this procedure to replace the ink ribbon base plate in an Everest II™.
Rimage approved parts must be used for this process. The product warranty may become void if parts not approved by Rimage are
used; equipment or parts are tampered with, misused, neglected, or modified in any respect without the written consent of Rimage.
Notes:
•
Your system may not look exactly like the system pictured.
•
The term "Everest" is used throughout this document to refer to the Everest II only.
Before you begin
1.
Stop or pause all jobs.
2.
If the printer is attached to an autoloader, power off the
autoloader.
3.
Disconnect the power cord from the power outlet.
Remove the Ink Ribbon Base Plate
1.
Disconnect all cables from the printer.
Caution! Some cables in this system are latched.
Equipment damage may occur if cables are not
disconnected appropriately.
•
Printer cable (if on an autoloader)
•
USB cable
•
Power cord
2.
If the printer is on an autoloader, remove it from the
autoloader.
Caution! Lift the printer with care. It is very heavy.
3.
Access the ink ribbon base plate.
a.
Press the two cover latches to release the ribbon
access cover.
b.
Lower the ribbon access cover.
2000466_B
Required tools:
•
•
•
Power Cord
Ribbon Access Cover
© 2007, Rimage Corporation
Long-shaft Phillips #2 screwdriver
Small flathead screwdriver
Needle-nose pliers
Printer Cable
USB Cable
Cover L
atches
Operator
1
Advertisement
Related Manuals for Rimage Everest II
Summary of Contents for Rimage Everest II
- Page 1 Use this procedure to replace the ink ribbon base plate in an Everest II™. Rimage approved parts must be used for this process. The product warranty may become void if parts not approved by Rimage are used; equipment or parts are tampered with, misused, neglected, or modified in any respect without the written consent of Rimage.
- Page 2 Replace the Ink Ribbon Base Plate in an Everest II Printer Open latch 1 as shown. Remove the print ribbon carrier. Manually slide the printer tray all the way out of the printer. Open the printer tray door. Tip: Use a small flathead screwdriver to open the door.
- Page 3 Replace the Ink Ribbon Base Plate in an Everest II Printer Lift the ink ribbon base plate up to unlatch it. Keeping the plate at an angle, carefully remove the ink ribbon base plate from the printer. Caution! Do not scratch the platen roller.
-
Page 4: Prepare The Printer For Use
Replace the Ink Ribbon Base Plate in an Everest II Printer Install the Phillips screws (Qty. 3) to secure the ink ribbon base plate. Tip: One of the screws fits into the tab at the back of the ink ribbon base plate, inside the printer.
