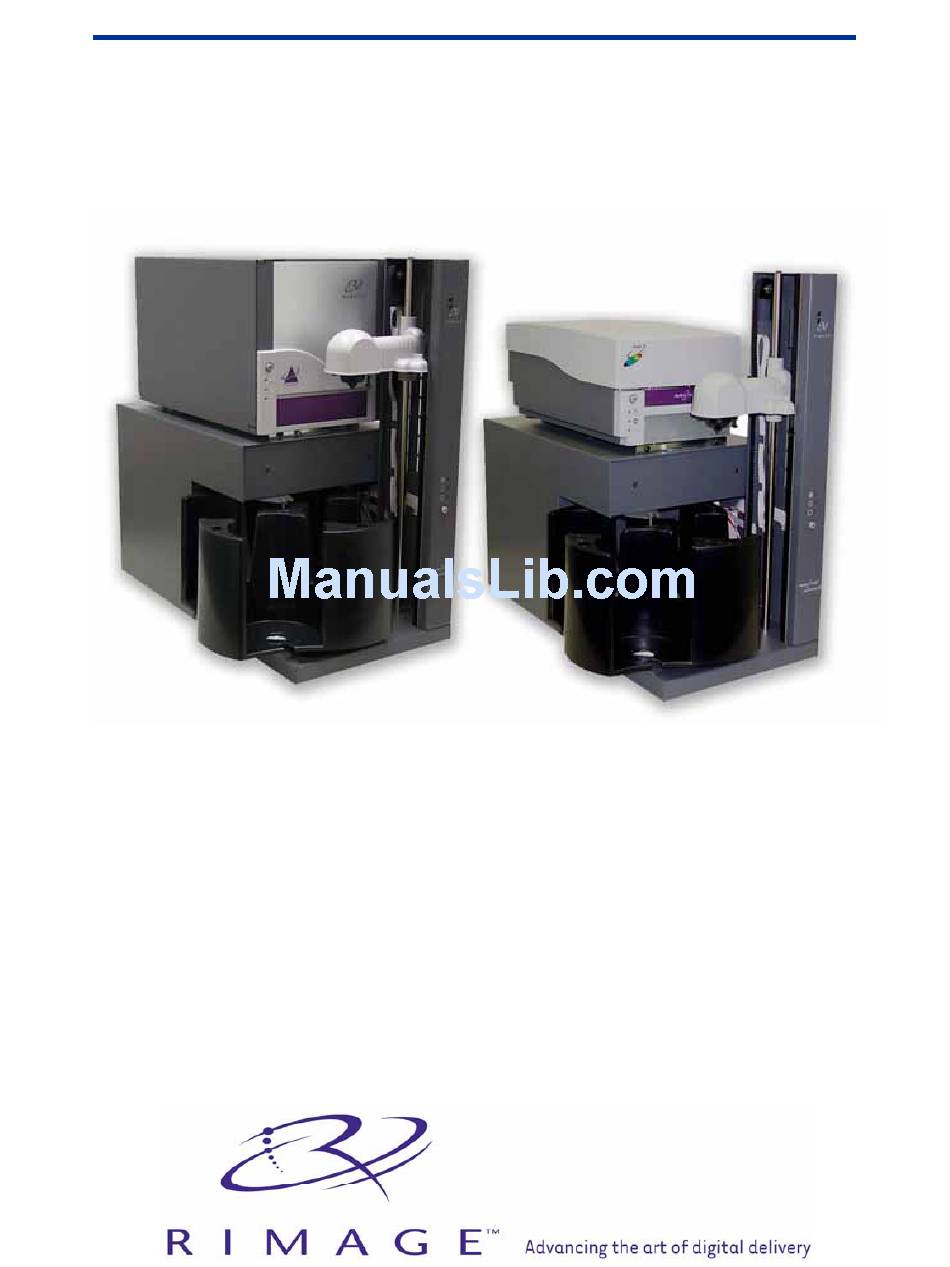

- Page 1 Rimage AutoPrinter™ User Guide This manual provides the information needed to operate the AutoPrinter and identify the parts. To setup and install your AutoPrinter, refer to the Setup and Installation Guide included with your product.
- Page 2 Rimage Corporation reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of Rimage Corporation to notify any person or organization of such revisions or changes.
-
Page 3: Support Information
• Unit serial number and software version. • Functional and technical description of the problem. • Exact error message received. Learn more online At www.rimage.com/support.html, you can experience Rimage’s world-class Support and Services. 1. Select your product family. From your product page you can access: •... -
Page 4: Table Of Contents
Reset the AutoPrinter to pick discs from bin 1 ... 6 Setting printing preferences...6 Maintain the AutoPrinter... 7 Installing ribbons ... 7 Cleaning method and schedule... 7 Aligning the printer ... 7 Learn More ... 11 AutoPrinter specifications... 11 Technical support and product updates ... 12 Safety information ... 12 Safety testing... -
Page 5: Introduction
Macintosh The AutoEverest will run only on Macintosh OS X v10.3/10.4. AutoPrism The AutoPrism will run only on Windows 2000 Professional with SP4, Windows XP Professional with SP1 or SP2, and Windows Server 2003. Media requirements Refer to your Everest Printer User Guide or PrismPlus! Printer User Guide for the correct media requirements. -
Page 6: Identify The Parts Of The Autoprinter
Rimage AutoPrinter™ User Guide Identify the parts of the AutoPrinter Front view Lift Arm Everest Printer Control Panel Carousel AutoEverest Lift Arm Prism Printer Control Panel Operator Panel Carousel AutoPrism Operator Panel 110656_I... -
Page 7: Operator Panel
Operator panel The operator panel has four indicator lights and an operator button. Operator button Each time you press the operator button, the carousel rotates to the next bin. Operator panel The indicator lights on the operator panel provide the following operational information: Name Carousel Present... -
Page 8: Rear View
Rimage AutoPrinter™ User Guide Rear view Printer Control Cable Everest Printer Power Switch AutoEverest *Serial cable is used only for updating the firmware. Do not connect a serial cable during normal operation. Cable Cable Serial Cable* Power Switch AutoPrism Printer Control Cable... -
Page 9: Operate The Autoprinter
Installing the carousel on page 5. Note: The Prism printer power switch must be in the ‘on’ position. The Everest printer does not have a power switch. The Everest printer is powered on when the AutoPrinter is powered The Everest printer takes 1 to 2 minutes to complete the initialization. -
Page 10: Loading And Unloading Discs
Setting printing preferences Printing preferences allows you to set and run your AutoPrinter to produce the best possible label on your discs. Refer to your Everest Printer User Guide or PrismPlus Printer User Guide for specific printing preferences instructions. arousel and place a bin in position to unload discs. -
Page 11: Maintain The Autoprinter
Before installing ribbons in the printer, stop any operations. To change ribbons in a Prism printer, refer to the PrismPlus Printer User Guide. To change ribbons in an Everest II printer, refer to the Everest II Printer User Guide. Cleaning method and schedule... - Page 12 5. When the printer is aligned, slide the lift arm to the top of the unit. 6. Press the printer button to close the printer tray. 7. Press the disc release button to release the disc from the gripper.
- Page 13 • 5/32” Allen wrench 1. Power on the AutoPrinter. Note: If the Prism power switch is in the on position, power on both the printer and the AutoPrinter by pressing the AutoPrinter 2. Wait for the unit to complete initialization.
- Page 14 0.010” – 0.015” (0.25mm – 0.38mm). 5. When the printer is aligned, slide the lift arm to the top the unit. 6. Press the printer button to close the printer tray.
-
Page 15: Learn More
Learn More AutoPrinter specifications Note: Specifications for the printer are in the printer user guide. Standard System AutoPrinter autoloader, a Rimage Everest or Prism printer, and CD Designer software suite. Software requirements CD Designer or other graphics application Input bin capacity... -
Page 16: Technical Support And Product Updates
Support for the Rimage AutoPrinter is available through your authorized reseller. Important! Register your Rimage AutoPrinter online or complete and return the registration card so that Rimage can notify you of upgrades as they become available. Safety information This manual and the indications on the product allow for proper and safe operation. The indication marks below help protect you and other persons from injury, and the equipment from damage. -
Page 17: Safety Testing
Safety testing Product name: AutoPrinter Model: RAS10 Notice for USA Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
