Rimage AutoEverest Setup And Installation Manual

AutoEverest AutoPrinter™ Setup and
Installation Guide
Before you begin:

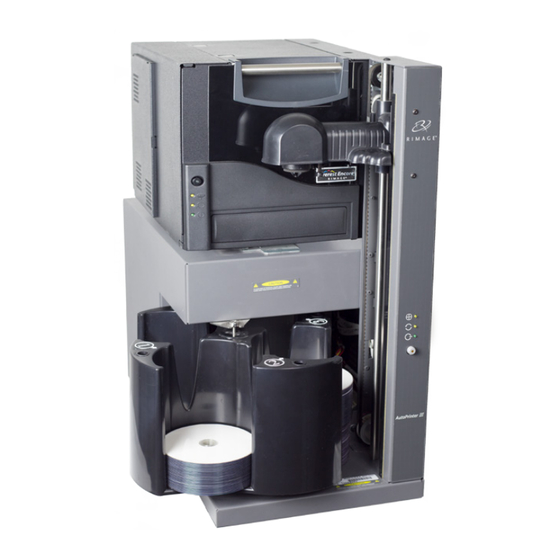

This document describes how to set up your Rimage AutoEverest AutoPrinter.
The instructions in this document are intended for people who are familiar
with hardware setup, software installation, and Windows operating systems.
If you do not understand the procedures in this document, ask your computer
technician for help.
Documents referenced in this procedure are found online at
www.rimage.com/support.
Important!
This guide provides the information needed to set up a AutoEverest
•
AutoPrinter. If you are using the Everest printer as a standalone printer,
refer to the printer's setup and installation guide for instructions. If your
Everest printer is part of an autoloader, refer to the autoloader's setup
and installation guide for instructions.
Read all setup instructions thoroughly before you begin.
•
Save all packing boxes and packing materials.
•
Notes:
• Your product may not look exactly like the product pictured.
• The term "AutoPrinter" is used throughout this document to refer to the
Rimage AutoEverest AutoPrinter. The term "printer" is used throughout
this document to refer to the Everest printer.
• Unless otherwise indicated, all Windows navigation statements are
Microsoft Windows 10 paths. Other operating systems' navigation paths
may differ slightly.
# Required tools: Scissors or side cutters.
110660-001_I
1

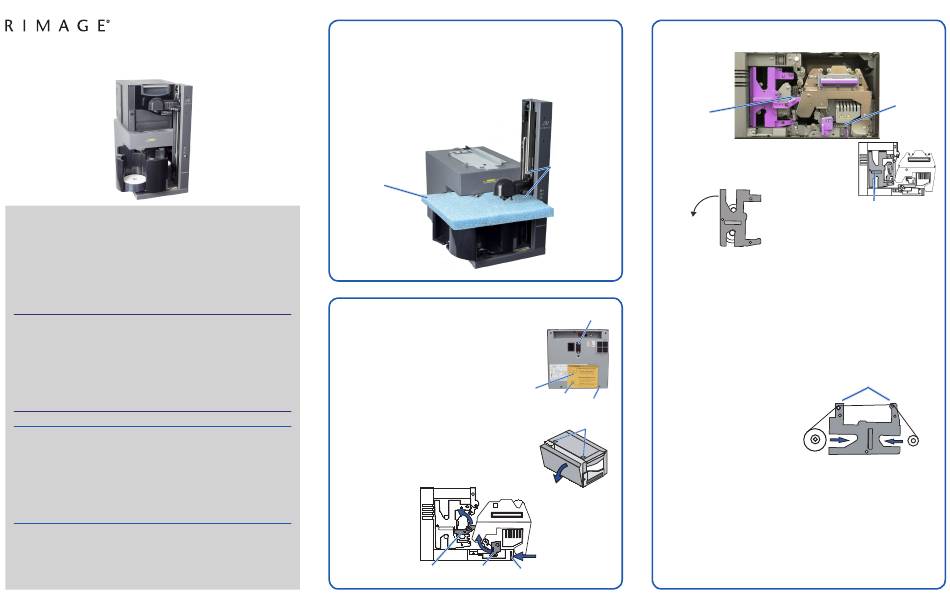

Prepare the AutoPrinter
a. Cut the plastic tie wraps (Qty. 2) from the lift arm.
'
Caution! Do not cut the belt or the cable!
b. Remove the shipping foam inserted above the carousel.
Shipping
Foam
2
Prepare the Everest Printer
Everest Encore™
a. Unpack the Everest Encore
printer. Refer to the label on
the Everest printer box.
b. Follow the instructions on the
Instruction Card
instruction card on the rear of
the printer.
i. Set the AC voltage switch.
ii. Move the shipping screw to the
storage position.
c. Open the Everest Encore printer.
i. Press the two side cover latches.
ii. Lower the side cover.
Latch 1 Latch 2
d. Open latches 1, 2, and 3 as indicated by the arrows.
Copyright © 2018 Rimage Corporation
2
Prepare the Everest Printer (continued)
e. Remove the plastic packing pieces (Qty. 2) from inside the printer.
Packing Piece
f. Install the print ribbon.
i.
Tie
Wraps
ii. Lay the print ribbon carrier on its back on a clean, flat surface.
iii. Wrap the print ribbon around the guide rollers, as shown.
iv. Snap the supply roll and take-up roll into the print ribbon carrier.
v. Tighten the print ribbon by turning the take-up roll clockwise.
vi. Insert the print ribbon carrier into the printer.
Voltage Switch
g. Install the retransfer ribbon.
i.
ii. Slide the retransfer ribbon under the retransfer ribbon carrier.
Ä
Shipping Screw
Shipping Screw
Storage Position
Side Cover Latches
iii. Snap the supply
iv. Tighten the
v. Slide the retransfer ribbon carrier into the printer.
vi. Close latches 1, 2, and 3, as indicated by the arrows.
h. Close the printer side cover.
Latch 3
Grasp the handle and pull to remove
the print ribbon carrier all the way
out of the printer.
Print Ribbon Carrier
Grasp the handle to slide the retransfer ribbon carrier out of the
printer.
Guide Rollers
Note: The ribbon
winds under the
supply roll, as
Supply Roll
shown.
roll and take-up roll
onto the carrier.
retransfer ribbon by turning the takeup roller counterclockwise.
Packing Piece
Take-up Roll
