Connect the i-Pilot Link to the HELIX Control Head

|
Use the following instructions to connect the i-Pilot Link to the installed HELIX control head. If you purchased the Humminbird
Ethernet Switch, install it using the instructions in the included installation guide.
WARNING! The power source must be turned off before you proceed with the installation.
1. Confirm that all power sources are turned off.
2. Locate the Ethernet cable on the i-Pilot Link.
3. Connect the adapter cable (AS EC QDE) and extension cable to the Ethernet cable on the
i-Pilot Link.
On round connectors, hand-tighten the screw nut.
4. Route the cable to the HELIX control head or Ethernet Switch.
NOTE: The cable should be routed through an established routing system on the boat, in an area
with minimal interference. Inspect the selected route carefully to ensure that there are no sharp
edges, obstacles, or obstructions that may damage the cables.
5. Ethernet Switch: Connect the Ethernet cable connector to an available Ethernet port. Hand tighten the screw nut.
HELIX Control Head: Connect the Ethernet cable connector to the Ethernet port on the control head or insert it into the

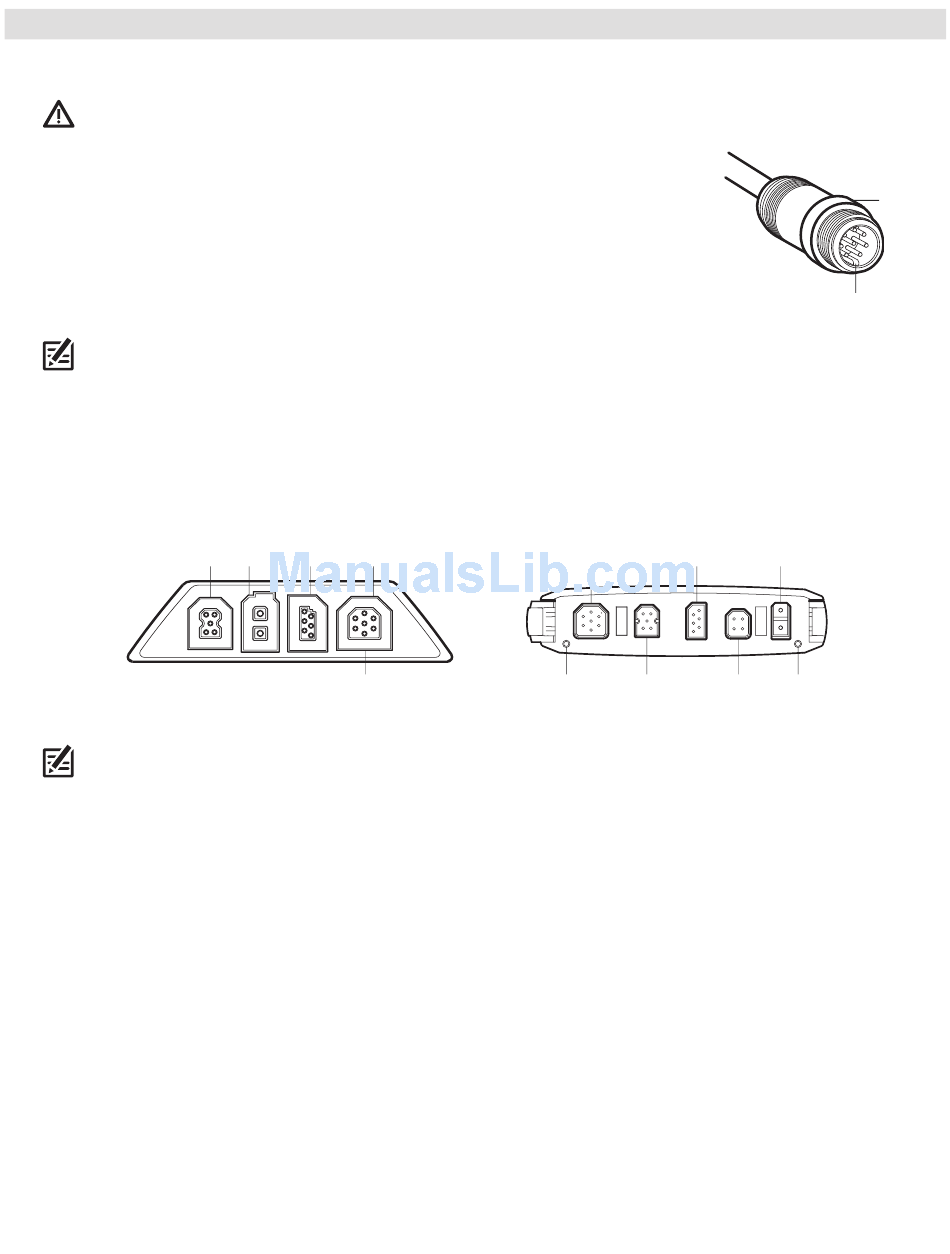

Ethernet slot on the cable tray. See the following illustrations and your control head installation guide for details.
Ethernet
NOTE: The ports are keyed to prevent reversed installation, so be careful not to force the connectors into the connector ports.
HELIX 7 Control Head Ports
COM
Power (communications) Transducer
Optional: Use a Y-Cable
to connect Transducer and
Speed Sensor Accessory
Hand-Tightening the Screw Nut
HELIX 9, 10, 12 Cable Tray
COM
Transducer (communications)
pin Ethernet Temp/Speed
on the Ethernet Cable
screw nut
The connector is keyed to
prevent incorrect installation.
Power
pin
