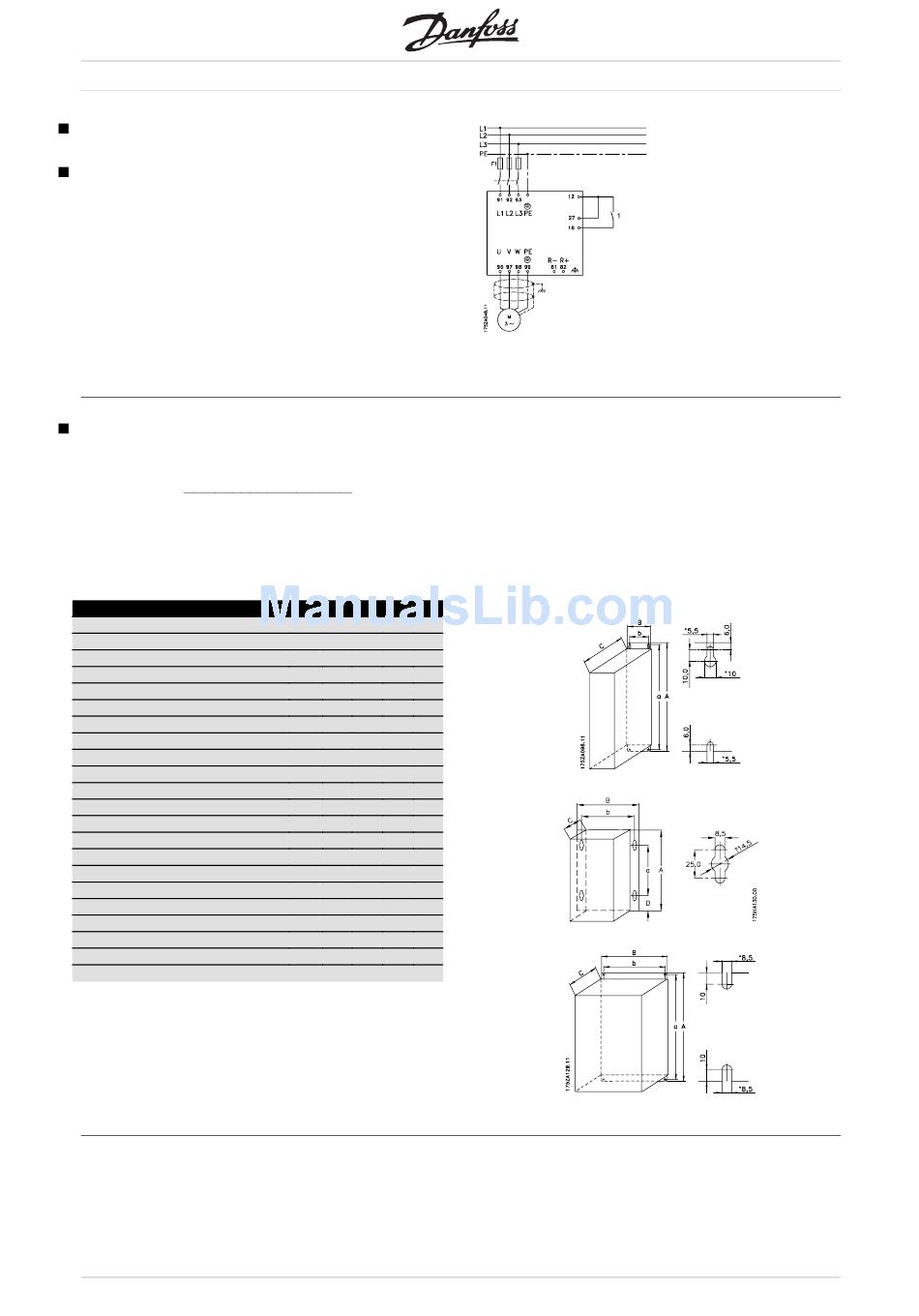

Quick Setup

Introduction to Quick Setup
This Quick Setup will guide you through EMC correct
installation of the frequency converter by connecting
power, motor and control wiring (fig. 1). Start/stop
of motor is to be done with the switch.
1. Mechanical Installation
AKD 5000 frequency converters allow side-by-side mounting. The necessary cooling demands a free
air passage of 10 cm above and below the frequency converter (5016-5062 380-500 V and 5008-5027
200-240 V must have 20 cm).
Drill all holes by using the measurements stated in the table. Please note the difference in unit voltage. Place
the frequency converter on the wall. Tighten up all four screws.
All the below listed measurements are in mm
AKD type
Compact IP 20, 200–240 V (Fig. 4)
5001 - 5003
5004 - 5006
5008
5011 - 5016
5022 - 5027
Compact IP 20, 380–500 V (Fig. 4)
5001 - 5005
5006 - 5011
5016 - 5022
5027 - 5032
Compact IP 54, 200–240 V (Fig. 3)
5001 - 5003
5004 - 5006
5008 - 5011
5016 - 5027
Compact IP 54, 380–500 V (Fig. 3)
5001 - 5005
5006 - 5011
5016 - 5027
5032 - 5062
5042 - 5062
6
A B C a b
395 220 160 384 200
395 220 200 384 200
560 242 260 540 200
700 242 260 680 200
800 308 296 780 270
395 220 160 384 200
395 220 200 384 200
560 242 260 540 200
700 242 260 680 200
460 282 195 260 258
530 282 195 330 258
810 350 280 560 326
940 400 280 690 375
460 282 195 260 258
530 282 195 330 258
810 350 280 560 326
940 400 280 690 375
800 308 296 780 270
AKD 5000
Fig. 1
Fig. 2
Fig. 3
Fig. 4
