Exerpeutic Workfit 1030 Owner's Manual

Electric treadmill desk station
Hide thumbs Also See for Workfit 1030:
Table of Contents

Advertisement

Quick Links

Treadmill
OWNER'S MANUAL
1030.9-010517

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Workfit 1030 and is the answer not in the manual?

Questions and answers

Related Manuals for Exerpeutic Workfit 1030

Summary of Contents for Exerpeutic Workfit 1030

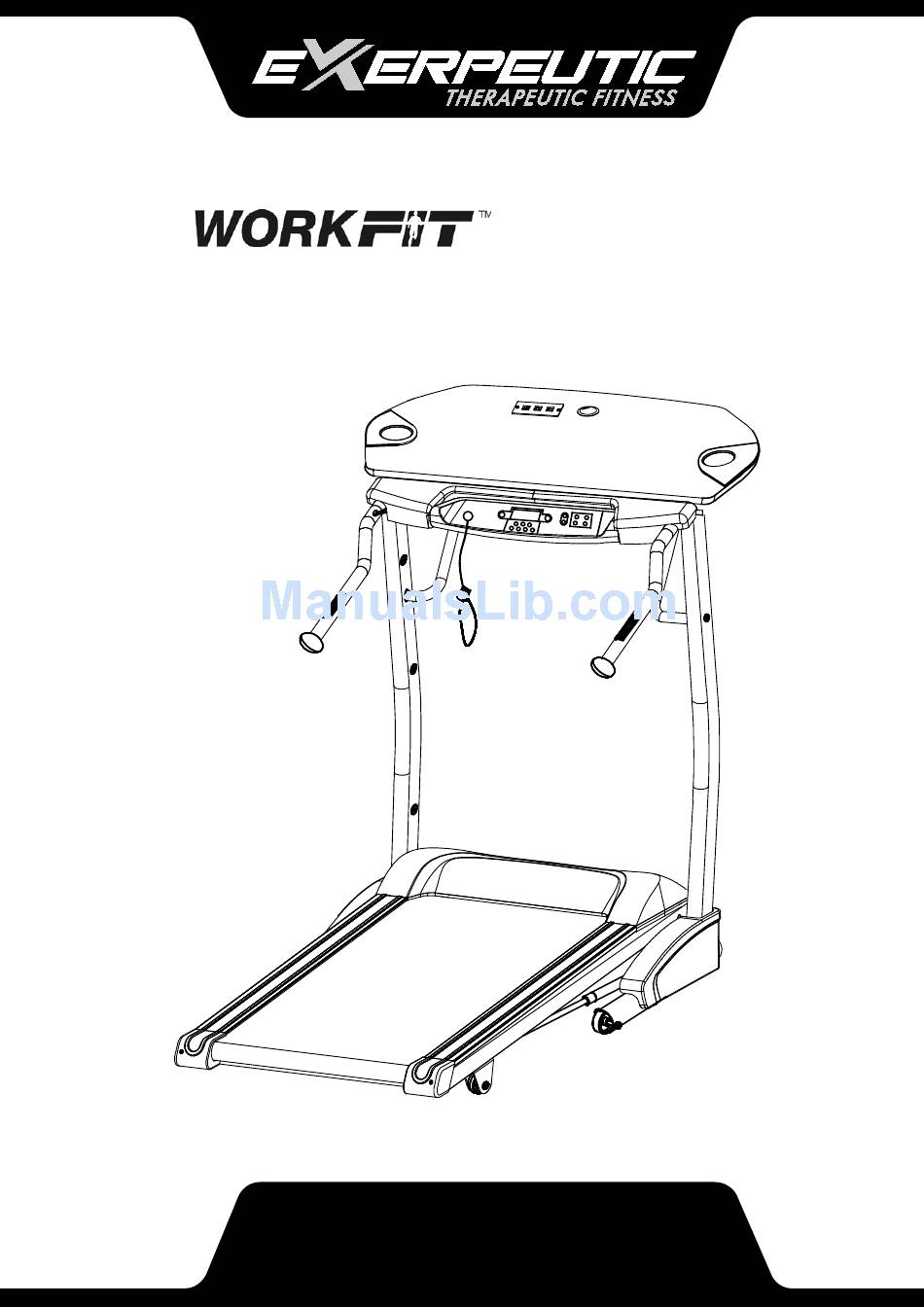

  • Page 1 Treadmill OWNER’S MANUAL 1030.9-010517...
  • Page 2 PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE. STOP. Contact customer service if you have any questions regarding assembly or proper operation of the machine. Email us at: Service@paradigmhw.com Or call us at: 1-844-641-7921 Hours: 8:00 am to 5:00 pm (PST) Daily...

  • Page 3: Table Of Contents

    TABLE OF CONTENT SERVICE ------------------------------------------------------------------------ LABEL PLACEMENT -------------------------------------------------------- IMPORTANT SAFETY INSTRUCTION --------------------------------- OVERVIEW DRAWING ----------------------------------------------------- PARTS LIST ------------------------------------------------------------------- HARDWARE & TOOLS PACK -------------------------------------------- ASSEMBLY -------------------------------------------------------------------- COMPUTER ------------------------------------------------------------------- OPERATIONS & ADJUSTMENTS --------------------------------------- STORAGE ---------------------------------------------------------------------- MAINTENANCE & TROUBLESHOOTING ----------------------------- WARRANTY -------------------------------------------------------------------- PARTS REQUEST FORM --------------------------------------------------...

  • Page 4: Service

    SERVICE IMPORTANT: FOR NORTH AMERICA ONLY For damaged or defective product, questions, replacement parts or any other service support, please contact our customer service department by the below methods: For The Best Service, please Email: service@paradigmhw.com Response Time: 1-2 Business Days Emailing us with the information above will be the best method to receive a response during peak business hours Website:...

  • Page 5: Label Placement

    LABEL PLACEMENTS...

  • Page 6: Important Safety Instruction

    IMPORTANT SAFETY GUIDELINES Basic precautions should always be followed, including the following safety instructions when using this treadmill: Read ALL GUIDELINES BEFORE USING THIS TREADMILL. DANGER: To reduce the risk of electric shock, read the following:  Always unplug the treadmill from the electrical outlet immediately after usage. Also unplug the treadmill before cleaning, assembling, or servicing.
  • Page 7 IMPORTANT SAFETY GUIDELINES  Keep the electrical cord away from heated surfaces.  Never insert any object into any opening.  Keep the treadmill on a solid, level surface with a minimum safety area clearance of 6 square feet around the treadmill. Be sure the area around the treadmill remains clear during use and has adequate clearance.

  • Page 8: Grounding Instructions

    IMPORTANT SAFETY GUIDELINES GROUNDING INSTRUCTIONS  This product must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current reducing the risk of electric shock. * This treadmill is equipped with a cord having equipment grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
  • Page 9 IMPORTANT SAFETY GUIDELINES WARNING: Before beginning any exercise program consult your physician. This is especially important for the people who are over 35 years old or who have pre-existing health problems. Read all instructions before using any fitness equipment. We assume no responsibility for personal injury or property damage sustained by or through the use of this product.

  • Page 10: Overview Drawing

    OVERVIEW DRAWING...

  • Page 11: Parts List

    PARTS LIST Description Description Main Frame Adjustable Leveler (M10xØ28x40) Rear Roller Adjustment Bolt Sensor Cable I (550mm) (M8x70mm) Rear Right End Cap Sensor Cable II (1650mm) Rear Left End Cap Bolt (M8x16mm) Wheel (Ø50xØ8.2x24t) Nylon Washer (Ø8.2xØ25x2t) Hexagon Socket Head Cap Bolt Self-Tapping Screw (ST3x20mm) 4 (M8x23mm) Nylon Nut (M6)

  • Page 12: Parts List

    PARTS LIST Description Description Hexagon Socket Head Cap Bolt Binding Wire Plate 20x20x7 (M10x45mm) Stabilizer Gas Spring Handlebar End Cap Wire Storage Box (Ø41xØ28.5x40) Foam Grip (Ø30xØ37x600) Support Board Transport Wheel (Ø8.5xØ50x23) Wire Storage Box Cover Phillips Head Bolt (M5x12) 85R Right Handlebar Incline Buttons and Hand Pulse 85L Left Handlebar...

  • Page 13: Hardware & Tools Pack

    HARDWARE & TOOLS PACK (32) Bolt (M8x16mm) (73) Spring Washer (M8) (74) Knob (M6x34) 10 PCS 10 PCS 1 PC (88) Washer M4 (89) Self Tapping Screw (86) Hexagon Socket Head 4 PCS (M4x25mm) Cap Bolt (M6x16mm) 4 PCS 4 PCS (7) Self Tapping Screw (102) Curve Washer Ø8 (ST4x16mm)

  • Page 14: Assembly

    ASSEMBLY Tool: 5mm Allen Wrench with Phillips Screwdriver 1. Installing the Handlebar Support Tube Frame As you are installing the Handlebar Support Tube Frame (75), connect the Sensor Cable II (30) from the inside of the Handlebar Support Tube Frame (75) to the Sensor Cable I (29) which is inside the right side of the Stabilizer (57).

  • Page 15: Main Frame (

    ASSEMBLY Tool: 5mm Allen Wrench with Phillips Screwdriver 2. Installing the Stabilizer Support Tube Covers Lift up the Main Frame (1), and attach both Right/Left Stabilizer Support Tube Covers (76R, 76L) onto the Stabilizer (57) using four Washers (88), four Self Tapping Screws (89). Tighten the Self Tapping Screws (89) with the 5mm Allen Wrench with Phillips Screwdriver provided.
  • Page 16 ASSEMBLY Tool: 5mm Allen Wrench with Phillips Screwdriver 3. Installing the End Caps Attach the Rear Right End Cap (3R) onto the Right Side Rail (50R) with two Self-Tapping Screws (7). Tighten the Self-Tapping Screws (7) with the 5mm Allen Wrench with Phillips Screwdriver provided.
  • Page 17 ASSEMBLY Tool: 5mm Allen Wrench with Phillips Screwdriver 4. Installing the Right Side Handlebar, Speed and Hand Pulse Sensors Connect the Speed Buttons and Hand Pulse Sensor with Wires (63) from the Right Handlebar (85R) to the Pulse Extension Wire (100) and Control Button Extension Wire (101) from the right side of the Handlebar Support Tube Frame (75).

  • Page 18: Hexagon Socket Head Cap Bolt

    ASSEMBLY Tool: 5mm Allen Wrench with Phillips Screwdriver Left Table Hinge Right Table Hinge 6. Installing the Hinges Install both the Right/Left Table Hinges (79R/79L) to the right and left sides of the Handlebar Support Tube Frame (75). Then attach the Table (64) onto both the Right/Left Table Hinges (79R/79L) with four Hexagon Socket Head Cap Bolts (86).

  • Page 19: Computer

    COMPUTER Quick Start: Flip the Power Switch that is located at the front of the treadmill to the ON position. The treadmill will self-test for 2 seconds on startup and then the speed setting will show up after a 2 second long beep.
  • Page 20 COMPUTER SPEED DOWN: Used to make decreasing adjustments of hours and minutes for setting the clock in time mode. Also to make decreasing adjustments for pre-setting target training time, distance, or calories in manual mode. Also to make decreasing adjustments for pre-setting target training time in program mode.
  • Page 21 COMPUTER CALORIES: Displays the total cumulative calories burned during your workout. You may also pre-set target calories in STOP mode before training. To pre-set CALORIES press the MODE button until you see the CALORIES sub-window begin blinking. Press the SPEED UP or SPEED DOWN button to change the calories;...
  • Page 22 COMPUTER Training In Program Mode: This computer offers 5 different pre-set training programs. Press the PROGRAM button to select one of five programs. The TIME sub-window will begin blinking for pre-setting training program time. The initial pre-set training program time is 30:00 minutes. Press the SPEED UP or SPEED DOWN button to increase or decrease the training program time.
  • Page 23 COMPUTER INTERVAL SPEED (MPH) 0.6 1.3 1.3 1.3 1.9 1.9 1.9 2.5 INTERVAL SPEED (MPH) 3.1 3.1 3.1 3.1 2.5 1.9 1.3 0.6 P3 PROGRAM PROFILE INTERVAL SPEED (MPH) 2.5 3.1 2.5 1.9 0.6 1.9 2.5 3.1 INTERVAL SPEED (MPH) 0.6 1.9 2.5 3.1 2.5 1.9 1.3 0.6 P4 PROGRAM PROFILE INTERVAL...
  • Page 24 COMPUTER Training In USER Program Mode: This computer offers 2 user customizable programs. Press the PROGRAM button to select training program USER1 or USER2. Time setting: The sub-window of TIME will begin blinking for pre-setting training program time. The initial pre-set training program time is 30:00 minutes.

  • Page 25: Operations & Adjustments

    OPERATIONS & ADJUSTMENTS Adjusting the Angle of the Table The table has 4 different adjustment angles of incline that can be set. Ensure the Knob (74) is securely tightened to prevent the table from collapsing and damaging anything. NOTE: While desk top completely folded down, the treadmill can be used as a regular treadmill without losing functionality.
  • Page 26 OPERATIONS & ADJUSTMENTS SETTING DOWN THE TREADMILL Remove the Knob (74) from the back of the Table (64). Lift both Table (64) and Table Angle Adjustment Tube (68) up. Then slot the Table Angle Adjustment Tube (68) into the Table Angle Adjuster (70) which is under the Table (64).

  • Page 27: Storage

    STORAGE FOLDING UP THE TREADMILL Firmly grasp the back end of the treadmill. Carefully lift the end of the treadmill up into the upright position until the Spring Knob (23) "pops" into the locked position. Remove the Knob (74) from the Table Angle Adjustment Tube (68).

  • Page 28: Maintenance & Troubleshooting

    MAINTENANCE & TROUBLESHOOTING WARNING: To prevent electrical shock, turn off and unplug the treadmill before cleaning or performing routine maintenance. Remove everything on the table before adjusting the table to different angle. Ensure the knob is secured before placing anything on the table. CLEANING The treadmill can be cleaned with a soft cloth and mild detergent.
  • Page 29 MAINTENANCE & TROUBLESHOOTING Problem Potential Causes Corrections Bad communication for upper Er 1 (Computer did Check the cables are in good and lower controller. not receive any connection. The communicate signal from signal for 30 upper or lower controller is bad seconds.) Turn off the Power by interference from motor.
  • Page 30 MAINTENANCE & TROUBLESHOOTING Problem Potential Causes Corrections 1. Check your machine to make Er 5 (Excessive 1. Turn off the Power Switch sure the running belt is without drive motor to the OFF position, wait 30 any abnormal interference. current.) seconds, then turn on the Power Switch to the ON position.

  • Page 31: Belt Adjustment

    MAINTENANCE & TROUBLESHOOTING Belt Adjustment: The belt tension is properly set before shipping. The belt may come loose during transportation and/or from use. After prolonged use of the treadmill, the belt will stretch out. If the belt begins shifting away from the center, turn on the main power switch of the treadmill and let the belt run at a speed of 1-1.5 MPH.

  • Page 32: Warranty

    WARRANTY MANUFACTURER’S LIMITED WARRANTY Paradigm Health & Wellness warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with Paradigm’s Owner’s Manual.

  • Page 33: Parts Request Form

    PARTS REQUEST FORM Paradigm Health & Wellness, Inc. EMAIL THIS FORM WITH YOUR RECEIPT OF PURCHASE TO Service@paradigmhw.com NAME:_____________________________________________________________________________________ ADDRESS:__________________________________________________________________________________ CITY:________________________ STATE:_____________ ZIP:_______________________________________ TELEPHONE: (Day)__________________________________________________________________________ (Night)_________________________________________________________________________ SERIAL#:___________________________________________________________________________________ MODEL#:___________________________________________________________________________________ PURCHASE DATE:___________________________________________________________________________ PLACE OF PURCHASE:_______________________________________________________________________ PART # DESCRIPTION “YOUR ORDER WILL BE PROCESSED WITHIN 3 BUSINESS DAYS” * This form can also be faxed in Fax #: 626-810-2166...
