Exerpeutic TF2000 Owner's Manual

Fitness walking and rehab treadmill
Hide thumbs

Advertisement

Table of Contents

IMPORTANT: Read all instructions carefully before assembling and/or using this product.
Retain this owner's manual for future reference. The specifications of this product may
vary from this photo and is subject to change without notice.
4001.2-010418

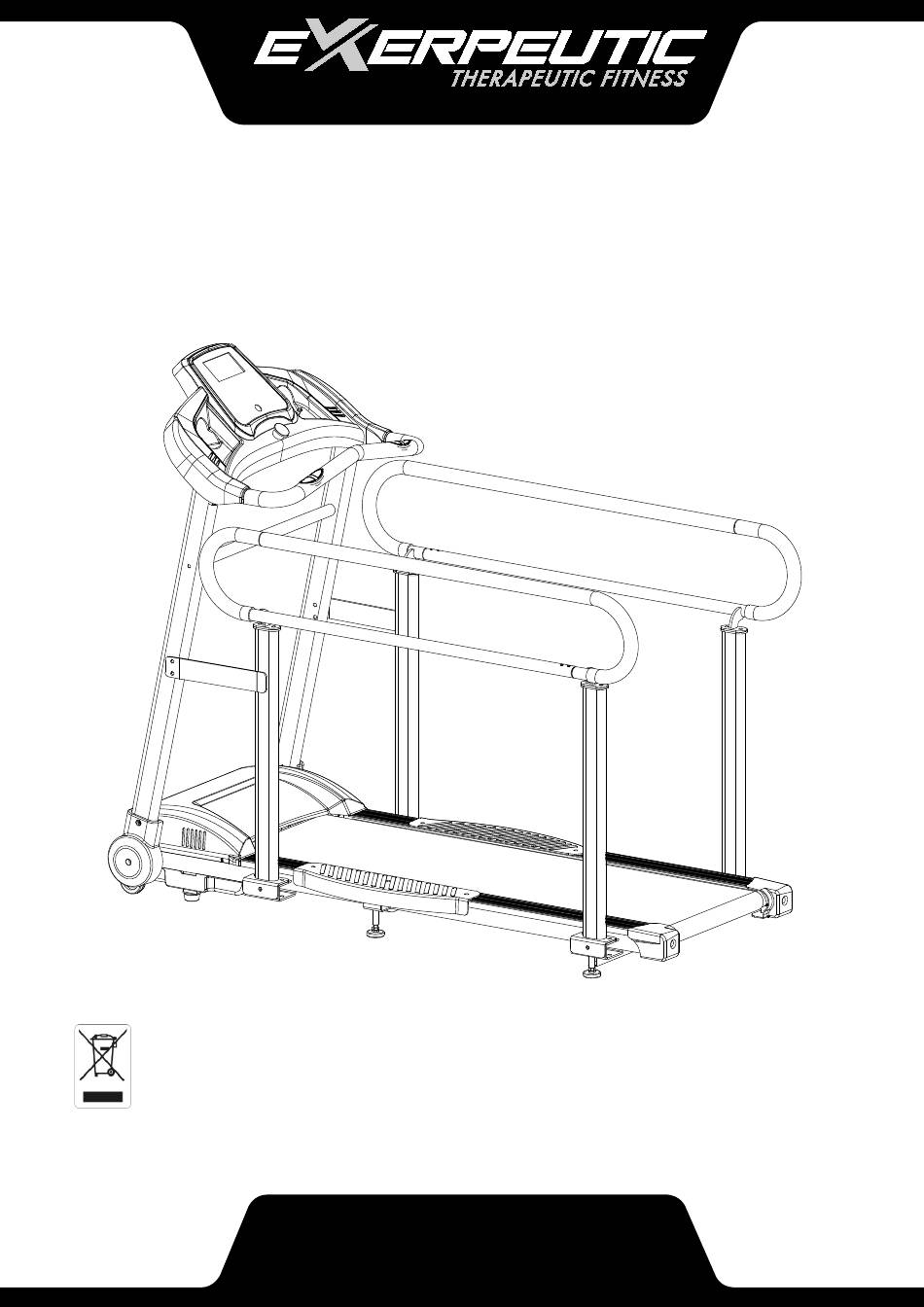

EXERPEUTIC TF2000 Fitness
Walking and Rehab Treadmill
OWNER'S MANUAL
hh

Advertisement

Table of Contents
loading

Related Manuals for Exerpeutic TF2000

Summary of Contents for Exerpeutic TF2000

  • Page 1 EXERPEUTIC TF2000 Fitness Walking and Rehab Treadmill IMPORTANT: Read all instructions carefully before assembling and/or using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo and is subject to change without notice.
  • Page 2 PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE. STOP. Contact customer service if you have any questions regarding assembly or proper operation of the machine. Email us at: Service@paradigmhw.com Hours: 8:00 AM to 5:00 PM (PST) Daily Or call us at: 1-844-641-7921...

  • Page 3: Table Of Contents

    TABLE OF CONTENT SERVICE ------------------------------------------------------------------------ LABEL PLACEMENT --------------------------------------------------------- IMPORTANT SAFETY GUIDELINES ------------------------------------ OVERVIEW DRAWING ------------------------------------------------------ HARDWARE & TOOLS PACK ---------------------------------------------- PARTS LIST -------------------------------------------------------------------- ASSEMBLY --------------------------------------------------------------------- COMPUTER -------------------------------------------------------------------- ADJUSTMENTS---------------------------------------------------------------- LUBRICATION ----------------------------------------------------------------- TROUBLE SHOOTING------------------------------------------------------ TRANSPORTING------------------------------------------------------------- WARRANTY -------------------------------------------------------------------- PARTS REQUEST FORM --------------------------------------------------...

  • Page 4: Service

    SERVICE IMPORTANT: FOR NORTH AMERICA ONLY For damaged or defective product, questions, replacement parts or any other service support, please contact our customer service department by the methods below: For The Best Service, please Email: service@paradigmhw.com Response Time: 1-2 Business Days Emailing us with the information above will be the best method to receive a response during peak business hours Website:...

  • Page 5: Label Placement

    LABEL PLACEMENT...

  • Page 6: Important Safety Guidelines

    IMPORTANT SAFETY GUIDELINES Basic precautions should always be followed, including the following safety instructions when using this treadmill: Read ALL GUIDELINES BEFORE USING THIS TREADMILL. DANGER: To reduce the risk of electric shock, read the following:  Always unplug the treadmill from the electrical outlet immediately after usage. Also unplug the treadmill before cleaning, assembling, or servicing.
  • Page 7 IMPORTANT SAFETY GUIDELINES  Keep the electrical cord away from heated surfaces.  Never insert any object into any opening.  Keep the treadmill on a solid, level surface with a minimum safety area clearance of 6 square feet around the treadmill. Be sure the area around the treadmill remains clear during use and has adequate clearance.
  • Page 8 IMPORTANT SAFETY GUIDELINES GROUNDING INSTRUCTIONS  This product must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current reducing the risk of electric shock. * This treadmill is equipped with a cord having equipment grounding conductor and a grounding plug.
  • Page 9 IMPORTANT SAFETY GUIDELINES WARNING: Before beginning any exercise program consult your physician. This is especially important for the people who are over 35 years old or who have pre-existing health problems. Read all instructions before using any fitness equipment. We assume no responsibility for personal injury or property damage sustained by or through the use of this product.

  • Page 10: Overview Drawing

    OVERVIEW DRAWING...

  • Page 11: Hardware & Tools Pack

    HARDWARE & TOOLS PACK Silicone Oil 1 bottle...

  • Page 12: Parts List

    PARTS LIST Description Description A01 Main Frame C16 Left Foot Rest A02 Console Bracket C17 Right Foot Rest A03 Front Handlebar Tube C18 Left Rear Cover A04 Left Upright Tube C19 Right Rear Cover A05 Right Upright Tube C20 Side Rail A06 Front Cross Tube C21 Black Shock Absorber A07 Walking Board Support Tube...
  • Page 13 PARTS LIST Description Description E05 Bolt M8*60 E20 Self-Tapping Screw ST4.2*12 E06 Bolt M8*50 E21 Self-Drilling Screw ST4.2*12 E07 Bolt M8*40 E22 Screw ST4.0*25 E23 Washer Ø6 E08 Bolt M8*38 E24 Washer Ø8 E09 Bolt M8*35 E25 Spring washer Ø8 E10 Bolt M8*20 E26 Flat Washer Ø8 E11 Bolt M8*15...

  • Page 14: Assembly

    ASSEMBLY Tool: (B04) Allen Wrench 5mm 1PC Step 1 A. Placing the Treadmill on the Floor: 1. Lift the treadmill out of the box and place it on the floor. Stabilize the treadmill by turning the Adjustable Foot Pads (C25) until they all make contact with the floor and the treadmill does not shake.
  • Page 15 ASSEMBLY Tool: (B05) Allen Wrench 5mm 1PC Step 2 A. Connecting the Signal Wire: 1. Connect the Lower Signal Wire (D04) from the Right Upright Tube (A05) and the Upper Signal Wire (D16) from the Console Top Cover (C01). See Fig. B. B.
  • Page 16 ASSEMBLY Tool: (B03) Multi Hex Tool with Phillips Screwdriver 1PC (B04) Allen Wrench 5mm 1PC Step 3 A. Installing the Right Front Supporting Tube: 1. Align the TOP bolt holes on both the Front Right Support Tube (A09) and the Main Frame (A01).
  • Page 17 ASSEMBLY Tool: (B03) Multi Hex Tool with Phillips Screwdriver 1PC (B04) Allen Wrench 5mm 1PC Step 4 A. Installing the Left Front Supporting Tube: 1. Align the TOP bolt holes on both the Front Left Support Tube (A08) and the Main Frame (A01).
  • Page 18 ASSEMBLY Tool: (B04) Allen Wrench 5mm 1PC Fig. C Fig D. Step 5 A. Installing the Side Handlebar: 1. Align the bolt holes on the Side Handlebars (A11) with the Left and Right Front Supporting Tubes (A08) & (A09). Insert eight Bolts (E11), eight Spring Washers (E25), and eight Flat Washers (E26).
  • Page 19 ASSEMBLY Tool: (B03) Multi Hex Tool with Phillips Screwdriver 1PC Step 6 A. Installing the Upright Tube Covers: A. Attach both Left & Right Upright Tube Covers (C15) on to Left & Right Upright Tubes (A04) & (A05) with four Screws (E17) B.
  • Page 20 ASSEMBLY Step 7 A. Turning on the treadmill: 1. Plug the Power Cord (D10) into a wall outlet and then turn put the Power Switch (D09) into the ON position. Warning: Do not use a power adaptor with the power cord. Warning: Do not use an extension cord with the power cord.

  • Page 21: Computer

    COMPUTER WINDOW DISPLAYS: 1. SPEED display will show speed i. Speed range is 0.2-5.0 MPH. 2. TIME display will show the walking time from 0:00-99:59 MINS. i. When the count reaches the maximum of 99:59 MINS, the machine will stop smoothly and show “END”...
  • Page 22 COMPUTER 4. SAFETY KEY STOP BUTTON: For any emergency, pull the safety key rope to remove the Safety Tether Key, and the machine will stop. 5. EMERGENCY STOP BUTTON: For any emergency, press this button to stop the workout immediately. QUICK START 1.
  • Page 23 COMPUTER TREADMILL FUNCTIONS SAFETY LOCK FUNCTION: Removing the Safety Tether Key from the computer console while the treadmill is in motion will cause the walking belt to stop immediately. The window display of the computer will show “- - -” and the console will beep 3 times.

  • Page 24: Adjustments

    ADJUSTMENT General cleaning will help prolong the life span and performance of your treadmill. Keep the unit clean and maintained by dusting the components on a regular basis. Clean both sides of the walking belt to prevent dust from accumulating underneath the belt. Keep your shoes clean so that dirt from your shoes do not wear out the walking board and belt.

  • Page 25: Lubrication

    LUBRICATION IMPORTANT NOTE: You will need to lubricate your treadmill before the first use. WALKING BELT & TREADMILL LUBRICANTION: Lubricating the walking board and walking belt is essential as the friction between the two affects the life span and function of the treadmill, therefore it is suggested that the walking board and belt be inspected regularly.

  • Page 26: Trouble Shooting

    TROUBLE SHOOTING PROBLEM CAUSE SOLUTION Power cord is not plugged in. Plug power cord into outlet. Treadmill will not start Safety Tether Key not Insert Safety Tether Key. inserted. Walking belt tension is not Tighten the adjustment bolts on the Walking belt not centered Properly set on the left or right left and right side of the rear roller.

  • Page 27: Transporting

    TRANSPORTING Hold the rear of the Main Frame (A01) with both hands and then gently lift the treadmill onto the Adjustable Wheel (C23). Move the treadmill to your desired location and slowly lower it back to the ground. WARNING: Turn the power switch off and unplug the power cord. WARNING: Fix the power cord to the frame so it does NOT drag on the floor while moving the treadmill.

  • Page 28: Warranty

    WARRANTY MANUFACTURER’S LIMITED WARRANTY Paradigm Health & Wellness warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with Paradigm’s Owner’s Manual.

  • Page 29: Parts Request Form

    PARTS REQUEST FORM Paradigm Health & Wellness, Inc. EMAIL THIS FORM WITH YOUR RECEIPT OF PURCHASE TO Service@paradigmhw.com NAME:_____________________________________________________________________________________ ADDRESS:__________________________________________________________________________________ CITY:________________________ STATE:_____________ ZIP:_______________________________________ TELEPHONE: (Day)__________________________________________________________________________ (Night)_________________________________________________________________________ SERIAL#:___________________________________________________________________________________ MODEL#:___________________________________________________________________________________ PURCHASE DATE:___________________________________________________________________________ PLACE OF PURCHASE:_______________________________________________________________________ PART # DESCRIPTION “YOUR ORDER WILL BE PROCESSED WITHIN 3 BUSINESS DAYS” * This form can also be faxed in Fax #: 626-810-2166...
