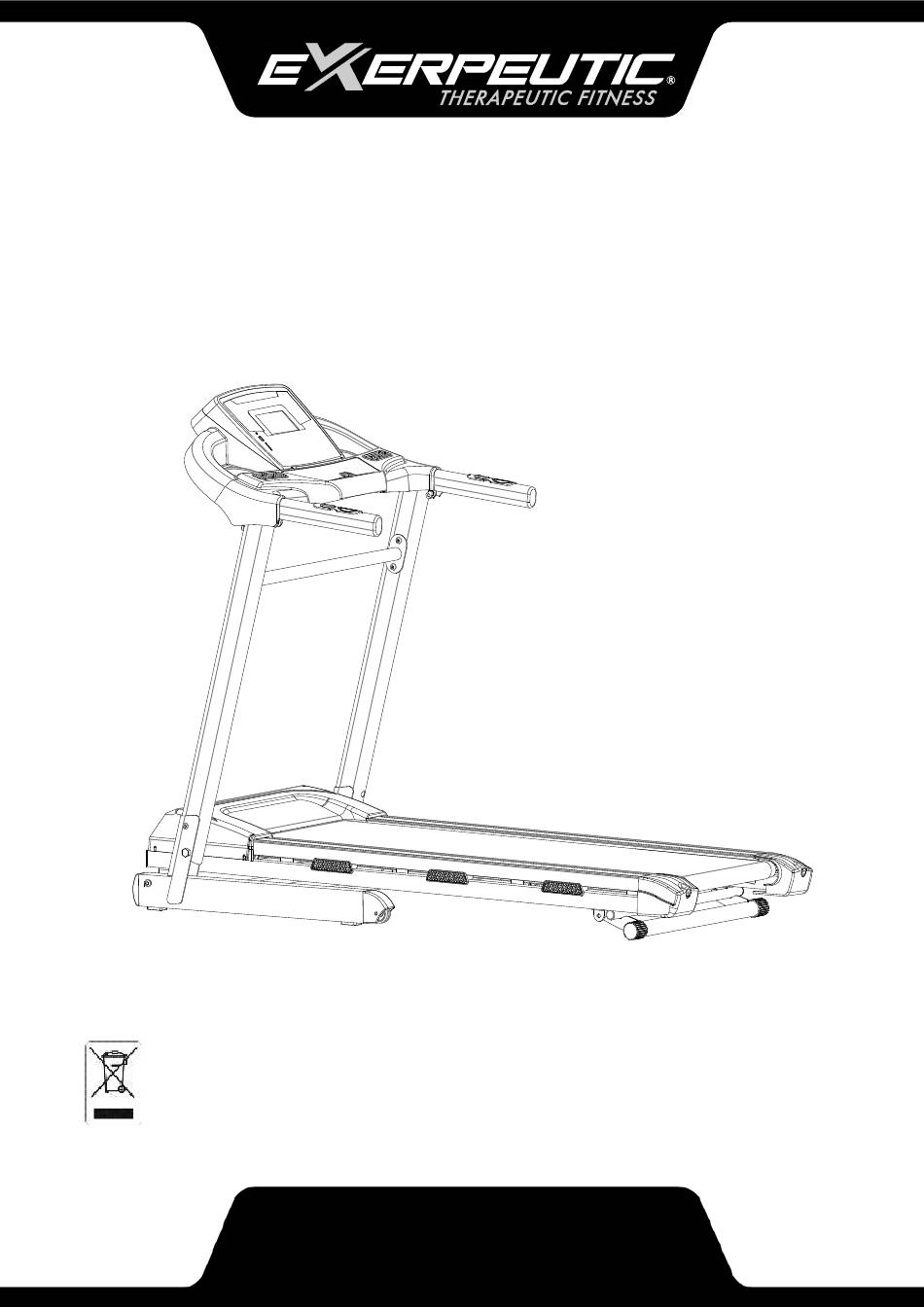

TF3000 ELECTRIC FOLDABLE
TREADMILL WITH COMPUTER
WORKOUT GOAL SETTING
IMPORTANT: Read all instructions carefully before using this product.
Retain this owner's manual for future reference.
The specifications of this product may vary from this photo, subject to
change without notice.
OWNER'S MANUAL
4055.2-010319
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Exerpeutic TF3000
Summary of Contents for Exerpeutic TF3000
- Page 1 TF3000 ELECTRIC FOLDABLE TREADMILL WITH COMPUTER WORKOUT GOAL SETTING IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo, subject to change without notice.
- Page 2 PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE. STOP. Contact customer service if you have any questions regarding assembly or proper operation of the machine. Email us at: Service@paradigmhw.com Or call us at: 1-844-641-7921 Hours: 8:00 am to 5:00 pm (PST) Monday thru Friday...
-
Page 3: Table Of Contents
TABLE OF CONTENT SERVICE ---------------------------------------------------------------------- 2 LABEL PLACEMENT ------------------------------------------------------- 3 IMPORTANT SAFETY GUIDELINES ---------------------------------- OVERVIEW DRAWING ---------------------------------------------------- 8 PARTS LIST ------------------------------------------------------------------ 9 HARDWARE & TOOL LIST----------------------------------------------- ASSEMBLY ------------------------------------------------------------------- 12 COMPUTER ------------------------------------------------------------------ 15 ADJUSTMENTS ------------------------------------------------------------ MAINTENANCE ------------------------------------------------------------ FOLDING THE TREADMILL--------------------------------------------- TRANSPORTING ---------------------------------------------------------- TROUBLE SHOOTING --------------------------------------------------- WARRANTY ------------------------------------------------------------------ 23 PARTS REQUEST FORM ------------------------------------------------... -
Page 4: Service
SERVICE IMPORTANT: FOR NORTH AMERICA ONLY For damaged or defective product, questions, replacement parts or any other service support, please contact our customer service department by the below methods: For The Best Service, please Email: service@paradigmhw.com Response Time: 1-2 Business Days Emailing us with the information above will be the best method to receive a response during peak business hours Website:... -
Page 5: Label Placement
LABEL PLACEMENT... -
Page 6: Important Safety Guidelines
IMPORTANT SAFETY GUIDELINES Basic precautions should always be followed, including the following safety instructions when using this treadmill: Read all instructions before using this treadmill. DANGER: To reduce the risk of electric shock, please read the following: Always unplug the treadmill from the electrical outlet immediately after using and before cleaning, assembling, or servicing. - Page 7 IMPORTANT SAFETY GUIDELINES Only one person should be on the treadmill while in use. Wear comfortable and suitable clothing when using the treadmill. Do not use the treadmill barefoot, in only socks or in sandals, always wear athletic shoes. Never wear loose clothing because it could run the risk of getting caught in the treadmill.
- Page 8 IMPORTANT SAFETY GUIDELINES GROUNDING INSTRUCTIONS This product must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current reducing the risk of electric shock. * This treadmill is equipped with a cord having equipment grounding conductor and a grounding plug.
- Page 9 IMPORTANT SAFETY GUIDELINES WARNING: Before beginning any exercise program consult your physician. This is especially important for the persons who are over 35 years old or who have pre-existing health problems. Read all instructions before using any fitness equipment. We assume no responsibility for personal injury or property damage sustained by or through the use of this product.
-
Page 10: Overview Drawing
OVERVIEW DRAWING... -
Page 11: Parts List
PARTS LIST Part # Description Part # Description Front Frame Belt 192/J5 Bed Frame Front Roller Ø90xØ42xØ15x5 Air Piston Hex Bolt M8x25 Console Hex Bolt M8x55 Left Front Post Rear Roller Right Front Post Running Deck Hex Bolt M10x85 Rubber Pad Anti-Loosen Nut M10 Cushion Motor... - Page 12 PARTS LIST Part # Description Part # Description Curved Washer M6 Flat Washer M6 Spring Washer M6 Screw M6x16 Pad φ22*T10 Flat Washer M10 Nylon Nut M4 Transformer...
-
Page 13: Hardware & Tool List
HARDWARE & TOOLS PACK (70) Spring Washer (12) Hex Bolt (69) Curved Washer 6PCS 6PCS 6PCS (52) Hex Bolt (53) Flat Washer 2PCS 2PCS 6mm Allen Wrench 1 PC Silicone Oil 5mm Allen Wrench 1 PC 1 Bottle... -
Page 14: Assembly
ASSEMBLY Tool: 6mm / 5mm Allen Wrench 1 PC Fig. A Step 1 1a. Lifting and Installing the Front Post: Lift up the Right and Left Front Post (6) & (5) from the folded position as shown in Fig. A. Align the bolt holes on the Right and Left Front Post (6)/(5) and the Bed Frame (2). - Page 15 ASSEMBLY Tool: 5mm Allen Wrench 1 PC Step 2 2a. Installing the Handlebar: Rotate the Handlebar (54) to align the bolt holes at the rear with the Right and Left Front Post (6) & (5) bolt holes. Insert two Hex Bolts (12), two Curved Washers (69) and two Spring Washers (70).
- Page 16 ASSEMBLY Step 3 3a. Turning on the treadmill: Plug the Power Cord (22) into a wall out let and then put the Power Switch (24) into the ON position. Warning: Do not use a power adaptor with the power cord. Warning: Do not use an extension cord with the power cord.
-
Page 17: Computer
COMPUTER Console Functions: The display shows: SPEED, TIME, DISTANCE, CALORIES, and PULSE. Speed Range: 0.4-8.0 MPH 12 preset Programs. Audio Play back by Aux Cable, USB, or SD Card. BUTTON FUNTIONS START 1. Press at the main screen to begin a QUICK START a workout. 2. - Page 18 COMPUTER Starting the belt 1. Clip the Safety Tether Key to your clothes before starting a workout. 2. Step onto the treadmill before the belt starts to move. Never step onto the treadmill if the belt is moving. 3. Press the start button. 4.
-
Page 19: Adjustments
ADJUSTMENTS Belt Adjustment: The belt may come loose during transportation and/or stretch after prolonged use. To correct belt issues reference the following situations for the appropriate actions: 1. Belt is shifting to the LEFT: turn on the main power switch of treadmill and let the belt run at a speed of 1-1.5 MPH. - Page 20 ADJUSTMENTS Incline Adjustment: Raise the rear end of main frame then rotate the Incline Adjuster (3) to position A or B. Position A gives the treadmill deck a 3% Incline. Position B gives the treadmill deck a 6% Incline.
-
Page 21: Maintenance
MAINTENANCE WARNING: You will need to lubricate your treadmill before the first use. RUNNING BELTS & TREADMILL LUBRICANT: Lubricating the running board and running belt is essential as the friction between the two affects the life span and function of the treadmill, therefore it is suggested that the running board and belt be inspected regularly. -
Page 22: Folding The Treadmill
FOLDING THE TREADMILL STORAGE Store the treadmill in a clean and dry environment. Ensure the master power switch is in the off position and the power cord is unplugged from the electrical wall outlet. Storing the treadmill: After using the treadmill, turn OFF the main power switch located at the front near the power cord. Lift the Main Frame (2) until the ORANGE lock on the Air Piston (3) holds the Main Frame (2) in... -
Page 23: Transporting
TRANSPORTING Transporting the Treadmill: Hold both Handlebars (54) and then gently tilt the treadmill back onto the Left and Right Transport Wheels 19/20. Move the treadmill to your desired location and slowly lower it back to the ground. WARNING: Turn the power switch off and unplug the power cord. WARNING: Fix the power cord to the frame so it does NOT drag on the floor while moving the treadmill. -
Page 24: Troubleshooting
TROUBLESHOOTING Error Codes Cause and Solutions Fault Code Cause Solution 1. Ensure that the Safety Tether Key is installed on the Console (4). 2.Restart the power after 1 minute and install the Safety SAFE Safety tether key protection Tether Key (49) 3. -
Page 25: Warranty
WARRANTY MANUFACTURER’S LIMITED WARRANTY Paradigm Health & Wellness warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with Paradigm’s Owner’s Manual. -
Page 26: Parts Request Form
PARTS REQUEST FORM Paradigm Health & Wellness, Inc. EMAIL THIS FORM WITH YOUR RECEIPT OF PURCHASE TO Service@paradigmhw.com NAME:_____________________________________________________________________________________ ADDRESS:__________________________________________________________________________________ CITY:________________________ STATE:_____________ ZIP:_______________________________________ TELEPHONE: (Day)__________________________________________________________________________ (Night)_________________________________________________________________________ SERIAL#:___________________________________________________________________________________ MODEL#:___________________________________________________________________________________ PURCHASE DATE:___________________________________________________________________________ PLACE OF PURCHASE:_______________________________________________________________________ PART # DESCRIPTION “YOUR ORDER WILL BE PROCESSED WITHIN 3 BUSINESS DAYS” * This form can also be faxed in Fax #: 626-810-2166...
