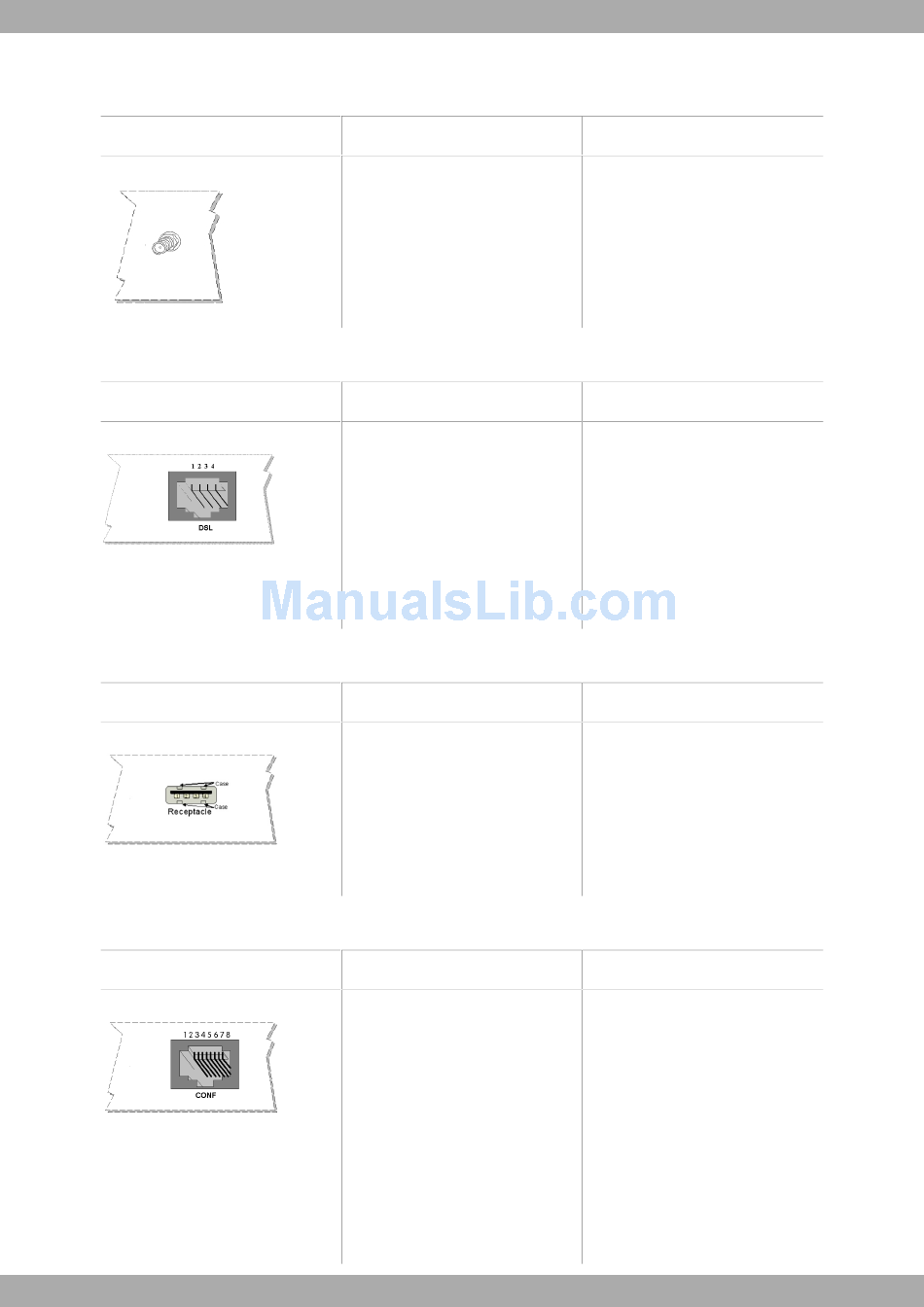

A.3.4 WLAN/WiFi Connector (male)
A.3.5 DSL Connector
RJ11 DSL
A.3.6 USB Connector
USB Type A
A.3.7 Configuration Connector
RJ45 CONFIGURATION
30
PIN
Internal
External
RJ11 PIN
1
2
3
4
5
6
PIN
1
2
3
4
Shell
RJ45 PIN
1
2
3
4
5
6
7
8
ANT
RF in/out
GND
DSL
--
--
Line
Line
--
--
USB
VCC
DATA-
DATA+
GND
Shield
CONF
--
RxD
GND
--
--
GND
TxD
--
