PCIII USB EX
harness
i210-411EX
disconnect these lines
PCIII USB EX
harness
frame tab
The ignition must be turned OFF before
installation.
1
Remove the main seat and the passenger seat.
2
Remove the fuel tank.
Note: The installation can be done without
removing the fuel tank but it may be easier to
remove the fuel tank.
3

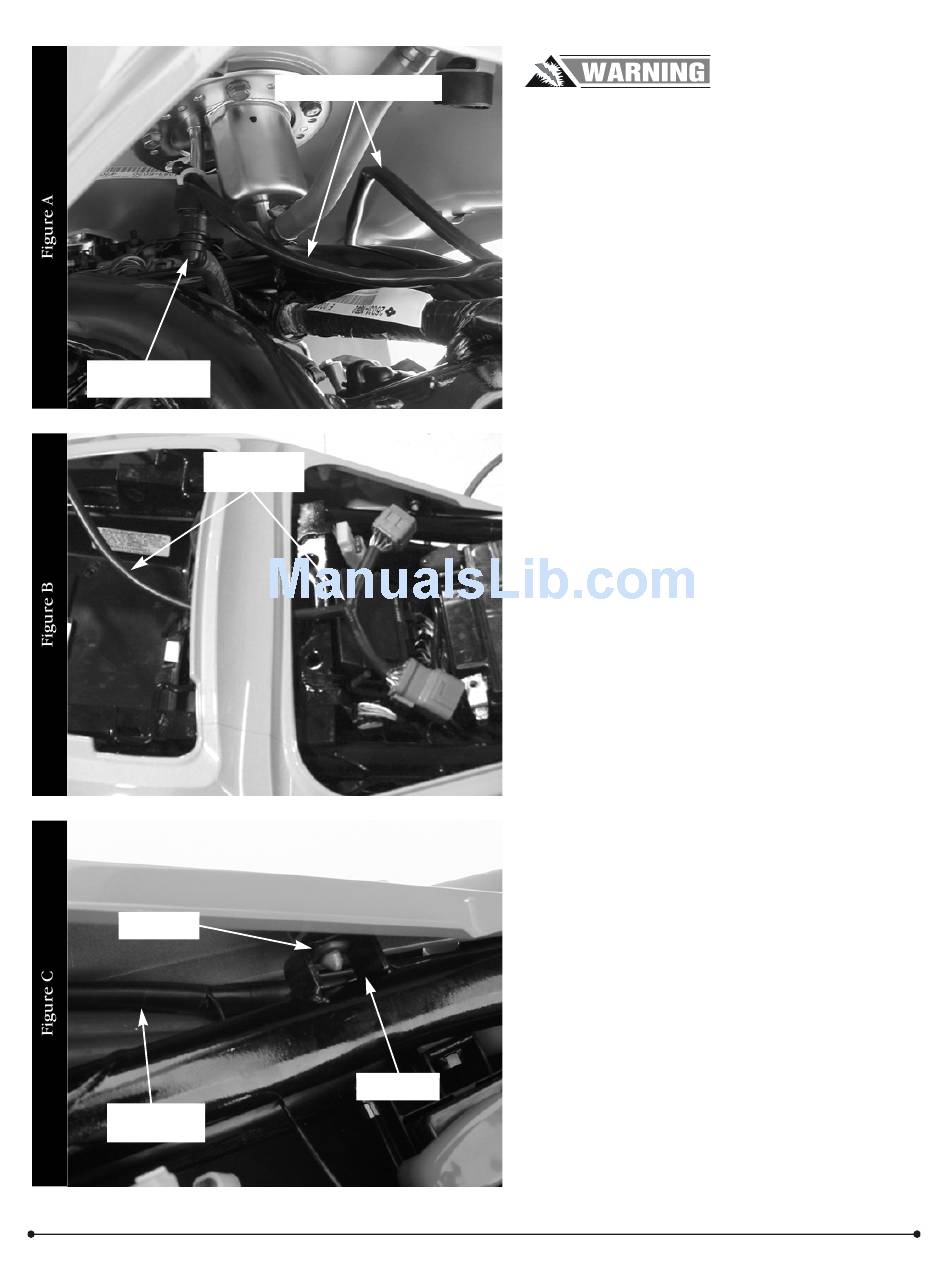

To remove the fuel line, squeeze the sides of
the connector as shown in Figure A.
Disconnect the two electrical connectors.
4
Temporarily lay the PCIII USB EX in the tail
section.
5
Route the harness towards the front of the
bike. Keep the harness between the frame and
the tail section.
6
Pull the left hand side of the tail section out of
the frame grommet towards the front of the tail
section as shown in Figure C.
7
Route the PCIII USB EX harness under the
frame tab as shown in Figure C.
2003-2006 Kawasaki Z1000 - PCIII USB EX - 2
