2004 polaris sportsman 700

Advertisement

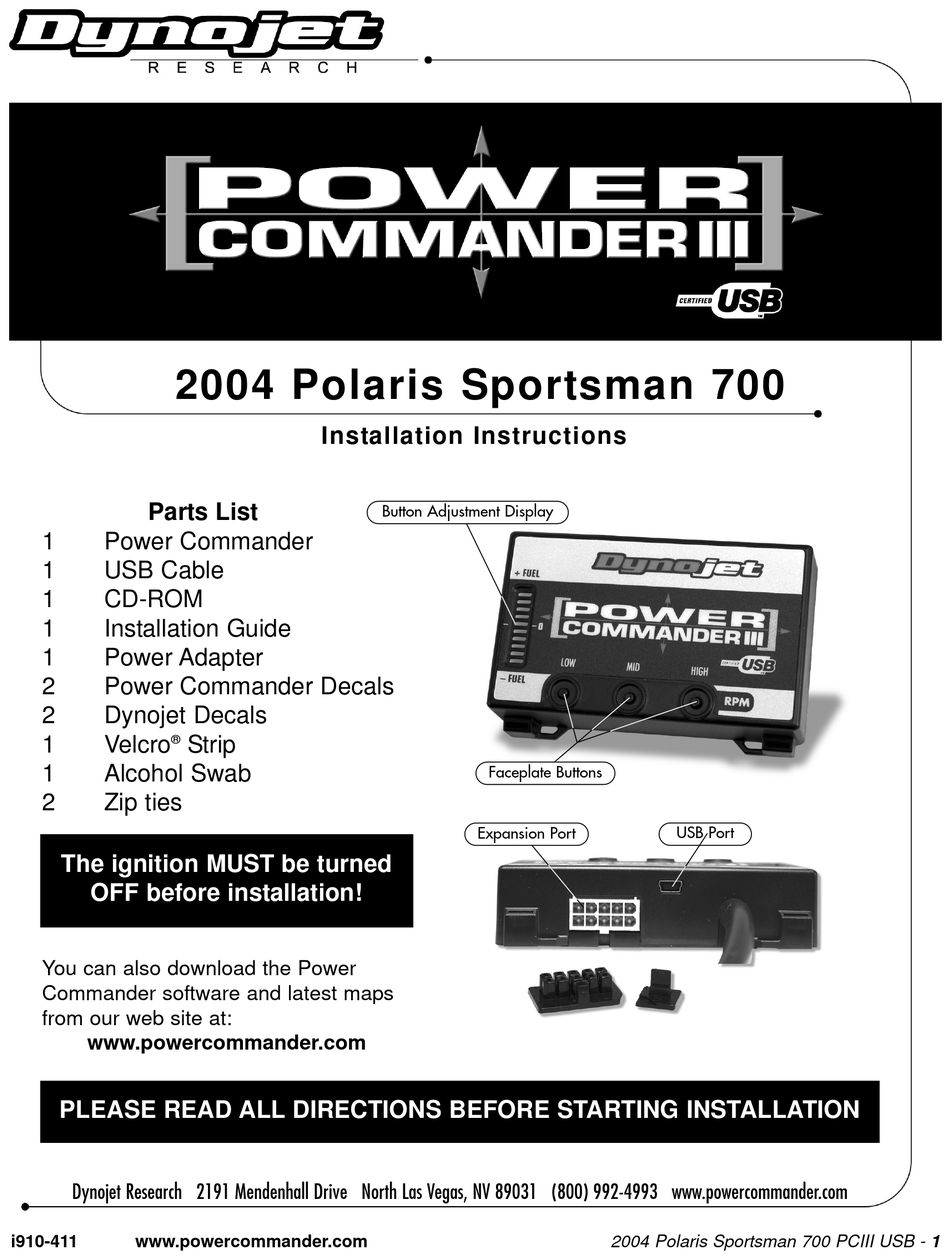

2004 Polaris Sportsman 700

Parts List

1
Power Commander
1
USB Cable
1
CD-ROM
1
Installation Guide
1
Power Adapter
2
Power Commander Decals
2
Dynojet Decals
1
Velcro
Strip
®
1
Alcohol Swab
2
Zip ties
The ignition MUST be turned
OFF before installation!
You can also download the Power
Commander software and latest maps
from our web site at:
www.powercommander.com
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89031 (800) 992-4993 www.powercommander.com
i910-411
www.powercommander.com
Installation Instructions
Button Adjustment Display
Faceplate Buttons
Expansion Port
USB Port
2004 Polaris Sportsman 700 PCIII USB - 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Power Commander III and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dynojet Power Commander III

  • Page 1 Commander software and latest maps from our web site at: www.powercommander.com PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89031 (800) 992-4993 www.powercommander.com i910-411 www.powercommander.com 2004 Polaris Sportsman 700 PCIII USB - 1...
  • Page 2 Remove the front fender rack. Remove the center cover (Fig. A). Remove the right hand side cover (by the shift lever). Remove this cover Unplug the two connectors from the fuel injectors (Fig.B). These connectors are near the ECU. One connector has a WHITE wire and a RED/BLACK wire.
  • Page 3 Locate the grey 3 pin connector Unplug this connector under the right hand side cover (Fig. D). Unplug this connector. Route the white connectors from the PCIII between the front fender and the frame to this con- nector. Plug the connectors from the PCIII in-line of the stock harness Stock connectors (Fig.
  • Page 4 Install the PCIII on top of the stock ECU (Fig. G) using the supplied velcro. Make sure to use the supplied alcohol swab to clean both sur- faces before attaching. Zip tie the grey wire from the PCIII to the frame. Make sure all wires are routed so that they will not get pinched.
