2001-2005 Honda CBR600 F4i
Parts List
1

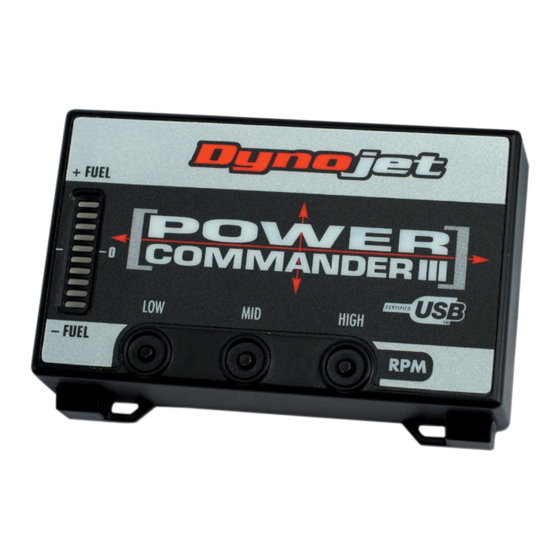

Power Commander
1
USB Cable
1
CD-ROM
1
Installation Guide
1
Power Adapter
2
Power Commander Decals
2
Dynojet Decals
2
Velcro
Strip
®
1
Alcohol Swab
The ignition MUST be turned
OFF before installation!
You can also download the Power
Commander software and latest maps
from our web site at:
www.powercommander.com
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89031 (800) 992-4993 www.powercommander.com
i108-411
Installation Instructions
Button Adjustment Display
Faceplate Buttons
Expansion Port
USB Port
2001-2005 Honda CBR600 F4i - PCIII USB - 1
Advertisement
Table of Contents
Related Manuals for Dynojet Power Commander III USB
Summary of Contents for Dynojet Power Commander III USB
-
Page 1: Installation Instructions
Commander software and latest maps from our web site at: www.powercommander.com PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89031 (800) 992-4993 www.powercommander.com i108-411 2001-2005 Honda CBR600 F4i - PCIII USB - 1... - Page 2 Remove the main seat and the passenger seat. Unplug this connector Remove the black left hand inner fair- ing panel by removing the two bolts (this panel surrounds the gauges down to the fuel tank). Unplug the connector (Fig. A) which may be located under the rubber flap.
- Page 3 Connect the ground wire from the PCIII to the negative side of the bat- Ground wire from PCIII tery (Fig. D). Reinstall the battery cover and ECU. Install the PCIII in the rear section of the trunk using the supplied velcro (Fig.
