Parts List
1

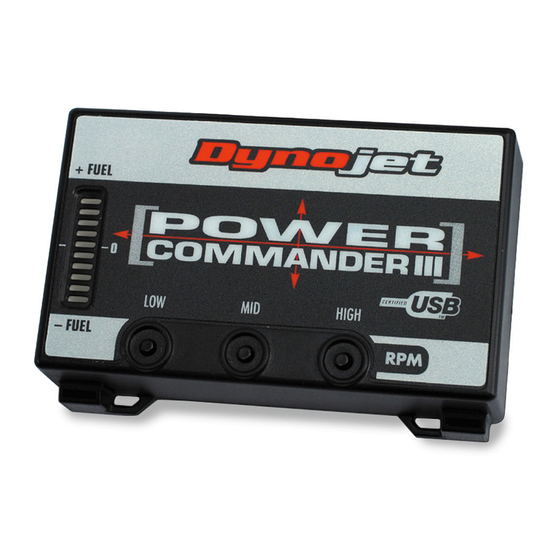

Power Commander
1
USB Cable
1
CD-ROM
1
Installation Guide
1
Power Adapter
2
Power Commander Decals
2
Dynojet Decals
2
Velcro
Strip
®
1
Alcohol Swab
1
O2 eliminator
The ignition MUST be turned
OFF before installation!
You can also download the Power
Commander software and latest maps
from our web site at:
www.powercommander.com
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89081 (800) 992-4993 www.powercommander.com
i129-411
www.powercommander.com
2 0 0 7 H o n d a C B 6 0 0 F
I n s ta l l a t i o n I n s t r u c t i o n s
Button Adjustment Display
Faceplate Buttons
Expansion Port
USB Port
2007 Honda CB600F - 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dynojet Power Commander III
Summary of Contents for Dynojet Power Commander III
- Page 1 You can also download the Power Commander software and latest maps from our web site at: www.powercommander.com PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89081 (800) 992-4993 www.powercommander.com i129-411 www.powercommander.com 2007 Honda CB600F - 1...
- Page 2 Remove the seat. Remove both BLACK side panels. PCIII harness Remove or prop the fuel tank up. Lay the PCIII in the tail section and route the PCIII harness towards the front of the bike (Fig. A). Route the PCIII harness down the left hand side of the bike.
- Page 3 Unplug the stock wiring harness for cylinders #2 and #3 (Fig. D). Unplug Plug the connectors from the PCIII in- PCIII connectors line of the stock injectors and wiring harness (Fig. E). This picture only shows cylinder #1. Repeat steps 8-9 for all 4 injectors. PCIII harness: ORANGE - cylinder #1 YELLOW - cylinder #2...
- Page 4 This connection is under- neath the fuel tank on the right hand side of the air box. Unplug Plug the Dynojet O2 eliminator into the main wiring harness. The stock O2 sensor can be left disconnected or removed from the exhaust if you have a way to cap the exhaust.
