Parts List
1
Power Commander
1
USB Cable
1
CD-ROM
1
Installation Guide
1
Power Adapter
2
Power Commander Decals
2
Dynojet Decals
1
Velcro
Strip
®
1
Alcohol Swab
The ignition MUST be turned
OFF before installation!
You can also download the Power
Commander software and latest maps
from our web site at:
www.powercommander.com
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89031 (800) 992-4993 www.powercommander.com
i210-411
2003 Kawasaki Z1000
Installation Instructions

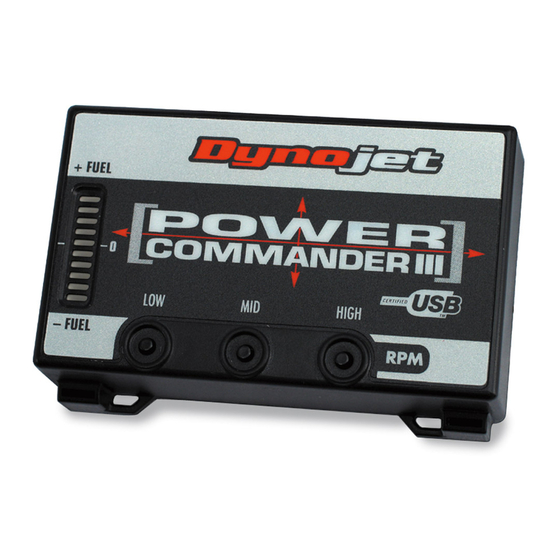

Button Adjustment Display
Faceplate Buttons
Expansion Port
2003 Kawasaki Z1000 - PCIII USB - 1
USB Port
Advertisement
Table of Contents
Related Manuals for Dynojet power commander III
Summary of Contents for Dynojet power commander III
-
Page 1: Installation Instructions
Commander software and latest maps from our web site at: www.powercommander.com PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89031 (800) 992-4993 www.powercommander.com i210-411 2003 Kawasaki Z1000 - PCIII USB - 1... - Page 2 Remove the main seat and the passenger seat. Disconnect these lines Remove the fuel tank Note: The installation can be done without removing the fuel tank but it may be easier to remove the fuel tank. To remove the fuel line squeeze the sides of the connector (Fig.
- Page 3 Route the ground wire from Ground wire the PCIII under the frame and attach to the negative side of the battery (Fig. D). PCIII harness Locate the stock throttle body connector under the fuel tank Pull upwards to remove (Fig. E). Pull straight upwards on this connector to remove from its frame post.
- Page 4 Plug the PCIII harness in-line of the stock connectors (Fig. G). Stock connectors Make sure the PCIII harness is routed so that it will not get pinched or damaged. Reinstall the fuel tank PCIII connectors Clean the PCIII unit and inner fender with the supplied alcohol swab.
