Parts List
1
Power Commander
1
USB Cable
1
CD-ROM
1
Installation Guide
1
Power Adapter
2
Power Commander Decals
2
Dynojet Decals
2
Velcro
Strip
®
1
Alcohol Swab
The ignition MUST be turned
OFF before installation!
You can also download the Power
Commander software and latest maps
from our web site at:
www.powercommander.com
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89081 (800) 992-4993 www.powercommander.com
i233-411
www.powercommander.com

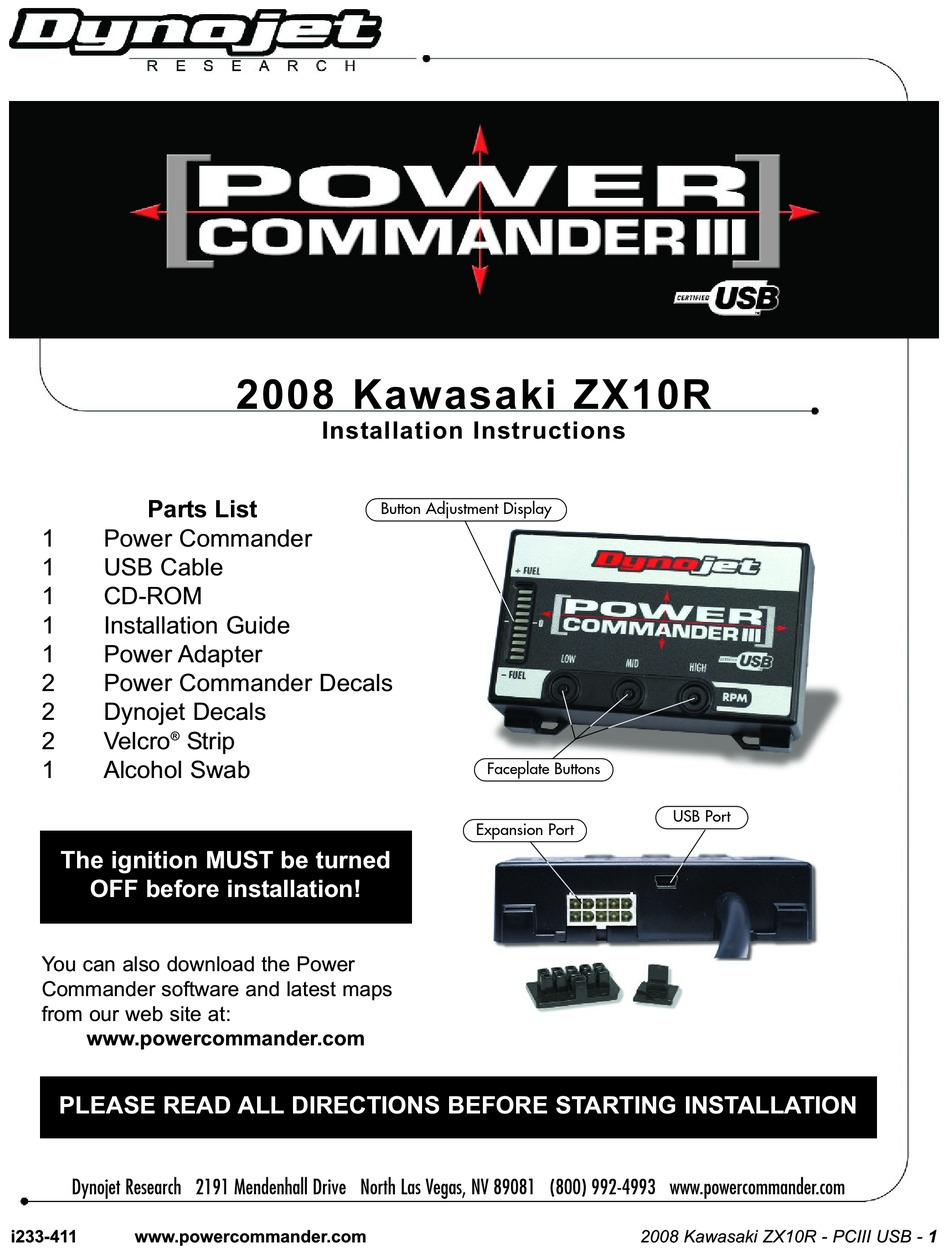

2 0 0 8 K a w a s a k i Z X 1 0 R
I n s ta l l a t i o n I n s t r u c t i o n s
Button Adjustment Display
Faceplate Buttons
Expansion Port
2008 Kawasaki ZX10R - PCIII USB - 1
USB Port
Advertisement
Table of Contents
Related Manuals for Dynojet Power Commander III USB
Summary of Contents for Dynojet Power Commander III USB
-
Page 1: Parts List
Commander software and latest maps from our web site at: www.powercommander.com PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89081 (800) 992-4993 www.powercommander.com i233-411 www.powercommander.com 2008 Kawasaki ZX10R - PCIII USB - 1... - Page 2 Remove the main seat and the passenger seat Remove the right hand side tail sec- tion (Fig. A). Remove covers Prop the front of the fuel tank up. Remove pins Remove the pins on the underside tail section (Fig. B). Route the PCIII harness between the underside tail section and subframe (Fig.
- Page 3 Unplug connector Unplug the main wiring harness from the throttle bodies (Fig. D). This is a 16 pin BROWN connector located under the fuel tank on the right hand side of the bike PCIII connectors Plug the PCIII connectors in-line of the stock wiring harness and throttle body harness (Fig.
- Page 4 Using the supplied velcro attach the PCIII to the inner part of the right hand fairing (Fig. G). Use the alcohol swab to clean both surfaces before attaching. Reinstall all bodywork and fuel tank. i233-411 www.powercommander.com 2008 Kawasaki ZX10R - PCIII USB - 4...
