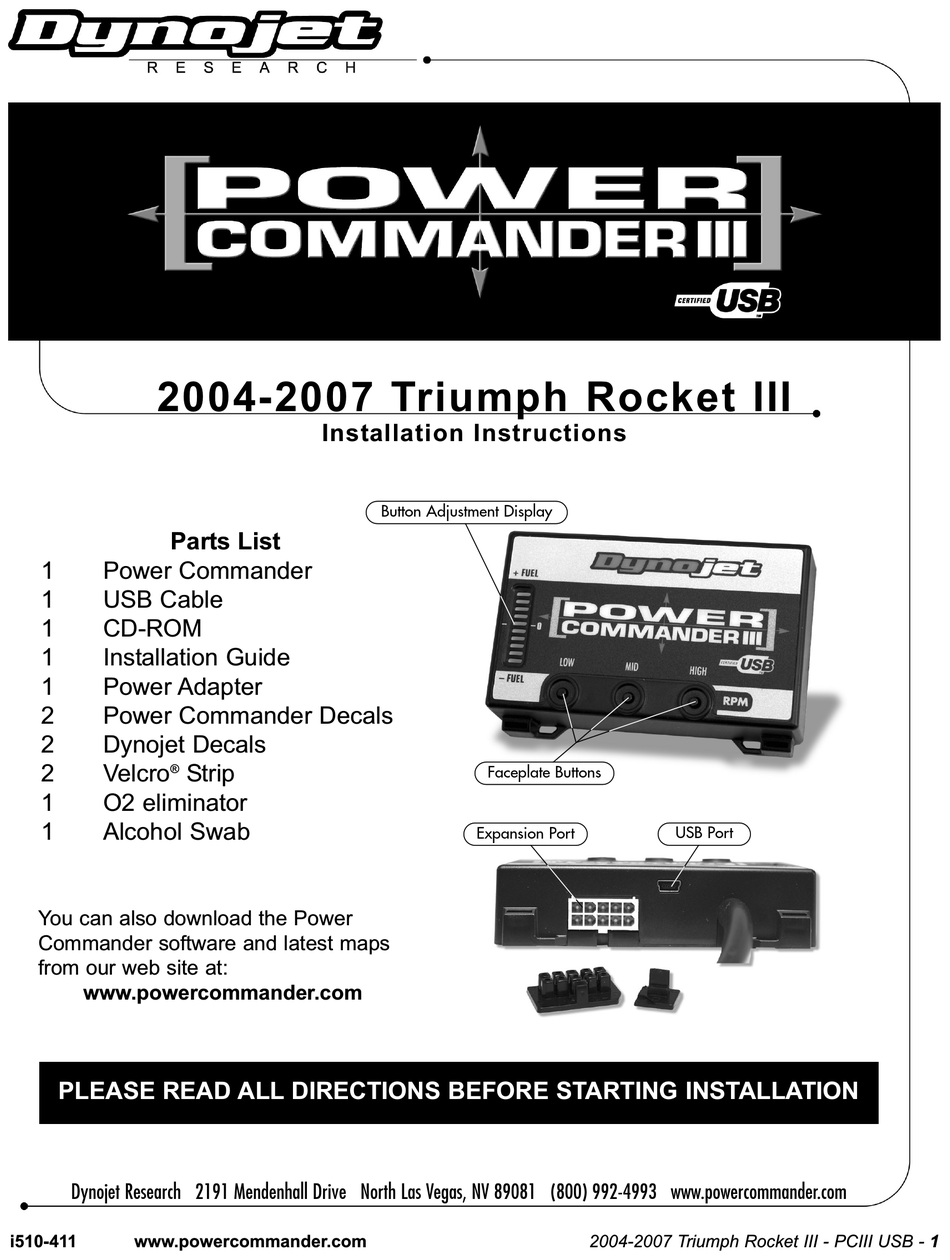

2 0 0 4 - 2 0 0 7 Tr i u m p h R o c k e t I I I
Parts List
1
Power Commander
1
USB Cable
1
CD-ROM
1
Installation Guide
1
Power Adapter
2
Power Commander Decals
2
Dynojet Decals
2
Velcro
Strip
®
1
O2 eliminator
1
Alcohol Swab
You can also download the Power
Commander software and latest maps
from our web site at:
www.powercommander.com
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89081 (800) 992-4993 www.powercommander.com
i510-411
www.powercommander.com
I n s ta l l a t i o n I n s t r u c t i o n s

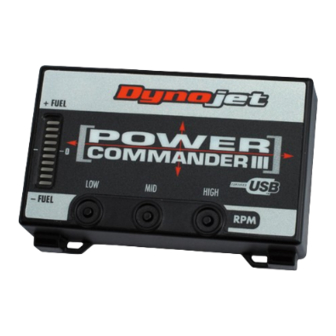

Button Adjustment Display
Faceplate Buttons
Expansion Port
USB Port
2004-2007 Triumph Rocket III - PCIII USB - 1
