Table of Contents
2002 - 2004 HONDA CBR 1100 XX
Parts List
1
Power Commander
1
USB Cable
1
CD-ROM
1
Installation Guide
1
Power Adapter
2
Power Commander Decals
2
Dynojet Decals
1
Velcro
Strip
®
1
Alcohol Swab
The ignition MUST be turned
OFF before installation!
You can also download the Power
Commander software and latest maps
from our web site at:
www.powercommander.com
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89031 (800) 992-4993 www.powercommander.com
i113-411
(2001 – 2004 European Model)
Installation Instructions

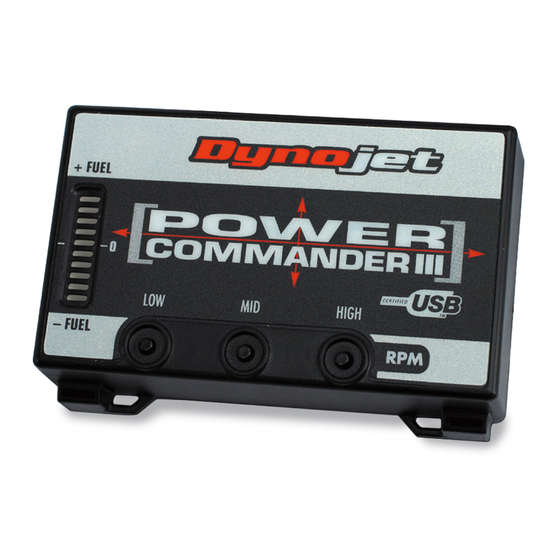

Button Adjustment Display
02-04 Honda CBR 1100 XX
Faceplate Buttons
Expansion Port
(2001-2004 European Model)
USB Port
- PCIII USB - 1
Advertisement
Table of Contents
Related Manuals for Dynojet Power Commander III
Summary of Contents for Dynojet Power Commander III
-
Page 1: Parts List
Commander software and latest maps from our web site at: www.powercommander.com PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89031 (800) 992-4993 www.powercommander.com i113-411 02-04 Honda CBR 1100 XX - PCIII USB - 1... - Page 2 Remove the seat. Lift the front of the fuel tank up. Unplug the grey connector from the wiring harness (Fig. A). This connec- tor is located on the left hand side of the bike and comes from the throttle bodies. Unplug this connector Plug the PCIII connectors in-line of Stock connector...
- Page 3 With the supplied self adhesive vel- cro, attach the PCIII onto the top of the ECU (Fig. D). Make sure to clean both surfaces first with the supplied alcohol swab. Bolt the front of the fuel tank back down. Install the seat. i113-411 www.powercommander.com 02-04 Honda CBR 1100 XX...
