Parts List
1

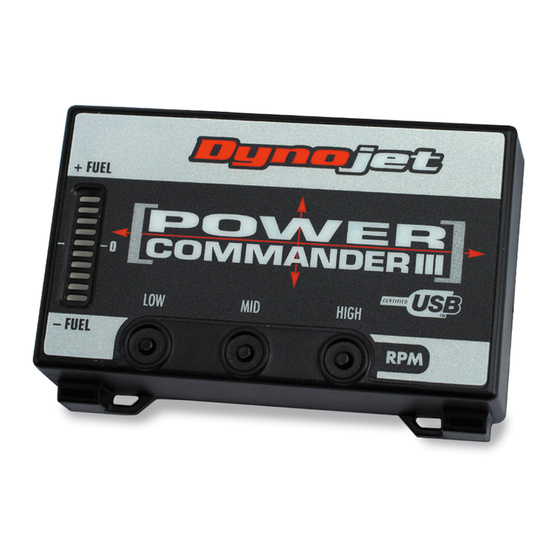

Power Commander
1
USB Cable
1
CD-ROM
1
Installation Guide
1
Power Adapter
2
Power Commander Decals
2
Dynojet Decals
2
Velcro
Strip
®
1
Alcohol Swab
The ignition MUST be turned
OFF before installation!
You can also download the Power
Commander software and latest maps
from our web site at:
www.powercommander.com
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89031 (800) 992-4993 www.powercommander.com
i216-411
i216-411
www.powercommander.com
2004 Kawasaki ZX12R
Installation Instructions
Button Adjustment Display
Faceplate Buttons
Expansion Port
2004 Kawasaki ZX12R - PCIII USB - 1
USB Port
Advertisement
Table of Contents
Related Manuals for Dynojet power commander III
Summary of Contents for Dynojet power commander III
-
Page 1: Installation Instructions
Commander software and latest maps from our web site at: www.powercommander.com PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89031 (800) 992-4993 www.powercommander.com i216-411 i216-411 www.powercommander.com 2004 Kawasaki ZX12R - PCIII USB - 1... - Page 2 Remove the main seat and the passenger seat Prop the front of the fuel tank up. Place the Power Commander in the tail sec- tion and route the wiring Unplug this connector harness on the inside of the tail section towards the front of the bike.
- Page 3 Plug the red connectors from the PCIII in-line of the Stock connectors stock white connectors (Fig. PCIII connectors Connect the ground wire off Ground wire from PCIII of the PCIII to the negative side of the battery (Fig. E). Install the PCIII in the tail section of the bike.
