2002-2003 Yamaha YZF R1
Parts List
1
Power Commander
1
USB Cable
1
CD-ROM
1
Installation Guide
1
Power Adapter
2
Power Commander Decals
2
Dynojet Decals
1
Velcro
Strip
®
1
Alcohol Swab
The ignition MUST be turned
OFF before installation!
You can also download the Power
Commander software and latest maps
from our web site at:
www.powercommander.com
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89031 (800) 992-4993 www.powercommander.com
i405-411
Installation Instructions

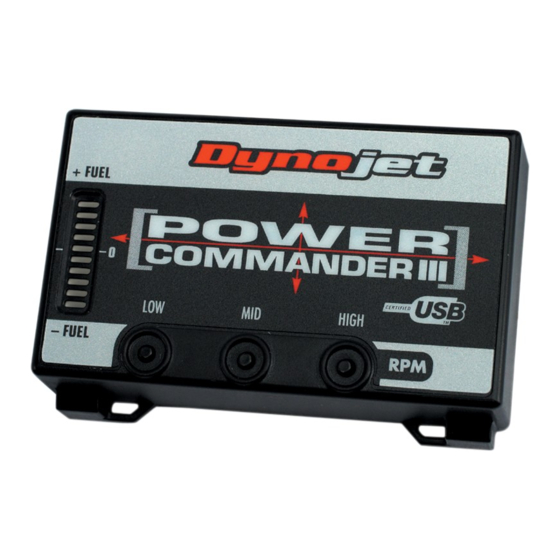

Button Adjustment Display
Faceplate Buttons
Expansion Port
USB Port
2002-2003 Yamaha YZF R1 - PCIII USB - 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dynojet Power Commander III USB
Summary of Contents for Dynojet Power Commander III USB
-
Page 1: Installation Instructions
Commander software and latest maps from our web site at: www.powercommander.com PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89031 (800) 992-4993 www.powercommander.com i405-411 2002-2003 Yamaha YZF R1 - PCIII USB - 1... - Page 2 Remove the main seat and the Unplug these connectors passenger seat / solo cover. Lift the front of the fuel tank up. Locate the connectors shown in Fig. A. These connectors are located behind the throttle bod- ies on the left hand side of the bike.
- Page 3 Attach the ground wire from the PCIII wiring harness PCIII to the negative side of the battery (Fig. D). Ground wire from PCIII Install the PCIII in the rear sec- tion of the trunk using the sup- plied velcro (Fig. E). Make sure to clean both surfaces first with alcohol.
