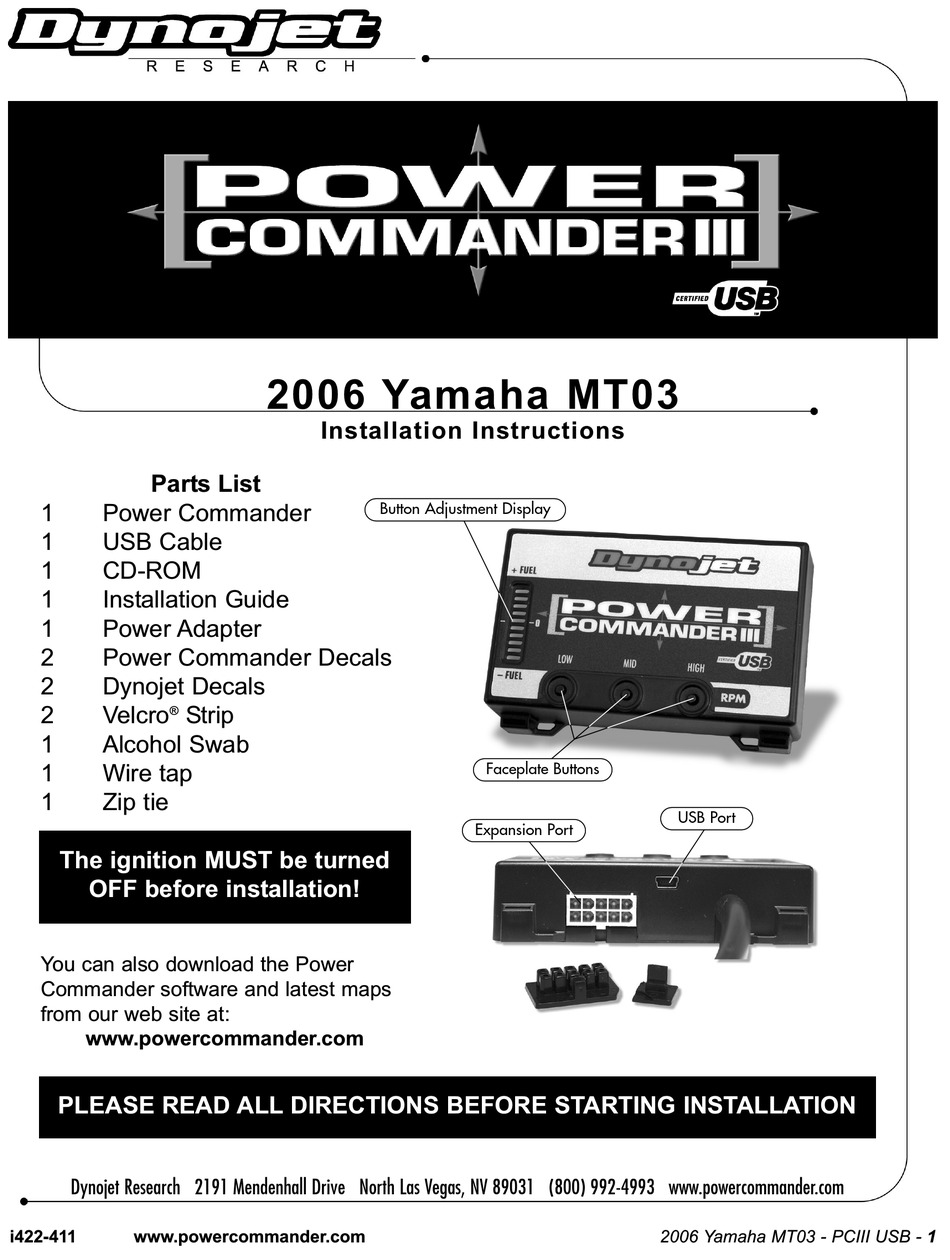

Parts List
1
Power Commander
1
USB Cable
1
CD-ROM
1
Installation Guide
1
Power Adapter
2
Power Commander Decals
2
Dynojet Decals
2
Velcro
Strip
®
1
Alcohol Swab
1
Wire tap
1
Zip tie
The ignition MUST be turned
OFF before installation!
You can also download the Power
Commander software and latest maps
from our web site at:
www.powercommander.com
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89031 (800) 992-4993 www.powercommander.com
i422-411
www.powercommander.com
2 0 0 6 Ya m a h a M T 0 3
I n s ta l l a t i o n I n s t r u c t i o n s
Button Adjustment Display
Faceplate Buttons
Expansion Port
USB Port
2006 Yamaha MT03 - PCIII USB - 1
Advertisement
Table of Contents
Related Manuals for Dynojet Power Commander III
Summary of Contents for Dynojet Power Commander III
-
Page 1: Parts List
Commander software and latest maps from our web site at: www.powercommander.com PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89031 (800) 992-4993 www.powercommander.com i422-411 www.powercommander.com 2006 Yamaha MT03 - PCIII USB - 1... - Page 2 Remove the seat. Prop the front of the fuel tank Lay the PCIII in the frame sec- tion above the oil cooler. Unplug the stock wiring harness from the throttle body (Fig. A). Unplug this connector Stock connector Connect the PCIII wiring har- ness in-line of the stock wiring harness and fuel injector (Fig.
- Page 3 Unplug the Throttle Position Sensor from the the throttle body (Fig. D). Unplug TPS Crimp the supplied wire tap to Grey wire from PCIII the yellow wire (#2 position) of the TPS harness (Fig. E). Connect the GREY wire from Wire tap the PCIII to the wire tap.
