About the storage shelf rear panel

See "About the storage shelf rear panel"
See "About the Symantec Storage Shelf"
The Symantec Storage Shelf contains two I/O modules and two power supplies.
The I/O modules make the storage capacity in the storage shelf available to the
RAID controller in the NetBackup Appliance. This section provides the information
about the I/O modules and power supplies.

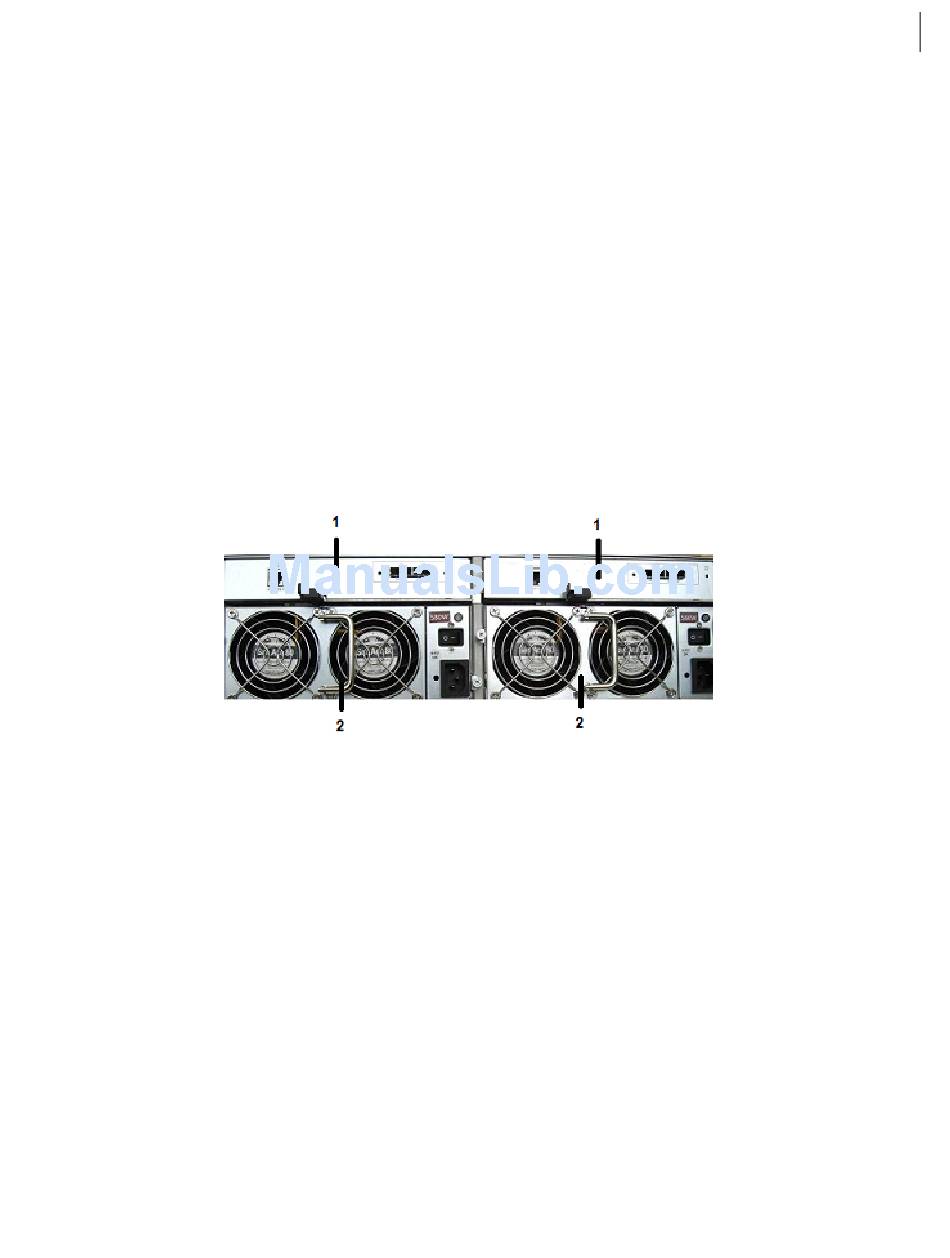

Figure 4-4 shows the storage shelf rear panel. The rear panel provides access to
the I/O modules (1) that connect the storage shelf to the NetBackup appliance. The
power supplies (2) are located under the I/O modules.
Storage shelf rear panel
Figure 4-4
The I/O modules include the SAS_IN and the SAS_OUT ports. The SAS_IN port
is used to connect the I/O module directly to the SAS port on the appliance external
RAID card. If more than one storage shelf is used, the SAS_OUT port of the shelf
that is attached to the appliance attachs to the SAS_IN ports of the next shelf.
Figure 4-5 shows the components in a storage shelf I/O module.
the information about the components available on the I/O module.
About the Symantec Storage Shelf
About the storage shelf rear panel
on page 44.
on page 39.
44
Table 4-3 provides
