HP Apollo 4200 Gen9 User Manual page 11

Item Description
6 PCIe3 x8 (8, 4, 1) slot 1 for low-profile, standup expansion board
7 FlexibleLOM slot
8 Hot-plug power supply bay 1
9 Hot-plug power supply bay 2
10 USB 3.0 connectors
11 NIC 1/shared iLO connector
12 NIC connector 2
13 Video connector
14 Dedicated iLO management connector (optional)
1
The PCIe expansion slots 5-7 are associated with processor 2.
2
The PCIe expansion slots 1-4 and the FlexibleLOM slot are associated with processor 1.

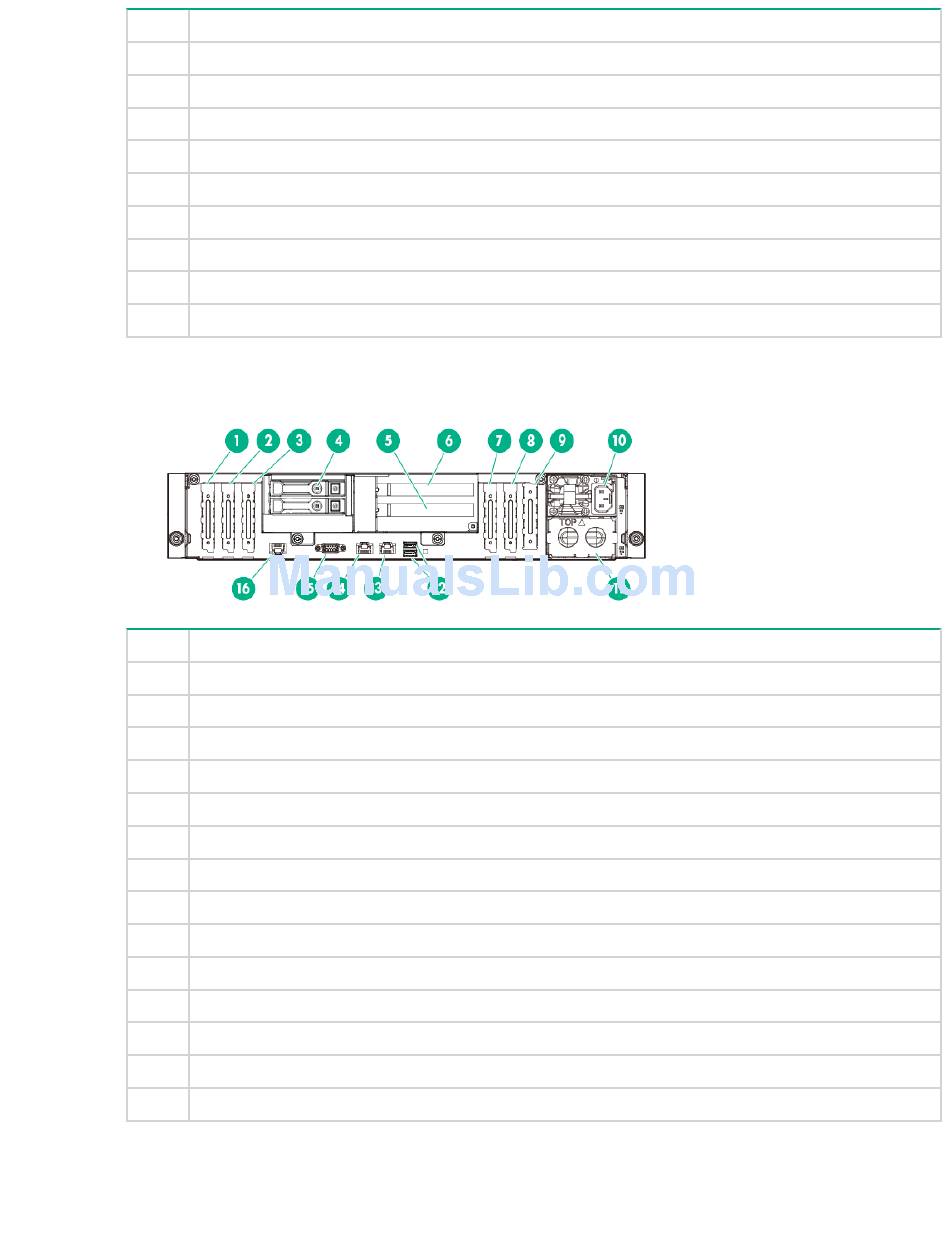

• Rear panel with the two-bay SFF hot-plug rear drive cage and two-slot PCI riser cage options
Item Description
1 PCIe3 x16 (16, 8, 4, 1) slot 7 for low-profile, standup expansion board
2 PCIe3 x8 (8, 4, 1) slot 6 for low-profile, standup expansion board
3 PCIe3 x16 (16, 8, 4, 1) slot 5 for low-profile, standup expansion board
4 SFF hot-plug drives
5 PCIe3 x8 (8, 4, 1) riser slot 4 for full-height, half-length expansion board
6 PCIe3 x8 (8, 4, 1) riser slot 3 for full-height, half-length expansion board
7 PCIe3 x16 (16, 8, 4, 1) slot 2 for low-profile, standup expansion board or riser cage options
8 PCIe3 x8 (8, 4, 1) slot 1 for low-profile, standup expansion board
9 FlexibleLOM slot
10 Hot-plug power supply bay 1
11 Hot-plug power supply bay 2
12 USB 3.0 connectors
13 NIC 1/shared iLO connector
14 NIC connector 2
2
2
2
1
1
1
2
2
2
Table Continued
Component identification
2
11
