Integrators' Reference Manual for ViewStation EX, ViewStation FX, and VS4000
Installation
86
To install V.35/RS-449/RS-530 Network Interface Module:
1.
Make sure the system is turned off.
2.
Connect the peripheral side of the network interface module to
the system. Refer to Figure 4-7.
12 VDC Connector
(not used)

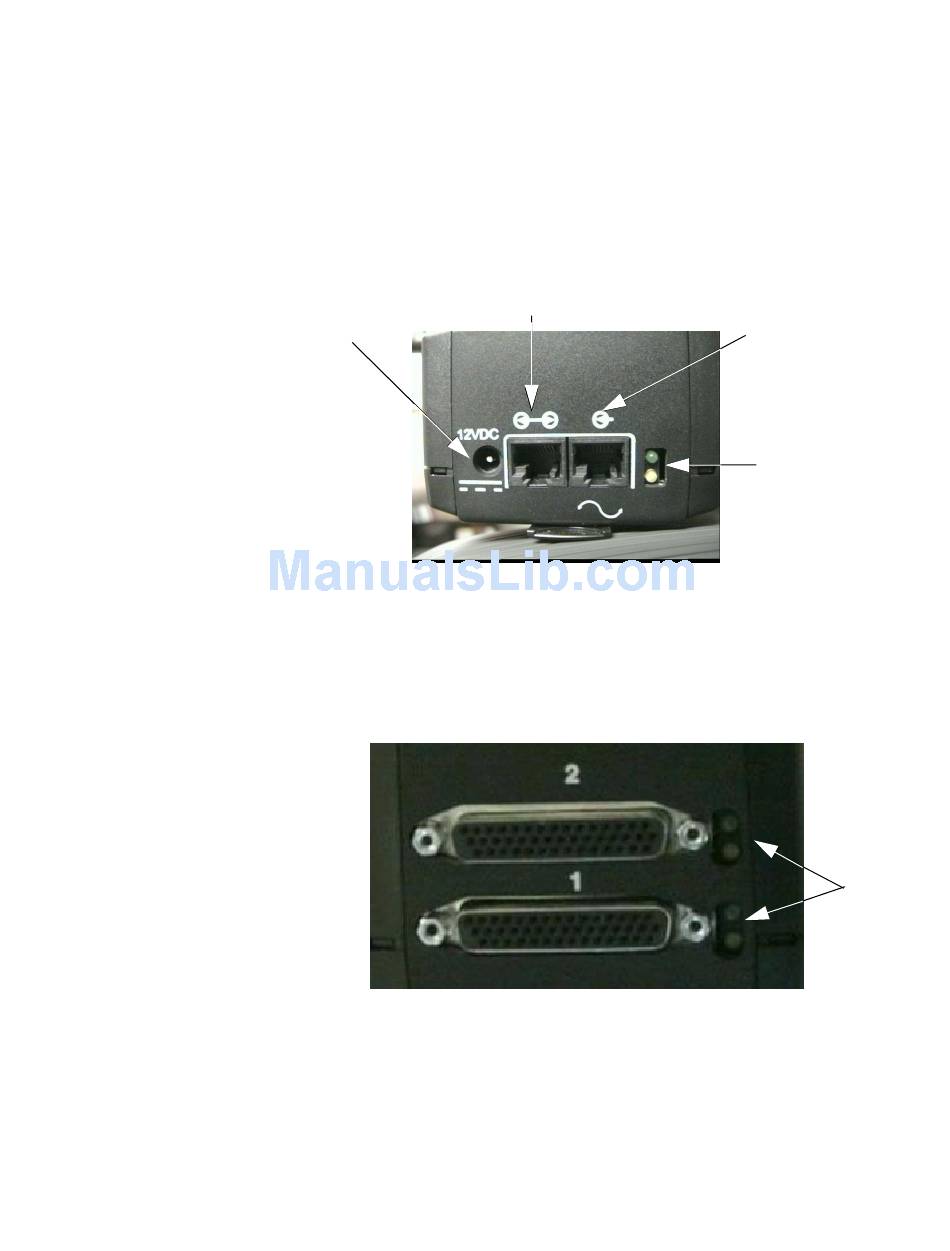

Figure 4-7. V.35/RS-449/RS-530 Network Interface Module (Peripheral
Side)
3.
Connect the network side of the network interface module to
the DCE, shown in Figure 4-8 below. If you have only one cable,
connect it to port 1.
Figure 4-8. V.35/RS-449/RS-530 Network Interface Module (Network Side)
Port (not used)
Input Port
LEDs
LEDs
