Hardware Installation Guide for Polycom SoundStructure TEL1 and TEL2

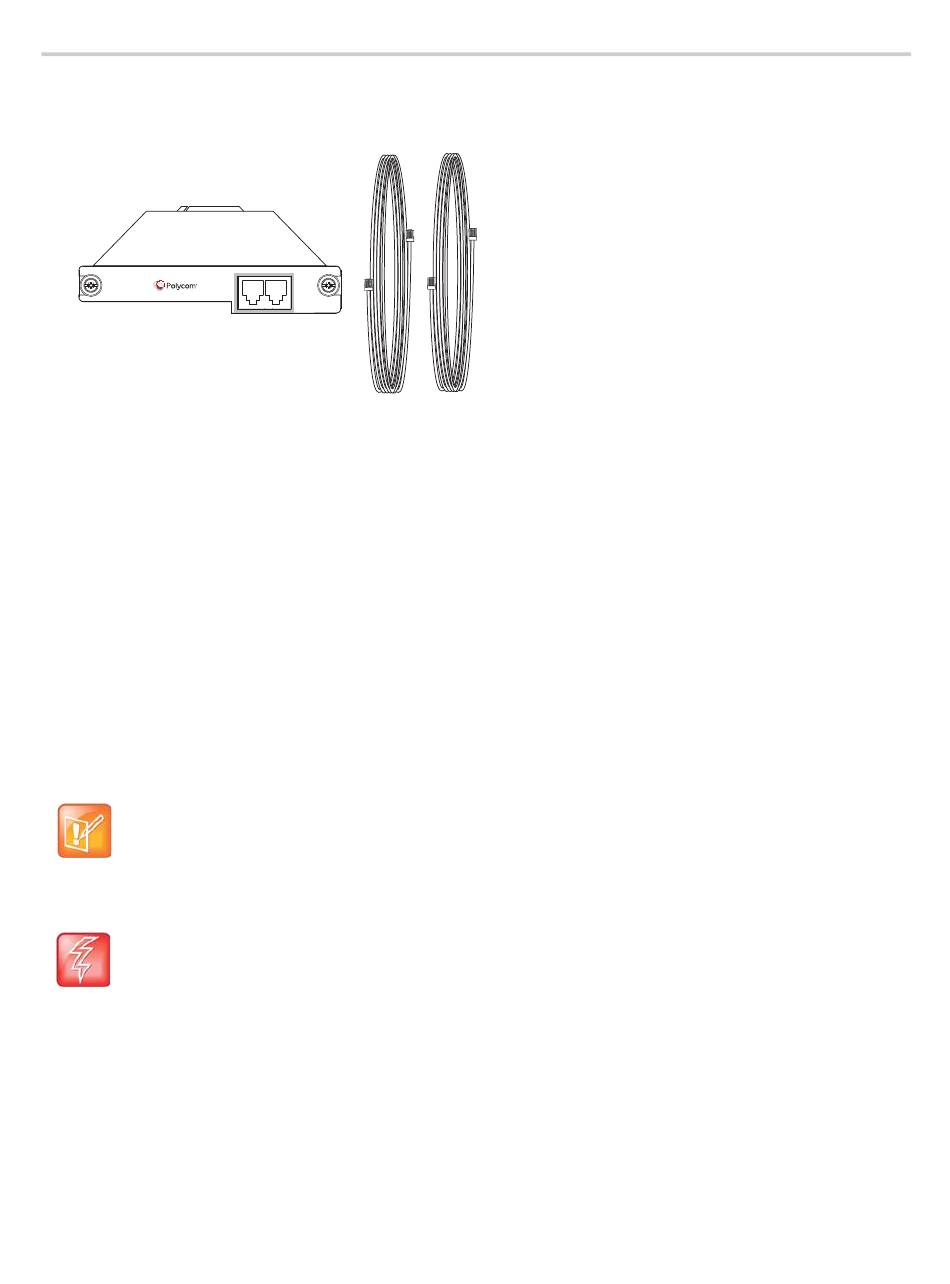

The SoundStructure TEL2 package includes the TEL2 plug-in card and two 15-foot long telephone cables
as shown in the following figure.

Tools Required

A Phillips head screw driver is required to remove the blank rear-panel plate from the SoundStructure
device.

Installation

Each SoundStructure device can have one plug-in card installed for a total of eight plug-in cards in a
collection of eight SoundStructure devices. When installing more than one plug-in card in an installation, it
is recommended to use the plug-in slot from the top device first and continue sequentially down through the
collection of devices as additional plug-cards are added. This will ensure a consistent physical channel
numbering of the telephony physical channels. See the discussion of physical and virtual channels in the
Design Guide for the Polycom SoundStructure manual.
Note: If more than one plug-in card is used in an installation of multiple
SoundStructure devices, use the plug-in slot from the top SoundStructure device
first and continue sequentially down through the collection of devices as additional
plug-cards are added.
Warning
Warning: Do not insert a plug-in card while the SoundStructure is powered on.
Failure to remove power prior to installing the plug-in card may damage the plug-in
card and/or the SoundStructure device.
Polycom, Inc.
LINE 2 LINE 1
4
