V.35/RS-449/RS-530 Cabling

32

Table 2-20. V.35/RS-449/RS-530 Network Side Indicator Lamps

Indication
Amber LED on
Green LED on
This section provides cable drawings and pinouts for the three
cables that you can use with the V.35/RS-449/RS-530 network
interface module. All are common to the ViewStation EX,
ViewStation FX, and VS4000.

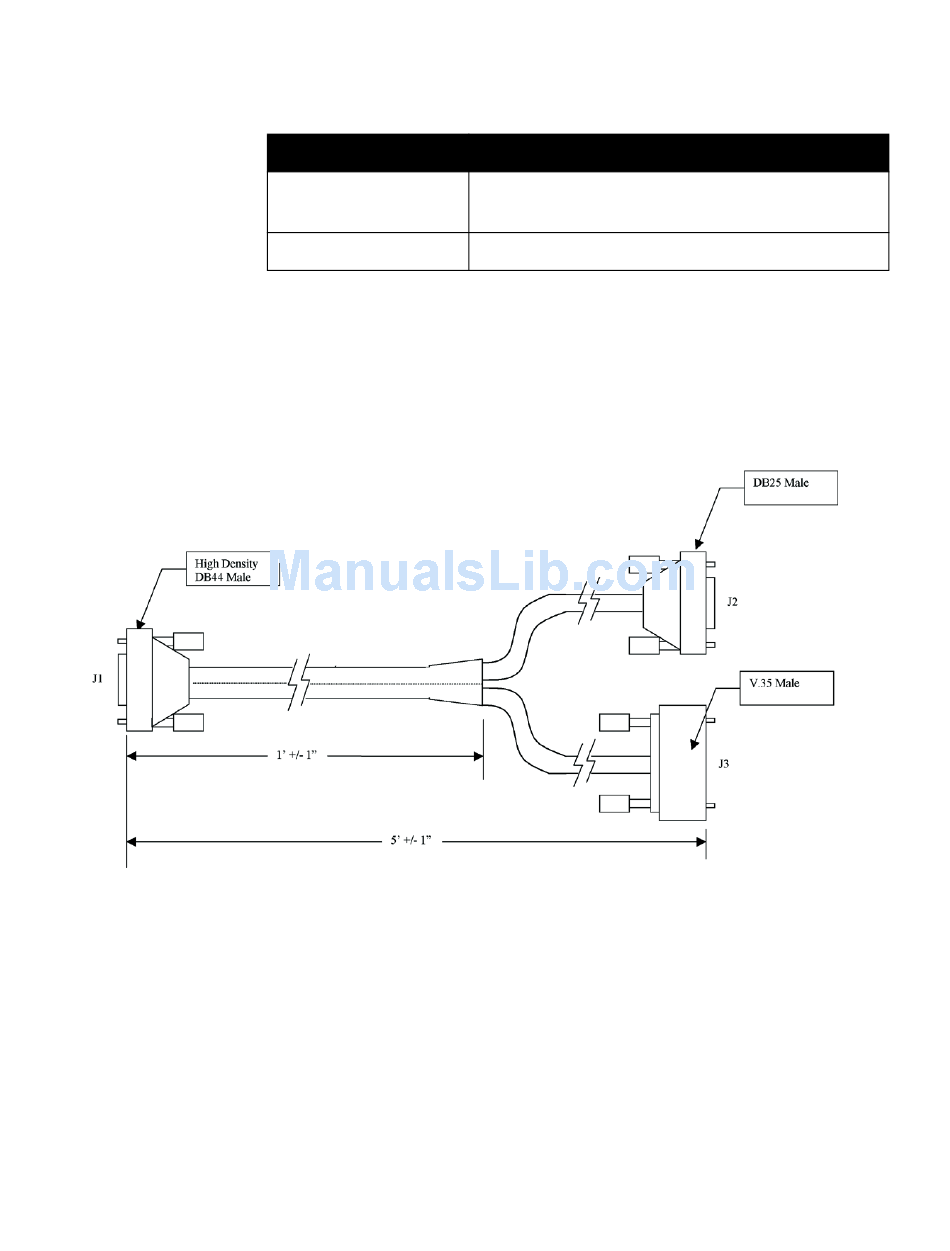

Figure 2-7. HD-44M to RS-366/V.35 "Y" Cable Diagram

Meaning
Network interface module is connected to the
network and receiving a clock signal
System is in a call
