Wiring

There are two wiring systems in an AFD: Main Circuit and Control Circuit. The Main
Circuit terminals are located at the top of the drive. Control Circuit terminals are located
bottom of drive, Both terminal blocks are covered by the plastic housing. Lift the
hinged portion of the housing to gain access to the terminals. Make sure power is
removed before making any connections. Connect wires to the terminals according to

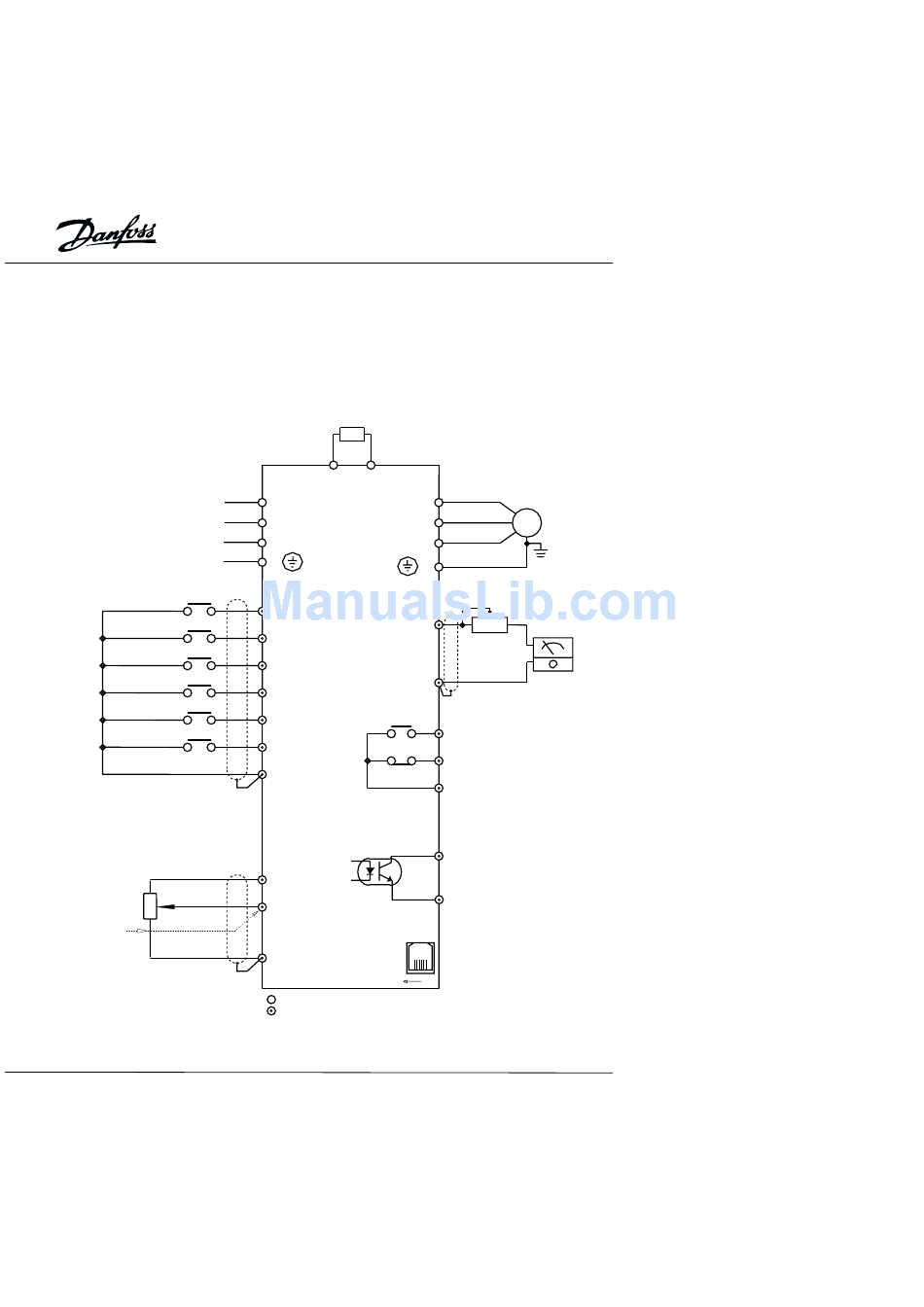

the diagram below. When no connections are made to the control terminals, the drive is
operated by the Digital Keypad/Display.
VAC Input
R
(Select two
terminals as
S
input for 230V
single phase
T
models)
Ground
Factory set as
multi-function input terminals
Forward/Stop
Reverse/Stop
Reset
Multi-Step 1
Multi-Step 2
Multi-Step 3
Signal Common
Output Freq. determined
Analog voltage
0-10VDC
VR: 3K-5K ohm
Analog current
4-20mA
Factory set as, output frequency
determined by the potentiometer on
the control panel
* NOTE: Do not plug a modem or telephone in to the RS485 port. Do not use terminals
2 or 5 when using the port.
Braking Resistor (Option)
Select 80 ohm 120V
/200 ohm 120V
R
U
S
V
T
W
E
F
M0
AFm
M1
M2
GND
M3
M4
RA
M5
RB
GND
RC
Power for
speed setting
MO1
+10V 10mA (max)
AV1
MCM
GND
6
Main Circuit (power) Terminals
Control Circuit Terminals
9
VLT ® MICRO
M
Grounding
Trim (1K ohm)
Analog +
output
DC 0-10V –
Factory set as,
Indication of output frequency
Multi-function indication output
contacts 120VAC/28VDC 5A
240VAC 2.5A
Factory set as,
Indication of fault
Multi-function PHC output
48V 50mA below
Factory set as,
Indication of "At work"
RJ-11 communication port with
RS-485 serial interface
2: GND
3: SG–
4: SG+
5: +5V
