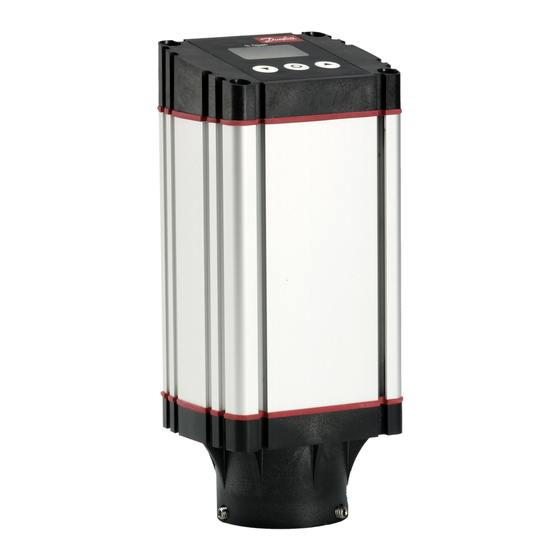

Danfoss ICAD 600 Quick Start Manual

Quick Start Guide
ICAD 600/900/1200
© Danfoss A/S (AC-SMC/MWA), 05 - 2011
Oil Tighten CW
DKRCI.PI.HV0.J2.02 / 520H4887 / 027R9801
1
Ref. Colour
A Black
3
B Brown
C Red
D Orange
E Yellow
F Green
G Blue
I Black
II White
III Brown
* Uninterruptable Power Supply
Quick Start Guide
Terminal box -
not supplied
by Danfoss
Description
– Common Alarm
– ICM fully open
– ICM fully closed
– GND ground
+ 0/4 - 20 mA Input
0/2-10V input or digital
+
input for on/off control
+ 0/4 - 20 mA Output
Fail safe supply
+
Battery / UPS* 19 V d.c.
+
Supply voltage
24 V d.c.
–
24 Volt d.c.
ONLY
Before you
start using ICAD:
24 Volt d.c.
ONLY
2
Digital
Ouput
1
