Summary of Contents for Danfoss 101N0715

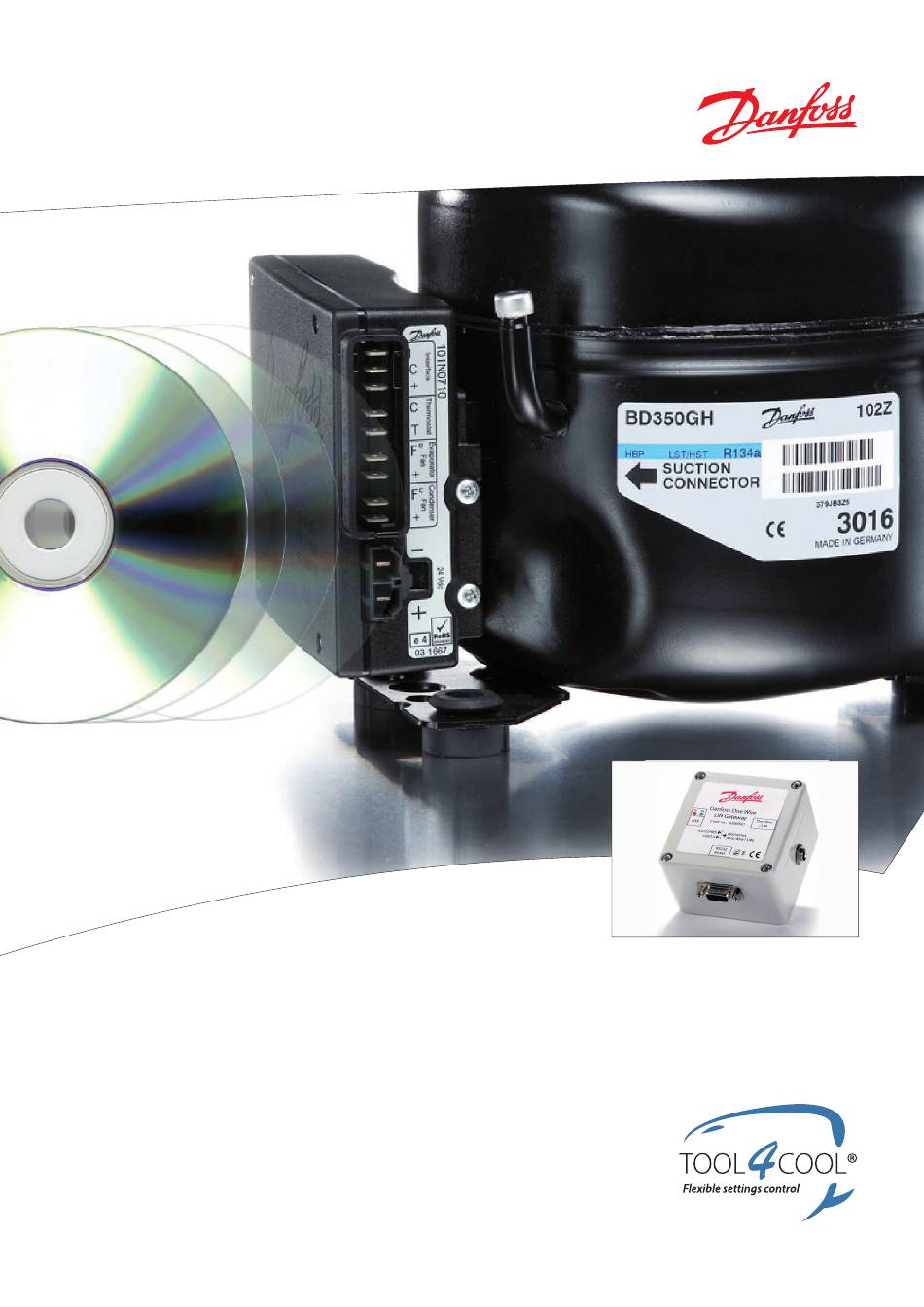

- Page 1 MAKING MODERN LIVING POSSIBLE BD Controller 101N07xx Series 24 V DC with Tool4Cool® LabEdition software and Danfoss One Wire/LIN gateway Quick Start Guide...
- Page 2 Quick Start Guide BD Controller 101N07xx Series 24 V DC...
-
Page 3: Table Of Contents
Quick Start Guide BD Controller 101N07xx Series 24 V DC Quick Start Guide 1. Checklist ..........................4 2. Connect cables ......................5 3. Install software ......................6 4. Install product key .......................8 5. Connect network ......................9 6. Ready to operate ....................... 11 7. Ordering ........................12 8. -
Page 4: Quick Start Guide 1. Checklist
CD NTC temperature sensor (alternative: mechanical thermostat) DC line cords Product key for BD compressor controller DH3TT6RBAD1GW8G68ZM1N8G62ZMCOO916IER6GH2YZEIR (not necessary with Tool4Cool® Version 1.02) Danfoss One Wire/LIN gateway with connection cables • Gateway • One Wire/LIN gateway Communication cable •... -
Page 5: Connect Cables
NTC temperature sensor USB port connector to PC Serial RS232 Cable with USB Voltage Supply Power supply cable option 2 One Wire LIN Gateway Danfoss One Wire LIN Gateway One Wire / LIN Code n o.: 105N9501 RS232/485 Electronics (One Wire / LIN) USB 2.0... -
Page 6: Install Software
Quick Start Guide BD Controller 101N07xx Series 24 V DC 3. Install software 1. Check that you have the latest update of .NET Framework from www.windowsupdate.com. 2. Insert the Tool4Cool® installation CD. This view will appear: DEHC.PS.100.J1.02... - Page 7 Quick Start Guide BD Controller 101N07xx Series 24 V DC 3. Double-click on Tool4Cool® Software Installation. Run the file setup.exe. Then follow the instructions in the Setup Wizard. DEHC.PS.100.J1.02...
-
Page 8: Install Product Key
Quick Start Guide BD Controller 101N07xx Series 24 V DC 4. Install Product Key 1. Start Tool4Cool® LabEditon by double clicking on the icon on the desktop: 2. Select Help in the menu bar. 3. Select Product Keys from the drop-down menu: 4. -
Page 9: Connect Network
Quick Start Guide BD Controller 101N07xx Series 24 V DC 5. Connect network 1. Select File in the menu bar. 2. Select Connect Network in the drop-down menu: 3. This dialog box will open: DEHC.PS.100.J1.02... - Page 10 Quick Start Guide BD Controller 101N07xx Series 24 V DC In the Connect using field, select the COM port to which the gateway is connected. Fill in Description (optional). Press OK. Wait a short time. The LEDs on the gateway will flicker, then a red arrow will appear in front of the description (COM/USB network).
-
Page 11: Ready To Operate
Quick Start Guide BD Controller 101N07xx Series 24 V DC 6. Ready to operate Click on the red arrows to view the controller and its parameter groups: Click on a parameter group name to view details to the right of the screen: DEHC.PS.100.J1.02... -
Page 12: Ordering
Temperature sensor, 1000 mm, spade connectors 105N9614 accessories Temperature sensor, 1500 mm, spade connectors 105N9616 accessories Danfoss One Wire/LIN gateway with cables & driver 105N9501 accessories Electronic control unit 24 V DC 101N0714 36 pcs. Communication cable, 1500 mm, AMP connector 105N9545 100 pcs. -
Page 13: Further Information
Tool4Cool® LabEdition software and Danfoss One Wire/LIN gateway DEHC.PS.100.J__.02 Quick Start Guide Danfoss One Wire/LIN Gateway 105N9501 DEHC.PI.100.K__.02 Instructions Electronic Unit for BD350GH Compressor 101N0715 24 V DC DEHC.EI.100.Z__.02 Instructions Electronic Unit for BD350GH Compressor 101N0710 24 V DC (discontinued) DEHC.EI.100.P__.02 Instructions DC Line Cords for BD350GH Electronic Unit 24V DEHC.EI.100.E__.02... - Page 14 Danfoss Household Compressors GmbH • Mads-Clausen-Str. 7 • D-24939 Flensburg / Germany • Tel: +49 (0461) 4941-0 • compressors.danfoss.com Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequential changes being necessary in specifications already agreed.
