External Parts And Labels - Danfoss 176F7300 Manual

5
4
3

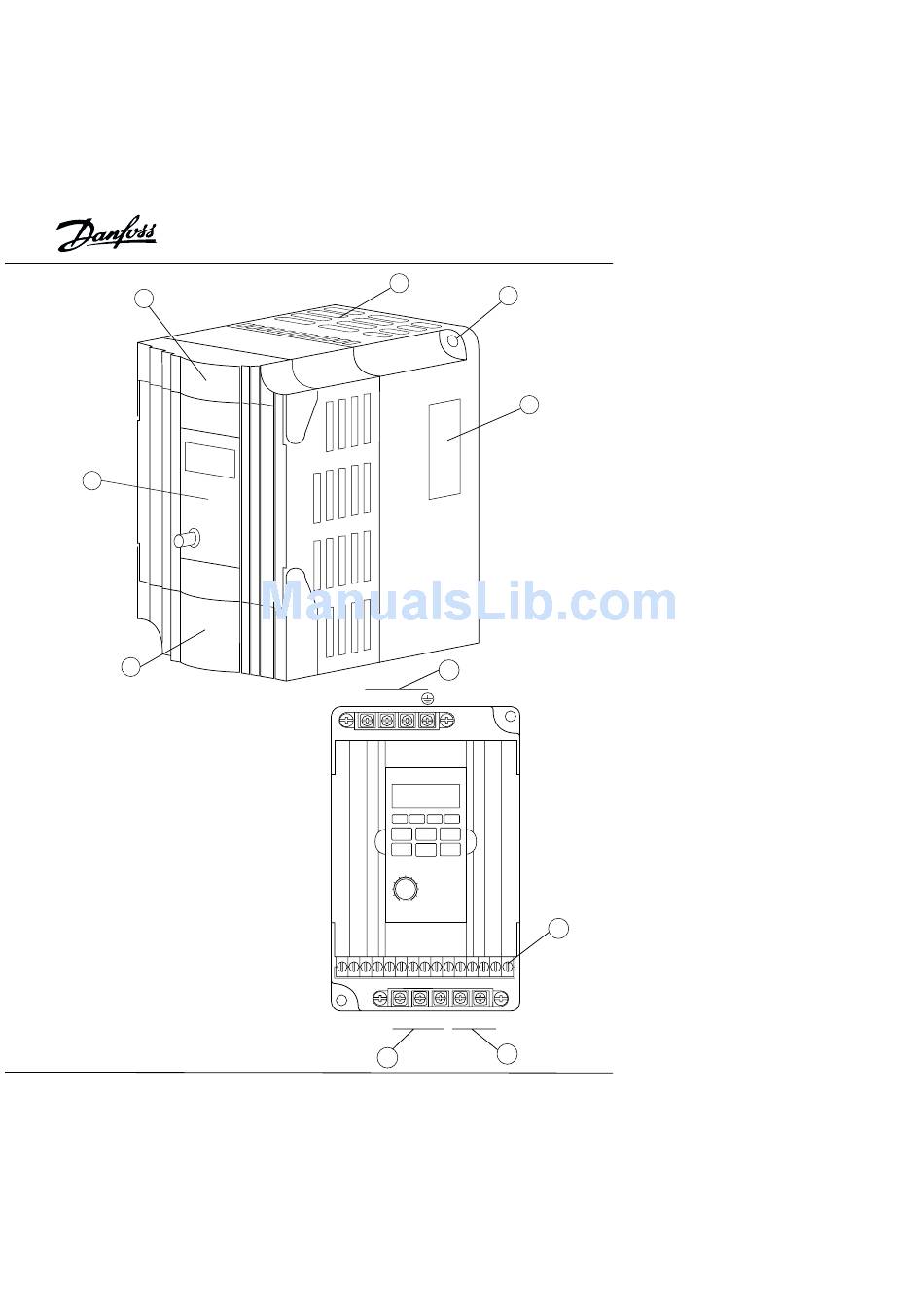

1: Mounting screw holes
2: Nameplate label
3: Bottom cover
4: Digital keypad
5: Upper cover
6: Ventilation hole
7: Input terminals
8: External input/output
terminals
9: B1, B2 External brake
resistor terminals
10: U, V, W Output terminals
VLT
6
7
R S T
U V W B1 B2
10
7
® MICRO
1
2
8
9
