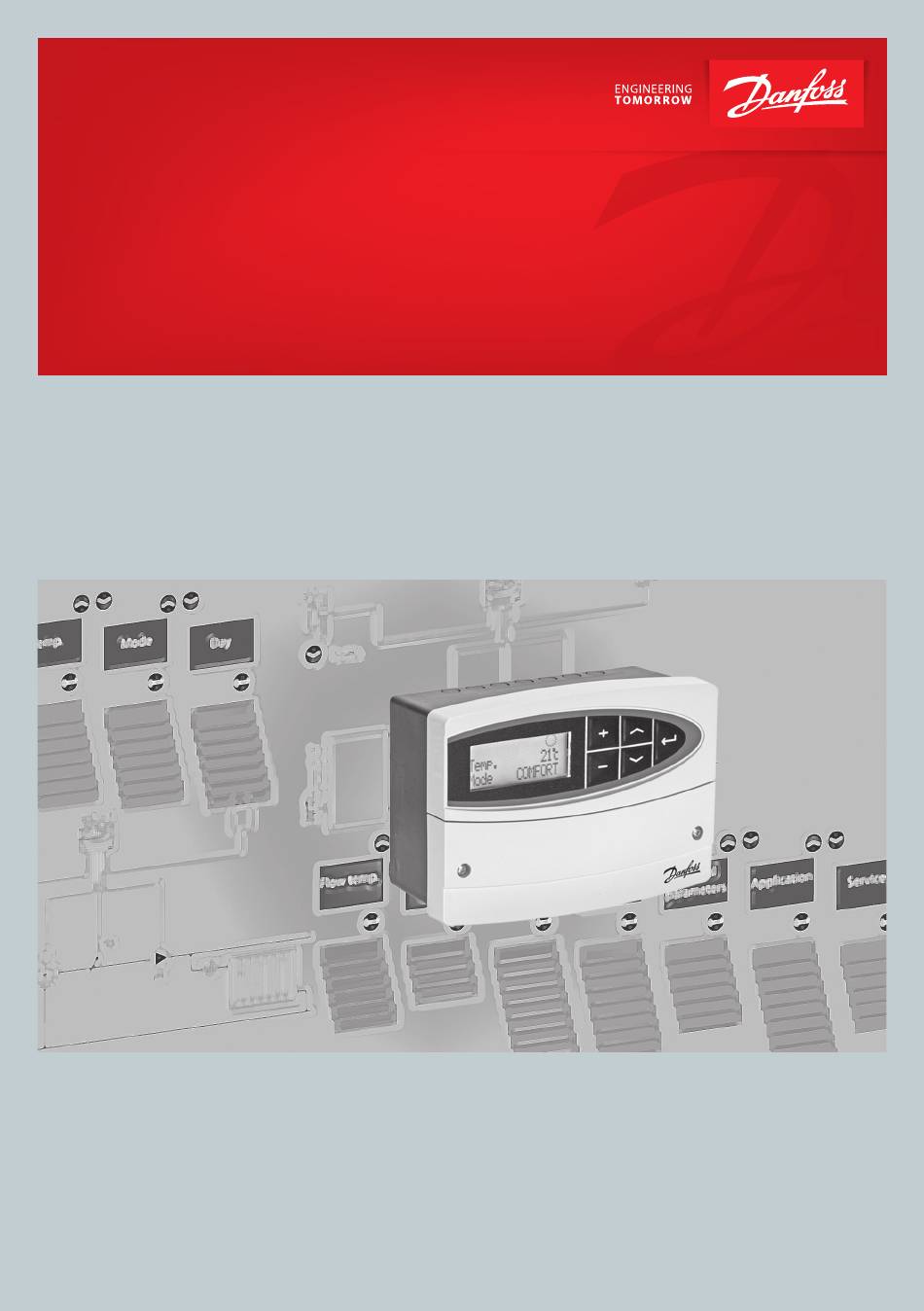

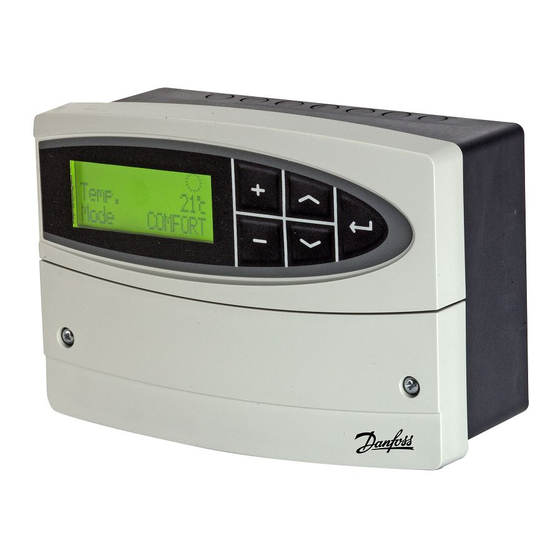

- Page 1 Operating Guide ECL Comfort 110, application 116 (valid as of software version 1.08) English version www.danfoss.com...
- Page 2 The warning sign is used to emphasize special conditions that should be taken into consideration. This symbol indicates that this particular piece of information should be read with special attention. 2 | © Danfoss | 2020.12 AQ188586469032en-010701...
-
Page 3: Table Of Contents
Tn (integration time constant) 6185 Tn - idle (integration time constant) 6096 M1 run (running time of the motorized control valve) 6186 Nz (neutral zone) 6187 Open time 6094 Close time 6095 S2 idle 6097 AQ188586469032en-010701 © Danfoss | 2020.12 | 3... - Page 4 Electrical connections - 24 V a.c. - in general Connecting the temperature sensors and the ECL BUS Connecting the flow switch (FS) How to identify your system type Adapting the ECL Comfort 110 controller Manual control Placing the temperature sensors Checklist, electrical connections Frequently asked questions Definitions...
-
Page 5: Introduction
• Maintenance • Installation • Check Basic principles of application 116 for ECL Comfort 110 If the measured flow (DHW) temperature (S3) is lower than the desired DHW temperature, the motorized control valve (M1) is opened gradually and vice versa. -
Page 6: Settings Overview
ECL address (master / slave address) 7199 Type 7600 22 Code no. 8300 23 XXXX Ver. (version no.) 8301 XXXX Backlight (display brightness) 8310 Contrast (display contrast) 8311 Language 8315 English MOD address (MODBUS address) 8320 6 | © Danfoss | 2020.12 AQ188586469032en-010701... -
Page 7: Daily Use
Flow switch (FS) activated = ON FS status Push to exit ‘Temperature overview’. If the temperature value is displayed as "- -" the sensor in question is not connected. "- - -" the sensor is short-circuited. AQ188586469032en-010701 © Danfoss | 2020.12 | 7... -
Page 8: Select Control Mode
COMFORT< Wednesday Change the mode (AUTO, COMFORT, SETBACK, or STANDBY). Set your personal schedule It is only possible to set the personal schedules if the ECL Comfort 110 controller has a built-in ECA 110 timer program. Wednesday < 04-01-12 8:32 This display will show the current day and time. - Page 9 The schedule has always two comfort periods a day. The start and stop times can be set in half-hourly intervals (30 min.). To arrange only one comfort period on a day: Set Start2 and Stop2 times to the same time value. AQ188586469032en-010701 © Danfoss | 2020.12 | 9...
-
Page 10: Maintenance
It is only necessary to set the correct date and time in connection with the first use of the ECL Comfort 110 controller or after a power break of more than 36 hours (see the chapter on Adapting the ECL Comfort 110 controller). -
Page 11: Return T Limit (Return Temp. Limitation) 4000
A recommended setting value for ‘Limit’ in DHW systems with constant flow has the same value as the desired DHW temperature. This prevents that the return temperature limitation is activated when idle (no DHW tapping / DHW draw-off). AQ188586469032en-010701 © Danfoss | 2020.12 | 11... -
Page 12: Gain - Max. (Return Temp. Limitation - Max. Influence) 4035
The desired flow temperature is increased, when the return temperature gets below the set limit. Influence lower than 0: The desired flow temperature is decreased, when the return temperature gets below the set limit. 12 | © Danfoss | 2020.12 AQ188586469032en-010701... -
Page 13: Intgr. Time (Time Constant For Return Temp. Limitation) 4037
Controls how fast the return temperature adapts to the desired return temperature (I control). OFF: The control function is not influenced by the ‘Intgr. time’. The desired temperature is adapted quickly. The desired temperature is adapted slowly. AQ188586469032en-010701 © Danfoss | 2020.12 | 13... -
Page 14: Control Param. (Control Parameters) 6000
ECL controller. Auto tuning is only applicable in connection with valves that are approved for auto tuning, i.e. the Danfoss types VB 2 and VM 2 with split characteristic. 14 | © Danfoss | 2020.12... -
Page 15: Motor Prot. (Motor Protection) 6174
Xp is related to the supply temperature, S2. Typically, when the S2 temperature increases, Xp must increase. If the S2 sensor is not connected, the Xp value will be constant and equal Xp1. S2 [ o C] AQ188586469032en-010701 © Danfoss | 2020.12 | 15... -
Page 16: Tn (Integration Time Constant) 6185
5.0 mm x 15 sec. / mm = 75 sec. Rotating valves Running time = Turning degrees x actuator speed (sec. / degr.) Example: 90 degr. x 2 sec. / degr. = 180 sec. 16 | © Danfoss | 2020.12 AQ188586469032en-010701... -
Page 17: Nz (Neutral Zone) 6187
‘Tn’ = 0.85 x critical time period ‘Xp’ = 2.2 x proportional band value in the critical time period. If the regulation seems to be too slow, you can decrease the proportional band value by 10%. AQ188586469032en-010701 © Danfoss | 2020.12 | 17... -
Page 18: Open Time 6094
When a ‘forced opening time’ is chosen in 6094, the setting in 6097 results in the following: The S3 temperature is maintained (assuming that a DHW circulation is OFF: present). The S2 temperature is maintained (assuming that a DHW circulation is not present). 18 | © Danfoss | 2020.12 AQ188586469032en-010701... -
Page 19: Application 7000
When the desired flow temperature is above the set temperature in ‘P1 heat T’, the controller automatically switches ON the circulation pump to meet the heat demand. The circulation pump is ON above the set value. -20 ... 50: AQ188586469032en-010701 © Danfoss | 2020.12 | 19... -
Page 20: Standby T (Standby Temperature) 7093
Min. on time (min. activation time gear motor) 7189 Setting range Factory setting 2 ... 50 The min. pulse length in milliseconds for activation of the gear motor. Setting Value x 20 ms 40 ms 200 ms 1000 ms 20 | © Danfoss | 2020.12 AQ188586469032en-010701... -
Page 21: Daylight (Daylight Saving Time Changeover) 7198
Each slave must be configured with its own address (1 ... 9). However, more slaves can have the address 0 if they only have to receive information about outdoor temperature and system time. AQ188586469032en-010701 © Danfoss | 2020.12 | 21... -
Page 22: Type 7600
Factory settings are restored. All personal settings will be deleted. It is recommended to make a note of your personal settings in the ‘Settings overview’ for future use. The application can not be changed from 116 to 130 or vice versa if the ECL Comfort 110 is pre-programmed from the substation-builder. -
Page 23: Service 8000
The brightness of the display can be adjusted. OFF: No backlight. Weak backlight. Strong backlight. Contrast (display contrast) 8311 Setting range Factory setting 0 ... 20 The contrast of the display can be adjusted. High contrast Low contrast AQ188586469032en-010701 © Danfoss | 2020.12 | 23... -
Page 24: Language 8315
MOD address (MODBUS address) 8320 Setting range Factory setting 0 ... 247 Set the MODBUS address if the controller is part of a MODBUS network. Assign the MODBUS addresses within the stated setting range. 24 | © Danfoss | 2020.12 AQ188586469032en-010701... -
Page 25: Installation
93 x 139 mm. Insert the controller into the panel cut-out and fix it with the clamp which is placed horisontally on the controller. Establish the electrical connections. For further details on mounting, see the mounting guide. AQ188586469032en-010701 © Danfoss | 2020.12 | 25... -
Page 26: Electrical Connections - 230 V A.c. - In General
Circulation pump - neutral Circulation pump - live (relay R1) 4 (2) A Not to be used Not to be used Wire cross section: 0.5 - 1.5 mm Incorrect connection can damage the TRIAC outputs. 26 | © Danfoss | 2020.12 AQ188586469032en-010701... -
Page 27: Electrical Connections - 24 V A.c. - In General
Not to be used Not to be used Phase for circulation pump (relay R2) Relay R2 4 (2) A Wire cross section: 0.5 - 1.5 mm Incorrect connection can damage the TRIAC outputs. AQ188586469032en-010701 © Danfoss | 2020.12 | 27... -
Page 28: Connecting The Temperature Sensors And The Ecl Bus
Wire cross section for sensor connections: 0.4 - 0.75 mm Total cable length: Max. 125 m (all sensors incl. the ECL BUS) Cable lengths of more than 125 m may cause noise sensibility (EMC). 28 | © Danfoss | 2020.12 AQ188586469032en-010701... -
Page 29: How To Identify Your System Type
DHW heating system 1: Constant DHW temperature control with heat exchanger DHW heating system 2: Constant temperature control of the DHW circuit with storage tank with built-in heating coil AQ188586469032en-010701 © Danfoss | 2020.12 | 29... - Page 30 DHW heating system 3: DHW temperature control at DHW tapping (DHW draw-off) detected by flow switch (FS) DHW heating system 4: DHW temperature control at DHW tapping (DHW draw-off) detected by flow switch (FS) (DHW circulation) 30 | © Danfoss | 2020.12 AQ188586469032en-010701...
-
Page 31: Adapting The Ecl Comfort 110 Controller
Installation Adapting the ECL Comfort 110 controller When you switch on the controller the first time, it will ask you to choose language (default language is English). Language English Choose your language. Accept and go to the next menu. When the language is chosen, the controller will ask for date and time setting. -
Page 32: Manual Control
Manual mode Pump Pump P1 is OFF ( Select control mode. Mode MANUAL< Wednesday Manual mode should only be used for maintenance purposes. In manual mode all control and safety functions are deactivated! 32 | © Danfoss | 2020.12 AQ188586469032en-010701... -
Page 33: Placing The Temperature Sensors
Place the sensor max. 15 cm from the mixing point. In systems with heat exchanger, Danfoss recommends that the ESMU-type to be inserted into the exchanger flow outlet. Make sure that the surface of the pipe is clean and even where the sensor is mounted. -
Page 34: Checklist, Electrical Connections
Choose manual operation as controller mode. Check that valves open and close, and that required controlled units (pump etc.) start and stop when operated manually. Check that the temperatures shown in the display match the actual sensors. 34 | © Danfoss | 2020.12 AQ188586469032en-010701... -
Page 35: Frequently Asked Questions
A PI control does the same as a P control, but the offset will disappear over time. A long ‘Intgr. time’ will give a slow but stable control, and a short ‘Intgr. time’ will result in a fast control but with a higher risk of oscillations. AQ188586469032en-010701 © Danfoss | 2020.12 | 35... -
Page 36: Definitions
Temperature measured in the flow at any time. Heating circuit The circuit for heating the room / building. Heat curve A curve showing the relationship between actual outdoor temperature and required flow temperature. 36 | © Danfoss | 2020.12 AQ188586469032en-010701... - Page 37 Flow temperature control based on the outdoor temperature. The control is related to a user- defined heat curve. The definitions apply to the Comfort 110 series. Consequently, you might come across expressions that are not mentioned in your guide. AQ188586469032en-010701 © Danfoss | 2020.12 | 37...
- Page 38 38 | © Danfoss | 2020.12 AQ188586469032en-010701...
- Page 39 It must be handed over to the applicable take-back scheme for the recycling of electrical and electronic equipment. • Dispose of the product through channels provided for this purpose. • Comply with all local and currently applicable laws and regulations. AQ188586469032en-010701 © Danfoss | 2020.12 | 39...
- Page 40 *087R9780* 40 | © Danfoss | DHS-SMDT/DK | 2020.12 AQ188586469032en-010701...
