Default state is open .

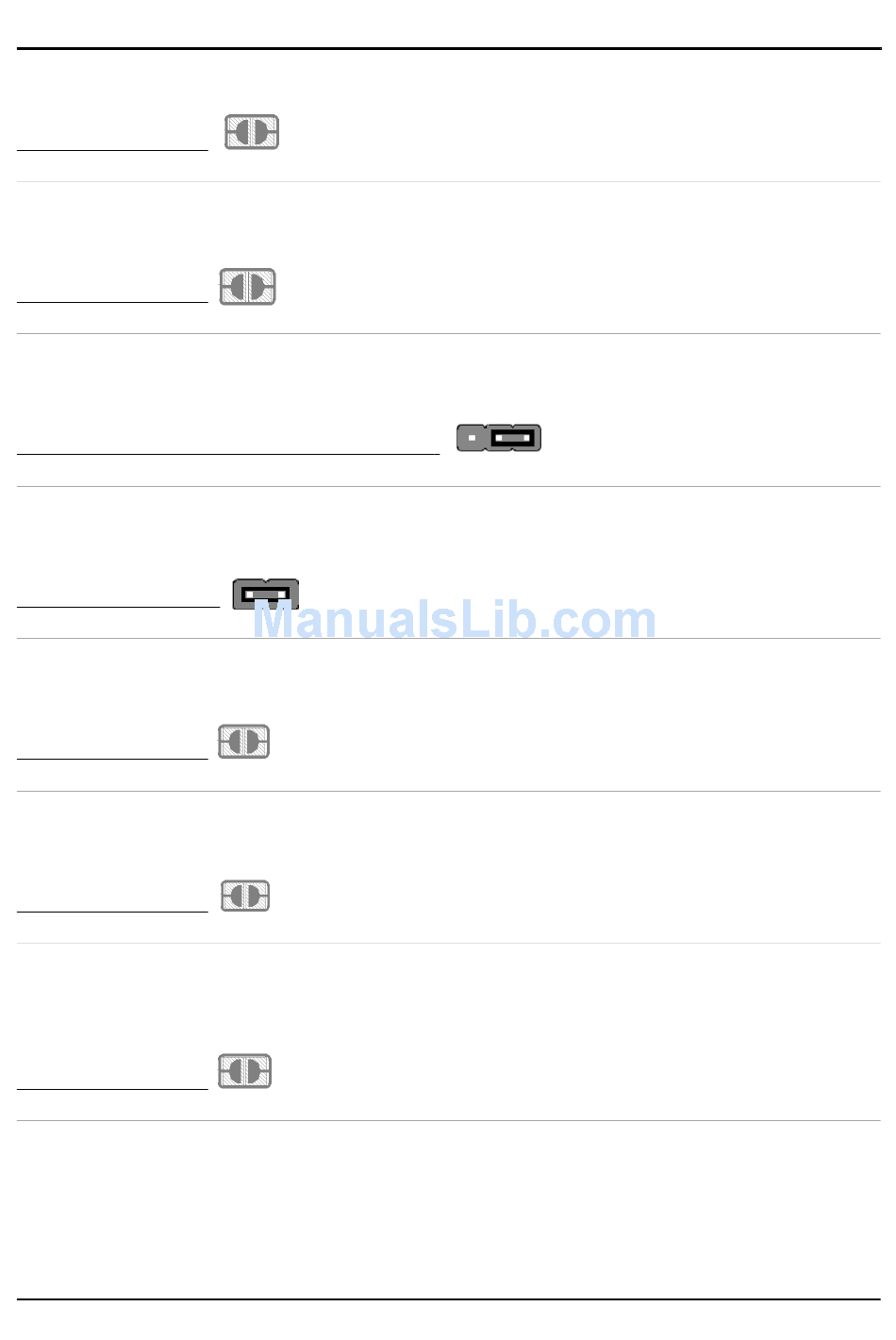

RST_E
Controls the RST on the RS232_1. If closed is present. Default state is not present.
Default state is open .
B1_1/B1_0, B0_1/B0_0
These jumpers should be moved together and control the camera being powered.
Default state is B1_0, B0_0 (camera powered) .
3.3V_MCU_EN
When closed enables the power supply on the STM32F207ZET.
Default state is closed.
TX_BOOT_E
If closed separates USART6_TX and PC10.
Default state is open .
RX_BOOT_E
If closed separates USART6_RX and PC11.
Default state is open .
3.3V_E
Board's digital power supply is disabled if open.
Enabled if closed.
Default state is open .
AGND_E
Analog GND is disabled if open.
If closed Analog GND is enabled.
