6 SOFTWARE SDA
7 SD_D3/USART3_RX/SPI3_MISO
8 SD_CLK/SPI3_MOSI
9 SD_D2/USART3_TX/SPI3_SCK
10 STAT3/CS_UEXT

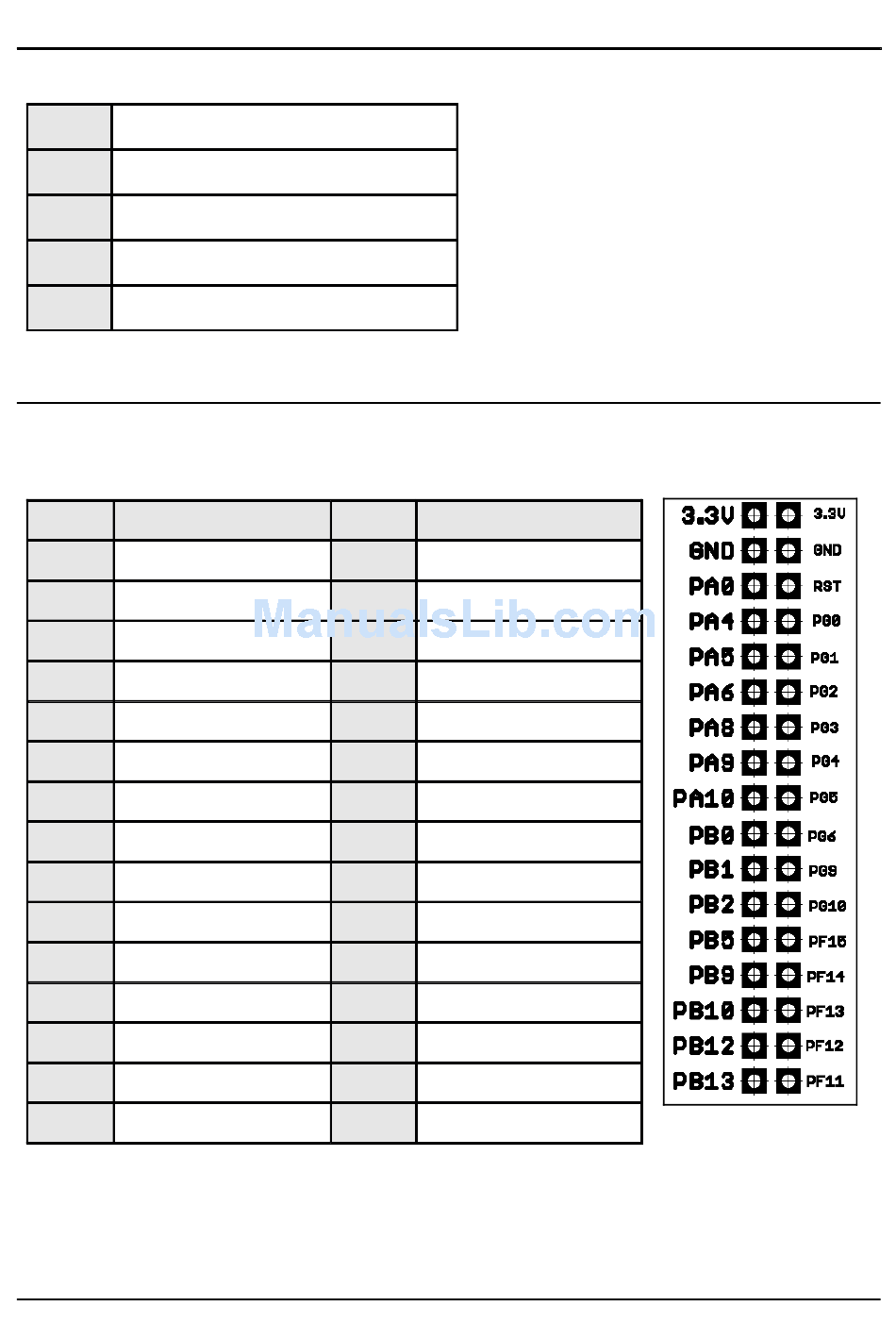

6.3 Pads on the proto area

For your convenience the pads are named individually near each of them. Please take extra care
about the numbering but consider that there might be offset.
PAD # Signal Name
PA0 BUT WKUP
PA4 DCMI_HSYNC
PA5 SPI1_SCK
PA6 DCMI_PIXCLK
PA8 MCO1
PA9 OTG_FS_VBUS
PA10 DCMI_D1
PB0 LCD_BL
PB1 BUZ
PB2 CAM_ENB
PB5 I2S3_SD
PB9 CAN1_TX
PB10 USB_FS_FAULT
PB12 OTG_HS_ID
PB13 OTG_HS_VBUS
PAD# Signal Name
RST RST
PG0 A10
PG1 A11
PG2 A12
PG3 A13
PG4 A14
PG5 A15
PG6 RIGHT(JOYSTICK)
PG9 USART6_RX
PG10 SOFT_SCL
PF15 A9
PF14 A8
PF13 A7
PF12 A6
PF11 CAM_RST
