OLIMEX© 2012

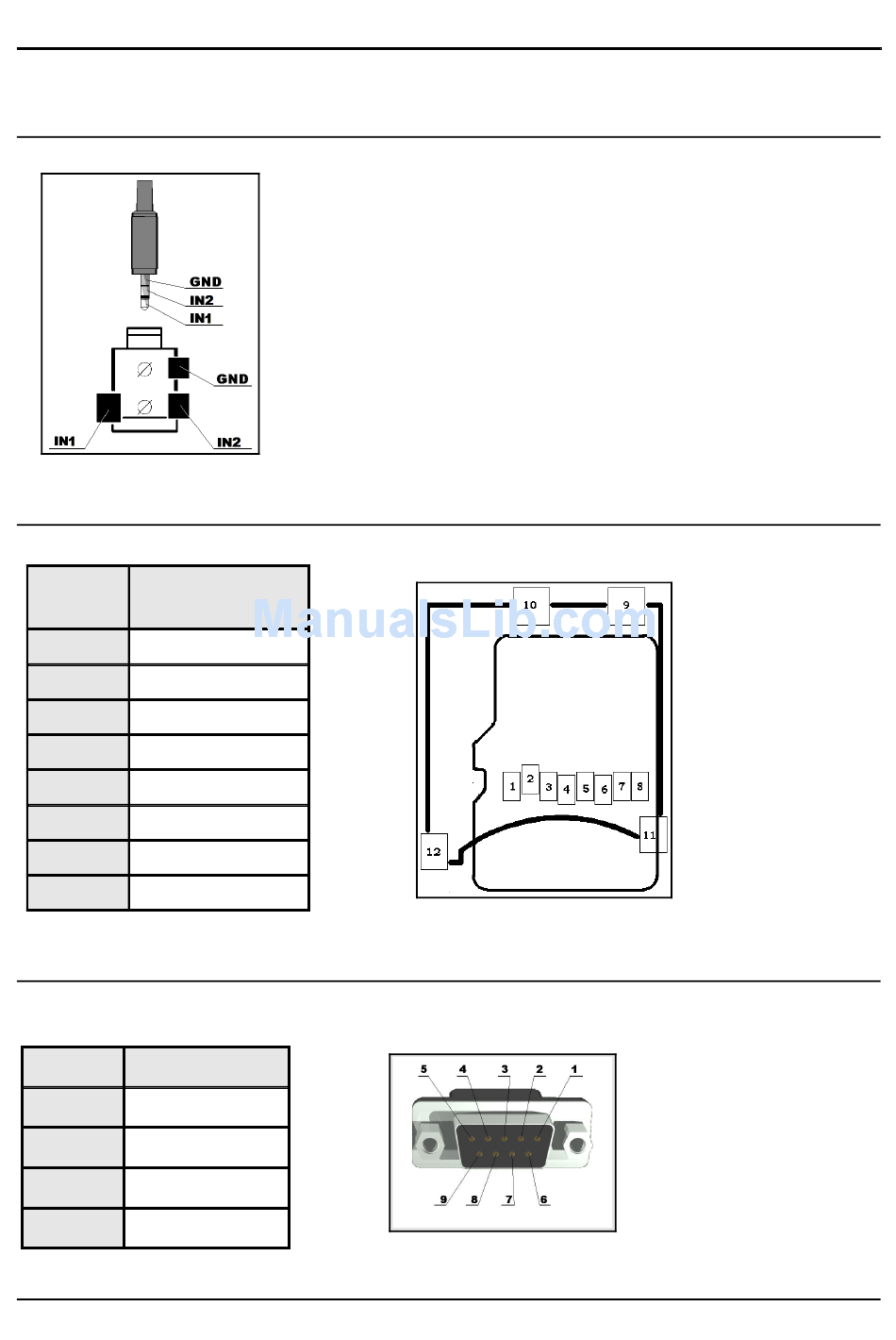

6.8 Headphones connector

6.9 SD/MMC slot

Pin # Signal Name
1 DAT2
2 DAT3/CS
3 CMD/DI
4 VDD
5 CLK/SCLK
6 VSS
7 DAT0/DO
8 DAT1

6.10 RS232_1

RS232_1 is located on USART6/SPI3 line. Check the jumper configuration.
Pin # Signal Name
1 Not Connected
2 T1OUT
3 R1IN
4 RST
Page 19 of 32
STM32-P207 user's manual
