OLIMEX© 2012
PAD #
Signal Name
PC5
ETH_RMII_RXD1
PC13
BUT TAMPER
PD6
LCD_CS
PE0
/BLE
PE1
/BHE
PE2
TEMP_ALERT
PE3
USB_HS_VBUSON
PE4
DCMI_D4
PE5
DCMI_D6
PE6
DCMI_D7
PE7
D4
PE8
D5
PE9
D6
PE10
D7
PE11
D8
+5V
+5V DC

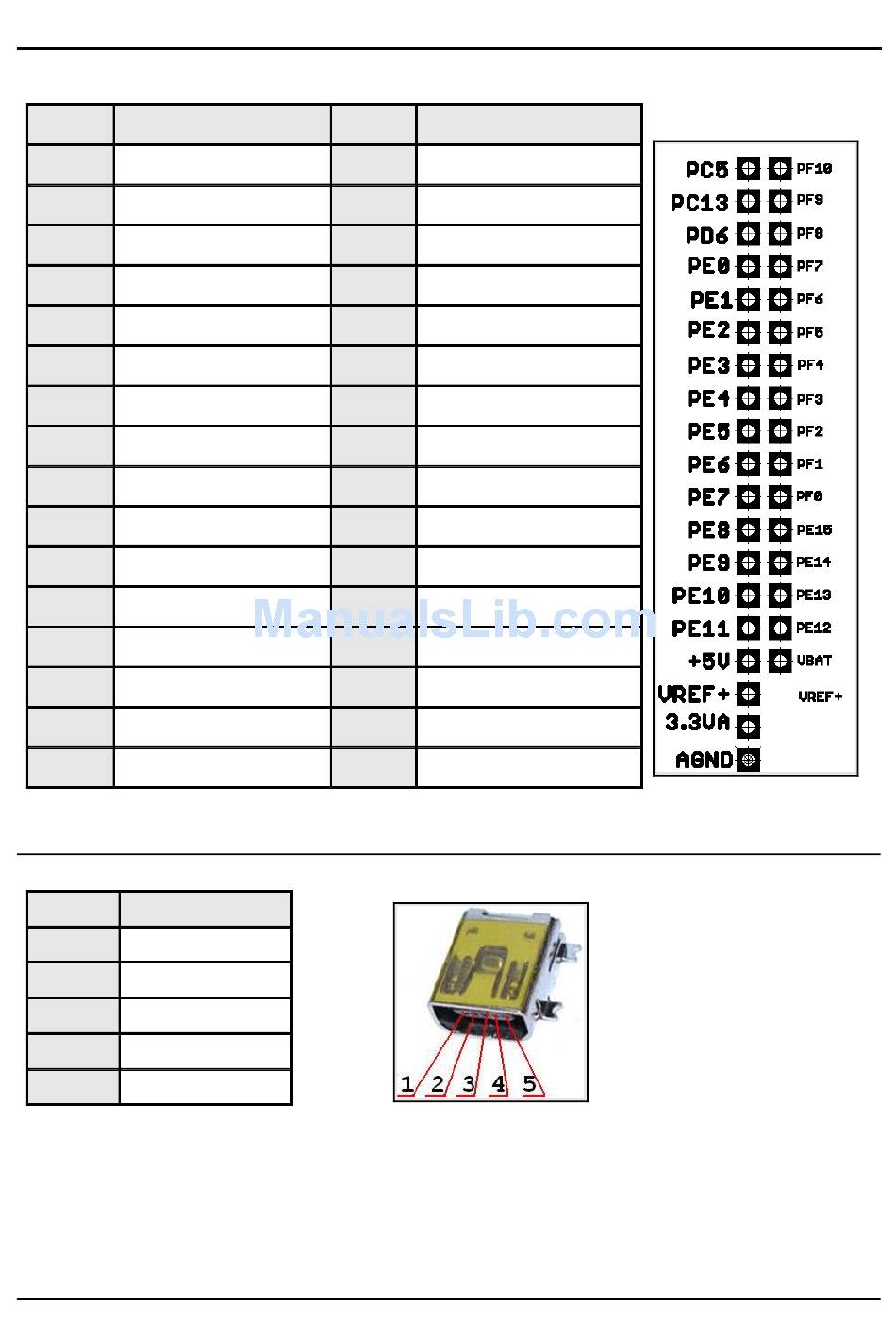

6.4 USB_OTG
Pin #
Signal Name
1
+5V
2
D-
3
D+
4
OTG_HS_ID
5
GND
PAD#
Signal Name
PF10
ETH_RXER
PF9
SSTAT4/CAM_PWR
PF8
STAT3/CS_UEXT
PF7
STAT2/CAN_CTRL
PF6
STAT1
PF5
A5
PF4
A4
PF3
A3
PF2
A2
PF1
A1
PF0
A0
PE15
D12
PE14
D11
PE13
D10
PE12
D9
VBAT
VBAT
Page 17 of 32
STM32-P207 user's manual
