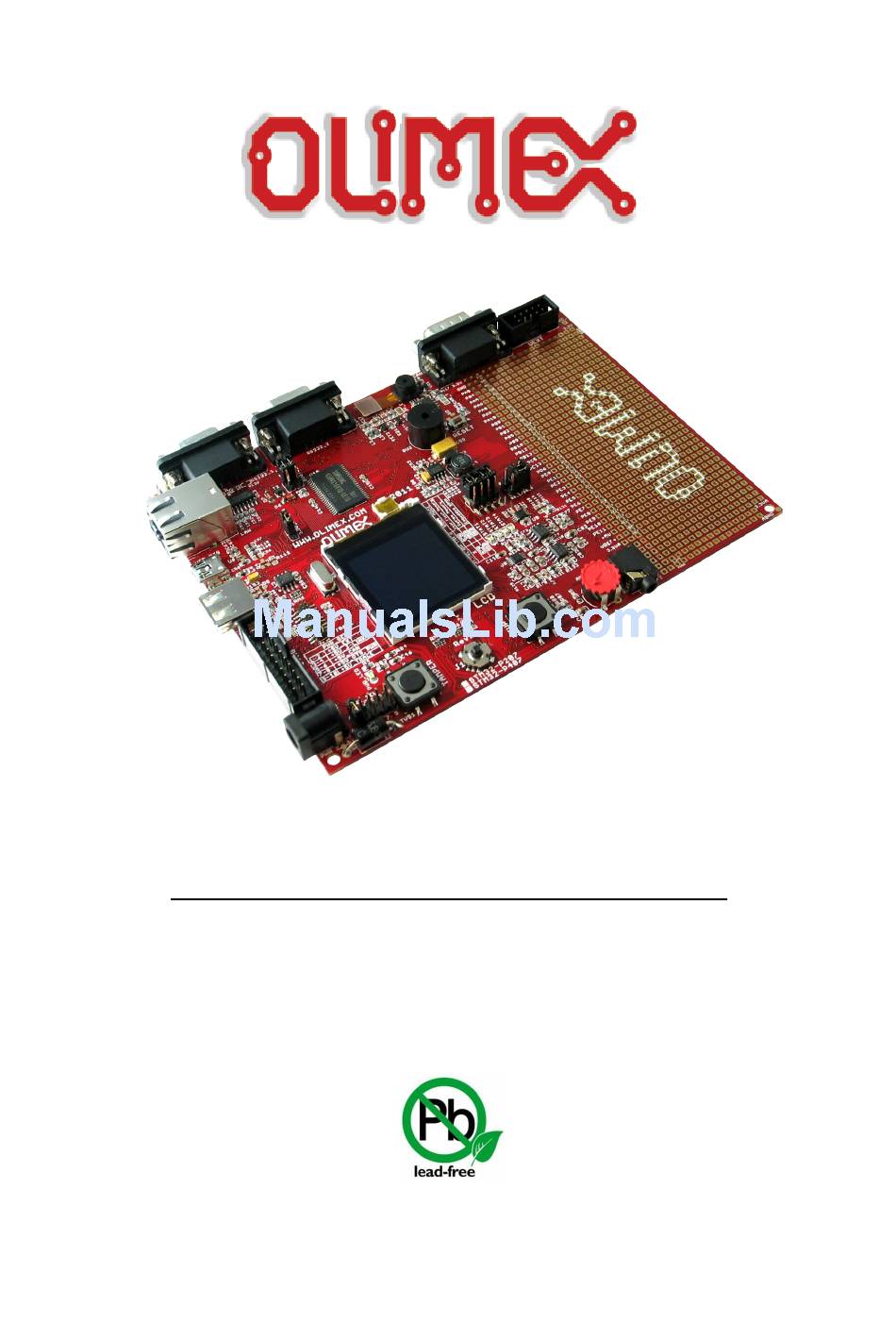

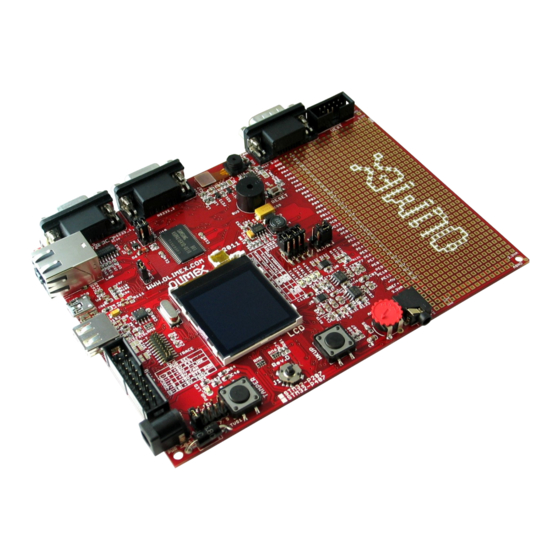

- Page 1 STM32-P207 development board USER’S MANUAL Revision B, January 2013 Designed by OLIMEX Ltd, 2011 All boards produced by Olimex LTD are ROHS compliant...
- Page 2 This document is intended only to assist the reader in the use of the product. OLIMEX Ltd. shall not be liable for any loss or damage arising from the use of any information in this document or any error or omission in such information or any incorrect use of the product.
-
Page 3: Table Of Contents
1. Introduction to the chapter ....................... 5 1.1 Features ............................. 5 1.2 Organization ..........................6 CHAPTER 2 SETTING UP THE STM32-P207 BOARD ........7 2. Introduction to the chapter ....................... 7 2.1 Electrostatic warning ....................... 7 2.2 Requirements ........................... 7 2.3 Powering the board ........................ - Page 4 OLIMEX© 2012 STM32-P207 user's manual 6.15 LCD Display with backlight ....................23 6.16 VGA Color Camera ......................23 6.17 Additional hardware components ..................23 6.18 Notes on interfaces ....................... 24 CHAPTER 7 MEMORY ................... 26 7. Introduction to the chapter ..................... 26 7.1 Memory map ..........................
-
Page 5: Chapter 1 Overview
Thank you for choosing the STM32-P207 development board from Olimex! This document provides a user’s guide for the Olimex STM32-P207 development board. As an overview, this chapter gives the scope of this document and lists the board’s features. The document’s organization is then detailed. -
Page 6: Organization
OLIMEX© 2012 STM32-P207 user's manual Power-on led • 3V battery connector • Extension port connectors for many of microcontrollers pins • PCB: FR-4, 1.5 mm (0,062"), soldermask, silkscreen component print • Dimensions: 160x116 mm (6.3x4.6") • 1.2 Organization Each section in this document covers a separate topic, organized as follow: –... -
Page 7: Chapter 2 Setting Up The Stm32-P207 Board
2.1 Electrostatic warning STM32-P207 is shipped in a protective anti-static package. The board must not be exposed to high electrostatic potentials. A grounding strap or similar protective device should be worn when handling the board. Avoid touching the component pins or any other metallic element. -
Page 8: Powering The Board
OLIMEX© 2012 STM32-P207 user's manual https://www.olimex.com/Products/ARM/JTAG/_resources/OpenOCD/. At the moment of writing this guide our ARM programmers/debuggers equipped with an ARM- JTAG-SWD work fine (out-of-the-box) with Rowley CrossWorks. 2.3 Powering the board Provide +5 V DC to the board's power jack, OR +5 V via the JTAG or TRACE connector (before providing the power set the PWR_SEL jumper in the correct position) Additionally the board can be powered using the PROTO AREA pads. -
Page 9: Chapter 3 Stm32-P207 Board Description
3. Introduction to the chapter Here you get acquainted with the main parts of the board. Note the names used on the board differ from the names used to describe them. For the actual names check the STM32-P207 board itself. 3.1 Layout (top view) -
Page 10: Layout (Bottom View)
OLIMEX© 2012 STM32-P207 user's manual 3.2 Layout (bottom view) Page 10 of 32... -
Page 11: Chapter 4 The Stm32F207Zet6 Microcontroller
CHAPTER 4 THE STM32F207ZET6 MICROCONTROLLER 4. Introduction to the chapter In this chapter is located the information about the heart of STM32-P207 – its microcontroller. The information is a modified version of the datasheet provided by its manufacturers. 4.1 The microcontroller ■... - Page 12 OLIMEX© 2012 STM32-P207 user's manual ■ Up to 114 I/O ports with interrupt capability ■ Communication interfaces – 3 × I2C interfaces (SMBus/PMBus) – Up to 4 USARTs and 2 UARTs (7.5 Mbit/s, ISO 7816 interface, LIN, IrDA, modem control) –...
-
Page 13: Introduction To The Chapter
Here you can find information about reset circuit and quartz crystal locations. 5.1 Reset STM32-P207 reset circuit includes R65(10 KΩ), R66(560 Ω), C45(100 nF), STM32F207ZET pin 25(NRST) and a RESET button. The RESET is also connected to the proto area. -
Page 14: Chapter 6 Hardware
OLIMEX© 2012 STM32-P207 user's manual CHAPTER 6 HARDWARE 6. Introduction to the chapter In this chapter are presented the connectors that can be found on the board all together with their pinout. Proto area is shown. Jumpers functions are described. Notes and info on specific peripherals are presented. -
Page 15: Uext
+5V_TRACE USB_HS_VBUSON TDO/I2S3_CK DCMI_D4 Not connected TDI/I2S3_WS DCMI_D6 DCMI_D7 6.2 UEXT STM32-P207 board has UEXT connector and can interface Olimex's UEXT modules. For more information on UEXT please visit: http://www.olimex.com/dev/OTHER/UEXT.pdf Pin # Signal Name +3.3V DCMI_D0/USART6_TX USART6_RX SOFTWARE SCL Page 15 of 32... -
Page 16: Pads On The Proto Area
OLIMEX© 2012 STM32-P207 user's manual SOFTWARE SDA SD_D3/USART3_RX/SPI3_MISO SD_CLK/SPI3_MOSI SD_D2/USART3_TX/SPI3_SCK STAT3/CS_UEXT 6.3 Pads on the proto area For your convenience the pads are named individually near each of them. Please take extra care about the numbering but consider that there might be offset. -
Page 17: Usb_Otg
OLIMEX© 2012 STM32-P207 user's manual PAD # Signal Name PAD# Signal Name ETH_RMII_RXD1 PF10 ETH_RXER PC13 BUT TAMPER SSTAT4/CAM_PWR LCD_CS STAT3/CS_UEXT /BLE STAT2/CAN_CTRL /BHE STAT1 TEMP_ALERT USB_HS_VBUSON DCMI_D4 DCMI_D6 DCMI_D7 PE15 PE14 PE10 PE13 PE11 PE12 +5V DC VBAT VBAT 6.4 USB_OTG... -
Page 18: Usb Host
OLIMEX© 2012 STM32-P207 user's manual 6.5 USB HOST PIN# SIGNAL NAME +5 V USB_HOST_D- USB_HOST_D+ 6.6 LAN connector PIN# SIGNAL NAME NOT CONNECTED NOT CONNECTED Color Usage Right Green Link status Left Yellow Activity status 6.7 PWR Jack Pin #... -
Page 19: Headphones Connector
OLIMEX© 2012 STM32-P207 user's manual 6.8 Headphones connector 6.9 SD/MMC slot Pin # Signal Name DAT2 DAT3/CS CMD/DI CLK/SCLK DAT0/DO DAT1 6.10 RS232_1 RS232_1 is located on USART6/SPI3 line. Check the jumper configuration. Pin # Signal Name Not Connected T1OUT... -
Page 20: Rs232_2
OLIMEX© 2012 STM32-P207 user's manual Not Connected Not Connected Not Connected 6.11 RS232_2 RS232_2 is located on USART3 (processor pins D13 – D14, A17 – A16) Pin # Signal Name Not connected T1OUT R1IN Not connected Not connected Not connected 6.12 CAN connector... -
Page 21: Battery Connector
OLIMEX© 2012 STM32-P207 user's manual Not connected +5V_CAN 6.13 Battery connector Pin # Signal Name VBAT 6.14 Jumper description Most of the jumper configurations are printed with white print on the PCB for your convenience. PWR_SEL On the setting of this jumper depends the way we power the board. There is a table printed on the board with the positions. - Page 22 OLIMEX© 2012 STM32-P207 user's manual Default state is open . RST_E Controls the RST on the RS232_1. If closed is present. Default state is not present. Default state is open . B1_1/B1_0, B0_1/B0_0 These jumpers should be moved together and control the camera being powered.
-
Page 23: Lcd Display With Backlight
Nokia 6610 color display 128x128 pixels 6.16 VGA Color Camera 640x480 pixels (0.3 mega pixel) Samsung 700 camera + connector 6.17 Additional hardware components The components below are mounted on STM32-P207 but are not discussed above. They are listed here for completeness: Joystick Temperature sensor... -
Page 24: Notes On Interfaces
OLIMEX© 2012 STM32-P207 user's manual 2 buttons + RST button 4 status LEDs + PWR LED 6.18 Notes on interfaces Note that due the evaluation nature of the board not all interfaces are immediately available on the proto area. Some of the signals are used by peripherals and other devices. -
Page 25: Chapter 7 Memory
OLIMEX© 2012 STM32-P207 user's manual CHAPTER 7 MEMORY 7. Introduction to the chapter On the next page you can find a memory map for this family of processors. It is strongly recommended to refer to the original datasheet released by STMicroelectronics for one of higher quality. -
Page 26: Memory Map
OLIMEX© 2012 STM32-P207 user's manual 7.1 Memory map Page 26 of 32... -
Page 27: Chapter 8 Schematics
8. Introduction to the chapter In this chapter are located the schematics describing logically and physically STM32-P207. 8.1 Eagle schematic STM32-P207 schematic is visible for reference here. You can also find them on the web page for STM32-P207 at our site: https://www.olimex.com/Products/ARM/ST/STM32- P207/resources/STM32-P207-P407_rev_D.pdf. - Page 28 OLIMEX© 2012 STM32-P207 user's manual 3.3V 3.3V COLOUR LCD MODULE LCD BACKLIGHT CIRCUIT POWER SUPPLY CIRCUIT JTAG 3.3V BL_PWR 3.3V 3.3V 3.3V 3.3V TRACE JTAG 3.3V +5VDC_only!!! TRST/SPI1_MISO TDO/I2S3_CK TDI/I2S3_W S CL220uH/SD75 R100 R105 VDISPLAY TDI/I2S3_WS VDIGITAL TRST/SPI1_MISO R106 +5V_TRACE SPI1_SCK 2.2R...
-
Page 29: Physical Dimensions
OLIMEX© 2012 STM32-P207 user's manual 8.2 Physical dimensions Note that all dimensions are in inches. Page 29 of 32... -
Page 30: Chapter 9 Revision History
OLIMEX© 2012 STM32-P207 user's manual CHAPTER 9 REVISION HISTORY 9. Introduction to the chapter In this chapter you will find the current and the previous version of the document you are reading. Also the web-page for your device is listed. Be sure to check it after a purchase for the latest available updates and examples. -
Page 31: Web Page Of Your Device
The web page you may visit for more info on your device is https://www.olimex.com/Products/ARM/ST/STM32-P207/. ORDER CODES: STM32-P207 - completely assembled and tested ARM-JTAG-COOCOX – ARM debugger with JTAG and SWD interfaces USB-MINI-CABLE – USB mini to USB-A cable ARM-USB-TINY – for custom programming/debugging ARM-USB-TINY-H –... -
Page 32: Product Support
STM32-P207 user's manual 9.3 Product support For product support, hardware information and error reports mail to: support@olimex.com. Note that we are primarily a hardware company and our software support is limited. Please consider reading the paragraph below about the warranty of Olimex products.
