8 Not connected
9 +5V_CAN

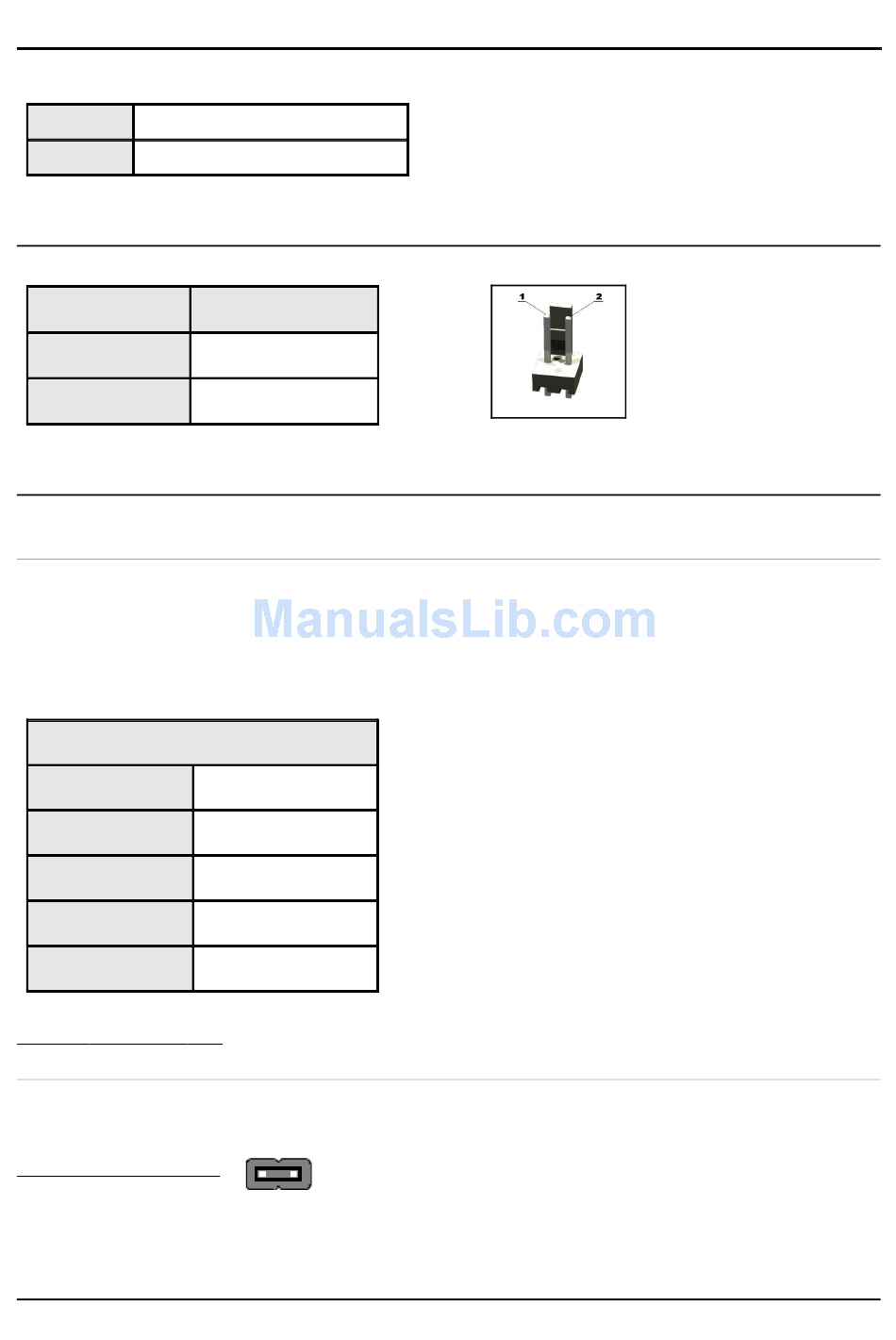

6.13 Battery connector

Pin #
1
2

6.14 Jumper description

Most of the jumper configurations are printed with white print on the PCB for your convenience.
PWR_SEL
On the setting of this jumper depends the way we power the board. There is a table printed on the
board with the positions. You can check the table below also. Position 1-2 is the one at the PWR
connector side.
PWR_SEL
1 - 2
3 - 4
5 - 6
7 - 8
9 - 10
Default position is 3-4 .
STAT1_E, STAT2_E, STAT3_E, STAT4_E
Those 4 jumpers control whether the LEDs are powered(closed) or not(open).
Default state is closed.
BOOT0_E
Connected to pin 138 (BOOT0/VPP), enables boot if closed.
Signal Name
VBAT
GND
+5V_EXT
+5V_J-LINK
+5V_CAN
+5V_USB_OTG
+5V_TRACE
