OLIMEX© 2012
5
GND
6
Not Connected
7
CTS
8
Not Connected
9
Not Connected

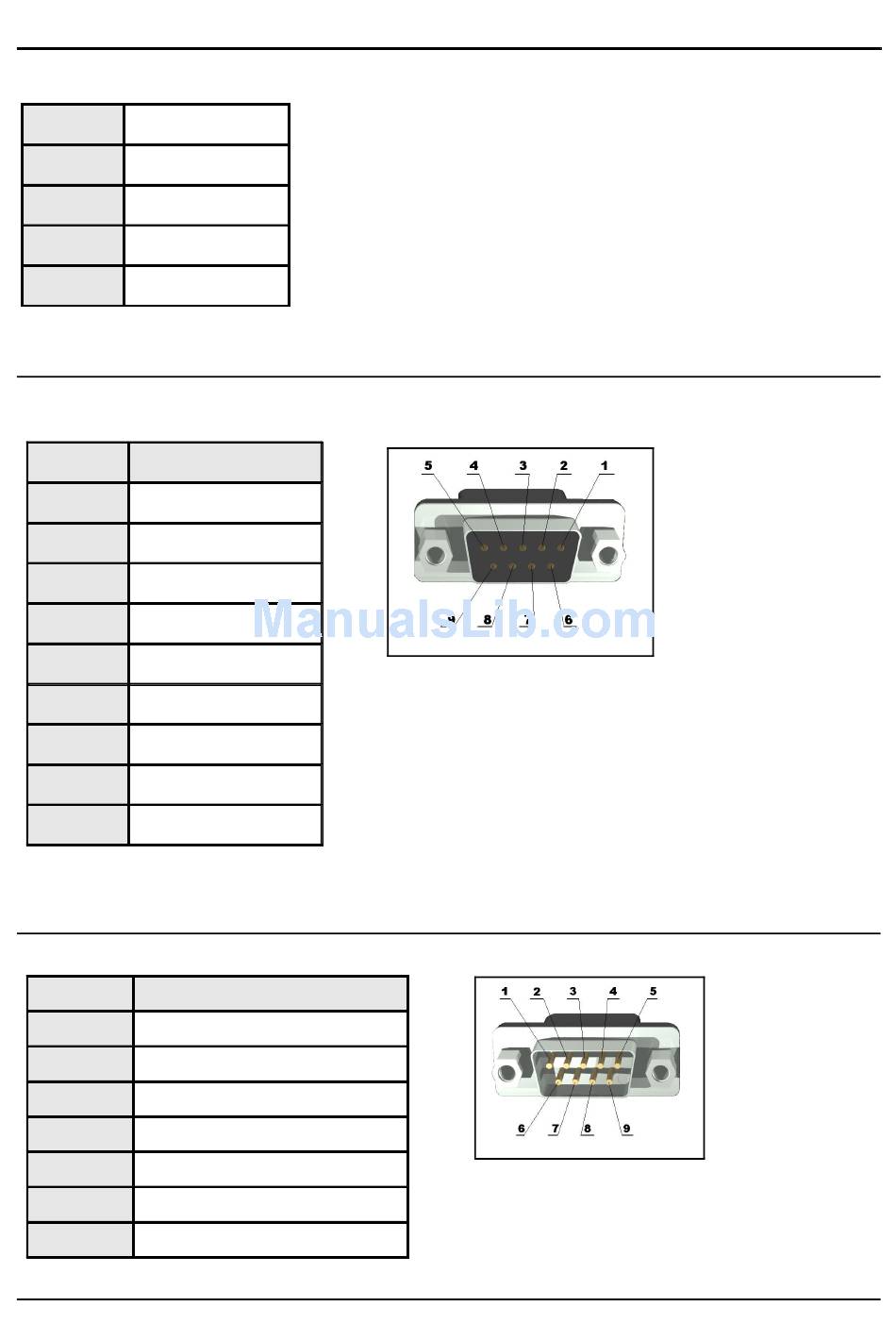

6.11 RS232_2
RS232_2 is located on USART3 (processor pins D13 – D14, A17 – A16)
Pin #
Signal Name
1
Not connected
2
T1OUT
3
R1IN
4
Not connected
5
GND
6
Not connected
7
CTS
8
RTS
9
Not connected
6.12 CAN connector
Pin#
Signal name
1
Not connected
2
CANL
3
VSS
4
Not connected
5
VSS
6
GND
7
CANH
Page 20 of 32
STM32-P207 user's manual
