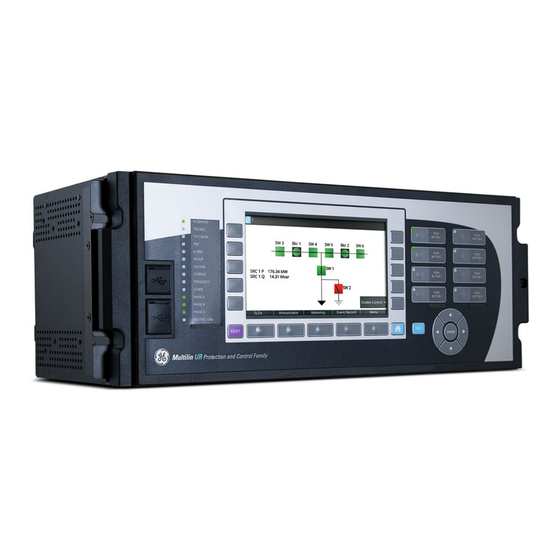

Page 1 Grid Solutions Network Stability and Synchrophasor Measurement System Instruction Manual Product version: 7.6x GE publication code: 1601-0125-AF1 (GEK-131006) E83849 LISTED IND.CONT. EQ. 52TL 1601-0125-AF1...
Page 2 The contents of this manual are the property of GE Multilin Inc. This documentation is furnished on license and may not be reproduced in whole or in part without the permission of GE Multilin. The content of this manual is for informational use only and is subject to change without notice.
Page 3: Table Of Contents
Type tests ..........................2-31 2.5.14 Production tests ........................2-31 2.5.15 Approvals ..........................2-32 2.5.16 Maintenance.........................2-32 3 INSTALLATION Unpack and inspect ....................3-1 Panel cutouts ......................3-2 3.2.1 Rear terminal layout ......................3-5 Wiring........................3-7 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 4 Protection summary window..................4-4 4.1.7 Settings templates........................4-5 4.1.8 Secure and lock FlexLogic equations ................4-9 4.1.9 Settings file traceability....................4-12 Front panel interface ...................4-14 4.2.1 Front panel..........................4-14 4.2.2 Front panel display......................4-16 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 5 Remote resources configuration ................5-140 System setup.......................5-142 5.5.1 AC inputs ..........................5-142 5.5.2 Power system........................5-143 5.5.3 Signal sources........................5-144 5.5.4 Breakers..........................5-147 5.5.5 Disconnect switch control...................5-152 5.5.6 FlexCurves...........................5-157 5.5.7 Phasor Measurement Unit ..................5-164 FlexLogic ......................5-185 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 6 5.11.1 Test mode function ......................5-317 5.11.2 Test mode forcing......................5-317 5.11.3 Phasor Measurement Unit test values..............5-318 5.11.4 Force contact inputs ..................... 5-319 5.11.5 Force contact outputs ....................5-319 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 7 Breaker maintenance.......................6-29 Product information .................... 6-30 6.6.1 Model information......................6-30 6.6.2 Firmware revisions ......................6-31 7 COMMANDS AND Commands menu ....................7-1 TARGETS 7.1.1 Virtual inputs........................... 7-2 7.1.2 Clear records .......................... 7-2 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 8 A FLEXANALOG FlexAnalog items ....................A-1 OPERANDS B RADIUS SERVER RADIUS server configuration ................B-1 CONFIGURATION C COMMAND LINE Command line interface ..................C-1 INTERFACE D MISCELLANEOUS Warranty ......................... D-1 viii N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 9 TABLE OF CONTENTS Revision history ......................D-1 ABBREVIATIONS INDEX N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 10 TABLE OF CONTENTS N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 11: Introduction
Ensure that the control power applied to the device, the alternating current (AC), and voltage input match the ratings specified on the relay nameplate. Do not apply current or voltage in excess of the specified limits. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 12: For Further Assistance
Website: http://www.gegridsolutions.com/multilin When contacting GE by e-mail, optionally include a device information file, which is generated in the EnerVista software by clicking the Service Report button. When using the optional graphical front panel, the report instead can be generated by connecting a USB drive to the front panel.
Page 13 CHAPTER 1: INTRODUCTION FOR FURTHER ASSISTANCE Figure 1-1: Generate service report in EnerVista software N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 14 FOR FURTHER ASSISTANCE CHAPTER 1: INTRODUCTION N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 15: Product Description
Up to 64 on/off signals can be exchanged between any two N60 devices via digital communications. The relays can be configured in rings with up to 16 devices each using direct fiber (C37.94), G.704, and RS422 interfaces. An optional redundant (dual-channel) communication card supports combinations of the three interfaces allowing different physical connections in each channel.
Page 16: Description
90-5, Modbus/TCP, TFTP, and PTP (according to IEEE Std. 1588-2008 or IEC 61588:2009(E)) protocols, and it allows access to the relay via any standard web browser (N60 web pages). The IEC 60870-5-104 protocol is supported on the Ethernet port. The Ethernet port also supports the Parallel Redundancy Protocol (PRP) of IEC 62439-3 (clause 4, 2012) when purchased as an option.
Page 17: Security
Password security — Basic security present by default • EnerVista security — Role-based access to various EnerVista software screens and configuration elements. The feature is present by default in the EnerVista software. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 18 The N60 supports password entry from a local or remote connection. Local access is defined as any access to settings or commands via the front panel interface. This includes both keypad entry and the through the front panel RS232 port.
Page 19 |--------------- User-Programmable LEDs |--------------- User-Programmable Self Tests |--------------- Control Pushbuttons RW |--------------- User-Programmable Pushbuttons |--------------- Flex state Parameters |--------------- User-Definable Displays |--------------- Direct I/O |--------------- Teleprotection |--------------- Installation |---------- System Setup N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 20 Supervisor = RW (default), Administrator = R (default), Administrator = RW (only if Supervisor role is disabled) NA = the permission is not enforced by CyberSentry security CyberSentry user authentication The following types of authentication are supported by CyberSentry to access the UR device: N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 21: Order Codes
The order code is on the product label and indicates the product options applicable. The N60 is available as a 19-inch rack horizontal mount and consists of the following modules: power supply, CPU, CT/VT, contact input and output, transducer input and output, and inter-relay communications. Module options are specified at the time of ordering.
Page 22: Order Codes With Enhanced Ct/Vt Modules
Six PMUs + IEC 60870-5-103 + PRP + IEEE 1588 + CyberSentry Lvl 1 Six PMUs + IEC 60870-5-103 + PRP + IEEE 1588 + CyberSentry Lvl 1 + IEC 61850 IEC 60870-5-103 IEC 60870-5-103 + IEC 61850 IEC 60870-5-103 + PMU N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 23 (requires all DSP to be enhanced Standard 8VT with enhanced diagnostics (required for PMU options) diagnostic) CONTACT INPUTS/OUTPUTS No Module 14 Form-A (no monitoring) Latchable outputs 8 Form-A (no monitoring) outputs N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 24: Order Codes With Process Bus Modules
IEEE 1588, PRP, and CyberSentry Lvl 1 IEEE 1588, PRP, CyberSentry Lvl 1, and IEC 61850 IEEE 1588, PRP, CyberSentry Lvl 1, and PMU IEEE 1588, PRP, CyberSentry Lvl 1, IEC 61850, and PMU 2-10 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 25 IEC 60870-5-103 + IEEE 1588 + PRP + CyberSentry UR Lvl 1 + 6 x PMU + IEC 61850 + 61850-90-5 MOUNT/COATING Horizontal (19” rack) Horizontal (19” rack) with harsh environmental coating FRONT PANEL + INTERFACE English display French display Chinese display N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 2-11...
Page 26: Replacement Modules
Replacement modules can be ordered separately. When ordering a replacement CPU module or front panel, provide the serial number of your existing unit. Not all replacement modules apply to the N60 relay. The modules specified in the order codes for the N60 are available as replacement modules for the N60.
Page 27: Signal Processing
(when applicable), and auxiliary voltages. The 2.4 kHz cut-off frequency applies to both 50 Hz and 60 Hz applications and fixed in the hardware, and thus is not dependent on the system nominal frequency setting. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 2-13...
Page 28 The A/D converter has the following ranges of AC signals: Voltages: Eq. 2-1 Currents: Eq. 2-2 Current harmonics are estimated based on raw samples with the use of the full-cycle Fourier filter. Harmonics 2nd through 25th are estimated. 2-14 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 29: Specifications
ICD/CID/IID files, and so on), IEEE 1588 (IEEE C37.238 power profile) based time synchronization, CyberSentry (advanced cyber security), the Parallel Redundancy Protocol (PRP), IEC 60870-5-103, and so on. 2.5 Specifications Specifications are subject to change without notice. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 2-15...
Page 30: Protection Elements
> 2.0 × CT: ±1.5% of reading > 2.0 × CT rating Curve shapes: IEEE Moderately/Very/Extremely Inverse; IEC (and BS) A/B/C and Short Inverse; GE IAC Inverse, Short/Very/ Extremely Inverse; I t; FlexCurves™ (programmable); Definite Time (0.01 s base curve) Curve multiplier: Time Dial = 0.00 to 600.00 in steps of 0.01...
Page 31 Typical times are average operate times including variables such as frequency change instance, test method, and so on, and can vary by ±0.5 cycles. OVERFREQUENCY Pickup level: 20.00 to 65.00 Hz in steps of 0.01 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 2-17...
Page 32 Characteristic limit angles: 40 to 140° in steps of 1 Timers: 0.000 to 65.535 s in steps of 0.001 Timer accuracy: ±3% of operate time or ±1/4 cycle (whichever is greater) 2-18 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 33: User-Programmable Elements
Comparator direction: over, under Pickup Level: –90.000 to 90.000 pu in steps of 0.001 Hysteresis: 0.1 to 50.0% in steps of 0.1 Delta dt: 20 ms to 60 days N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 2-19...
Page 34 < 8 ms at 60 Hz, < 10 ms at 50 Hz Upper / lower limit for input signal: 0.050 to 90 pu in steps of 0.001 Resolution: 8 bits / full-scale Maximum error: ±0.6% of full-scale 2-20 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 35: Monitoring
Sampling rate: 15 to 3600000 ms in steps of 1 Trigger: any FlexLogic operand Mode: continuous or triggered Storage capacity: (NN is dependent on memory) N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 2-21...
Page 36: Metering
Parameters: three-phase only Update rate: 50 ms VAR-HOURS (POSITIVE AND NEGATIVE) Accuracy: ±2.0% of reading ±0 to 1 × 10 Range: Mvarh Parameters: three-phase only Update rate: 50 ms 2-22 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 37: Inputs
FREQUENCY Nominal frequency setting: 25 to 60 Hz Sampling frequency: 64 samples per power cycle Tracking frequency range: 20 to 70 Hz CONTACT INPUTS Dry contacts: 1000 Ω maximum N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 2-23...
Page 38 Responding to: Rate of unreturned messages in the ring configuration Monitoring message count: 10 to 10000 in steps of 1 Alarm threshold: 1 to 1000 in steps of 1 2-24 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 39: Power Supply
Break (DC inductive, L/R = 40 ms): Voltage Current 24 V 48 V 0.5 A 125 V 0.3 A 250 V 0.2 A Operate time: < 4 ms Contact material: silver alloy N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 2-25...
Page 40 95% voltage drop across the load impedance. Operate time: < 0.6 ms Internal Limiting Resistor: 100 Ω, 2 W SOLID-STATE OUTPUT RELAY Operate and release time: <100 µs Maximum voltage: 265 V DC 2-26 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 41: Communication Protocols
USB 2.0 type B RS485 1 rear port: up to 115 kbps, Modbus RTU, DNP 3, IEC 60870-5-103 Typical distance: 1200 m Isolation: 2 kV, isolated together at 36 Vpk N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 2-27...
Page 42: Inter-Relay Communications
Transmit power Received Power budget Maximum sensitivity optical input power 820 nm, Multimode 62.5/125 μm -16 dBm -32 dBm 16 dBm -8 dBm 50/125 μm -20 dBm 12 dBm 2-28 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 43 CONNECTOR LOSSES (Total of both ends) ST connector: 0.7 dB (each) FIBER LOSSES 820 nm multimode: 3 dB/km N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 2-29...
Page 44: Cybersentry Security
–40 to 60°C; the LCD contrast can be impaired at temperatures less than –20°C HUMIDITY Humidity: operating up to 95% (non-condensing) at 55°C (as per IEC60068-2-30 variant 1, 6 days) OTHER Altitude: 2000 m (maximum) Pollution degree: 2-30 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 45: Type Tests
Insulation: class 1, Pollution degree: 2, Over voltage cat II 1 Not tested by third party. 2.5.14 Production tests THERMAL Products go through an environmental test based upon an Accepted Quality Level (AQL) sampling process. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 2-31...
Page 46: Approvals
Normally, cleaning is not required. When dust has accumulated on the front panel display, wipe with a dry cloth. To avoid deterioration of electrolytic capacitors, power up units that are stored in a de-energized state once per year, for one hour continuously. 2-32 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 47: Installation
For any issues, contact GE as outlined in the For Further Assistance section in chapter 1. Check that you have the latest copy of the N60 Instruction Manual and the UR Family Communications Guide, for the applicable firmware version, at http://www.gegridsolutions.com/multilin/manuals/index.htm...
Page 48: Panel Cutouts
Maintenance > Change Front Panel. The N60 is available as a 19-inch rack horizontal mount unit with a removable front panel. The front panel can be specified as either standard or enhanced at the time of ordering. The enhanced front panel contains additional user-programmable pushbuttons and LED indicators.
Page 49 CHAPTER 3: INSTALLATION PANEL CUTOUTS Figure 3-1: Horizontal dimensions (enhanced front panel) Figure 3-2: Horizontal mounting (enhanced and graphical front panel) N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 50 PANEL CUTOUTS CHAPTER 3: INSTALLATION Figure 3-3: Horizontal mounting and dimensions (standard front panel) Figure 3-4: Horizontal dimension (graphical front panel) N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 51: Rear Terminal Layout
Two-slot wide modules take their slot designation from the first slot position (nearest to CPU module), indicated by an arrow marker on the terminal block. The figure shows an example of rear terminal assignments. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 52 Wire connections to these two modules at 13 inch-pounds. Figure 3-6: CPU modules and power supply The following figure shows the optical connectors for CPU modules. Figure 3-7: LC fiber connector (left) and ST fiber connector (right) N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 53: Wiring
CHAPTER 3: INSTALLATION WIRING 3.3 Wiring 3.3.1 Typical wiring Figure 3-8: Typical wiring diagram (T module shown for CPU) N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 54: Dielectric Strength
The power supply module can be ordered for two possible voltage ranges, and the N60 can be ordered with or without a redundant power supply module option. Each range has a dedicated input connection for proper operation. The ranges are as follows (see the Specifications section of chapter 2 for details): •...
Page 55: Ct/Vt Modules
These modules have enhanced diagnostics that can automatically detect CT/VT hardware failure and take the relay out of service. CT connections for both ABC and ACB phase rotations are identical, as shown in the Typical Wiring Diagram. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 56 UR models. Substitute the tilde “~” symbol with the slot position of the module in the following figure. 3-10 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 57: Process Bus Modules
3.3.5 Process bus modules The N60 can be ordered with a process bus interface module. The module interfaces with the HardFiber Process Bus System, or HardFiber Brick, allowing bidirectional IEC 61850 fiber optic communications with up to eight HardFiber Bricks.
Page 58: Contact Inputs And Outputs
Form-A contact output with or without a current or voltage monitoring option is not polarity sensitive. The polarity shown in the figure is required for solid-state contact output connection. Figure 3-12: Form-A and solid-state contact outputs with voltage and current monitoring 3-12 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 59 Output or assignment input assignment assignment input assignment input Form-C Fast Form-C Form-A Form-A Form-C Fast Form-C Form-A Form-A Form-C Fast Form-C Form-A Form-A Form-C Fast Form-C Form-A Form-A N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 3-13...
Page 60 Not Used Form-A ~6a, ~6c 2 Inputs Form-A Solid-State ~7a, ~7c 2 Inputs ~7a, ~7c 2 Inputs Form-A Not Used ~8a, ~8c 2 Inputs ~8a, ~8c 2 Inputs Form-A Solid-State 3-14 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 61 2 Inputs 2 Outputs Solid-State Solid-State ~6a, ~6c 2 Inputs 2 Outputs Not Used Not Used ~7a, ~7c 2 Inputs 2 Outputs Solid-State Solid-State ~8a, ~8c 2 Inputs Not Used N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 3-15...
Page 62 WIRING CHAPTER 3: INSTALLATION Figure 3-13: Contact input and output module wiring (Sheet 1 of 2) 3-16 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 63 Figure 3-14: Contact input and output module wiring (Sheet 2 of 2) For proper functionality, observe the polarity shown in the figures for all contact input and output connections. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 3-17...
Page 64 N60 input even when the output is open, if there is a substantial distributed capacitance (represented by C1) present in the wiring between the output and the N60 input and the debounce time setting in the N60 relay is low enough.
Page 65 This operation of contact inputs also can be prevented by using the Auto-Burnish contact inputs or contact inputs with active impedance. Figure 3-17: Contact input connected to a contact output with resistor (R2) across the input N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 3-19...
Page 66 Eq. 3-2 The 2 mA current is used in case the contact input is connected across the GE Form A contact output with voltage monitoring. Otherwise use the amperage of the active circuit connected to the contact input when its contact output is open and the voltage across the contact input is third trigger threshold to calculate the resistor value.
Page 67 The auto-burnish feature can be disabled or enabled using the DIP switches found on each daughter card. There is a DIP switch for each contact, for a total of 16 inputs. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 3-21...
Page 68 Contact inputs susceptible to parasitic capacitance caused by long cable runs affected by switching surges from external circuits can result in inadvertent activation of contact inputs with the external contact open. In this case, GE recommends using the contact I/O module with active impedance circuit.
Page 69: Transducer Inputs And Outputs
The following figure illustrates the transducer module types (5A, 5C, 5D, 5E, and 5F) and channel arrangements that can be ordered for the relay. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 3-23...
Page 70 CHAPTER 3: INSTALLATION Where a tilde “~” symbol appears, substitute the slot position of the module. Figure 3-21: Transducer input/output module wiring The following figure show how to connect RTDs. 3-24 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 71: Rs232 Port
EnerVista UR Setup software provided with the relay. Cabling for the RS232 port is shown in the following figure for both 9-pin and 25-pin connectors. The baud rate for this port can be set, with a default of 115200 bps. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 3-25...
Page 72: Cpu Communication Ports
3.3.9 CPU communication ports 3.3.9.1 Overview In addition to the front panel RS232 port, there is a rear RS485 communication port. The CPU modules do not require a surge ground connection. 3-26 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 73 This common voltage is implied to be a power supply common. Some systems allow the shield (drain wire) to be used as common wire and to connect directly to the N60 COM terminal (#3); others function correctly only if the common wire is connected to the N60 COM terminal, but insulated from the shield.
Page 74: Irig-B
IRIG-B is a standard time code format that allows stamping of events to be synchronized among connected devices. The IRIG-B code allows time accuracies of up to 100 ns. Using the IRIG-B input, the N60 operates an internal oscillator with 1 µs resolution and accuracy.
Page 75: Direct Input And Output Communications
The direct inputs and outputs feature makes use of the type 7 series of communications modules and allows direct messaging between UR devices. The communications modules are outlined in the table later in this section. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 3-29...
Page 76 UR1-Tx1 to UR2-Rx1, UR2-Tx1 to UR3-Rx1, UR3-Tx1 to UR4-Rx1, and UR4-Tx1 to UR1-Rx1 for the first ring; and UR1-Tx2 to UR4-Rx2, UR4-Tx2 to UR3-Rx2, UR3-Tx2 to UR2-Rx2, and UR2-Tx2 to UR1-Rx2 for the second ring. 3-30 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 77 Those that apply depend on options purchased. The options are outlined in the Inter-Relay Communications section of the Order Code tables in Chapter 2. All of the fiber modules use ST type connectors. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 3-31...
Page 78: Fiber: Led And Eled Transmitters
The following figure shows the configuration for the 72, 73, 7D, and 7K fiber-laser modules. Figure 3-32: 7x Laser fiber modules The following figure shows configuration for the 2I and 2J fiber-laser modules. 3-32 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 79: Interface
The following figure shows the typical pin interconnection between two G.703 interfaces. For the actual physical arrangement of these pins, see the Rear Terminal Layout section earlier in this chapter. All pin interconnections are to be maintained for a connection to a multiplexer. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 3-33...
Page 80 Once the clips have cleared the raised edge of the chassis, engage the clips simultaneously. When the clips have locked into position, the module is inserted fully. 3-34 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 81 (S1 = ON) and set timing mode to loop timing (S5 = OFF and S6 = OFF). The switch settings for the internal and loop timing modes are shown. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 3-35...
Page 82 One source lies on the G.703 line side of the interface while the other lies on the differential Manchester side of the interface. Figure 3-39: G.703 dual loopback mode 3-36 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 83: Rs422 Interface
When used in single-channel applications, the RS422 interface links to higher-order systems in a typical way, observing transmit (Tx), receive (Rx), and send timing (ST) connections. However, when used in two-channel applications, certain N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 3-37...
Page 84 Figure 3-42: Timing configuration for RS422 two-channel, three-terminal application Data module 1 provides timing to the N60 RS422 interface via the ST(A) and ST(B) outputs. Data module 1 also provides timing to data module 2 TT(A) and TT(B) inputs via the ST(A) and AT(B) outputs. The data module pin numbers have been omitted in the figure because they vary by manufacturer.
Page 85: Two-Channel Two-Clock Rs422 Interface
(SCC) receive clock. 3.4.6 Two-channel two-clock RS422 interface The two-channel two-clock RS422 interface (module 7V) is for use with the synchrophasor feature. The figure shows the module connections. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 3-39...
Page 86: Rs422 And Fiber Interface
The frame is 256 bits and is repeated at a frame rate of 8000 Hz, with a resultant bit rate of 2048 kbps. The specifications for the module are as follows: 3-40 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 87 5.60. For customers using firmware release 5.60 and higher, the module can be identified with "Rev D" printed on the module and is to be used on all ends of N60 communication for two and three terminal applications.
Page 88 Figure 3-49: IEEE C37.94 timing selection switch setting Modules shipped since January 2012 have status LEDs that indicate the status of the DIP switches, as shown in the following figure. 3-42 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 89: Activate Relay
MESSAGE SECURITY Press the down arrow until the message displays. MESSAGE INSTALLATION Press the right arrow until the Not Programmed message displays. MESSAGE RELAY SETTINGS: N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 3-43...
Page 90: Install Software
To communicate via the RS232 port, use a standard straight-through serial cable. Connect the DB-9 male end to the relay and the DB-9 or DB-25 female end to the computer COM2 port as described in the CPU Communication Ports section earlier in this chapter. 3-44 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 91: System Requirements
This device (catalog number F485) connects to the computer using a straight-through serial cable. A shielded twisted-pair (20, 22, or 24 AWG) connects the F485 converter to the N60 rear communications port. The converter terminals (+, –, GND) are connected to the N60 communication module (+, –, COM) terminals. See the CPU Communication Ports section in chapter 3 for details.
Page 92: Install Software
Click the Next button to begin the installation. The files are installed in the directory indicated, and the installation program automatically creates icons and adds an entry to the Windows start menu. 3-46 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 93: Add Device To Software
3.7 Add device to software You connect remotely to the N60 through the rear RS485 or Ethernet port with a computer running the EnerVista UR Setup software. The N60 also can be accessed locally with a computer through the front panel RS232 port or the rear Ethernet port using the Quick Connect feature.
Page 94 From the Windows desktop, right-click the My Network Places icon and select Properties to open the network connections window. Or in Windows 7, access the Network and Sharing Center in the Control Panel. Right-click the Local Area Connection icon and select Properties. 3-48 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 95 Select the Internet Protocol (TCP/IP) item from the list, and click the Properties button. Click the “Use the following IP address” box. Enter an IP address with the first three numbers the same as the IP address of the N60 relay and the last number different (in this example, 1.1.1.2).
Page 96 Minimum = 0ms, Maximum = 0ms, Average = 0 ms Pinging 1.1.1.1 with 32 bytes of data: verify the physical connection between the N60 and the computer, and double-check the programmed IP address in setting, then repeat step 2. Product Setup  Communications  Network  IP Address...
Page 97 Click the Quick Connect button to open the window. Select the Ethernet interface and enter the IP address assigned to the N60, then click the Connect button. The EnerVista UR Setup software creates a site named “Quick Connect” with a corresponding device also named “Quick Connect”...
Page 98: Configure Serial Connection
For the RS232 connection, a computer with an RS232 port and a serial cable are required. To use the RS485 port at the back of the relay, a GE Grid Solutions F485 converter (or compatible RS232-to-RS485 converter) is required. See the F485 instruction manual for details.
Page 99: Configure Ethernet Connection
SEL-2032. This option enables display of a terminal window to allow interaction with the other device. 11. Click the Read Order Code button to connect to the N60 and upload the order code to the software. If a communications error occurs, ensure that the EnerVista software serial communications values entered in the previous step correspond to the relay setting values, and also ensure that the same IP address is not assigned to multiple N60 ports.
Page 100 12. If using a gateway to connect to the device, select Yes from the drop-down list. 13. Click the Read Order Code button to connect to the N60 device and upload the order code. If the device was entered already, a message displays "Device ’x’ is also using IP address.." If a communications error occurs, ensure that the values entered in the previous steps correspond to the relay setting values, and also ensure that the same IP address is not assigned to multiple N60 ports.
Page 101: Configure Modem Connection
CHAPTER 3: INSTALLATION ADD DEVICE TO SOFTWARE The device has been configured for Ethernet communications. Proceed to the Connect to the N60 section to begin communications. 3.7.4 Configure modem connection A modem connection allows a computer to communicate with a UR device over phone lines.
Page 102: Connect To The N60
When unable to connect because of an "ACCESS VIOLATION," access Device Setup and refresh the order code for the device. When unable to connect, ensure that the same IP address is not assigned to multiple N60 ports, for example under Settings > Product Setup > Communications > Network.
Page 103: Use Quick Connect Via The Front Panel Rs232 Port
Connect a nine-pin to nine-pin RS232 serial cable to the computer and the front panel RS232 port. Verify that the latest version of the EnerVista UR Setup software is installed (available from the GE EnerVista DVD or online from http://www.gegridsolutions.com/multilin). See the software installation section if not already installed.
Page 104: Use Quick Connect Via A Rear Ethernet Port
Connect" and displays them in the Online Window. Expand the sections to view data directly from the N60 device. Use the Device Setup button to change the site name. Each time that the EnerVista software is initialized, click the Quick Connect button to establish direct communications to the N60.
Page 105: Set Up Cybersentry And Change Default Password
• CID — Configured IED description file — Settings sent to the UR (may or may not be actual settings) The import is done in the Offline Window area. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 3-59...
Page 106: Connect To D400 Gateway
3.11 Connect to D400 gateway A GE Multilin D400 Substation Gateway can be used to collect data from UR devices in a local area network (LAN). It collects metering, status, event, and fault report data from serial or LAN-based intelligent substation devices, and it pre-processes the data.
Page 107: Setting Files
These are the configuration/settings files in the IEC 61850 SCL/IID format. The ur.iid file is saved with a "_YYMMDDhhmmss" retrieval time stamp, for example ur_170525183124.iid. It is stored in the D400 folder system using the UR site and device name. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 3-61...
Page 108 CONNECT TO D400 GATEWAY CHAPTER 3: INSTALLATION 3-62 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 109: Interfaces
The EnerVista UR Setup software is provided with every N60. This chapter outlines the EnerVista software interface features. The EnerVista UR Setup Help File also provides details for getting started and using the software interface.
Page 110: Event Viewing
IP Address IP Subnet Mask IP Routing When a settings file is loaded to a N60 that is in-service, the following sequence occurs: The N60 takes itself out of service. The N60 issues a UNIT NOT PROGRAMMED major self-test error.
Page 111: File Support
Settings list / offline window area Software windows, with common toolbar Settings file data view windows, with common toolbar Workspace area with data view tabs Status bar 10. Quick action hot links N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 112: Protection Summary Window
The Protection Summary is a graphical user interface to manage elements, such as enabling and disabling them. Access it under Settings > Protection Summary. See the Settings chapter for information on use. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 113: Settings Templates
Right-click the selected device or settings file and select the Template Mode > Create Template option. The settings file template is now enabled and the file menus displayed in light blue. A message displays. The settings file is now in template editing mode. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 114 Figure 4-4: Settings template with all settings specified as locked Specify the settings to make viewable by clicking them. A setting available to view is displayed against a yellow background. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 115 Select an installed device or a settings file from the left menu of the EnerVista UR Setup window. Apply the template by selecting the Template Mode > View In Template Mode option. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 116 Once the template has been applied, users are limited to edit the settings specified by the template, but all settings are shown. The effect of applying the template to the phase time overcurrent settings is shown as follows. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 117: Secure And Lock Flexlogic Equations
To lock individual entries of a FlexLogic equation: Right-click the settings file or online device and select the Template Mode > Create Template item to enable the settings template feature. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 118 The effect of applying the template to the FlexLogic entries is shown here. Figure 4-10: Locking FlexLogic entries through settings templates The FlexLogic entries are also shown as locked in the graphical view and on the front panel display. 4-10 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 119 Right-click the setting file in the offline window area and select the Edit Device Properties item. The window opens. Figure 4-12: Settings file properties window N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 4-11...
Page 120: Settings File Traceability
When a settings file is transferred to a N60 device, the date, time, and serial number of the N60 are sent back to EnerVista UR Setup and added to the settings file on the local computer. This information can be compared with the N60 actual values at any later date to determine if security has been compromised.
Page 121 4.1.9.2 Online device traceability information The N60 serial number and file transfer date are available for an online device through the actual values. Select the Actual Values > Product Info > Model Information menu item within the EnerVista online window as shown in the example.
Page 122: Front Panel Interface
The enhanced front panel consists of LED panels, an RS232 port, keypad, LCD display, control pushbuttons, and optional user-programmable pushbuttons. The front panel is hinged to allow access to removable modules inside the chassis. 4-14 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 123 The USB port is the square type B. User-programmable pushbuttons 9 to 16 can be programmed among the 10 pushbuttons on the left and right sides of the display. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 4-15...
Page 124: Front Panel Display
The front panel can be viewed and used in the EnerVista software, for example to view an error message displayed on the front panel or the LEDs. To view the front panel in EnerVista software: Click Actual Values > Front Panel, then any option. 4-16 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 125 Page content displays between the header and footer. The pages are arranged for navigation in a hierarchical structure similar to that used for the enhanced and standard front panels. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 4-17...
Page 126 Active targets symbol. View error messages by pressing the Menu Tab pushbutton, then accessing the TARGETS menu. 4-18 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 127 Factory default names are SLD 1, SLD 2, and so on. Pages that have no configured content have a blank Tab pushbutton label, and the Tab pushbutton does nothing. The label for the current page has a blue background. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 4-19...
Page 128 The following example outlines how to create a circuit breaker diagram, then how to close the second circuit breaker. The figure shows six switches, two breakers, feeder, and ground. 4-20 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 129 Line Diagram Editor. Add the four switches for the top line by clicking the GE switch symbol in the toolbar, then clicking in the window. If the UR device is not online, the software attempts to connect. Double-click to edit properties. Rotate switches SW569 and SW5682 to 270 degrees.
Page 130 Add the two lower switches. Leave rotation at 0 degrees. Add the breakers by clicking the GE breaker symbol in the toolbar, then clicking in the window. Double-click to edit properties, rotating 90 degrees and setting the color to red (open).
Page 131 Load — Opens single-line diagram files, which replaces all five windows with that in the file To save drawings as a separate file, click File > Save As. The file is saved in the .mif format. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 4-23...
Page 132 Up to 32 static symbols can be used per single-line diagram. To add a symbol, click it in the toolbox, then click in the window. Double-click the symbol to open its properties window to set orientation. 4-24 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 133 The symbols assume horizontal symbol orientation, red - closed color, and green - open scheme. With vertical orientation, they are rotated 90 degrees. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 4-25...
Page 134 (horizontal or vertical), color scheme (red - closed, or red - open), and assigned side button (if any). If the selected breaker or disconnect element 4-26 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 135 A question mark displays in a symbol on the graphical front panel when status is bad. The question mark does not rotate with orientation. Figure 4-33: Symbols when status is bad The following figures show the orientation available for the static components. The default position is 0 degrees. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 4-27...
Page 136 FRONT PANEL INTERFACE CHAPTER 4: INTERFACES Figure 4-34: Single-line diagram static symbol orientation (sheet 1 of 2) 4-28 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 137 User-programmable pushbuttons 9 to 16 can be programmed among the 10 pushbuttons on the left and right sides of the screen display. They show dynamically and provide a means to perform the same control as a hardware user- programmable pushbutton. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 4-29...
Page 138 To add a metering component, click the M symbol in the toolbox, then click in the window. Drag it to its final location. Double-click it to open the properties window. The figure shows the properties that can be edited. 4-30 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 139 Self Reset, so the alarm displays in a solid color. The blue alarm type is Acknowledgeable, so the alarm flashes until it is acknowledged, for example by navigating with the arrow keys and pressing the ENTER button. The alarm then remains blue until the trigger condition is eliminated. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 4-31...
Page 140 Alarm types of each window can be configured as Self Reset, Latched, or Acknowledgeable. In Self Reset mode, the window lighting follows the state of the configured FlexLogic operand. The self-reset mode alarm sequence conforms to ISA-18.1-1979 (R2004) standard type A 4 5 6. 4-32 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 141 In Acknowledgeable mode, both Off to On and On to Off state changes in the configured operand cause the background to flash; the window must be acknowledged/reset to cancel flashing. This mode conforms to ISA-18.1-1979 (R2004) standard type R-6. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 4-33...
Page 142 The last window is not configured and displays blank/grey. In order for the Ethernet and battery alarms to work, the corresponding self-test alarms have been enabled under Settings > Product Setup > User-Programmable Self Tests (not shown). 4-34 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 143 AC source. They display on the graphical front panel using the Metering Tab pushbutton. The path to the editor is Settings > Product Setup > Graphical Panel > Metering Editor. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 4-35...
Page 144 Content to display is configured with the cell lines. The content can be actual values, a status indicator, or text. • Actual value — Select from the FlexAnalogs applicable to the N60, where a FlexAnalog is an analog parameter •...
Page 145: Front Panel Navigation Keys
The decimal key initiates and advances to the next character in text edit mode or enters a decimal point. key can be pressed at any time for context-sensitive help messages. HELP N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 4-37...
Page 146 Tab pushbutton — Five pushbuttons under the display. They navigate through the page hierarchy, and on some pages activate other actions. The display footer dynamically labels the page or action that is activated by the tab pushbutton. 4-38 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 147: Led Indicators
“Enabled” or “Latched.” If a protection element target setting is “Enabled,” then the corresponding event-cause LEDs remain on as long as the operand associated with the element remains asserted. If a N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 4-39...
Page 148 Support for applying a customized label beside every LED is provided. Default labels are shipped in the label package of every N60, together with custom templates. The default labels can be replaced by user-printed labels. User customization of LED operation is of maximum benefit in installations where languages other than English are used to communicate with operators.
Page 149 The default labels are intended to represent the following: • GROUP 1...6 — The illuminated GROUP is the active settings group • BREAKER 1(2) OPEN — The breaker is open N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 4-41...
Page 150 TRIP — Indicates that the selected FlexLogic operand serving as a trip output has operated. This indicator latches; initiate the reset command to reset the latch. • ALARM — Indicates that the selected FlexLogic operand serving as an alarm output has operated 4-42 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 151: Front Panel Labelling
NEUTRAL/GROUND — LED 14 — Indicates that neutral or ground was involved 4.2.5 Front panel labelling 4.2.5.1 Enhanced front panel The following procedure requires these pre-requisites: • The UR front panel label cutout sheet (GE part number 1006-0047) has been downloaded from http://www.gegridsolutions.com/products/support/ur/URLEDenhanced.doc and printed • Small-bladed knife To create custom LED and pushbuttons labels for the enhanced front panel: Start the EnerVista UR Setup software.
Page 152 LED labels. Use the tool with the printed side containing the GE part number facing the user. The label package shipped with every N60 contains the three default labels, the custom label template sheet, and the label removal tool.
Page 153 Bend the tab at the center of the tool tail as shown. To remove the LED labels from the N60 front panel and insert the custom labels: Use the knife to lift the LED label and slide the label tool underneath. Ensure that the bent tabs are pointing away from the relay.
Page 154 Slide the new LED label inside the pocket until the text is properly aligned with the LEDs, as shown. To remove the user-programmable pushbutton labels from the N60 front panel and insert the custom labels: Use the knife to lift the pushbutton label and slide the tail of the label tool underneath, as shown. Ensure that the bent 4-46 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM –...
Page 155 Remove the tool and attached user-programmable pushbutton label. Slide the new user-programmable pushbutton label inside the pocket until the text is properly aligned with the N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 4-47...
Page 156 To create LED and pushbutton labels for a standard front panel: In the EnerVista software, if the N60 is not already listed in the Offline Window area, add it by right-clicking it and selecting the Add Device to Offline Window option.
Page 157 4.2.5.3 Graphical front panel The N60 includes software for labelling the LEDs and pushbuttons on the graphical front panel and a sticker sheet with pre-printed and blank labels. The pre-printed labels are on the top-left of the template sheet, and the blank labels are on the bottom-right.
Page 158: Menu Navigation
Use the down, right, left, and up arrows to navigate the menu. The up and down arrow keys move within a group of headers, sub-headers, setting values, or actual MESSAGE 4-50 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 159 The Page Up and Page Down Tab pushbuttons also navigate through the list. When there is only a single page of options, they jump to the first and last entries. The options displayed depend on order code. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 4-51...
Page 160: Change Settings
This flash message momentarily appears as confirmation of the storing process. Numerical values that contain decimal places are rounded-off if more decimal place digits are entered than specified by the step value. 4-52 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 161 An example is a confirmation message upon saving settings. This setting specifies how long to display the message. Press the Menu pushbutton to display the main menu. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 4-53...
Page 162 Use the Up or Down pushbutton to select SETTINGS, then press the Right or ENTER pushbutton. Figure 4-56: Settings menu With PRODUCT SETUP selected, press the Right or ENTER pushbutton. 4-54 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 163 As the FLASH MESSAGE TIME setting accepts a numerical value, a keypad displays. The time is to be changed to 4.0 seconds. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 4-55...
Page 164 The shift key (up arrow on keyboard) is green upon activation, while the keyboard letters switch to upper case. The globe key (shown greyed-out) toggles the keyboard language between English and another display language selected, for example between English and French. 4-56 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 165: View Actual Values
Each phasor page has a name, which consists of the value of the SOURCE # NAME setting appended with " Phasors." Phasor pages that have no configured CTs or VTs do not have a Tab pushbutton, and phasor pages that have no configured cells cannot be displayed. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 4-57...
Page 166: Breaker Control
4.2.9 Breaker control The N60 can interface with associated circuit breakers. In many cases the application monitors the state of the breaker, that can be presented on front panel LEDs, along with a breaker trouble indication. Breaker operations can be manually initiated from the front panel keypad or automatically initiated from a FlexLogic operand.
Page 167: Change Passwords
The information in this section refers to password security. For information on how to set the password for the first time or change CyberSentry passwords, see the previous chapter or the Settings > Product Setup > Security > CyberSentry section in the next chapter. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 4-59...
Page 168 When entering a settings or command password via EnerVista or any serial interface, the user must enter the corresponding connection password. If the connection is to the back of the N60, the remote password must be used. If the connection is to the RS232 port of the front panel, the local password must be used.
Page 169: Invalid Password Entry
By default, when an incorrect Command or Setting password has been entered via the front panel three times within five minutes, the FlexLogic operand is set to “On” and the N60 does not allow settings or command level LOCAL ACCESS DENIED access via the front panel for five minutes.
Page 170: Flexlogic Design Using Engineer
Works with all UR firmware versions The figure shows an example where several inputs are used to trigger an output. With the OR function, any one of the inputs can trigger the output. 4-62 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 171 This section explains how to use Engineer. It outlines the following topics: • Design logic • Send file to and from device • Monitor logic • View front panel • Generate connectivity report • Preferences N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 4-63...
Page 172: Design Logic
Preparation — Under Settings > Inputs/Outputs > Virtual Outputs, virtual outputs 3 and 4 are named DLTrigger Top logic — Seven-minute timer trigger Bottom logic — Turn on LED 9 for 10 seconds when the trigger starts 4-64 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 173 This procedure uses input / output logic as an example. To create a logic diagram: In the Offline Window area, access Engineer for the device, then Logic Designer. If the device is not listed, right-click N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 4-65...
Page 174 Add the input blocks to the logic diagram. For example, click the I/O Tokens tab on the right, click the Input element, then click in the logic sheet to add it. Or drag-and-drop it. 4-66 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 175 Line option. The cursor needs to be at the connection point to end the line, not elsewhere on the block. Note that the outline color is no longer red on the blocks. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 4-67...
Page 176 The warning "input using disabled feature" means that input needs to be enabled. Double-click the block, click the View Associated Screen button, enable the setting, save, and recompile. The output and messages are explained in the next section. 4-68 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 177 IEC 61850 panel and thereby become synchronized. The CID file and the IID file (depending on the preference 'Do not update IID file when updating SCL files') are updated. If the CID file is not already there, it is generated. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 4-69...
Page 178 CHAPTER 4: INTERFACES The location of these files is C:\ProgramData\GE Power Management\urpc, for example, in the Offline and Online folders. Any FlexLogic equations entered in the Offline Window area are erased. The logic drawn in the Logic Designer window in Engineer in the Offline Window area remain.
Page 179 Click the Ok button to save and exit from the window. In the logic diagram, select an element, then click in the drawing area to add it, click again to add a second box, and so on. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 4-71...
Page 180 Optimization Summary. Changes also display when the FlexLogic Equation Editor is accessed. The logic diagram does not change. In the example shown, no lines were saved to free up space. Figure 4-80: Code optimization results 4-72 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 181 Type in the second text string box, or select any of the 32 previous searches from the drop-down list. Click the Search button. Any results display. The search applies to all tabs, not just the active tab. Double-click a search result to view the item. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 4-73...
Page 182: Send File To And From Device
When a window opens, select the device to which you want to send the file, then click the Send button and confirm. The order codes must match. The file is sent to the live device. Any errors can be viewed in the log file at the prompt. 4-74 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 183: Monitor Logic
(green box outline). In this case, the battery is weak and needs to be replaced. This can be viewed as the Replace Battery message on the front panel of the device and in the EnerVista software under Actual Values > Front Panel > Front Panel or Display/Keypad. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 4-75...
Page 184: View Front Panel And Print Labels
To save the report and labels, click File > Save As, enter a file name, and select the FPR, JPG, or PDF format. Use the instructions in the second tab of the window to add the labels to the physical device. 4-76 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 185: Generate Connectivity Report
View > Toolbar > Advanced Actions — Active when in Logic Designer. Toggles a toolbar to nudge, rotate, flip, or change the order of an element. View > Show Unused Pins — Enable to display unconnected pins. Disable to eliminate unconnected pins from the view, for example when printing. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 4-77...
Page 186 File Information The text entered here displays at the bottom right of a diagram when printing, provided that the Show Title Block option is enabled. Note the option to change the logo from the GE logo to your company logo. Display The panel sets how the element boxes display.
Page 187 The software displays the color specified when an element is on. There is no color when the element is off. The software displays another color when the status cannot be determined and is unknown. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 4-79...
Page 188 Options display for filtering, such as recording timing for Virtual Inputs and Outputs, but not Communications Status. 4.4.6.4 COMTRADE waveforms Waveform files are viewable in the EnerVista software. The preferences are unrelated to Engineer and are outlined in the UR Family Communications Guide. 4-80 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 189: Toolbars
4.4.7.2 Token Toolbox Drawing Tools Draw a line. Click and drag to draw. Draw multiple joined lines. Click and drag for each line. Double-click to finish. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 4-81...
Page 190 Input from another UR device. Teleprotection inputs/outputs and direct inputs/outputs are mutually exclusive and cannot be used simultaneously. Teleprotection inputs/outputs and direct inputs/outputs are mutually exclusive and cannot be used simultaneously. 4-82 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 191 Tag-In can is used to reference an existing Tag-Out. It joins another diagram to a previous diagram. Boolean Tokens These symbols are used to create FlexLogic Equations. Use them as intermediate logic for the Virtual Output equations. The display can vary from that shown here. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 4-83...
Page 192 Place a positive one shot and a negative one shot symbol in the Logic Designer diagram Place a timer in the Logic Designer diagram Elements These blocks configure properties of the element or use element operands as input to FlexLogic equations. 4-84 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 193 Set the width of the selected components to the same width as the reference component Same Height Set the height of the selected components to the same height as the reference component N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 4-85...
Page 194 Front, Back Moves current components to the absolute front or back of all viewable layers Forward, Backward Moves current components on layer higher or lower than its original layer hierarchy 4-86 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 195: Settings
See page 5-107   CLOCK  USER-PROGRAMMABLE See page 5-112   FAULT REPORTS  OSCILLOGRAPHY See page 5-113    DATA LOGGER See page 5-115   N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 196  NON-VOLATILE See page 5-207   LATCHES  FLEXMATH See page 5-208     SETTINGS  SETTING GROUP 1 See page 5-211   GROUPED ELEMENTS  N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 197  CONTACT OUTPUTS See page 5-298    VIRTUAL OUTPUTS See page 5-301    RESETTING See page 5-301    DIRECT INPUTS See page 5-302   N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 198: Overview
The previous chapter explains how to read a logic diagram, and the abbreviations used in a diagram are defined in the Abbreviations chapter. Some settings are specified in per-unit (pu) calculated quantities: pu quantity = (actual quantity) / (base quantity) N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 199 When set to “Disabled,” element pickup, dropout, or operate are not recorded as events. When set to “Enabled,” events are created for <Element> PKP (pickup) <Element> DPO (dropout) <Element> OP (operate) N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 200: Introduction To Ac Sources
A major advantage of using internal summation is that the individual currents are available to the protection device, for example as additional information to calculate a restraint current, or to allow the provision of additional protection features that operate on the individual currents, such as breaker failure. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 201 Upon startup, the CPU configures the settings required to characterize the current and voltage inputs, and it displays them in the appropriate section in the sequence of the banks (as described earlier) as follows for a maximum configuration: F1, F5, M1, M5, U1, and U5. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 202: Product Setup
To reset the unit after a lost password: Email GE customer service at multilin.tech@ge.com with the serial number and using a recognizable corporate email account. Customer service provides a code to reset the relay to the factory defaults.
Page 203 When entering a settings or command password via EnerVista or any serial interface, the user must enter the corresponding connection password. If the connection is to the back of the N60, the remote password must be used. If the connection is to the RS232 port of the front panel, the local password must be used.
Page 204 Enter the new password in the New Password field. Requirements are outlined in the Password Requirements section earlier in this chapter. When an original password has already been used, enter it in the Enter Password field and click 5-10 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 205 INVALID ATTEMPTS BEFORE LOCKOUT The N60 provides a means to raise an alarm upon failed password entry. If password verification fails while accessing a password-protected level of the relay (either settings or commands), the FlexLogic operand is UNAUTHORIZED ACCESS asserted.
Page 206 If access is permitted and an off-to-on transition of the FlexLogic operand is detected, the timeout is restarted. The status of this timer updates every five seconds. 5-12 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 207 It is disabled by default to allow access to the device immediately after installation. When security is disabled, all users have administrator access. GE recommends enabling the EnerVista security before placing the device in service. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 208 If you force password entry by using this feature, ensure that you know the Administrator password. If you do not know the password and are locked out of the software, contact GE Grid Solutions for the default password of a UR device.
Page 209 The EnerVista security management system must be enabled (the Enable Security check box enabled) To modify user privileges: Select the Security > User Management item from the top menu to open the user management window. Locate the username in the User field. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-15...
Page 210 This feature requires a CyberSentry software option. See the Order Codes section in chapter 2 for details. The EnerVista software provides the means to configure and authenticate the N60 access using either a server or the device. Access to functions depends on user role.
Page 211 When the "Device" button is selected, the N60 uses its local authentication database and not the RADIUS server to authenticate the user. In this case, it uses built-in roles (Administrator, Engineer, Supervisor, Operator, Observer, or Administrator and Supervisor when Device Authentication is disabled), as login accounts and the associated passwords are stored on the N60 device.
Page 212 For the Device > Settings > Product Setup > Supervisory option, the panel looks like the following. Figure 5-4: Supervisory panel For the Security panel, the following settings are available. 5-18 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 213 Administrator is to re-enable Device authentication when Device authentication is disabled. To re-enable Device authentication, the Supervisor unlocks the device for setting changes, and then the Administrator can re- enable Device authentication. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-19...
Page 214 Range: Administrator, Engineer, Supervisor,   None Operator, Factory (for factory use only), None  CHANGE LOCAL See page 5-21   PASSWORDS  SESSION See page 5-22   SETTINGS 5-20 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 215 • Observer — This role has read-only access to all N60 settings. This role allows unlimited concurrent access but it has no download access to any files on the device. Observer is the default role if no authentication has been done to the device.
Page 216 In Device authentication mode, the Observer role does not have a password associated with it. In Server authentication mode the Observer role requires a password. If you are locked out of the software, contact GE Grid Solutions for the default password. When using CyberSentry, the default password is "ChangeMe1#".
Page 217 SETTINGS  PRODUCT SETUP  SECURITY  SUPERVISORY  SELF TESTS  SELF TESTS  FAILED See below   AUTHENTICATE  FIRMWARE LOCK: Range: Enabled, Disabled  Enabled SETTINGS LOCK: Range: Enabled, Disabled  Enabled N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-23...
Page 218 After making any required changes, log out. When changing settings offline, ensure that only settings permitted by the role that performs the settings download are changed because only those changes are applied. 5-24 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 219 Clear Energy command (not applicable to all UR products) Clear Unauthorized Access command Clear Teleprotection Counters command (not applicable to all UR products) Clear All Relay Records command Role Log in Role Log off N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-25...
Page 220: Display Properties
PRODUCT SETUP CHAPTER 5: SETTINGS In addition to supporting syslog, a N60 with CyberSentry also saves the security events in two local security files, these being SECURITY_EVENTS.CSV and SETTING_CHANGES.LOG. Details on these files and how to retrieve them are available in the EnerVista software under Maintenance >...
Page 221 Some customers prefer very low currents to display as zero, while others prefer the current to display even when the value reflects noise rather than the actual signal. The N60 applies a cut-off value to the magnitudes and angles of the measured currents.
Page 222: Graphical Front Panel
The path is Settings > Product Setup > Graphical Panel > Home Page. The menu does not display when there is no graphical front panel. 5-28 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 223 Whenever an annunciator window changes state this list is re-evaluated, which can result in the home page displaying a different annunciator page. The Tabular option displays a configured actual values/metering page. The Targets option displays error messages. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-29...
Page 224 If the display rolls, the rolling mode pages remain displaying regardless of the home page or rolling mode delay specified. Each page displays for a few seconds; duration cannot be set. The path is Settings > Product Setup > Graphical Panel > Rolling Mode. 5-30 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 225 Range: 1 to 10 in steps of 1 Default: 1 This setting specifies the number of rolling pages. During rolling mode, the graphical front panel displays pages from 1 to the selected number. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-31...
Page 226 Metering Tab pushbutton on the graphical front panel. The Metering Editor is not used. The figures show setup and preview for monitoring actual values in a table on the graphical front panel. 5-32 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 227 A maximum of eight Status Inputs can be used per metering page, and 16 in all metering pages. Select the metering input from the drop-down list. The options reflect the FlexLogic operands applicable to the N60. They are inputs for all five metering pages, not just the current page.
Page 228 Default: Black Set the text color to display in the specified cell. BACK COLOR Range: 24-bit color selector Default: Grey Set the background color to display for the specified cell. 5-34 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 229 Range: 1 to 12 in steps of 1 Default: 1 This setting specifies the number of integers in the displayed metered value. It can be used to provide for leading character spacing of the display value. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-35...
Page 230 User-Programmable Self Tests (not shown). When the alarms are triggered, they display with a red background. An alarm is acknowledged by using the arrow keys on the graphical front panel then pressing the Enter button. 5-36 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 231 Range: up to 20 alphanumeric characters Default: Page 1...Page 8 Up to 20 characters can be input as the name of each annunciator page. The number of pages depends on the Layout. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-37...
Page 232 The background color to display for any triggered cell, for example when alarm is triggered. Configure Range: Configure Default: Configure The Configure button becomes active when the CONTENT field is set to "Actual" or "Mixed." The window configures metered values. 5-38 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 233 For the Ethernet and IRIG-B failure operation to work, these functions also have been enabled under Settings > Product Setup > User-Programmable Self Tests. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-39...
Page 234: Clear Relay Records
SETTINGS  PRODUCT SETUP  CLEAR RELAY RECORDS  CLEAR RELAY CLEAR USER REPORTS: Range: FlexLogic operand   RECORDS CLEAR EVENT RECORDS: Range: FlexLogic operand  CLEAR OSCILLOGRAPHY: Range: FlexLogic operand  5-40 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 235: Communications
Selected records can be cleared from user-programmable conditions with FlexLogic operands. Assigning user- programmable pushbuttons to clear specific records is a typical application for these commands. Since the N60 responds to rising edges of the configured FlexLogic operands, they must be asserted for at least 50 ms to take effect.
Page 236 5.3.5.3 Ethernet network topology The N60 has three Ethernet ports. Each Ethernet port must belong to a different network or subnetwork. Configure the IP address and subnet to ensure that each port meets this requirement. Two subnets are different when the bitwise AND operation performed between their respective IP address and mask produces a different result.
Page 237 SCADA is provided through LAN2. P2 and P3 are connected to LAN2, where P2 is the primary channel and P3 is the redundant channel. In this configuration, P3 uses the IP and MAC addresses of P2. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-43...
Page 238 LAN2, to which port 2 (P2) is connected, and communications with SCADA on LAN3, to which port 3 (P3) is connected. There is no redundancy. Figure 5-15: Multiple LANS, no redundancy 5-44 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 239 IP addresses and mask. Configure the network IP and subnet settings before configuring the routing settings. To obtain a list of all port numbers used, for example for audit purposes, contact GE technical support with substantiating information, such as the serial number and order code of your device.
Page 240 2 is performed. The delay in switching back ensures that rebooted switching devices connected to the N60, which signal their ports as active prior to being completely functional, have time to completely initialize themselves and become active. Once port 2 is active again, port 3 returns to standby mode.
Page 241 UR 7 redundancy Failover is selected for redundancy. 5.3.5.6 Parallel Redundancy Protocol (PRP) The N60 is provided with optional PRP capability. This feature is specified as a software option at the time of ordering. See the Order Codes section in chapter 2 for details.
Page 242 Delete the default route by replacing the default gateway with the default value of 127.0.0.1. General conditions to be satisfied by static routes The following rules are validated internally: 5-48 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 243 Port 2 (IP address 10.1.2.2) connects the UR to LAN 10.1.2.0/24 and to the EnerVista software through Router2. Router2 has an interface on 10.1.2.0/24 and the IP address of this interface is 10.1.2.1. The configuration before release 7.10 was as follows: N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-49...
Page 244  MODBUS PROTOCOL MODBUS SLAVE Range: 1 to 254 in steps of 1   ADDRESS: 254 MODBUS TCP PORT Range: 0 to 65535 in steps of 1  NUMBER(502): 502 5-50 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 245 0 disables Modbus over TCP/IP, meaning closes the Modbus TCP port. When the port number is changed to 0, the change takes effect when the N60 is restarted. When it is set to 0, use the front panel or serial port to communicate with the relay.
Page 246 Range: 0 to 65519 in steps of 1  DEST ADDRESS: 1 DNP CURRENT SCALE Range: 0.001, 0.01. 0.1, 1, 10, 100, 1000, 10000,  FACTOR: 1 100000, 1000000, 10000000, 100000000 5-52 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 247  CONTROL POINTS: 0 DNP TCP CONNECTION Range: 10 to 7200 s in steps of 1  TIMEOUT: 120 s DNP EVENT TIME BASE: Range: UTC, LOCAL  LOCAL N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-53...
Page 248 DNP ADDRESS unique address to each DNP slave. The N60 can specify a maximum of five clients for its DNP connections. These are IP addresses for the controllers to which the N60 can connect. The settings follow. SETTINGS  PRODUCT SETUP  COMMUNICATIONS  DNP PROTOCOL  DNP NETWORK CLIENT ADDRESSES ...
Page 249 DNP TCP connection for greater than the time specified by this setting, the connection is aborted by the N60. This frees up the connection to be re-used by a client. For any change to take effect, restart the relay.
Page 250 60870-5-104 point lists must be in one continuous block, any points assigned after the first “Off” point are ignored. 5.3.5.12 IEC 61850 protocol The N60 is provided with optional IEC 61850 communications. This feature is specified as a software option at the time of ordering. See the Order Codes section in chapter 2 for details.
Page 251 The maximum number of simultaneous clients supported by the UR family is five. EnerVista setup for IEC 61850 The EnerVista UR Setup software provides the interface to configure N60 settings for the IEC 61850 protocol. This section describes this interface. The software also supports import/export and merging of IEC 61850 Substation Configuration Language (SCL) files as documented in the UR Family Communications Guide.
Page 252 Figure 5-19: IEC 61850 panel Opening the IEC 61850 window while online causes the UR Setup software to retrieve and import an SCL file from the N60. This System Configuration Description (SCD) file contains all the settings in the UR at the time of the file request, both those that are mapped into the IEC 61850 information model (that is, the "public"...
Page 253 When the Save button is clicked in the online IEC 61850 window, UR Setup software prepares a configured IED description (CID) file containing all the settings of the UR and sends the CID file to the N60. Upon receipt, the N60 checks the CID file for correctness, going out of service, then back into service when the CID file is accepted.
Page 254 Range: status-only, direct-with-normal-security, sbo-with-normal-security Default: sbo-with-normal-security This setting specifies the control service that clients must use to control the TEST MODE FUNCTION of the N60. An "on" control to <LDName>/LLN0.Mod changes TEST MODE FUNCTION to Disabled, an "on-blocked" control changes it to Forcible, and a "test/blocked"...
Page 255 The LLN0 in the Master logical device, which includes setting group, GOOSE and report control blocks, and datasets • LPHD1 — Models common issues for physical devices • GGIO1 — For unmapped FlexLogic operands N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-61...
Page 256 Figure 5-23: Menu for logical node If the insert option is selected, or the edit option is selected for other than the Master logical device, a logical device parameters edit dialog opens. 5-62 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 257 Each logical device inst name is required to be unique within the device, and it cannot be blank. Also, if the corresponding functional ldName setting is blank, the concatenation of the IED name and the logical device N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-63...
Page 258 The UR increments the value of paramRev by one whenever one or multiple setting changes occurs in one Modbus write request by any means (front panel, Modbus, or MMS) other than by SCL file 5-64 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 259 A v7.4 device can send an R-GOOSE message to another v7.4 device when both have R-GOOSE active as the protocol • A v7.4 device can send a GOOSE message to another v7.4 device when both have GOOSE active as the protocol N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-65...
Page 260 Navigate to Settings > Product Setup > Communications > IEC 61850 > GOOSE > TxGOOSE > TxGOOSE1 to access the settings for the first TxGOOSE. The settings and functionality for the others are similar. 5-66 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 261 Range: 0 to 129 VisibleString characters Default: TxGOOSE1 The entered value sets the goID value published in TxGOOSE1 messages, and can be used by subscribers to discriminate the TxGOOSE1 messages from other GOOSE messages. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-67...
Page 262 VID values of 0 and 1 are assigned by IEEE 802.1Q to other functions and are not to be used for GOOSE. 5-68 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 263 Also, Port 3 configuration in the CID file is ignored. The Port 3 ConnectedAP elements has no meaning, as ports 2 and 3 use the port 2 MAC address, IP address, and mask. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-69...
Page 264 (test field in edition 1.0 messages) are accepted only when the UR Test Mode Function setting is set to Forcible or Isolated. RxGOOSE messages can be received through any UR Ethernet port. 5-70 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 265 RxGOOSE1 messages. An entered address of zero disables RxGOOSE1. If the publisher is a UR series 7.3x device, the setting needs to match the value of the publisher’s TxGOOSE DST MAC setting. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-71...
Page 266 <GoCBName> is the name of the publishing control block. The N60 translates the ACSI format required for this setting to the MMS format used in GOOSE messages: <LDName>/LLN0$GO$<GoCBName> If the publisher is a UR 7.3x or 7.40 series device, <LDName> is the value of the publisher's Master functional ldName setting if that setting is not empty, otherwise it is the value of the publisher's IED NAME suffixed with "Master".
Page 267 7.40 UR Setup RxGOOSE Inputs pages. In this case the Member setting displays as the product-related name used by the publishing IED of the data object or data attribute, in standard SCSM format (e.g. Publisher1LD1/LLN0$ST$Off$stVal). N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-73...
Page 268 (supported in version 7.40 and later). When the file format is SCD, the system lists all IEDs inside the SCD file and lets the user select the ones to add. The figure shows a selection being made by importing a CID file using the Add IED function. 5-74 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 269 This setting selects the logic state for the RxGOOSE Boolean1 FlexLogic operand if the UR has just completed startup and the selected RxGOOSE has not yet received a message, or the selected RxGOOSE has lost its connectivity with the publisher. The following choices are available: N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-75...
Page 270 This setting selects the GOOSE message containing the value that drives the RxGOOSE DPS1 FlexLogic operand. If set to None, the RxGOOSE DPS1 FlexLogic operand assumes its default state. 5-76 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 271 (supported in version 7.40 and later). When the file format is SCD, the system lists all IEDs inside the SCD file and lets the user select the ones to add. Figure 5-31: RxGOOSE Analog Inputs panel There are 32 RxGOOSE analog inputs. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-77...
Page 272 Range: 0.000 to 1000000000.000 in steps of 0.001 Default: 1.000 This setting specifies the per-unit base value for other N60 features to use with the RxGOOSE Analog1 operand. A FlexElement for instance subtracts two quantities after converting their values to integers rescaled to a common base, the common base being the largest of the base values of the two quantities.
Page 273 RptEna attribute is false. Buffered and unbuffered reports Navigate to Settings > Product Setup > Communications > IEC 61850 > Reports > Buffered Reports or Unbuffered Reports. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-79...
Page 274 Also, the control block can be configured to send integrity reports containing the present value of all members either on demand from the client or periodically. A TCP handshaking mechanism causes messages that are not read and acknowledged by the client to be retransmitted. 5-80 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 275 Control blocks and data sets can be pre-configured by sending the N60 a CID file. See the UR Family Communications Guide for details. EnerVista UR Setup also can be used to select the data set members and to pre-configure the control blocks.
Page 276 This setting selects the data set whose members' status is reported in Unbuffered Report1 messages using the UR Setup software designator for the data set. The IEC 61850 name of the data sets are configured in the Datasets panel, as described later. 5-82 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 277 DataSets Navigate to Settings > Product Setup > Communications > IEC 61850 > DataSets. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-83...
Page 278 The DataSet name is not copied or pasted. In short, use this feature to copy a DataSet Member setting and paste it into another Member setting, a text file, or Word, as examples. 5-84 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 279 Select the member from the drop-down list. Or right-click an entry to copy, paste, delete, or insert. Product setup Navigate to Settings > Product Setup > Communications > IEC 61850 > Product Setup. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-85...
Page 280 Deadband parameters of measured values related to the Energy metering are configured here. Real Time Clock Navigate to Settings > Product Setup > Communications > IEC 61850 > Product Setup > Real Time Clock. 5-86 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 281 However, a tabulation of the analog values and their associated deadband setting can be found in the UR Family Communications Guide. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-87...
Page 282 Auxiliary voltage — 275 x auxiliary VT ration setting • Power (real, reactive, apparent, 3-phase, and 1-phase) — 4 × phase CT primary setting × 1.5 × VT Secondary setting × VT ratio setting 5-88 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 283 While the selected operand is asserted, Bkr0XCBR1.Loc.stVal is true and IEC 61850 commands to BkrCSWI1.Pos and Bkr0XCBR1.Pos are not accepted, and a Negative Response (-Rsp) is issued with the REASON CODE of Blocked-by- switching-hierarchy. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-89...
Page 284 Bkr0XCBR1.BlkOpn.ctlVal signal on the Breaker Control Logic (Sheet 1 of 2) diagram in the Settings > System Setup section later. This signal when true blocks breaker 1 trip control while the operand selected by setting XCBR1 ST.LOC OPERAND is not active. 5-90 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 285 Navigate to Settings > Product Setup > Communications > IEC 61850 > System Setup > Switches > Switch 1 to access the settings that configure the IEC 61850 protocol interface with the first disconnect switch control and status monitoring element. The settings and functionality for the others are similar. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-91...
Page 286 > System Setup section later. These signals force a disconnect switch trip or close control while the operand selected by setting XSWI1 ST.LOC OPERAND is not active. "sbo" here is select-before-operate. Enhanced security means that the N60 reports to the client the disconnect switch 1 position the end of the command sequence.
Page 287 Navigate to Settings > Product Setup > Communications > IEC 61850 > Control Elements > Setting Groups to access the setting that configures the IEC 61850 setting group commands. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-93...
Page 288 Navigate to Settings > Product Setup > Communications > IEC 61850 > Settings for Commands to access the settings that configure the IEC 61850 protocol interface for record clear commands. Figure 5-43: Commands panel 5-94 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 289 This setting selects the control model clients must use to successfully control the command CLEAR FAULT REPORTS. "sbo" here is select-before-operate. Enhanced security means that the N60 reports to the client the breaker 1 position at the end of the command sequence.
Page 290 Navigate to Settings > Product Setup > Communications > IEC 61850 > GGIO > GGIO2 to access the settings that configure the IEC 61850 protocol interface for Virtual Input commands. Figure 5-45: GGIO2 panel 5-96 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 291 <LDName>/GGIO4.AnIn01.instMag.f. The value of the FlexAnalog operand is converted automatically to the format and scaling required by the standard, that is to say primary amperes, primary volts, and so on. See Appendix A for a list of FlexAnalog operands. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-97...
Page 292 File transfer by IEC 61850 The N60 supports file transfer by IEC 61850. The approach is as follows, using the SISCO AX-S4 61850 client software as an example. In the AX-S4 61850 Explorer window, click the Tools menu and access the SISCO File Transfer Utility.
Page 293 NUMBER(80): 80 The N60 contains an embedded web server and can display pages in a web browser. The web pages are organized as a series of menus that can be accessed starting at the N60 “Main Menu.” Web pages are read-only and are available showing DNP and IEC 60870-5-104 points lists, Modbus registers, event records, fault reports, and so on.
Page 294 NUMBER: 0 The Trivial File Transfer Protocol (TFTP) can be used to transfer files from the N60 over a network. The N60 operates as a TFTP server. TFTP client software is available from various sources, including Microsoft Windows NT. The dir.txt file obtained from the N60 contains a list and description of all available files, for example event records and oscillography.
Page 295 COMMUNICATIONS  PROTOCOL connected to a maximum of two masters (usually either an RTU or a SCADA master station). Since the N60 maintains two sets of IEC 60870-5-104 data change buffers, ideally no more than two masters actively communicate with the N60 at one time.
Page 296 PTP, or SNTP, its time is overwritten by these three sources, if any of them is active. If the synchronization timeout occurs and none of IRIG-B, PTP, or SNTP is active, the N60 sets the invalid bit in the time stamp of a time-tagged message.
Page 297 Spontaneous transmission occurs as a response to cyclic Class 2 requests. If the N60 wants to transmit Class 1 data at that time, it demands access for Class 1 data transmission (ACD=1 in the control field of the response).
Page 298 INFORMATION NUMBER (INF) as defined in IEC 60870-103. For any change to take effect, restart the relay. — This is the cyclic period used by the N60 to decide when a measurand ASDU is included in a SCAN TIMEOUT (SCAN TOUT) response.
Page 299 FlexAnalog operands. The measurands sent are voltage, current, power, power factor, and frequency. If any other FlexAnalog is chosen, the N60 sends 0 instead of its value. Note that the power is transmitted in KW, not W. Measurands are transmitted as ASDU 3 or ASDU 9 (type identification value set to measurands I, respectively measurands II).
Page 300 Commands are received as General Command (Type Identification 20). The user can configure the action to perform when an ASDU command comes. A list of available mappings is provided on the N60. This includes 64 virtual inputs (see the following table). The ON and OFF for the same ASDU command can be mapped to different virtual inputs.
Page 301: Modbus User Map
ADDRESS The UR Family Communications Guide outlines the Modbus memory map. The map is also viewable in a web browser; enter the IP address of the N60 in a web browser and click the option. 5.3.7 Real-time clock 5.3.7.1 Menu SETTINGS ...
Page 302 Setup for IRIG-B is illustrated in the Installation chapter. For the Other protocols, whenever a time synchronization message is received through any of the active protocols, the N60 clock updates. However, given that IEC 60870-5-103, IEC 60870-5-104, Modbus, and DNP are low-accuracy time synchronization methods, avoid their use for synchronization when better accuracy time protocols, such as IRIG-B and PTP, are active in the system.
Page 303 See the Order Codes section in chapter 2 for details. The N60 supports the Precision Time Protocol (PTP) specified in IEEE Std 1588 2008 using the Power Profile (PP) specified in IEEE Std C37.238 2011. This enables the relay to synchronize to the international time standard over an Ethernet network that implements PP.
Page 304 Range: Enabled, Disabled  Disabled  SNTP SERVER IP ADDR: Range: standard IP address format  0.0.0.0 SNTP UDP PORT Range: 1 to 65535 in steps of 1  NUMBER: 123 5-110 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 305 N60 clock is closely synchronized with the SNTP/ NTP server. It takes up to two minutes for the N60 to signal an SNTP self-test error if the server is offline.
Page 306: User-Programmable Fault Report
The user programmable record contains the following information: the user-programmed relay name, detailed firmware revision (x.xx, for example) and relay model (N60), the date and time of trigger, the name of pre-fault trigger (a specific FlexLogic operand), the name of fault trigger (a specific FlexLogic operand), the active setting group at pre-fault trigger, the active setting group at fault trigger, pre-fault values of all programmed analog channels (one cycle before pre-fault trigger), and fault values of all programmed analog channels (at the fault trigger).
Page 307: Oscillography
Reducing the sampling rate allows longer records to be stored. This setting has no effect on the internal sampling rate of the relay, which is always 64 samples per cycle. That is, it has no effect on the fundamental calculations of the device. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-113...
Page 308 IB signal on terminal 2 of the CT/VT module in slot F. If there are no CT/VT modules and analog input modules, no analog traces appear in the file; only the digital traces appear. 5-114 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 309: Data Logger
When set to “Trigger,” the data logger records any configured channels at the instance of the rising edge of the source FlexLogic operand. The data logger ignores all DATA LOGGER TRIGGER N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-115...
Page 310: Demand
90% of a steady-state value, just as the response time of an analog instrument. A steady state value applied for twice the response time indicates 99% of the value. 5-116 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 311: User-Programmable Leds
 LEDS   TRIP & ALARM LEDS See page 5-120    USER-PROGRAMMABLE See page 5-120   LED 1   USER-PROGRAMMABLE   LED 48 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-117...
Page 312 Additionally, stages 2 and 3 are repeated twice for the five device status LEDs and nine event cause LEDs, one time with green color on and the other with red color on. 5-118 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 313 Configure the LED test to recognize user-programmable pushbutton 1 by making the following entries in the SETTINGS  menu: PRODUCT SETUP  USER-PROGRAMMABLE LEDS  LED TEST : “Enabled” LED TEST FUNCTION “PUSHBUTTON 1 LED TEST CONTROL ON” N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-119...
Page 314 “Latched,” the LED, once lit, remains so until reset by the front panel button, from a remote device via a RESET communications channel, or from any programmed operand, even if the LED operand state de-asserts. 5-120 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 315 LED PHASE B EVENT CAUSE LED 7 Orange Event Cause LED 8 LED PHASE C EVENT CAUSE LED 8 Orange Event Cause LED 9 LED NEUTRAL/GROUND EVENT CAUSE LED 9 Orange N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-121...
Page 316: User-Programmable Self-Tests
There are three standard control pushbuttons, labelled USER 1, USER 2, and USER 3, on the standard and enhanced front panels. These are user-programmable and can be used for various applications such as performing an LED test, switching setting groups, and invoking and scrolling though user-programmable displays. 5-122 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 317 The location of the control pushbuttons are shown in the following figures. Figure 5-52: Control pushbuttons (enhanced front panel) An additional four control pushbuttons are included on the standard front panel when the N60 is ordered with the 12 user- programmable pushbutton option.
Page 318: User-Programmable Pushbuttons
TIME: 0.00 s PUSHBTN 1 LED CTL: Range: FlexLogic operand  PUSHBTN 1 MESSAGE: Range: Disabled, Normal, High Priority  Disabled PUSHBUTTON 1 Range: Disabled, Enabled  EVENTS: Disabled 5-124 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 319 CHAPTER 5: SETTINGS PRODUCT SETUP The N60 is provided with this optional feature, specified as an option at the time of ordering. Using the order code for your device, see the order codes in chapter 2 for details. User-programmable pushbuttons provide an easy and error-free method of entering digital state (on, off) information. The number depends on the front panel ordered.
Page 320 The pulse duration of the remote set or local front panel pushbutton must be at least 50 ms to operate the pushbutton. This allows the user-programmable pushbuttons to properly operate during power cycling events and various system disturbances that can cause transient assertion of the operating signals. 5-126 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 321 — This setting assigns the FlexLogic operand serving to inhibit user-programmable pushbutton PUSHBTN 1 REMOTE operation from the operand assigned to the settings. PUSHBTN 1 SET PUSHBTN 1 RESET N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-127...
Page 322 — If this setting is enabled, each user-programmable pushbutton state change is logged as an PUSHBUTTON 1 EVENTS event into the event recorder. The figures show the user-programmable pushbutton logic. 5-128 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 323 CHAPTER 5: SETTINGS PRODUCT SETUP Figure 5-58: User-programmable pushbutton logic (Sheet 1 of 2) N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-129...
Page 324: Flex State Parameters
The state bits can be read out in the “Flex States” register array beginning at Modbus address 0900h. Sixteen states are packed into each register, with the lowest-numbered state in the lowest-order bit. Sixteen registers accommodate the 256 state bits. 5-130 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 325: User-Definable Displays
When this type of entry occurs, the sub-menus are automatically configured with the proper content—this content can be edited subsequently. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-131...
Page 326 If the parameters for the top line and the bottom line items have the same units, then the unit is displayed on the bottom line only. The units are only displayed on both lines if the units specified both the top and bottom line items are different. 5-132 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 327: Direct Inputs And Outputs
All UR-series IEDs in a ring need to have unique numbers assigned. The IED ID is used to identify the sender of the direct input and output message. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-133...
Page 328 DIRECT I/O DATA RATE setting applies to a N60 with dual-channel communication cards and allows crossing DIRECT I/O CHANNEL CROSSOVER over messages from channel 1 to channel 2. This places all UR-series IEDs into one direct input and output network regardless of the physical media of the two communication channels.
Page 329 DIRECT I/O CH2 RING CONFIGURATION: “Yes” For UR-series IED 2: DIRECT OUTPUT DEVICE ID: “2” DIRECT I/O CH1 RING CONFIGURATION: “Yes” DIRECT I/O CH2 RING CONFIGURATION: “Yes” For UR-series IED 3: N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-135...
Page 330 A permissive pilot-aided scheme can be implemented in a two-ring configuration, shown as follows (IEDs 1 and 2 constitute a first ring, while IEDs 2 and 3 constitute a second ring). 5-136 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 331 In this application, apply the following settings. For UR-series IED 1: DIRECT OUTPUT DEVICE ID: “1” DIRECT I/O CH1 RING CONFIGURATION: “Yes” DIRECT I/O CH2 RING CONFIGURATION: “Yes” For UR-series IED 2: N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-137...
Page 332 EVENTS: Disabled The N60 checks integrity of the incoming direct input and output messages using a 32-bit CRC. The CRC alarm function is available for monitoring the communication medium noise by tracking the rate of messages failing the CRC check. The monitoring function counts all incoming messages, including messages that failed the CRC check.
Page 333: Teleprotection
 EVENTS: Disabled The N60 checks integrity of the direct input and output communication ring by counting unreturned messages. In the ring configuration, all messages originating at a given device should return within a pre-defined period of time. The unreturned messages alarm function is available for monitoring the integrity of the communication ring by tracking the rate of unreturned messages.
Page 334: Installation
5.4 Remote resources 5.4.1 Remote resources configuration When the N60 is ordered with a process card module as a part of HardFiber system, an additional Remote Resources menu tree is available in the EnerVista software to allow configuration of the HardFiber system.
Page 335 Bricks. Remote resources settings configure the point-to-point connection between specific fiber optic ports on the N60 process card and specific Brick. The relay is then configured to measure specific currents, voltages and contact inputs from those Bricks, and to control specific outputs.
Page 336: System Setup
The same rule applies for current sums from CTs with different secondary taps (5 A and 1 A). 5.5.1.2 Voltage banks SETTINGS  SYSTEM SETUP  AC INPUTS  VOLTAGE BANK F5(U5)  VOLTAGE BANK F5 PHASE VT F5 Range: Wye, Delta   CONNECTION: Wye 5-142 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 337: Power System
ABC or ACB. CT and VT inputs on the relay, labelled as A, B, and C, must be connected to system phases A, B, and C for correct operation. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-143...
Page 338: Signal Sources
“Disabled” only in unusual circumstances; consult GE Grid Solutions for special variable- FREQUENCY TRACKING frequency applications. The frequency tracking feature functions only when the N60 is in the “Programmed” mode. If the N60 is “Not Programmed,” then metering values are available but can exhibit significant errors. 5.5.3 Signal sources SETTINGS ...
Page 339 0.02 pu; thus by default the disturbance detector responds to a change of 0.04 pu. The metering sensitivity setting ) controls the sensitivity of the disturbance detector PRODUCT SETUP  DISPLAY PROPERTIES  CURRENT CUT-OFF LEVEL accordingly. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-145...
Page 340 Figure 5-68: Example of use of sources Y LV D HV SRC 1 SRC 2 SRC 3 Phase CT F1+F5 None Ground CT None None Phase VT None None Aux VT None None 5-146 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 341: Breakers
 TIME: 0.000 s BREAKER 1 OPEN Range: 0.000 to 65.535 s in steps of 0.001  SEAL-IN: 0.000 s BREAKER 1 OUT OF SV: Range: FlexLogic operand  N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-147...
Page 342 — If the mode is selected as three-pole, this setting has no function. If the mode is selected as single- BREAKER 1 ΦB OPENED pole, this input is used to track the breaker phase B opened position as outlined for phase A. 5-148 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 343 If this setting is set to Off, the racked status is not considered. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-149...
Page 344 SYSTEM SETUP CHAPTER 5: SETTINGS Figure 5-69: Dual breaker control logic (Sheet 1 of 3) 5-150 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 345 CHAPTER 5: SETTINGS SYSTEM SETUP Figure 5-70: Dual breaker control logic (Sheet 2 of 3) N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-151...
Page 346: Disconnect Switch Control
FUNCTION: Disabled SWITCH 1 NAME: Range: up to six alphanumeric characters  SW 1 SWITCH 1 MODE: Range: 3-Pole, 1-Pole  3-Pole SWITCH 1 OPEN: Range: FlexLogic operand  5-152 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 347 — This setting selects “3-Pole” mode, where disconnect switch poles have a single common auxiliary SWITCH 1 MODE switch, or “1-Pole” mode where each disconnect switch pole has its own auxiliary switch. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-153...
Page 348 — This setting specifies the delay interval during which a disagreement of status among the pole SWITCH 1 ALARM DELAY position tracking operands do not declare a pole disagreement. This allows for non-simultaneous operation of the poles. 5-154 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 349 SYSTEM SETUP IEC 61850 functionality is permitted when the N60 is in “Programmed” mode and not in local control mode. The switch element has direct hard-coded connections to the IEC 61850 model as shown in the logic diagrams. This allows remote open/close operation of each switch, using either CSWI or XSWI IEC 61850 logical nodes.
Page 350 SYSTEM SETUP CHAPTER 5: SETTINGS Figure 5-73: Disconnect switch control status logic (sheet 2 of 3) 5-156 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 351: Flexcurves
FlexCurve, enter the reset and operate times (using the keys) for each selected pickup point (using the VALUE up/down keys) for the required protection curve (A, B, C, or D). MESSAGE N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-157...
Page 352 The recloser curve configuration window shown here appears when the Initialize From setting in the EnerVista software is set to “Recloser Curve” and the Initialize FlexCurve button is clicked. 5-158 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 353 MRT and from then onwards the operating time remains at 200 ms. Figure 5-76: Composite recloser curve with HCT disabled With the HCT feature enabled, the operating time reduces to 30 ms for pickup multiples exceeding eight times pickup. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-159...
Page 354 Configuring a composite curve with an increase in operating time at increased pickup multiples is not allowed. If this is attempted, the EnerVista software generates an error message and discards the proposed changes. 5.5.6.5 Standard recloser curves The following graphs display standard recloser curves available for the N60. Figure 5-78: Recloser curves GE101 to GE106 5-160...
Page 355 CHAPTER 5: SETTINGS SYSTEM SETUP Figure 5-79: Recloser curves GE113, GE120, GE138, and GE142 Figure 5-80: Recloser curves GE134, GE137, GE140, GE151, and GE201 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-161...
Page 356 SYSTEM SETUP CHAPTER 5: SETTINGS Figure 5-81: Recloser curves GE131, GE141, GE152, and GE200 Figure 5-82: Recloser curves GE133, GE161, GE162, GE163, GE164, and GE165 5-162 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 357 CHAPTER 5: SETTINGS SYSTEM SETUP Figure 5-83: Recloser curves GE116, GE117, GE118, GE132, GE136, and GE139 Figure 5-84: Recloser curves GE107, GE111, GE112, GE114, GE115, GE121, and GE122 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-163...
Page 358: Phasor Measurement Unit
  CONFIGURATION The N60 is provided with an optional Phasor Measurement Unit (PMU) feature. This feature is specified as a software option at the time of ordering. The number of PMUs available also depends on this option. Using the order code for your device, see the order codes in chapter 2 for details.
Page 359 D60, F60, G60, L30, L90, T60 The figure shows an example of an N60 using four Logical Device PMUs (Logical Device 2 through 5) and four aggregators. The control blocks for the aggregators are located in LD1. A 64 character LDName setting is provided.
Page 360 MxxMMXU1 ClcMth = M-Class (Note Vaux is mapped to Vneut of MMXU) • MxxMSQI1 ClcMth = M-CLASS • NxxMMXU1 ClcMth = M-Class (Note Vaux is mapped to Vneut of MMXU) • NxxMSQI1 ClcMth = M-CLASS 5-166 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 361 From each PMU, the user selects the phasor information of interest that is mapped into the selected aggregator datset(s). For version 7.0 and later, only FCDA data is supported. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-167...
Page 362 5.5.7.6 Configuration example: CFG-2 based configuration (using IEC 61850-90-5) The N60 is expected to send the CFG-2 file (IEEE C37.118 config. file) upon request from the upstream synchrophasor devices (for example, P30) without stopping R-SV multicasting, as shown in the following figure. The primary domain controller (PDC) does not need to use a stop/start data stream command if the UR protocol is set to IEC 61850-90-5 prior to requesting the configuration via CFG-2 (IEEE C37.118 config.
Page 363 PMU 1 IDCODE: Range: 1 to 65534 in steps of 1  PMU 1 STN: Range: 32-character ASCII string truncated to 16  characters if mapped into C37.118 Default: GE-UR-PMU GE-UR-PMU N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-169...
Page 364 16-character ASCII string  NM: Dig Channel 16 PMU 1 D-CH- 1 Range: Off, On  NORMAL STATE: Off  PMU 1 D-CH-16: Range: Off, On  NORMAL STATE: Off 5-170 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 365 PMU 1 RATE of the device that are assigned to transmit over this aggregator. For a system frequency of 60 Hz (50 Hz), the N60 generates a reporting mismatch message if the selected rate is not set as 10 Hz, 12 Hz, 15 Hz, 20 Hz, 30 Hz, 60 Hz, or 120 Hz (or 10 Hz, 25 Hz, 50 Hz, or 100 Hz when the system frequency is 50 Hz) when entered via the keypad or software;...
Page 366 (magnitude and angle) coordinates. This setting complies with bit-0 of the FORMAT field of the IEEE C37.118 configuration frame. With 90-5 PMU, the FORMAT and STYLE are Floating-point and Polar respectively, as specified in the IEC 61850-90-5 technical report. 5-172 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 367 PMU 1 IG CALIBRATION Range: –5.00 to 5.00° in steps of 0.05  ANGLE: 0.00° PMU 1 IG CALIBRATION Range: 95.0 to 105.0 in steps of 0.1%  MAG: 100.0% N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-173...
Page 368 When receiving synchrophasor data at multiple locations, with possibly different reference nodes, it can be more beneficial to allow the central locations to perform the compensation of sequence voltages. • This setting applies to PMU data only. The N60 calculates symmetrical voltages independently for protection and control purposes without applying this correction. •...
Page 369 Range: 20.00 to 70.00 Hz in steps of 0.01  LOW-FREQ: 49.00 Hz PMU 1 FREQ TRIGGER Range: 20.00 to 70.00 Hz in steps of 0.01  HIGH-FREQ: 61.00 Hz N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-175...
Page 370 N60 standards. This element requires that the frequency be above the minimum measurable value. If the frequency is below this value, such as when the circuit is de-energized, the trigger drops out.
Page 371 Range: 0.00 to 600.00 s in steps of 0.01  DPO TIME: 1.00 s PMU 1 CURR TRIG BLK: Range: FlexLogic operand  PMU 1 CURR TRIGGER Range: Self-reset, Latched, Disabled  TARGET: Self-reset N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-177...
Page 372 The trigger responds to the single-phase and three-phase power signals of the Phasor Measurement Unit (PMU) source. 5-178 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 373 Range: 0.00 to 600.00 s in steps of 0.01  DPO TIME: 1.00 s PMU 1 df/dt TRG BLK: Range: FlexLogic operand  PMU 1 df/dt TRIGGER Range: Self-reset, Latched, Disabled  TARGET: Self-reset N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-179...
Page 374 “Automatic Overwrite,” the last record is erased to facilitate new recording, when triggered. Under the “Protected” selection, the recorder stops creating new records when the entire memory is used up by the old uncleared records. 5-180 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 375 Range: 0 to 65534   CONFIGURATION TCP PORT: 4712 PMU AGGREGATOR 1: Range: 0 to 65534  UDP PORT: 4713 PMU AGGREGATOR 1: Range: Disabled, Enabled  PDC CONTROL: Disabled N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-181...
Page 376 — This setting selects the UDP port number that is used by this dataset for network reporting. PMU AGGREGATOR 1: UDP PORT A default setting value for IEC 6150-90-5 is provided. 5-182 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 377 A FlexLogic operand (SvEna) is provided for each Aggregator that reflects the state of the SvEna control where “1”= Enabled and “0”=Disabled. The figure shows the logic for setting the SvEna control bit. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-183...
Page 378 The range is 0 to 2. Shaded settings in the table are not supported in firmware 7.0. Table 5-23: Security Enumeration Authentication Encryption 5-184 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 379: Flexlogic
Figure 5-99: UR architecture overview The states of all digital signals used in the N60 are represented by flags (or FlexLogic operands, which are described later in this section). A digital “1” is represented by a set flag. Any external contact change-of-state can be used to block an element from operating, as an input to a control feature in a FlexLogic equation, or to operate a contact output.
Page 380 The number of pulses counted is equal to the set number Lower than Counter 1 LO The number of pulses counted is below the set number Fixed Logic 1 Logic 0 5-186 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 381 Sign bit of comparator 1 asserted (asserted for negative values; de-asserted for positive values) 8BIT COMP 2 to 6 Same set of operands as shown for 8 BIT COMP 1 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-187...
Page 382 Digital counter 1 output is ‘equal to’ comparison value Counter 1 LO Digital counter 1 output is ‘less than’ comparison value Counter 2 to 8 Same set of operands as shown for Counter 1 5-188 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 383 Neutral directional NTRL DIR OC1 REV Neutral directional overcurrent 1 reverse has operated overcurrent NTRL DIR OC2 to 3 Same set of operands as shown for NTRL DIR OC1 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-189...
Page 384 Phase B of phase time overcurrent 1 has dropped out PHASE TOC1 DPO C Phase C of phase time overcurrent 1 has dropped out PHASE TOC2 to 6 Same set of operands as shown for PHASE TOC1 5-190 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 385 Setting group 3 is active SETTING GROUP ACT 4 Setting group 4 is active SETTING GROUP ACT 5 Setting group 5 is active SETTING GROUP ACT 6 Setting group 6 is active N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-191...
Page 386 SYNC1 S-CLOSE OP DPO Synchrocheck 1 S-CLOSE has dropped out SYNC1 S-CLOSE ARMD Synchrocheck 1 S-CLOSE has been armed SYNC 2 to 6 Same set of operands as shown for SYNC 1 5-192 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 387 Asserted while the RxGOOSE double-point status input is in the intermediate state RxG DPS 1 OFF Asserted while the RxGOOSE double-point status input is off RxG DPS 1 ON Asserted while the RxGOOSE double-point status input is on N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-193...
Page 388 EVENT CAUSE LED 1 Asserted when event cause LED 1 is on User-programmable EVENT CAUSE LED 2 to 9 Same operand as EVENT CAUSE LED 1 LEDs Graphical front panel 5-194 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 389 Pushbutton number 1 is in the “On” position PROGRAMMABLE PUSHBUTTON 1 OFF Pushbutton number 1 is in the “Off” position PUSHBUTTONS ANY PB ON Any of 12 pushbuttons is in the “On” position N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-195...
Page 390 Assigns previous FlexLogic operand to virtual The virtual output is set by the preceding ↓ virtual output 1 parameter ↓ output = Virt Op 96 Assigns previous FlexLogic operand to virtual output 96 5-196 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 391: Flexlogic Rules
If this is not possible, the logic must be altered until this condition is satisfied. Once done, count the inputs to each gate to verify that the number of inputs does not exceed the FlexLogic limits, which is unlikely but possible. If N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-197...
Page 392 Figure 5-102: Logic for virtual output 3 Prepare a logic diagram for virtual output 4, replacing the logic ahead of virtual output 3 with a symbol identified as virtual output 3, shown as follows. 5-198 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 393 Assume for this example that the state is to be ON for a closed contact. The operand is therefore “Cont Ip H1c On”. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-199...
Page 394 [89] DIG ELEM 1 PKP [90] XOR(2) [91] Virt Op 3 On [92] OR(4) [93] LATCH (S,R) [94] Virt Op 3 On [95] TIMER 1 [96] Cont Ip H1c On 5-200 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 395 Virt Op 2 On Virt Ip 1 On DIG ELEM 1 PKP XOR(2) Virt Op 3 On OR(4) LATCH (S,R) Virt Op 3 On TIMER 1 Cont Ip H1c On OR(3) N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-201...
Page 396: Flexlogic Equation Editor
Range: up to six alphanumeric characters  FxE 1 FLEXELEMENT 1 +IN: Range: Off, any analog actual value parameter  FLEXELEMENT 1 -IN: Range: Off, any analog actual value parameter  5-202 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 397 The element can be programmed to respond either to a signal level or to a rate-of-change (delta) over a pre-defined period of time. The output operand is asserted when the operating signal is higher than a threshold or lower than a threshold, as per your choice. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-203...
Page 398 — Enables the relay to respond to either high or low values of the operating signal. The following FLEXELEMENT 1 DIRECTION figure explains the application of the , and FLEXELEMENT 1 DIRECTION FLEXELEMENT 1 PICKUP FLEXELEMENT 1 HYSTERESIS settings. 5-204 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 399 Figure 5-108: FlexElement direction, pickup, and hysteresis In conjunction with the setting, the element can be programmed to provide two extra FLEXELEMENT 1 INPUT MODE characteristics, as shown in the following figure. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-205...
Page 400 = 1 Hz BASE FREQUENCY RATE OF CHANGE df/dt = 1 Hz/s BASE PHASE ANGLE ϕ = 360 degrees (see the UR angle referencing convention) BASE POWER FACTOR = 1.00 BASE 5-206 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 401: Non-Volatile Latches
LATCH 1 TYPE — If asserted, the specified FlexLogic operands 'sets' Latch 1. LATCH 1 SET — If asserted, the specified FlexLogic operand 'resets' Latch 1. LATCH 1 RESET N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-207...
Page 402: Flexmath
Range: Off, any FlexAnalog parameter.  See Appendix A for complete list. SUMMATOR 1 INPUT 2: Range: Off, any FlexAnalog parameter.  See Appendix A for complete list.  5-208 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 403 — When the output value of the summator is greater than the value assigned to this setting, the SUMMATOR 1 PICKUP FlexLogic operand is activated (set to on). SUMMATOR 1 OP N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-209...
Page 404 FlexAnalog quantity in other SUMMATOR 1 PU BASE SUMMATOR 1 OUTPUT N60 features, such as FlexElements. This value is used to normalize the FlexAnalog quantity (that is, SUMMATOR 1 OUTPUT change it to a per-unit quantity). See the FlexElements section for details on per-unit base values.
Page 405: Grouped Elements
Range: Two Step, Three Step  MODE: Two Step POWER SWING Range: 0.050 to 30.000 pu in steps of 0.001  SUPV: 0.600 pu POWER SW I2 SUPV ENAB: Range: FlexLogic operand  N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-211...
Page 406 Range: 0.000 to 65.535 s in steps of 0.001  DELAY 4: 0.017 s POWER SWING SEAL-IN Range: 0.000 to 65.535 s in steps of 0.001  DELAY: 0.400 s 5-212 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 407 4; the element is POWER SWING PICKUP DELAY 2 now ready to trip. The trip operand is set later, when the impedance locus leaves the outer characteristic. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-213...
Page 408 “Mho,” the element applies the right and left blinders as well. If the blinders are not required, set their settings high enough to effectively disable the blinders. Figure 5-112: Power swing detect mho operating characteristics 5-214 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 409 Figure 5-113: Effects of blinders on the mho characteristics Figure 5-114: Power swing detect quadrilateral operating characteristics The FlexLogic output operands for the power swing detect element are as follows: N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-215...
Page 410 — This setting specifies the angle of the forward reach impedance for the mho characteristics, POWER SWING FWD RCA angles of all blinders, and both forward and reverse reach impedances of the quadrilateral characteristics. 5-216 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 411 This time delay must be set shorter than the time required for the impedance locus to travel between the two characteristics during the fastest expected power swing. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-217...
Page 412 POWER SWING TRIP — Enables and disables the logging of power swing detect events in the sequence of events POWER SWING EVENTS recorder. 5-218 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 413 CHAPTER 5: SETTINGS GROUPED ELEMENTS Figure 5-115: Power swing detect logic (Sheet 1 of 3) N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-219...
Page 414 GROUPED ELEMENTS CHAPTER 5: SETTINGS Figure 5-116: Power swing detect logic (Sheet 2 of 3) Figure 5-117: Power swing detect logic (Sheet 3 of 3) 5-220 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 415: Phase Current
5.7.4.2 Inverse TOC curve characteristics The inverse time overcurrent curves used by the time overcurrent elements are the IEEE, IEC, GE Type IAC, and I t standard curve shapes. This allows for simplified coordination with downstream devices.
Page 416 15.213 9.729 7.783 6.753 6.102 5.647 5.307 5.041 4.827 38.634 22.819 14.593 11.675 10.130 9.153 8.470 7.960 7.562 7.241 51.512 30.426 19.458 15.567 13.507 12.204 11.294 10.614 10.083 9.654 5-222 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 417 1.800 1.543 1.350 1.200 1.00 27.000 13.500 6.750 4.500 3.375 2.700 2.250 1.929 1.688 1.500 IEC Curve C 0.05 3.200 1.333 0.500 0.267 0.167 0.114 0.083 0.063 0.050 0.040 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-223...
Page 418 2.997 1.212 0.711 0.491 0.372 0.298 0.248 0.212 0.185 13.591 5.993 2.423 1.422 0.983 0.744 0.595 0.495 0.424 0.370 20.387 8.990 3.635 2.133 1.474 1.115 0.893 0.743 0.636 0.556 5-224 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 419 Current ( I / I pickup (TDM) 10.0 0.01 0.44 0.25 0.11 0.06 0.04 0.03 0.02 0.02 0.01 0.01 0.10 4.44 2.50 1.11 0.63 0.40 0.28 0.20 0.16 0.12 0.10 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-225...
Page 420 = Reset Time in seconds (assuming energy capacity is 100% and RESET: Timed) RESET Recloser curves The N60 uses the FlexCurve feature to facilitate programming of 41 recloser curves. See the FlexCurves settings section earlier in this chapter for details. 5.7.4.3 Phase time overcurrent (ANSI 51P, IEC PTOC) SETTINGS ...
Page 421 (see the figure); the pickup level is calculated as Mvr times the setting. If the voltage restraint PHASE TOC1 PICKUP feature is disabled, the pickup level always remains at the setting value. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-227...
Page 422 — Selects the signal source for the phase time overcurrent protection element. SIGNAL SOURCE — Selects how phase current input quantities are interpreted by the N60. Inputs can be selected as fundamental INPUT phasor magnitudes or total waveform RMS magnitudes as required by the application.
Page 423 Range: FlexLogic operand   PHASE IOC1 BLOCK C: Range: FlexLogic operand  PHASE IOC1 Range: Self-reset, Latched, Disabled  TARGET: Self-reset PHASE IOC1 Range: Disabled, Enabled  EVENTS: Disabled N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-229...
Page 424 Range: 0.004 to 3.000 pu in steps of 0.001  THRESHOLD: 0.700 pu PHASE DIR 1 BLOCK Range: No, Yes  WHEN V MEM EXP: No PHASE DIR 1 Range: Self-reset, Latched, Disabled  TARGET: Self-reset 5-230 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 425 (phase current) and the polarizing signal (the line voltage, shifted in the leading direction by the characteristic angle, ECA). The table shows the operating and polarizing signals used for phase directional control. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-231...
Page 426 When set to "No," the directional element allows tripping of phase overcurrent elements under directional control. — This setting enables and disables the logging of phase directional overcurrent events in the PHASE DIR 1 EVENTS sequence of events recorder. 5-232 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 427: Neutral Current
 NEUTRAL TOC 1 See below      NEUTRAL TOC 6    NEUTRAL IOC 1 See page 5-235     NEUTRAL IOC 12   N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-233...
Page 428 — This setting selects the signal source for the neutral time overcurrent protection element. NEUTRAL TOC1 SIGNAL SOURCE — This setting selects how neutral current input quantities are interpreted by the N60. Inputs can be NEUTRAL TOC1 INPUT selected as fundamental phasor magnitudes or total waveform RMS magnitudes as required by the application.
Page 429 • System unbalances under heavy load conditions • Transformation errors of current transformers (CTs) during double-line and three-phase faults • Switch-off transients during double-line and three-phase faults N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-235...
Page 430 NEUTRAL DIR OC1 OP Range: Calculated 3I0, Measured IG  CURR: Calculated 3I0 NEUTRAL DIR OC1 POS- Range: 0.000 to 0.500 in steps of 0.001  SEQ RESTRAINT: 0.063 5-236 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 431 The following tables define the neutral directional overcurrent element. V_0 is the zero-sequence voltage, I_0 is the zero-sequence current, ECA is the element characteristic angle, and IG is the ground current. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-237...
Page 432 This allows for better protection coordination. Take the bias into account when using the neutral directional overcurrent element to directionalize other protection elements. 5-238 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 433 For example, if using an autotransformer neutral current as a polarizing source, ensure that a reversal of the ground current does not occur for a high-side fault. Assume that the N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-239...
Page 434 — This setting defines the pickup level for the overcurrent unit of the element in the reverse NEUTRAL DIR OC1 REV PICKUP direction. When selecting this setting, keep in mind that the design uses a positive-sequence restraint technique for the “Calculated 3I0” mode of operation. 5-240 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 435: Ground Current
 GROUND CURRENT  GROUND TOC1 See below      GROUND TOC6    GROUND IOC1 See page 5-243     GROUND IOC12   N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-241...
Page 436 — This setting selects the signal source for the ground time overcurrent protection element. GROUND TOC1 SIGNAL SOURCE — This setting selects how ground current input quantities are interpreted by the N60. Inputs can be GROUND TOC1 INPUT selected as fundamental phasor magnitudes or total waveform RMS magnitudes as required by the application.
Page 437 These elements measure the current that is connected to the ground channel of a CT/VT module. The conversion range of a standard channel is from 0.02 to 46 times the CT rating. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-243...
Page 438: Voltage Elements
600.00 seconds in steps of 0.01. The undervoltage elements can also be programmed to have an inverse time delay characteristic. The undervoltage delay setting defines the family of curves shown as follows. Eq. 5-21 where 5-244 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 439 Range: 0.000 to 3.000 pu in steps of 0.001  VOLTAGE: 0.100 pu PHASE UV1 BLOCK: Range: FlexLogic operand  PHASE UV1 Range: Self-reset, Latched, Disabled  TARGET: Self-reset PHASE UV1 Range: Disabled, Enabled  EVENTS: Disabled N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-245...
Page 440 The input voltage is the phase-to-phase voltage, either measured directly from delta-connected VTs or as calculated from phase-to-ground (wye) connected VTs. The figure shows specific voltages to be used for each phase. 5-246 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 441: Supervising Elements
Range: FlexLogic operand  OPEN POLE φC AUX CO: Range: FlexLogic operand  OPEN POLE PICKUP Range: 0.000 to 65.535 s in steps of 0.001  DELAY: 0.060 s N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-247...
Page 442 It comprises the reset time of the operating elements it used in conjunction with, the breaker opening time, and breaker auxiliary contacts discrepancy with the main contacts. 5-248 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 443: Sensitive Directional Power (Ansi 32)
DIR POWER 1 Range: 0 to 0.95° in steps of 0.05  CALIBRATION: 0.00° DIR POWER 1 STG1 Range: –1.200 to 1.200 pu in steps of 0.001  SMIN: 0.100 pu N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-249...
Page 444 For example, section (a) in the figure shows settings for reverse power, while section (b) shows settings for low forward power applications. 5-250 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 445 DIR POWER 1 RCA setting to “90°,” active underpower by setting to “180°,” and reactive underpower by DIR POWER 1 RCA DIR POWER 1 RCA setting to “270°.” DIR POWER 1 RCA N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-251...
Page 446: Control Elements
5.8.2 Trip bus SETTINGS  CONTROL ELEMENTS  TRIP BUS  TRIP BUS 1(6)  TRIP BUS 1 TRIP BUS 1 Range: Enabled, Disabled  FUNCTION: Disabled  5-252 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 447: Trip Bus
— The trip bus output is blocked when the operand assigned to this setting is asserted. TRIP BUS 1 BLOCK — This setting specifies a time delay to produce an output depending on how output is used. TRIP BUS 1 PICKUP DELAY N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-253...
Page 448: Setting Groups
GROUP 6 ACTIVATE ON: Range: FlexLogic operand  GROUP 1 NAME: Range: up to 16 alphanumeric characters   GROUP 6 NAME: Range: up to 16 alphanumeric characters  5-254 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 449 If it becomes necessary to cancel the SelectActiveSG selection without using a SelectActiveSG service request, change the setting to Disabled. This resets the SelectActiveSG selection to 1. SETTING GROUPS FUNCTION N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-255...
Page 450: Selector Switch
1 to the . If the control word is outside the range, an alarm is established by setting the SELECTOR FULL RANGE FlexLogic operand for three seconds. SELECTOR ALARM 5-256 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 451 If the acknowledging signal does not appear within a pre-defined period of time, the selector rejects the change and an alarm established by invoking the FlexLogic operand SELECTOR BIT ALARM for three seconds. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-257...
Page 452 The selector position pre-selected via the three-bit control input has not been confirmed before the time The following figures illustrate the operation of the selector switch. In these diagrams, “T” represents a time-out setting. 5-258 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 453 CHAPTER 5: SETTINGS CONTROL ELEMENTS Figure 5-139: Time-out mode N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-259...
Page 454 1 through 3. The pre-selected setting group is to be applied automatically after five seconds of inactivity of the control inputs. When the relay powers up, it is to synchronize the setting group to the three-bit control input. 5-260 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 455 SETUP  USER-PROGRAMMABLE PUSHBUTTONS  USER PUSHBUTTON 1 : “Self-reset” PUSHBUTTON 1 FUNCTION : “0.10 s” PUSHBUTTON 1 DROP-OUT TIME The figure shows the logic for the selector switch. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-261...
Page 456: Underfrequency (Ansi 81U)
DELAY : 2.000 s UNDERFREQ 1 TARGET: Range: Self-reset, Latched, Disabled  Self-reset UNDERFREQ 1 EVENTS: Range: Disabled, Enabled  Disabled There are six identical underfrequency elements, numbered 1 through 6. 5-262 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 457: Overfrequency (Ansi 81O)
The channels are searched for the signal input in the following order: voltage channel A, auxiliary voltage channel, current channel A, and ground current channel. The first available signal is used for frequency calculation. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-263...
Page 458: Synchrocheck (Ansi 25)
SYNCHK1 MAX ANGLE Range: 0 to 100° in steps of 1  DIFF: 30° SYNCHK1 MAX FREQ Range: 0.00 to 2.00 Hz in steps of 0.01  DIFF: 1.00 Hz 5-264 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 459 — This setting selects the source for voltage V1 (see the Notes section that follows). SYNCHK1 V1 SOURCE — Selects the source for voltage V2, which must not be the same as used for the V1 (see Notes). SYNCHK1 V2 SOURCE N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-265...
Page 460 V2 magnitude can be directly compared with V1 magnitude. For example, when V1 and V2 are taken from 2 different windings of the transformer and at different voltage levels, the magnitude compensation must be performed before starting magnitude comparison in synchrocheck element. 5-266 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 461 The relay uses the phase channel of a three-phase set of voltages if programmed as part of that source. The relay uses the auxiliary voltage channel only if that channel is programmed N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-267...
Page 462 CONTROL ELEMENTS CHAPTER 5: SETTINGS as part of the Source and a three-phase set is not. 5-268 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 463 CHAPTER 5: SETTINGS CONTROL ELEMENTS Figure 5-146: Synchrocheck logic N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-269...
Page 464: Digital Elements
DIGITAL ELEMENT 1 RESET DELAY — This setting enables or disabled the digital element pickup LED. When set to “Disabled,” the DIGITAL ELEMENT 1 PICKUP LED operation of the pickup LED is blocked. 5-270 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 465 In most breaker control circuits, the trip coil is connected in series with a breaker auxiliary contact that is open when the breaker is open (see figure). To prevent unwanted alarms in this situation, the trip circuit monitoring logic must include the breaker position. Figure 5-148: Trip circuit example 1 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-271...
Page 466 In this case, it is not required to supervise the monitoring circuit with the breaker position – the setting is BLOCK selected to “Off.” In this case, the settings are as follows (EnerVista example shown). 5-272 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 467: Digital Counters
Range: FlexLogic operand  CNT1 SET TO PRESET: Range: FlexLogic operand  COUNTER 1 RESET: Range: FlexLogic operand  COUNT1 FREEZE/RESET: Range: FlexLogic operand  COUNT1 FREEZE/COUNT: Range: FlexLogic operand  N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-273...
Page 468 If control power is interrupted, the accumulated and frozen values are saved into non-volatile memory during the power-down operation. 5-274 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 469: Monitoring Elements
VT FUSE FAILURE 1 Range: Disabled, Enabled   FUNCTION: Disabled VT FUSE FAILURE 1 Range: 0.000 to 65.535 s in steps of 0.001  ALARM DELAY: 1.000 s N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-275...
Page 470 PHASE VT SECONDARY PHASE VT SECONDARY of DELTA VTs. The setting is found under SETTINGS  SYSTEM SETUP  AC INPUTS  VOLTAGE BANK  PHASE VT SECONDARY 5-276 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 471 Range: SRC 1, SRC 2, SRC 3, SRC 4, SRC 5, SRC 6  SRC 1 CT FAIL 1 3V0 INPUT Range: 0.04 to 2.00 pu in steps of 0.01  PKP: 0.20 pu N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-277...
Page 472 — Specifies the pickup value for the 3V_0 source. CT FAIL 1 3V0 INPUT PICKUP — Specifies the pickup delay of the CT failure element. CT FAIL 1 PICKUP DELAY 5-278 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 473 Range: FlexLogic operand  THERM PROT 1 BLOCK: Range: FlexLogic operand  THERMAL PROTECTION 1 Range: Self-reset, Latched, Disabled  TARGET: Self-reset THERMAL PROTECTION 1 Range: Disabled, Enabled  EVENTS: Disabled N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-279...
Page 474 The reset time of the thermal overload protection element is also time delayed using following formula: Eq. 5-26 where τ = thermal protection trip time constant = a minimum reset time setting 5-280 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 475 IEC255-8 cold curve or hot curve equations op(In) is the reset time calculated at index n as per the reset time equation rst(In) N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-281...
Page 476: Frequency Rate Of Change (Ansi 81R)
 SRC 1 FREQ RATE 1 TREND: Range: Increasing, Decreasing, Bi-directional  Increasing FREQ RATE 1 PICKUP: Range: 0.10 to 15.00 Hz/sec in steps of 0.01  0.50 Hz/sec 5-282 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 477 If the signal source assigned to the frequency rate of change element is only set to auxiliary VT, then the minimum voltage supervision is 3 V. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-283...
Page 478: Digitizers
(from –127 to 127) The figure illustrates the output characteristic of the digitizer element. 5-284 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 479 (FlexAnalog parameters) such as power, current amplitude, voltage amplitude, power factor, and so on, can be configured as the digitizer source. Refer to Appendix A for a complete list of FlexAnalog parameters available for the N60. — This setting allows setting symmetrical limits for the input signal. The input signal is truncated to an DIGITIZER 1 LIMIT interval from –LIMIT to +LIMIT before the effective digitization.
Page 480 The following table illustrates this application for four sample power values. Table 5-41: Sample power values Power B7... B0 15.00 MW 01011100 20.00 MW 01111011 –5.00 MW –31 10011111 –12.00 MW –74 11001010 5-286 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 481: 8-Bit Comparators
 8BIT COMP 1 ARG A7: Range: FlexLogic operand  8BIT COMP 1 ARG B0: Range: FlexLogic operand  8BIT COMP 1 ARG B1: Range: FlexLogic operand   N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-287...
Page 482 To prevent problems, pickup and dropout time delays must be applied to avoid misoperation, or all eight bits must be configured to change simultaneously (for example, applied to the relay via the same communications). 5-288 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 483 When unblocked, the element starts operating instantly. If exposed to pickup conditions for an extended period of time and unblocked, the element picks up and starts timing out at the moment of unblocking. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-289...
Page 484 UR-1: Nominal system voltage = 345 kV, SRC 1 CT ratio = 2000:5, Normal load current = 1.8 kA • UR-2: Nominal system voltage = 220 kV, SRC 4 CT ratio = 3000:5, Normal load current = 2.5 kA The application requires the following features. For UR-1: 5-290 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 485 DIRECT INPUT 13 DEVICE ID : “4” DIRECT INPUT 13 BIT NUMBER : “1” DIRECT INPUT 14 DEVICE ID : “5” DIRECT INPUT 14 BIT NUMBER : “1” DIRECT INPUT 15 DEVICE ID N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-291...
Page 486 DISP 1 BOTTOM LINE : “8100” (Modbus register address of DISP 1 ITEM 1 8BIT COMP 1 A : “8104” (Modbus register address of DISP 1 ITEM 2 8BIT COMP 1 Out 5-292 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 487: 8-Bit Switches
The feature could be viewed as an integrated two-position switch for 8 logic signals. Typically this element is applied in conjunction with the Digitizer and 8-bit Comparator features. The switch runs every half power cycle (every four protection passes). N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-293...
Page 488 If the control operand is in the "Off" state, the first (A) input is switched to the output. If the control operand is in the "On" state, the second (B) input is switched to the output. The switching takes place instantaneously. Figure 5-160: 8-bit switch logic 5-294 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 489: Inputs/Outputs
The DC input voltage is compared to a user-settable threshold. A new contact input state must be maintained for a user-settable debounce time in order for the N60 to validate the new contact state. In the following figure, the debounce time is set at 2.5 ms;...
Page 490 For example, to use contact input H5a as a status input from the breaker 52b contact to seal-in the trip relay and record it in the Event Records menu, make the following settings changes: 5-296 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 491: Virtual Inputs
FlexLogic equation, it likely needs to be lengthened in time. A FlexLogic timer with a delayed reset can perform this function. Figure 5-162: Virtual inputs logic N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-297...
Page 492: Contact Outputs
: any suitable FlexLogic operand OUTPUT H1 OPERATE “Cont Op 1 OUTPUT H1 SEAL-IN IOn” : “Enabled” CONTACT OUTPUT H1 EVENTS Figure 5-163: Contact input/output module type 6A contact 1 logic 5-298 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 493 Figure 5-164: Contact input/output module type 4L contact 1 logic Application example 1 A latching output contact H1a is to be controlled from two user-programmable pushbuttons (buttons number 1 and 2). The following settings are applied. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-299...
Page 494 (assuming an H4L module): OUTPUTS  CONTACT OUTPUT H1a CONTACT OUTPUT H1c : “VO1” OUTPUT H1a OPERATE : “VO4” OUTPUT H1a RESET : “VO2” OUTPUT H1c OPERATE : “VO3” OUTPUT H1c RESET 5-300 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 495: Virtual Outputs
VIRTUAL OUTPUT 1 ID : "Disabled" VIRTUAL OUTPUT 1 EVENTS 5.9.5 Resetting 5.9.5.1 Enhanced and standard front panels SETTINGS  INPUTS/OUTPUTS  RESETTING  RESETTING RESET OPERAND: Range: FlexLogic operand   N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-301...
Page 496: Direct Inputs And Outputs
These settings specify how the direct input information is processed. — This setting allows the user to assign a descriptive name to the direct input. DIRECT INPUT 1 NAME 5-302 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 497: Application Examples
Assume that contact input 1 from UR IED 2 is to be used by UR IED 1. The following settings are applied (Direct Input 5 and bit number 12 are used, as an example). UR IED 1: N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-303...
Page 498 (if any default state is set to “On”), or to trip the bus on any overcurrent condition (all default states set to “Off”). Example 3: Pilot-aided schemes Consider a three-terminal line protection application shown in the following figure. 5-304 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 499 5" (forward a message from 1 to 3) DIRECT OUT 3 OPERAND "DIRECT INPUT 6" (forward a message from 3 to 1) DIRECT OUT 4 OPERAND The figure shows the signal flow among the three IEDs. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-305...
Page 500: Direct Analog Inputs And Outputs
0.000 ANALOG 1 TRIGGER: Range: FlexLogic operand  The direct analog outputs share the direct input and output settings for device ID, data rate, ring configuration, and channel crossover. 5-306 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 501 DIRECT ANALOG INPUT 1 ACTUAL FlexAnalog value in other N60 features, such as FlexElements. This value is used to normalize the direct analog input 1 FlexAnalog quantity to its per-unit base. See the FlexElements section for additional details on per-unit base values.
Page 502: Direct Integer Inputs And Outputs
5.9.8.1 Menu SETTINGS  INPUTS/OUTPUTS  DIRECT INTEGERS  DIRECT INTEGERS  DIRECT INTEGER See below   OUTPUTS   DIRECT INTEGER See page 5-309   INPUTS 5-308 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 503 “Last Known,” the value of direct integer input 1 remains at the last received value. This value is stored as an unsigned 32-bit integer. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-309...
Page 504: Teleprotection
(teleprotection outputs at the sending end or corresponding teleprotection inputs at the receiving end). On three-terminal two-channel systems, redundancy is achieved by programming signal re-transmittal in the case of channel failure between any pair of relays. 5-310 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 505: Transducer Inputs/Outputs
VALUE: 0.000 The N60 is provided with optional DCmA capability. This feature is specified as an option at the time of ordering. See the Order Codes section in chapter 2 for details. Hardware and software are provided to receive signals from external transducers and to convert these signals into a digital format for use as required.
Page 506: Rtd Inputs
FlexElements, the operate level is scaled to a base of 100°C. For example, a trip level of 150°C is achieved by setting the operate level at 1.5 pu. FlexElement operands are available to FlexLogic for further interlocking or to operate an output contact directly. 5-312 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 507: Dcma Outputs
Range: –90.000 to 90.000 pu in steps of 0.001  MIN VAL: 0.000 pu DCMA OUTPUT F1 Range: –90.000 to 90.000 pu in steps of 0.001  MAX VAL: 1.000 pu N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-313...
Page 508 — This setting allows selection of the output range. Each DCmA channel can be set independently DCMA OUTPUT F1 RANGE to work with different ranges. The three most commonly used output ranges are available. 5-314 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 509 The CT ratio is 5000:5 and the maximum load current is 4200 A. The current is to be monitored from 0 A upwards, allowing for 50% overload. The phase current with the 50% overload margin is: Eq. 5-42 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-315...
Page 510 • ±0.5% of reading For example, under nominal conditions, the positive-sequence reads 230.94 kV and the worst-case error is 0.005 × 230.94 kV + 1.27 kV = 2.42 kV. 5-316 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 511: Testing
 FUNCTION: Disabled The N60 provides a test facility to verify the functionality of contact inputs and outputs, some communication functions and the phasor measurement unit (where applicable), using simulated conditions. The test mode can be in any of three states: Disabled, Isolated, or Forcible.
Page 512: Phasor Measurement Unit Test Values
PMU 1 IC TEST Range: –180.00 to 180.00° in steps of 0.05  ANGLE: 110.00° PMU 1 IG TEST Range: 0.000 to 9.999 kA in steps of 0.001  MAGNITUDE: 0.000 kA 5-318 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 513: Force Contact Inputs
5.11.5 Force contact outputs SETTINGS  TESTING  FORCE CONTACT OUTPUTS  FORCE CONTACT FORCE Cont Op 1 Range: Normal, Energized, De-energized, Freeze   OUTPUTS : Normal N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 5-319...
Page 514 While the selected operand is Off, the output behaves as it does when in service. On restart, the setting and the force contact input and force contact output settings revert to TEST MODE FORCING their default states. 5-320 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 515: Actual Values
See page 6-6   STATUS  RxGOOSE See page 6-6   STATISTICS  DIGITAL COUNTERS See page 6-7    SELECTOR SWITCHES See page 6-7   N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 516  8-BIT See page 6-23   COMPARATORS  SUMMATOR See page 6-23    DIRECT ANALOGS See page 6-24    RxGOOSE See page 6-24   Analogs N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 517: Front Panel
The front panel can be viewed and used in the EnerVista software, for example to view an error message displayed on the front panel. The feature applies to the enhanced and standard front panels. To view the front panel in EnerVista software: Click Actual Values > Front Panel. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 518: Status
For example, ‘Virt Ip 1’ refers to the virtual input in terms of the default name. The second line of the display indicates the logic state of the virtual input. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 519: Rxgoose Boolean Inputs
Range: On, Off  STATUS: Off The N60 is provided with optional IEC 61850 capability. This feature is specified as a software option at the time of ordering. See the Order Codes section of chapter 2 for details. 6.3.4 RxGOOSE DPS inputs ACTUAL VALUES ...
Page 520: Virtual Outputs
 Offline The N60 is provided with optional IEC 61850 capability. This feature is specified as a software option at the time of ordering. See the Order Codes section of chapter 2 for details. actual value does not consider RxGOOSE that are not configured or are not used by any RxGOOSE All RxGOOSE Online Input.
Page 521: Digital Counters
CHAPTER 6: ACTUAL VALUES STATUS The N60 is provided with optional IEC 61850 capability. This feature is specified as a software option at the time of ordering. See the Order Codes section of chapter 2 for details. — State number. The most recently received value in GOOSE message field stNum. The publisher increments stNum stNum each time that the state of one or more of the GOOSE message members is sent with a revised value.
Page 522: Ethernet
Calibrating if an active master has been selected but lock is not at present established • Synch’d (No Pdelay) if the port is synchronized, but the peer delay mechanism is non-operational • Synchronized if synchronized N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 523: Direct Inputs
Range: Offline, Online   STATUS STATUS: Offline  DIRECT DEVICE 16 Range: Offline, Online  STATUS: Offline These actual values represent the state of direct devices 1 through 16. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 524: Direct Integer Inputs
  REMAINING CONNECT MODBUS TCP (max 4) Range: 0 to 4  DNP TCP(max 2) Range: 0 to 2  IEC-104 TCP(max 2) Range: 0 to 2  6-10 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 525: Parallel Redundancy Protocol (Prp)
— The maximum number of PMU TCP connections matches the number of aggregators. The maximum number of PMU TCP aggregators for the N60 is 4. The maximum number for the C60 is 2. The maximum number is 1 for other products with a PMU. The remaining number of aggregators displays here.
Page 526: Metering
 ARP: The N60 is provided with optional IEC 61850 capability. This feature is specified as a software option at the time of ordering. See the Order Codes section of chapter 2 for details. This status is relevant to R-GOOSE reception when configured for SSM or ASM reception modes. It is not relevant for GOOSE or for R-GOOSE in unicast reception mode.
Page 527 All phasors calculated by URs and used for protection, control and metering functions are rotating phasors that maintain the correct phase angle relationships with each other at all times. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 6-13...
Page 528 For display and oscillography purposes the phase angles of symmetrical components are referenced to a common reference as described in the previous sub-section. WYE-connected instrument transformers • ABC phase rotation: • ACB phase rotation: The above equations apply to currents as well. 6-14 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 529 * The power system voltages are phase-referenced – for simplicity – to V and V , respectively. This, however, is a relative matter. It is important to remember that the N60 displays are always referenced as specified under SETTINGS  SYSTEM SETUP  POWER SYSTEM  FREQUENCY AND PHASE REFERENCE The example above is illustrated in the following figure.
Page 530: Sources
SRC 1 RMS In:  0.000 A SRC 1 PHASOR Ia:  0.000 A 0.0° SRC 1 PHASOR Ib:  0.000 A 0.0° SRC 1 PHASOR Ic:  0.000 A 0.0° 6-16 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 531 SRC 1 RMS Vbc:  0.00 V SRC 1 RMS Vca:  0.00 V SRC 1 PHASOR Vab:  0.000 V 0.0° SRC 1 PHASOR Vbc:  0.000 V 0.0° N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 6-17...
Page 532 SRC 1 APPARENT PWR  3φ: 0.000 VA SRC 1 APPARENT PWR  φa: 0.000 VA SRC 1 APPARENT PWR  φb: 0.000 VA SRC 1 APPARENT PWR  φc: 0.000 VA 6-18 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 533 S = V x Î x Î x Î Eq. 6-1 When VTs are configured in delta, the N60 does not calculate power in each phase and three-phase power is measured as S = V x Î x Î Eq. 6-2...
Page 534 The signal used for frequency estimation is low-pass filtered. The final SYSTEM SETUP  POWER SYSTEM frequency measurement is passed through a validation filter that eliminates false readings due to signal distortions and transients. 6-20 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 535 The harmonics are a percentage of the fundamental signal obtained as a ratio of harmonic amplitude to fundamental amplitude multiplied by 100%. The total harmonic distortion (THD) is the ratio of the total harmonic content to the fundamental: Eq. 6-4 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 6-21...
Page 536: Synchrocheck
SETTINGS  SYSTEM SETUP  POWER SYSTEM System section of chapter 5 for details. 6.4.5 FlexElements ACTUAL VALUES  METERING  FLEXELEMENTS  FLEXELEMENT 1(16)  FLEXELEMENT 1 FLEXELEMENT 1  OpSig: 0.000  6-22 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 537: Digitizer
SUMMATOR 1 OUTPUT:   0.000 The values for the six summator outputs are available for display. The values are displayed with the units programmed in setting. SUMMATOR 1(6) UNITS N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 6-23...
Page 538: Direct Analogs
 0.000 The N60 is provided with optional GOOSE communications capability. This feature is specified as a software option at the time of ordering. See the Order Codes section of chapter 2 for details. The RxGOOSE Analog values display in this menu. The RxGOOSE Analog values are received via IEC 61850 GOOSE messages sent from other devices.
Page 539: Pmu Aggregator
This can help to estimate network loading. The PDU size shown in the displays does not include the Ethernet, UDP, or IP layers. PDU sizes approaching approximately 1500 bytes result in fragmented data frames, causing increased network traffic. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 6-25...
Page 540: Records
Each event record shows the event identifier/sequence number, cause, and date/time stamp associated with the event trigger. See the menu for clearing event records.  COMMANDS  CLEAR RECORDS 6-26 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 541 (highlight in yellow), then press the green or cyan Mark Event Tab pushbutton. The mark color hides the selector until the selector is moved. A field at the top of the page shows the interval between the two marks. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 6-27...
Page 542: Oscillography
It counts up at the defined sampling NEWEST SAMPLE TIME rate. If the data logger channels are defined, then both values are static. See the menu for clearing data logger records. COMMANDS  CLEAR RECORDS 6-28 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 543: Phasor Measurement Unit Records
BKR 1 ARCING AMP φA:  0.00 kA2-cyc BKR 1 ARCING AMP φB:  0.00 kA2-cyc BKR 1 ARCING AMP φC:  0.00 kA2-cyc BKR 1 AMP MAX φA:  0.00 kA N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 6-29...
Page 544: Product Information
The MAC address displays for port 1. The MAC address for port 2 is one higher. The MAC address for port 3 is one higher than port 2. In redundant mode, the MAC addresses for ports 2 and 3 are the same as port 2. 6-30 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 545: Firmware Revisions
FPGA PROGRAM Range: 0.00 to 655.35  REVISION: 02.02 Revision number for FPGA. FPGA DATE: Range: YYYY/MM/DD HH:MM:SS  2016/09/15 16:41:32 Date and time when the FPGA was built. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 6-31...
Page 546 The shown data is illustrative only. A modification file number of 0 indicates that, currently, no modifications have been installed. The date format reflects the format specified for the clock and can vary from that shown here. 6-32 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 547: Commands And Targets
The commands menu contains relay directives intended for operations personnel. All commands can be protected from unauthorized access via the command password; see the Security section of chapter 5 for details. The following flash message appears after successfully command entry. COMMAND EXECUTED N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 548: Virtual Inputs
CLEAR PMU 6 RECORDS? Range: No, Yes  CLEAR PMU 1 CONFIG Range: No, Yes  CHANGE COUNTER? No CLEAR PMU 2 CONFIG Range: No, Yes  CHANGE COUNTER? No N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 549: Set Date And Time
Online Window area of the EnerVista software. (Click the button at the top of the window that opens.) When the relay is synchronizing to an external time source such as PTP, IRIG-B, or SNTP, the manually entered time or the manually synchronized time is over-written. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 550: Relay Maintenance
With the CyberSentry option, the Administrator and Operator roles can initiate the Reboot Relay command. — Performs specific N60 service actions. Presently, there are two service actions available. Code SERVICE COMMAND "20511"...
Page 551: Phasor Measurement Unit One-Shot
Although the diagnostic information is cleared before the N60 is shipped from the factory, the user can want to clear the diagnostic information for themselves under certain circumstances. For example, you clear diagnostic information after replacement of hardware.
Page 552 The one-shot feature can be used for ad hoc collection of synchronized measurements in the network. Two or more PMUs can be pre-scheduled to freeze their measurements at the same time. When frozen, the measurements can be collected using the EnerVista software or a protocol client. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 553: Security
A target enables the EnerVista UR Setup software to monitor automatically and display the status of any active target messages of all the devices inserted into that site. Each N60 element with a TARGET setting has a target message that when activated by its element is displayed in sequence with any other currently active target messages in the menu.
Page 554: Relay Self-Tests
Contact Factory (xxx) • Latched target message: Yes. • Description of problem: One or more installed hardware modules is not compatible with the N60 order code. • How often the test is performed: Module dependent. • What to do: Contact the factory and supply the failure code noted in the display. The “xxx” text identifies the failed module (for example, F8L).
Page 555 What to do: Extract a Service Report through UR Setup software. Contact technical support and supply details of the failure code on the display. MAINTENANCE ALERT: Replace Battery • Latched target message: Yes. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 556 What to do: Check that Ethernet cable(s) are properly connected. Check that configuration for the SNTP server corresponds to the actual server settings. Check connectivity to the server (ping the server IP address. MAINTENANCE ALERT: 4L Discrepancy 7-10 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 557 Description of problem: A direct device is configured but not connected. • How often the test is performed: Every second. • What to do: Check direct input and output configuration and wiring. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 7-11...
Page 558 Description of problem: The ambient temperature is greater than the maximum operating temperature (+80°C). • How often the test is performed: Every hour. • What to do: Remove the N60 from service and install in a location that meets operating temperature standards. UNEXPECTED RESTART: Press “RESET” key •...
Page 559 V-type CPU = All ports support RJ45 SFPs only The consequence of an incorrect SFP can range from damage to the N60 to no power information for the N60 on its web page (enter IP address in a web browser, then click the SFP Transceiver Information. Only the type of SFP displays and not power data).
Page 560 MODULE FAILURE • Description of problem: UR-series device module hardware failure detected. • Severity: Protection is not available and all contact outputs and shared outputs are de-asserted. 7-14 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 561 A latched target can be unlatched by pressing the front panel reset key if the command has ended, however the output can still be non-functional. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 7-15...
Page 562 TARGETS MENU CHAPTER 7: COMMANDS AND TARGETS 7-16 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 563: Commissioning
Injection to a particular N60 frequency element must be to its configured source and to the channels that the source uses for frequency measurement. For frequency measurement, a source uses the first quantity configured in the following...
Page 564 0.20 Hz before the threshold and subtract 1 second from the test set time reading of ramp start to relay operation. Note that the N60 event records only show the “pickup delay” component, a definite time timer. This is exclusive of the time taken by the frequency responding component to pickup.
Page 565: Maintenance
UR Family Communications Guide for the entries. The upper part of the window displays values. The lower part of the window is for factory service use. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 566 Float — A numbering system with no fixed number of digits before or after the decimal point. An example is 0.000000. Binary — A numbering system using 0 and 1. An example is 0000-0000-0000-0000. Entries are not saved when closing the window. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 567: General Maintenance
GENERAL MAINTENANCE 9.2 General maintenance The N60 requires minimal maintenance. As a microprocessor-based relay, its characteristics do not change over time. Expected service life is 20 years for UR devices manufactured June 2014 or later when applied in a controlled indoor environment and electrical conditions within specification.
Page 568: Cybersentry Security Event Files
Using the Up or Down pushbuttons on the front panel, select the file. Press the COPY pushbutton. The files are copied from the N60 to the USB drive. Do not unplug the USB drive while copying is in progress, else the USB drive can be compromised.
Page 569: Convert Device Settings
Convert the settings by right-clicking one of the files in the Offline Window and selecting the Convert Device Settings option. GE recommends converting settings in firmware steps, for example when converting from 6.0 to 7.4x, convert first to 7.0 then 7.4 in order to follow embedded conversion rules and keep settings.
Page 570 Change settings in the new file, for example by looking at the original file. Write the converted file to the device, for example by dragging and dropping from the Offline Window to the Online Window. Check settings and operation. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 571: Copy Settings To Other Device
9.5 Copy settings to other device Settings from one N60 device can be copied to another N60 device for rapid deployment. The order codes must match. See the Settings File section at the beginning of the Interfaces chapter for a list of settings not deployed, such as IP address.
Page 572: Compare Two Devices
UR device settings can be saved in a backup URS file using the EnerVista UR Setup software. The URS file is the standard UR settings file. For an introduction to settings files in the URS format, see the beginning of the Interfaces chapter. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 573 Have this option enabled when you want to keep the IID file from the UR device instead of from another tool. The location of the file is C:\ProgramData\GE Power Management\urpc\Offline, for example.
Page 574 The file is copied from the computer to the location specified. To save list of sites and devices with an Environment backup: In EnerVista, click File > Environment > Backup. A window opens. Name and save the .ENV file. 9-10 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 575: Restore Settings
These messages display because the roles of the protection engineer and network engineer can be separate. The former can require a URS file, while the latter can require stored Modbus settings and protection schemes. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 9-11...
Page 576 To restore the list of sites and devices from an Environment backup: In EnerVista, click File > Environment > Restore. A window opens. Select the .ENV file to restore. 9-12 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 577: Upgrade Software
9.9 Upgrade firmware If upgrading both EnerVista software and N60 firmware, upgrade the software first. The firmware of the N60 device can be upgraded, locally or remotely, using the EnerVista software. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 578 You access the Convert Device Settings option by right-clicking the file in the Offline Window area at the lower left. GE recommends converting settings in firmware steps, for example when converting from 6.0 to 7.4x, convert first to 7.0 then 7.4 in order to follow embedded conversion rules and keep settings. Note that the values of all settings that have been defaulted during conversion are not listed in the conversion report;...
Page 579: Replace Front Panel
For an enhanced front panel, loosen the thumb screw and open slightly the front panel. For a standard front panel, lift up the black plastic latch on the right side of the front panel and open slightly the front panel. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 9-15...
Page 580 With a Phillips screwdriver, unscrew and remove the mounting bracket on the right side of the unit. The bracket for the enhanced front panel looks similar to that for the graphical front panel, but they are not the same. 9-16 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 581 Open the front panel. Unplug or unscrew the grey ground cable from the front panel. Unplug the RJ45 connector from the CPU module in the second slot on the left. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 9-17...
Page 582 Unscrew and remove the mounting bracket with the front panel from the left side. Figure 9-17: Unscrew enhanced front panel mounting bracket on left side Figure 9-18: Unscrew standard front panel mounting bracket on left side 9-18 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 583 Figure 9-19: Attach mounting bracket to relay on left side (no power supply module in first slot) Screw the right mounting bracket to the right side of the relay. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 9-19...
Page 584 Optionally remove the protective plastic film on the graphical front panel. It is normally peeled off, but also can be left The graphical front panel has been installed but not connected. 9-20 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 585 Ensure that the RS485 connector and the black cover plate are not on the back of the CPU module before sliding the module into the front of the relay. Figure 9-23: Rear of a CPU module before insertion without RS485 connector or cover plate N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 9-21...
Page 586 Insert the silver SFP connector(s) at the back of the CPU module, then connect any Ethernet connection(s). Power up the relay. If the graphical front panel does not power up immediately, disconnect power, open the front 9-22 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 587: Replace Module
The new wide-angle hinge assembly in the enhanced front panel opens completely and allows easy access to all modules in the N60. Figure 9-26: Modules inside relay with front cover open (enhanced front panel) N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 9-23...
Page 588: Battery
When required, the battery can be replaced. The power supply module contains the battery. The battery type is 3 V cylindrical. 9.12.1 Replace battery for SH/SL power supply When required, the battery can be replaced. The power supply module contains the battery. 9-24 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 589 10. Reinstall the battery holder and the metal cover, and reinsert the power supply module into the unit. 11. Power on the unit. 12. Dispose of the old battery as outlined in the next section. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 9-25...
Page 590: Dispose Of Battery
(Cd), el plomo (Pb), o el mercurio (Hg ). Para el reciclaje apropiado, devuelva este producto a su distribuidor ó deshágase de él en los puntos de reciclaje designados. Para mas información : wwwrecyclethis.info. 9-26 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 591 (Cd), lood (Pb) of kwik (Hg). Voor correcte vorm van kringloop, geef je de producten terug aan jou locale leverancier of geef het af aan een gespecialiseerde verzamelpunt. Meer informatie vindt u op de volgende website: www.recyclethis.info. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL 9-27...
Page 592 Bu sembolle işaretlenmiş piller Kadmiyum(Cd), Kurşun(Pb) ya da Civa(Hg) içerebilir. Doğru geri dönüşüm için ürünü yerel tedarikçinize geri veriniz ya da özel işaretlenmiş toplama noktlarına atınız. Daha fazla bilgi için: www.recyclethis.info. 9-28 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 593: Clear Files And Data After Uninstall
For issues not solved by troubleshooting, the process to return the device to the factory for repair is as follows: • Contact a GE Grid Solutions Technical Support Center. Contact information is found in the first chapter. • Obtain a Return Materials Authorization (RMA) number from the Technical Support Center.
Page 594: Storage
Customers are responsible for shipping costs to the factory, regardless of whether the unit is under warranty. • Fax a copy of the shipping information to the GE Grid Solutions service department in Canada at +1 905 927 5098. Use the detailed return procedure outlined at https://www.gegridsolutions.com/multilin/support/ret_proc.htm...
Page 595: Flexanalog Items
Frequency rate of change 1 actual value 5860 Freq Rate 2 Value Hz/s Frequency rate of change 2 actual value 5864 Freq Rate 3 Value Hz/s Frequency rate of change 3 actual value N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 596 Degrees Source 2 negative-sequence current angle 6242 SRC 2 Igd Mag Amps Source 2 differential ground current magnitude 6244 SRC 2 Igd Angle Degrees Source 2 differential ground current angle N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 597 Source 4 differential ground current magnitude 6372 SRC 4 Igd Angle Degrees Source 4 differential ground current angle 6400 SRC 5 Ia RMS Amps Source 5 phase A current RMS N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 598 Source 6 differential ground current angle 6656 SRC 1 Vag RMS Volts Source 1 phase AG voltage RMS 6658 SRC 1 Vbg RMS Volts Source 1 phase BG voltage RMS N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 599 SRC 2 Vx Mag Volts Source 2 auxiliary voltage magnitude 6754 SRC 2 Vx Angle Degrees Source 2 auxiliary voltage angle 6755 SRC 2 V_0 Mag Volts Source 2 zero-sequence voltage magnitude N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 600 Source 4 phase AB voltage magnitude 6871 SRC 4 Vab Angle Degrees Source 4 phase AB voltage angle 6872 SRC 4 Vbc Mag Volts Source 4 phase BC voltage magnitude N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 601 Source 6 phase BG voltage magnitude 6987 SRC 6 Vbg Angle Degrees Source 6 phase BG voltage angle 6988 SRC 6 Vcg Mag Volts Source 6 phase CG voltage magnitude N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 602 7218 SRC 2 Sa Source 2 phase A apparent power 7220 SRC 2 Sb Source 2 phase B apparent power 7222 SRC 2 Sc Source 2 phase C apparent power N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 603 Source 5 phase C reactive power 7312 SRC 5 S Source 5 three-phase apparent power 7314 SRC 5 Sa Source 5 phase A apparent power 7316 SRC 5 Sb Source 5 phase B apparent power N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 604 Source 6 positive varhour 7510 SRC 6 Neg varh varh Source 6 negative varhour 7552 SRC 1 Frequency Source 1 frequency 7554 SRC 2 Frequency Source 2 frequency A-10 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 605 Source 1 phase A voltage fifth harmonic 8069 SRC 1 Va Harm[6] Source 1 phase A voltage sixth harmonic 8070 SRC 1 Va Harm[7] Source 1 phase A voltage seventh harmonic N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL A-11...
Page 606 Source 1 phase C voltage second harmonic 8116 SRC 1 Vc Harm[3] Source 1 phase C voltage third harmonic 8117 SRC 1 Vc Harm[4] Source 1 phase C voltage fourth harmonic A-12 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 607 Source 2 phase A voltage twenty-fourth harmonic 8163 SRC 2 Va Harm[25] Source 2 phase A voltage twenty-fifth harmonic 8164 SRC 2 Vb THD Source 2 phase B voltage total harmonic distortion (THD) N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL A-13...
Page 608 Source 2 phase C voltage twenty-first harmonic 8210 SRC 2 Vc Harm[22] Source 2 phase C voltage twenty-second harmonic 8211 SRC 2 Vc Harm[23] Source 2 phase C voltage twenty-third harmonic A-14 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 609 Source 3 phase B voltage eighteenth harmonic 8257 SRC 3 Vb Harm[19] Source 3 phase B voltage nineteenth harmonic 8258 SRC 3 Vb Harm[20] Source 3 phase B voltage twentieth harmonic N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL A-15...
Page 610 Source 4 phase A voltage fifteenth harmonic 8304 SRC 4 Va Harm[16] Source 4 phase A voltage sixteenth harmonic 8305 SRC 4 Va Harm[17] Source 4 phase A voltage seventeenth harmonic A-16 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 611 Source 4 phase C voltage twelfth harmonic 8351 SRC 4 Vc Harm[13] Source 4 phase C voltage thirteenth harmonic 8352 SRC 4 Vc Harm[14] Source 4 phase C voltage fourteenth harmonic N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL A-17...
Page 612 Source 5 phase B voltage ninth harmonic 8398 SRC 5 Vb Harm[10] Source 5 phase B voltage tenth harmonic 8399 SRC 5 Vb Harm[11] Source 5 phase B voltage eleventh harmonic A-18 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 613 Source 6 phase A voltage sixth harmonic 8445 SRC 6 Va Harm[7] Source 6 phase A voltage seventh harmonic 8446 SRC 6 Va Harm[8] Source 6 phase A voltage eighth harmonic N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL A-19...
Page 614 Source 6 phase C voltage third harmonic 8492 SRC 6 Vc Harm[4] Source 6 phase C voltage fourth harmonic 8493 SRC 6 Vc Harm[5] Source 6 phase C voltage fifth harmonic A-20 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 615 Phasor measurement unit 1 negative-sequence current magnitude 9619 PMU 1 I2 Angle Degrees Phasor measurement unit 1 negative-sequence current angle 9620 PMU 1 I0 Mag Amps Phasor measurement unit 1 zero-sequence current magnitude N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL A-21...
Page 616 Phasor measurement unit 3 positive-sequence voltage angle 9696 PMU 3 V2 Mag Volts Phasor measurement unit 3 negative-sequence voltage magnitude 9698 PMU 3 V2 Angle Degrees Phasor measurement unit 3 negative-sequence voltage angle A-22 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 617 Phasor measurement unit 4 negative-sequence current angle 9770 PMU 4 I0 Mag Amps Phasor measurement unit 4 zero-sequence current magnitude 9772 PMU 4 I0 Angle Degrees Phasor measurement unit 4 zero-sequence current angle N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL A-23...
Page 618 Phasor measurement unit 6 negative-sequence voltage magnitude 9848 PMU 6 V2 Angle Degrees Phasor measurement unit 6 negative-sequence voltage angle 9849 PMU 6 V0 Mag Volts Phasor measurement unit 6 zero-sequence voltage magnitude A-24 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 619 Source 1 phase B current second harmonic 10275 SRC 1 Ib Harm[3] Source 1 phase B current third harmonic 10276 SRC 1 Ib Harm[4] Source 1 phase B current fourth harmonic N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL A-25...
Page 620 Source 1 phase C current twenty-fourth harmonic 10330 SRC 1 Ic Harm[25] Source 1 phase C current twenty-fifth harmonic 10339 SRC 2 Ia THD Source 2 phase A current total harmonic distortion A-26 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 621 Source 2 phase B current twenty-first harmonic 10393 SRC 2 Ib Harm[22] Source 2 phase B current twenty-second harmonic 10394 SRC 2 Ib Harm[23] Source 2 phase B current twenty-third harmonic N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL A-27...
Page 622 Source 3 phase A current eighteenth harmonic 10456 SRC 3 Ia Harm[19] Source 3 phase A current nineteenth harmonic 10457 SRC 3 Ia Harm[20] Source 3 phase A current twentieth harmonic A-28 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 623 Source 3 phase C current fifteenth harmonic 10519 SRC 3 Ic Harm[16] Source 3 phase C current sixteenth harmonic 10520 SRC 3 Ic Harm[17] Source 3 phase C current seventeenth harmonic N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL A-29...
Page 624 Source 4 phase B current twelfth harmonic 10582 SRC 4 Ib Harm[13] Source 4 phase B current thirteenth harmonic 10583 SRC 4 Ib Harm[14] Source 4 phase B current fourteenth harmonic A-30 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 625 Source 5 phase A current ninth harmonic 10645 SRC 5 Ia Harm[10] Source 5 phase A current tenth harmonic 10646 SRC 5 Ia Harm[11] Source 5 phase A current eleventh harmonic N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL A-31...
Page 626 Source 5 phase C current sixth harmonic 10708 SRC 5 Ic Harm[7] Source 5 phase C current seventh harmonic 10709 SRC 5 Ic Harm[8] Source 5 phase C current eighth harmonic A-32 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 627 Source 6 phase B current third harmonic 10771 SRC 6 Ib Harm[4] Source 6 phase B current fourth harmonic 10772 SRC 6 Ib Harm[5] Source 6 phase B current fifth harmonic N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL A-33...
Page 628 SRC 6 Ic Harm[25] Source 6 phase C current twenty-fifth harmonic 10848 Synchchk 1 Delta V Volts Synchrocheck 1 delta voltage 10850 Synchchk 1 Delta Phs Degrees Synchrocheck 1 delta phase A-34 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 629 Synchrocheck 4 V2_angle 10910 Synchchk 4 Delta’ Phs Degrees Synchrocheck 4 delta_phase 10911 Synchchk 4 SSCP DPh’ Degrees Synchrocheck 4 _synchscope 10912 Synchchk 5 Delta V Volts Synchrocheck 5 delta voltage N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL A-35...
Page 630 DCmA input 20 actual value 13544 DCmA Ip 21 DCmA input 21 actual value 13546 DCmA Ip 22 DCmA input 22 actual value 13548 DCmA Ip 23 DCmA input 23 actual value A-36 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 631 RTD input 43 actual value 13595 RTD Ip 44 RTD input 44 actual value 13596 RTD Ip 45 RTD input 45 actual value 13597 RTD Ip 46 RTD input 46 actual value N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL A-37...
Page 632 Dir Analog Input 19 Direct analog input 19 actual value 33171 Dir Analog Input 20 Direct analog input 20 actual value 33172 Dir Analog Input 21 Direct analog input 21 actual value A-38 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 633 VTFF 6 V0 3rd Harmonic 45584 RxGOOSE Analog 1 RxGOOSE analog input 1 45586 RxGOOSE Analog 2 RxGOOSE analog input 2 45588 RxGOOSE Analog 3 RxGOOSE analog input 3 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL A-39...
Page 634 RxGOOSE analog input 30 45644 RxGOOSE Analog 31 RxGOOSE analog input 31 45646 RxGOOSE Analog 32 RxGOOSE analog input 32 61439 PMU Num Triggers Phasor measurement unit recording number of triggers A-40 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 635: B Radius Server
UR device for successful authentication, and the shortname is a short, optional alias that can be used in place of the IP address. client 10.0.0.2/24 { secret = testing123 shortname = private-network-1 In the <Path_to_Radius>\etc\raddb folder, create a file called dictionary.ge and add the following content. # ########################################################## GE VSAs ############################################################ VENDOR...
Page 636 Access Settings > Product Setup > Security. Configure the IP address and ports for the RADIUS server. Leave the GE vendor ID field at the default of 2910. Update the RADIUS shared secret as specified in the clients.conf file. Restart the relay for the IP address and port changes to take effect.
Page 637: C Command Line
When the Supervisor account is enabled, the 'Lock Relay' setting must first be changed to No before the putsettings, inservice, or reboot command can be used. This setting cannot be changed using the command line interface. • Use quotes ("") to enclose any parameter containing a space N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 638 "traditional" if not specified. Set <account> to "COMMANDS" or "SETTINGS". If not specified, the SETTINGS account is used. Example: SetupCLI URPC login -d "C30 Melbourne" -A traditional -a SETTINGS -w 1password1 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 639 Write the settings file <File> to the device <device>. For CyberSentry devices, putsettings is only supported for users with the "Administrator" role. Example: SetupCLI URPC putsettings -d C30 -f "C30 Markham.urs" N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 640 SetupCLI URPC getsettings -d demoDevice -f devicefile.urs SetupCLI URPC compare -f existingfile.urs -r devicefile.urs -o output.txt The output is similar to the following: Comparing settings file aaa.urs : C:\Users\Public\Public Documents\GE Power Management\URPC\Data\ with bbb.urs : C:\Users\Public\Public Documents\GE Power Management\URPC\Data\ Setting Name...
Page 641 SetupCLI URPC getsettings -d DEV@SETUP_CLI -f "example file.urs" SetupCLI URPC logout -d DEV@SETUP_CLI SetupCLI URPC exit DEV@SETUP_CLI has to be used as the device name in the commands followed by the 'adddevice' command. N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 642 COMMAND LINE INTERFACE APPENDIX C: COMMAND LINE INTERFACE N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 643: Warranty
This chapter provides the warranty and revision history. D.1 Warranty For products shipped as of 1 October 2013, GE Grid Solutions warrants most of its GE manufactured products for 10 years. For warranty details including any limitations and disclaimers, see the Terms and Conditions at http://www.gegridsolutions.com/multilin/warranty.htm...
Page 644 17-3561 1601-0125-AF1 7.6x 30 June 2017 17-3779 Table D-2: Major changes for N60 manual version AF1 (English) Page Description General revision Updated "faceplate" to "front panel" for consistency and to reflect web site Added graphical front panel option to order codes and specifications in chapter 2, Interfaces chapter 4, Settings chapter 5, Actual Values chapter 6 Added PEAP-GTC and PAP protocols for authenticating user logins when using a RADIUS server.
Page 645 Updated IEC 61850 section 5-61 Added Support for Routable GOOSE section 5-142 Added FlexCurves section as per inclusion for N60 in Modbus memory map 5-182 Updated number of FlexLogic lines from 512 to 1024 in FlexLogic Equation Editor settings section 5-208 Added FlexCurves section and content N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM –...
Page 646 REVISION HISTORY APPENDIX D: MISCELLANEOUS Page Description Added Monitoring section Added Retrieve Files section Added Command Line Interface appendix N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 647 Contact Output Fiber Optic Communication FPGA Field-programmable Gate Array COMM Communications FREQ Frequency COMP Compensated, Comparison Frequency-Shift Keying CONN Connection File Transfer Protocol CONT Continuous, Contact FlexElement™ CO-ORD Coordination Forward N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 648 Parallel Redundancy Protocol PSEL Presentation Selector Machine Precision Time Protocol Machine to Machine Per Unit MilliAmpere PUIB Pickup Current Block Magnitude PUIT Pickup Current Trip Manual / Manually PUSHBTN Pushbutton N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 649 TEMP Temperature TFTP Trivial File Transfer Protocol Total Harmonic Distortion Timer Time Overcurrent Time Overvoltage TRANS Transient TRANSF Transfer TSEL Transport Selector Time Undercurrent Time Undervoltage TX (Tx) Transmit, Transmitter N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 650 ABBREVIATIONS N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 651 Authentication by device or server ........... 5-16 Add relay ....................3-47 Authentication fail message ............7-13 Automatic discovery of UR devices .......... 3-55 Auxiliary voltage channel ............... 3-10 Auxiliary voltage metering ............. 6-18 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 652 FlexLogic operands ..............5-193 PTP ......................5-108 settings ....................5-298 set on front panel ................7-3 Control elements ................5-252 settings ....................5-107 Control power synchronize several devices .............5-108 description ....................3-8 specifications ..................2-27 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 653 ..................5-41, 7-2 Dimensions ....................3-2 settings ....................5-115 Direct analog inputs specifications ..................2-21 FlexAnalogs ..................A-38 Data, reading values ................6-1 FlexLogic operands ...............5-193 Dataset member is empty message ........5-67 settings ....................5-307 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 654 DOS partition alarm error message ......... 7-14 Environment backup ................9-9 Downgrade firmware ............... 9-13 Downgrade software ................ 9-13 Download files ..................9-3 Drag and drop files ................4-3 Duplicate device settings ..............9-7 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 655 ..............2-12 Firmware upgrade or downgrade ..........9-13 specifications ..................2-26 FPGA Firmware version does not match EnerVista ......9-13 Flash memory revision ....................6-31 ..................9-29 upgrade ....................9-15 Flash messages ..................5-26 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 656 ................. 5-65 self-test errors ................... 7-14 settings ....................5-65 Harmonic content ................6-21 Harmonics actual values ..................6-21 Harmonics metering specifications ..................2-23 Heartbeat messages ............. 5-66, 5-69 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 657 .....9-14 ISO standards ..................2-32 Incompatible hardware error ............7-8 Keypad ...................... 4-37 Labels, front panel ..............4-43, 4-76 Lamp test ....................7-4 Language setting ................5-26 Laser module ..................3-32 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 658 Memory requirements ..............3-45 FlexLogic operands ..............5-189 Menu navigation ................. 4-50 logic diagram .................. 5-236 Message about upgrade over Internet ........9-14 settings ....................5-235 specifications ..................2-16 viii N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 659 .................5-301 specifications ..................2-16 Overcurrent curve types ...............5-221 Phase overvoltage Overcurrent curves FlexLogic operands ...............5-190 FlexCurves ..................5-226 logic diagram ...................5-247 IAC ......................5-224 settings ....................5-246 IEC ......................5-223 specifications ..................2-17 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
Page 660 FlexLogic ..........5-195 removal to replace battery ............9-24 user-programmable logic diagrams ........5-129 specifications ..................2-25 user-programmable settings ..........5-124 Power swing blocking ............2-18, 5-213 user-programmable specifications ......... 2-20 N60 NETWORK STABILITY AND SYNCHROPHASOR MEASUREMENT SYSTEM – INSTRUCTION MANUAL...
