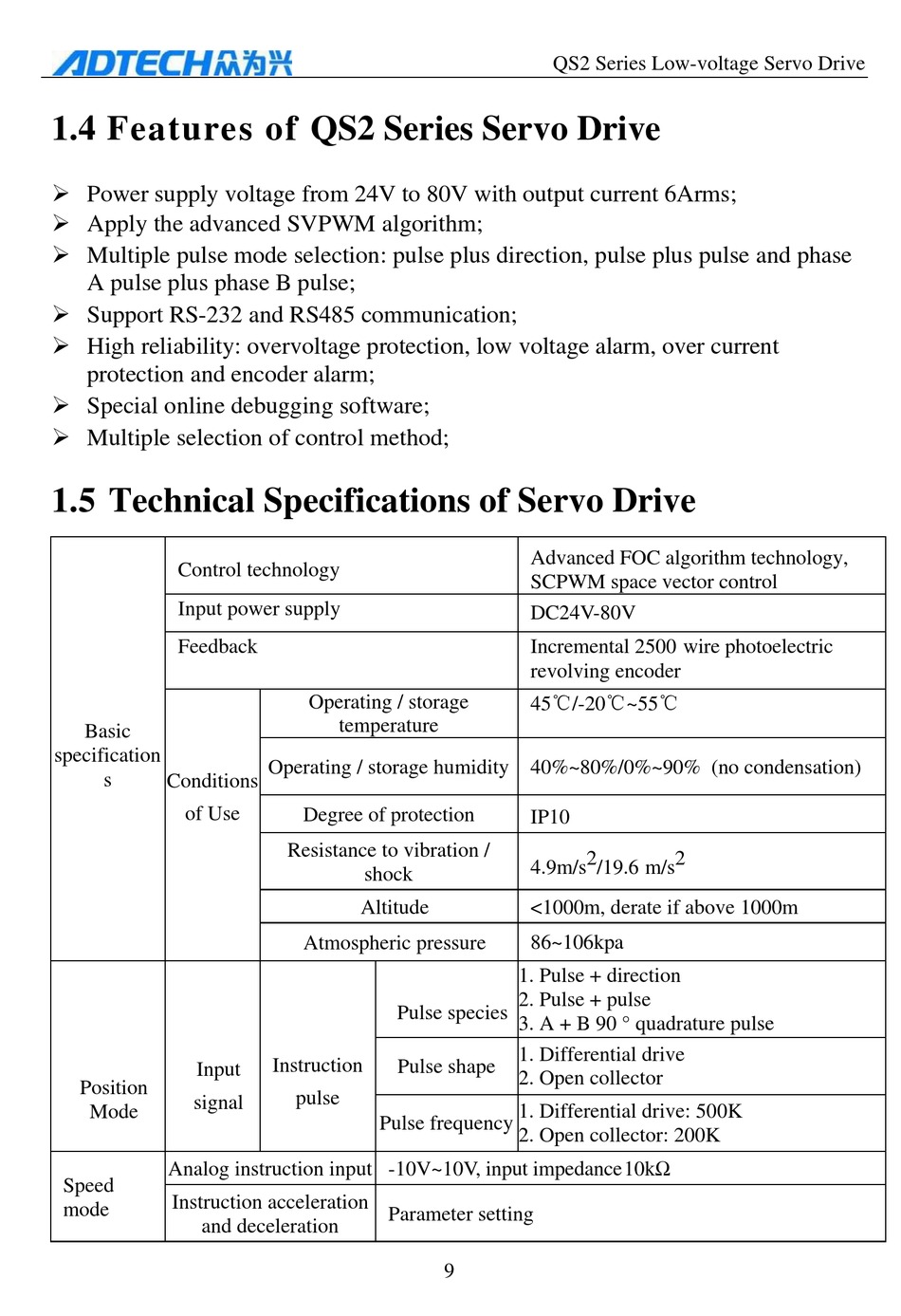

1.4 Features of QS2 Series Servo Drive

 Power supply voltage from 24V to 80V with output current 6Arms;
 Apply the advanced SVPWM algorithm;
 Multiple pulse mode selection: pulse plus direction, pulse plus pulse and phase
A pulse plus phase B pulse;
 Support RS-232 and RS485 communication;
 High reliability: overvoltage protection, low voltage alarm, over current
protection and encoder alarm;
 Special online debugging software;
 Multiple selection of control method;
1.5 Technical Specifications of Servo Drive
Control technology
Input power supply
Feedback
Basic
specification
s
Conditions
of Use
Input
Position
signal
Mode
Analog instruction input -10V~10V, input impedance 10kΩ
Speed
Instruction acceleration
mode
and deceleration
Operating / storage
temperature
Operating / storage humidity 40%~80%/0%~90% (no condensation)
Degree of protection
Resistance to vibration /
shock
Altitude
Atmospheric pressure
Pulse species
Instruction
Pulse shape
pulse
Pulse frequency
Parameter setting
QS2 Series Low-voltage Servo Drive
Advanced FOC algorithm technology,
SCPWM space vector control
DC24V-80V
Incremental 2500 wire photoelectric
revolving encoder
45℃/-20℃~55℃
IP10
4.9m/s 2 /19.6 m/s 2
<1000m, derate if above 1000m
86~106kpa
1. Pulse + direction
2. Pulse + pulse
3. A + B 90 ° quadrature pulse
1. Differential drive
2. Open collector
1. Differential drive: 500K
2. Open collector: 200K
