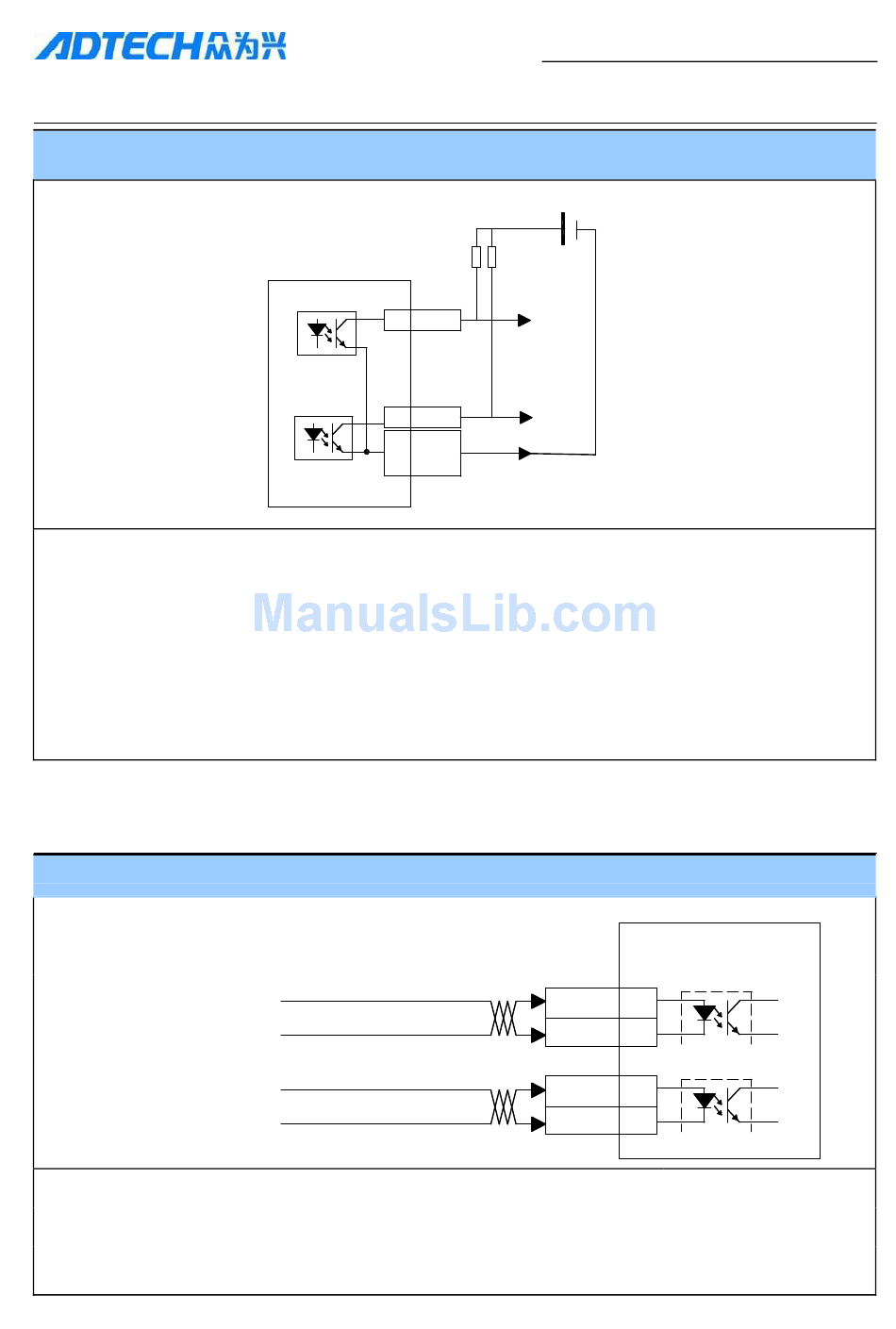

3.3.2 Switching value ALM, COIN output interface
1. Power supplied by user is 12V~24VDC. The maximum signal output current is 20mA.
2. The output is in a form of open collector. The pull-up resistor shall be selected according to
the user's system. The empiric value:
VCC=12V, R=1K, 1/4W is recommended
VCC=24V, R=2K, 1/4W is recommended
3. Inverse connection of power supply would damage the servo drive.
3.3.3 Pulse signal input interface
Position instruction pulse
Direction instruction pulse
1. Pulse frequency≤500KHz, duty ratio is 1:1, and the actually required is 0.4us。
2. It is recommended to use differential drive mode
3. Apply AM26LS31, MC3487 or the similar RS422 wire drive

Switch ALM, COIN output interface

Resistor drive
23 ALM+
24
COIN+
OUT
16
COM-
Differential input of pulse signal
23
QS2 Series Low Voltage Servo Drive
Pull-up
Alarm output
Positioning completion
PLC output common port
PULS +2
PULS - 1
SIGN
+10
SIGN - 11
Drive
