Analog Quantity Input Interface - Adtech QS2 Series Manual

ingle-end input of pulse signal (applicable to upper computer like PLC)
S
● Generally used in PLC pulse control
● Drive current is 10~15mA.
● Do not connect the polarity of power supply in a wrong direction.
● Pulse frequency of the connection ≤200KHz。
● The connection shall be demonstrated with the Mitsubishi PLC wiring cases and the
company's wiring cases

3.3.4 Analog Quantity input interface

Input of speed analog quantity and torque analog quantity

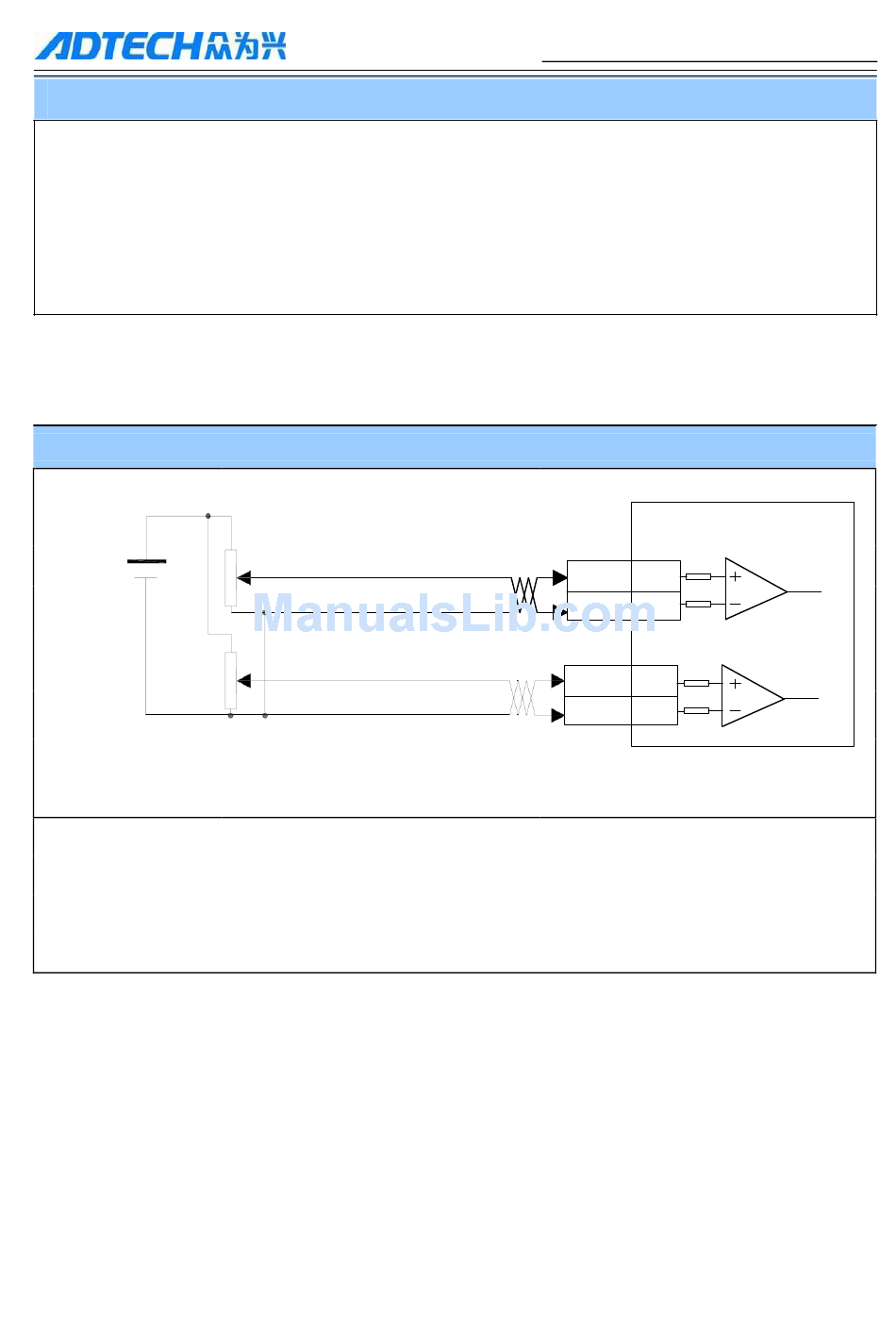

± 10V
1. Speed instruction input: positive /reverse speed limited by external analog quantity voltage.
2. Torque instruction input: positive/reverse speed limited by external analog quantity voltage.
3. Input voltage scope is -10V~+10V.
4. Input impedance: about 10KΩ
Speed instruction input
± 10V/rated rotation speed
Torque instruction input
± 10V/rated torque
QS2 Series Low Voltage Servo Drive
VIN +19
VIN -20
TIN +21
TIN -22
25
Drive
