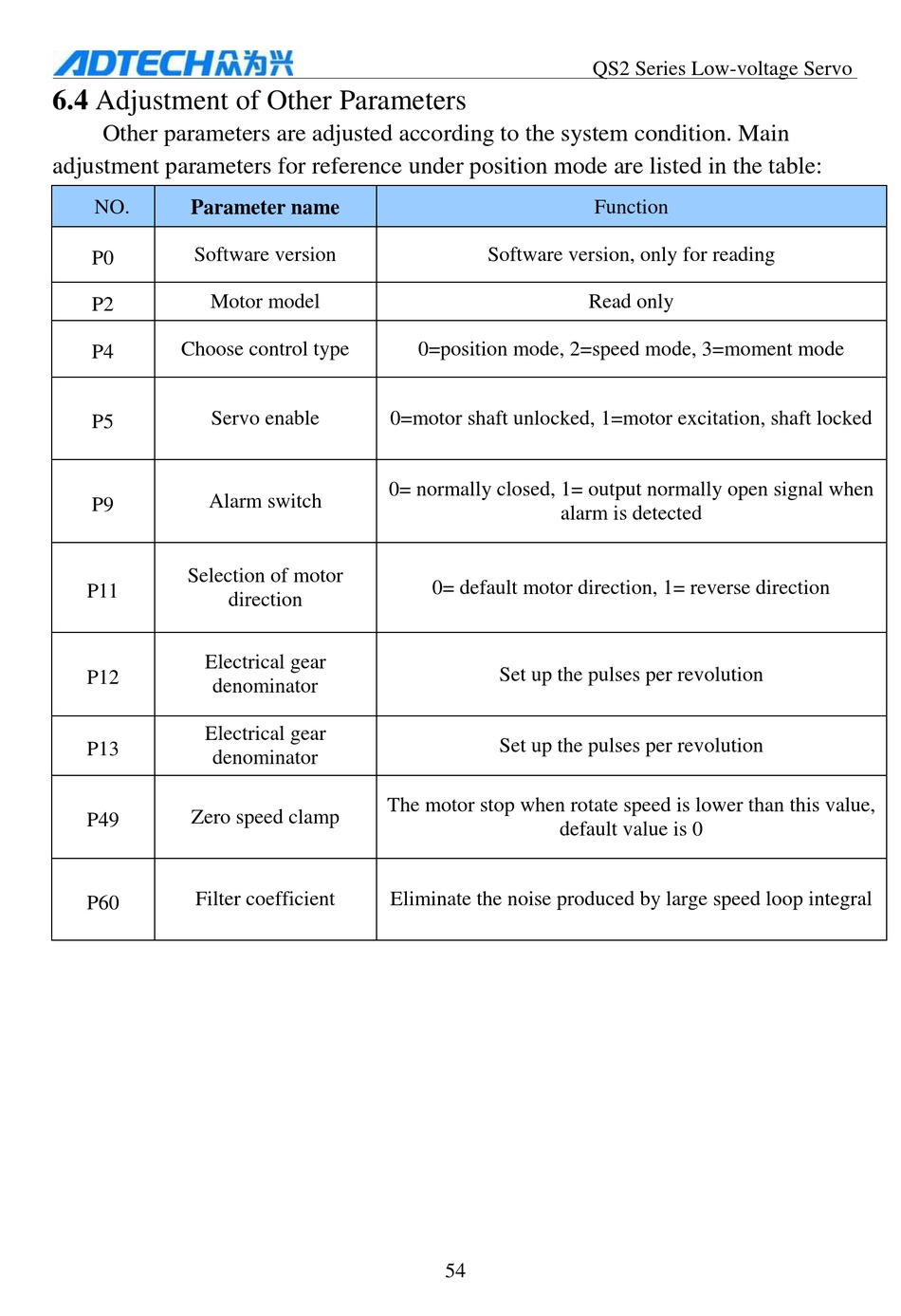

6.4 Adjustment of Other Parameters

Other parameters are adjusted according to the system condition. Main
adjustment parameters for reference under position mode are listed in the table:
NO.
Parameter name
Software version
P0
Motor model
P2
Choose control type
P4
Servo enable
P5
Alarm switch
P9
Selection of motor
P11
Electrical gear
P12
denominator
Electrical gear
P13
denominator
Zero speed clamp
P49
Filter coefficient
P60
0=motor shaft unlocked, 1=motor excitation, shaft locked
0= normally closed, 1= output normally open signal when
direction
The motor stop when rotate speed is lower than this value,
Eliminate the noise produced by large speed loop integral
Software version, only for reading
0=position mode, 2=speed mode, 3=moment mode
alarm is detected
0= default motor direction, 1= reverse direction
Set up the pulses per revolution
Set up the pulses per revolution
default value is 0
54
QS2 Series Low-voltage Servo
Function
Read only
