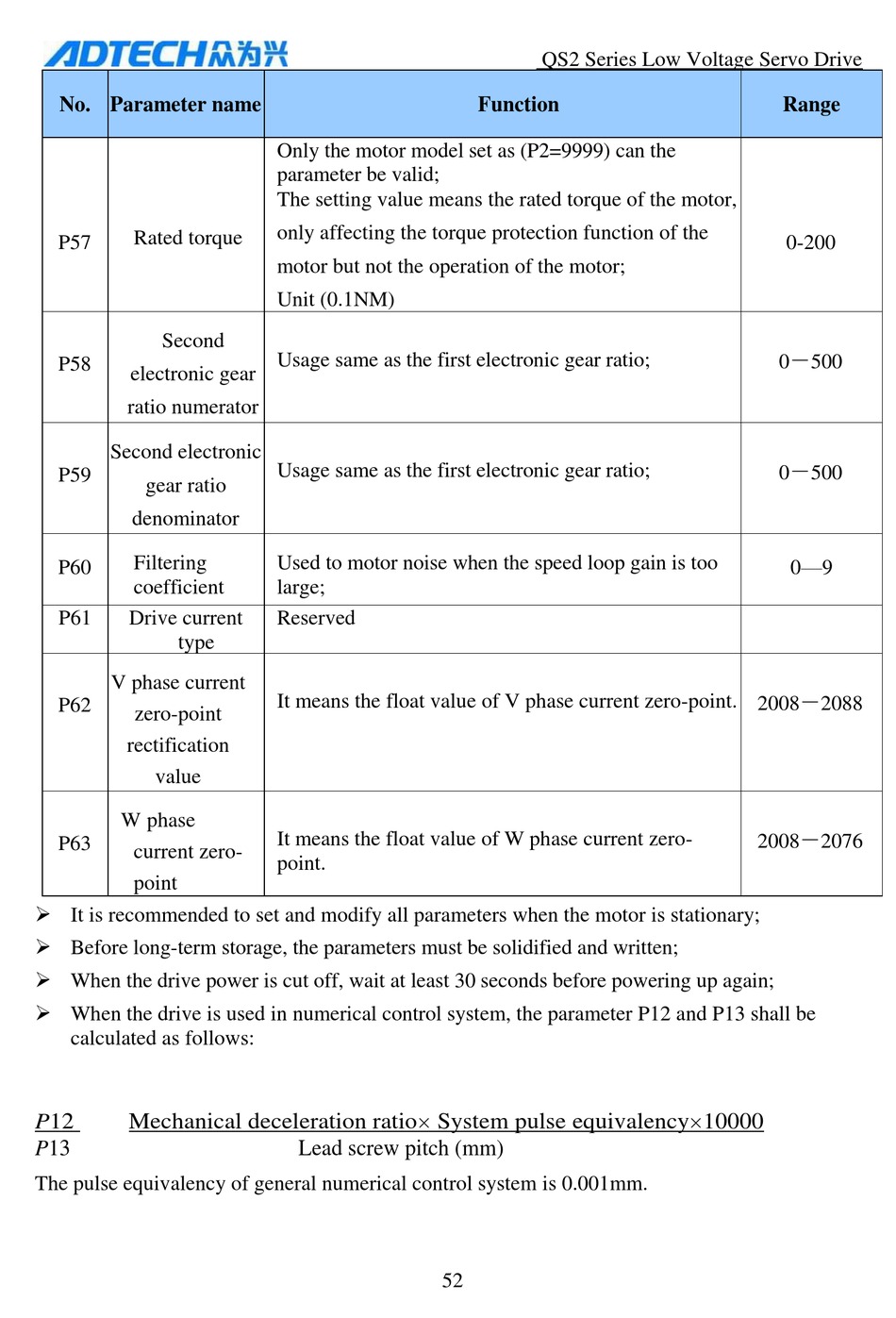

Adtech QS2 Series Manual page 52

No. Parameter name
Rated torque
P57
Second
P58
electronic gear
ratio numerator
Second electronic
P59
gear ratio
denominator
Filtering
P60
coefficient
P61 Drive current
type
V phase current
P62
zero-point
rectification
value
W phase
P63
current zero-
point
 It is recommended to set and modify all parameters when the motor is stationary;
rectification
 Before long-term storage, the parameters must be solidified and written; value 相电流
 When the drive power is cut off, wait at least 30 seconds before powering up again;
零 点校正值
 When the drive is used in numerical control system, the parameter P12 and P13 shall be
calculated as follows:
P12 Mechanical deceleration ratioSystem pulse equivalency10000
P13
The pulse equivalency of general numerical control system is 0.001mm.
Only the motor model set as (P2=9999) can the
parameter be valid;
The setting value means the rated torque of the motor,
only affecting the torque protection function of the
motor but not the operation of the motor;
Unit (0.1NM)
Usage same as the first electronic gear ratio;
Usage same as the first electronic gear ratio;
Used to motor noise when the speed loop gain is too
large;
Reserved
It means the float value of V phase current zero-point. 2008－2088
It means the float value of W phase current zero-
point.
Lead screw pitch (mm)
52
QS2 Series Low Voltage Servo Drive
Function Range
0-200
0－500
0－500
0—9
2008－2076
