2.1.2 Installation method and size

Mounting direction: Normal mounting direction of the stepper drive is vertical
or horizontal;
 Mounting and fixing: Use two vertical mounting holes, four horizontal
mounting holes and tighten with screws;
 Ventilation: use natural cooling; cooling fan must be installed in the
electrical control cabinet.

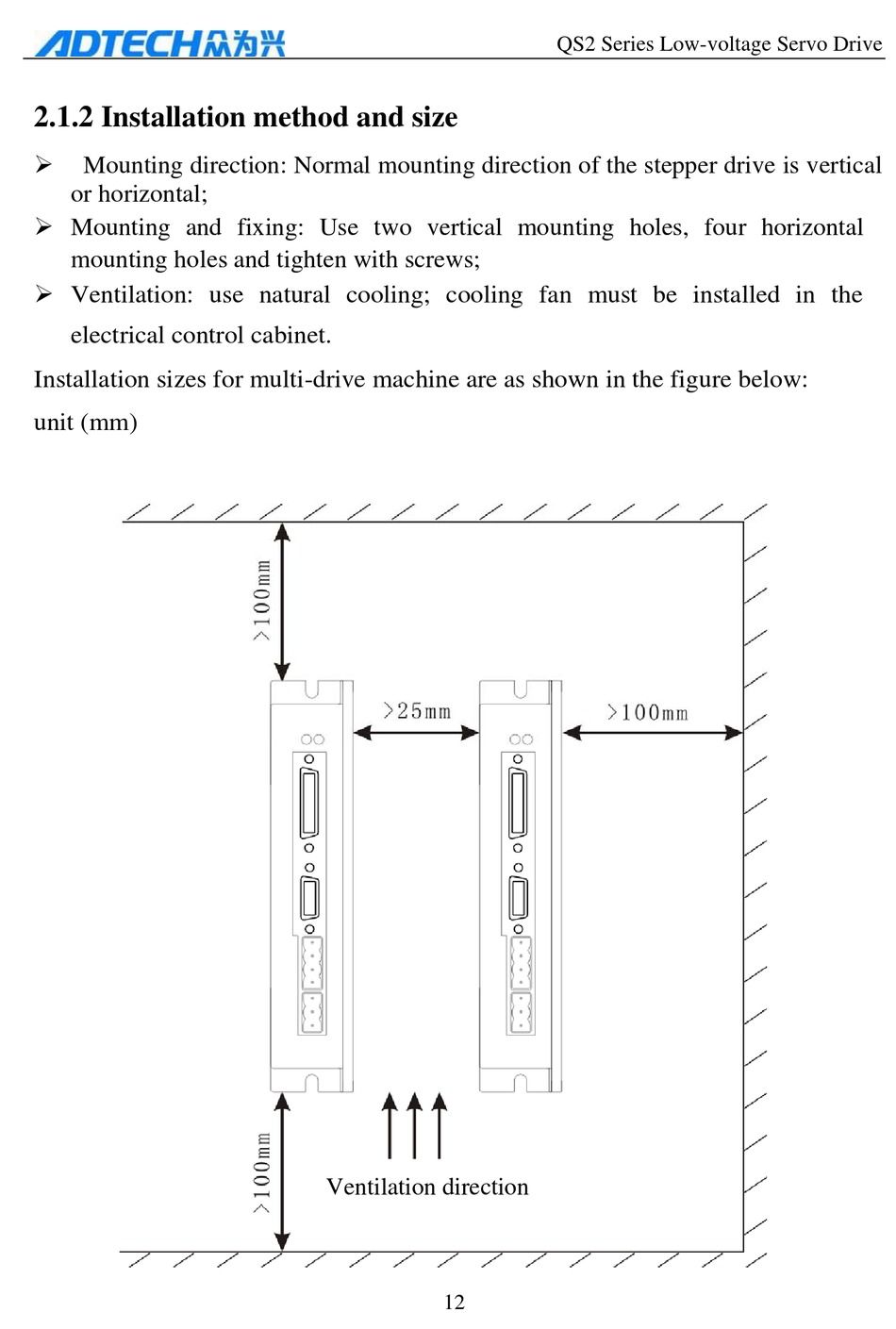

Installation sizes for multi-drive machine are as shown in the figure below:
unit (mm)
Ventilation direction
12
QS2 Series Low-voltage Servo Drive
