3.3 Principle of Input and Output Interface

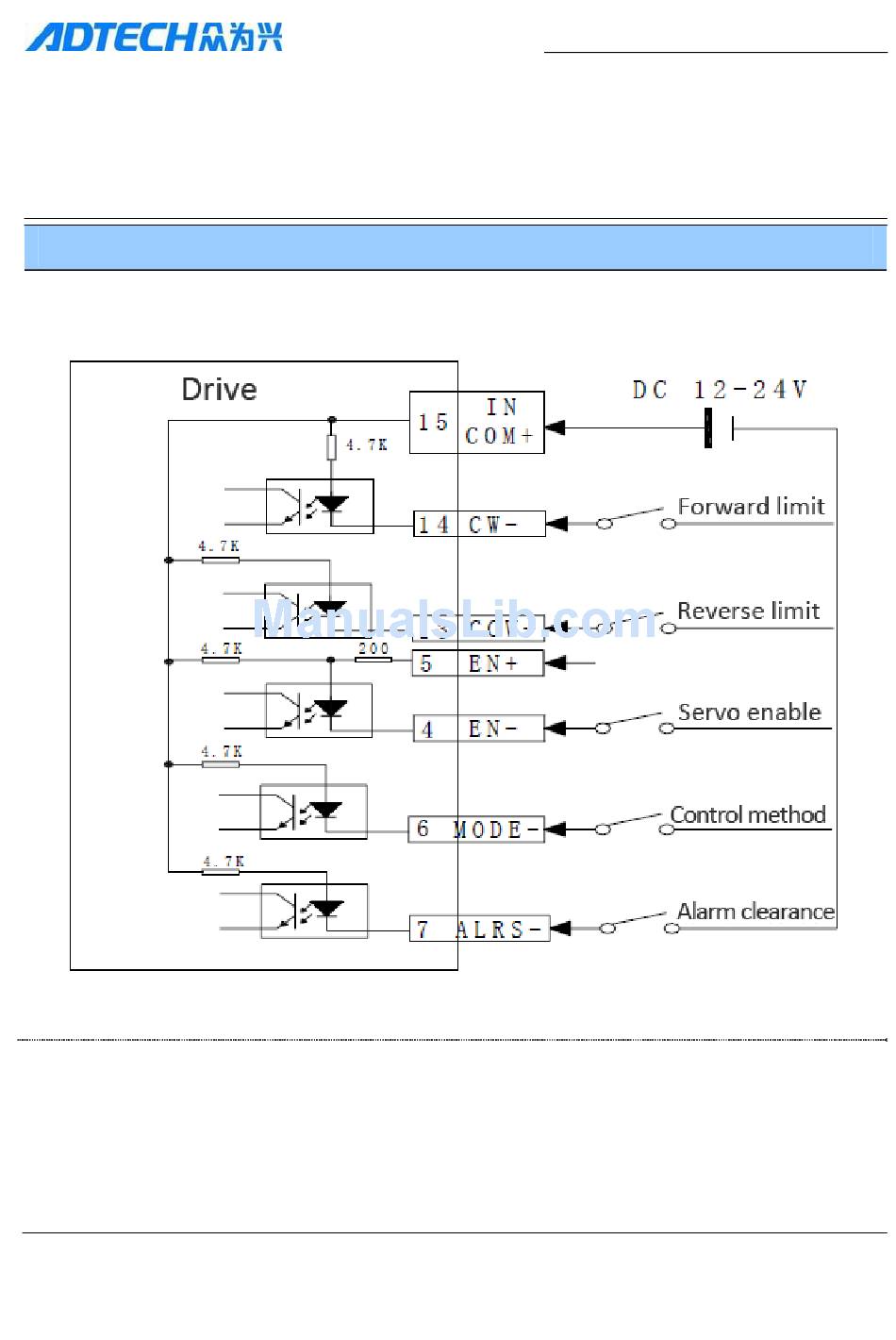

3.3.1 Switch EN-, MODE-, CW-, CCW-, ALRS-input interface

Switch EN-, MODE-, CW-, CCW-, ALRS-input interface
1. DC 12V-24V
2. Current is less than 20mA
3. Polarity reverse of power supply will cause servo drive damage.
4. Inductive load must be connected with fly-wheel diode at its two loaded ends in a paralleling
way.
QS2 Series Low Voltage Servo Drive
22
