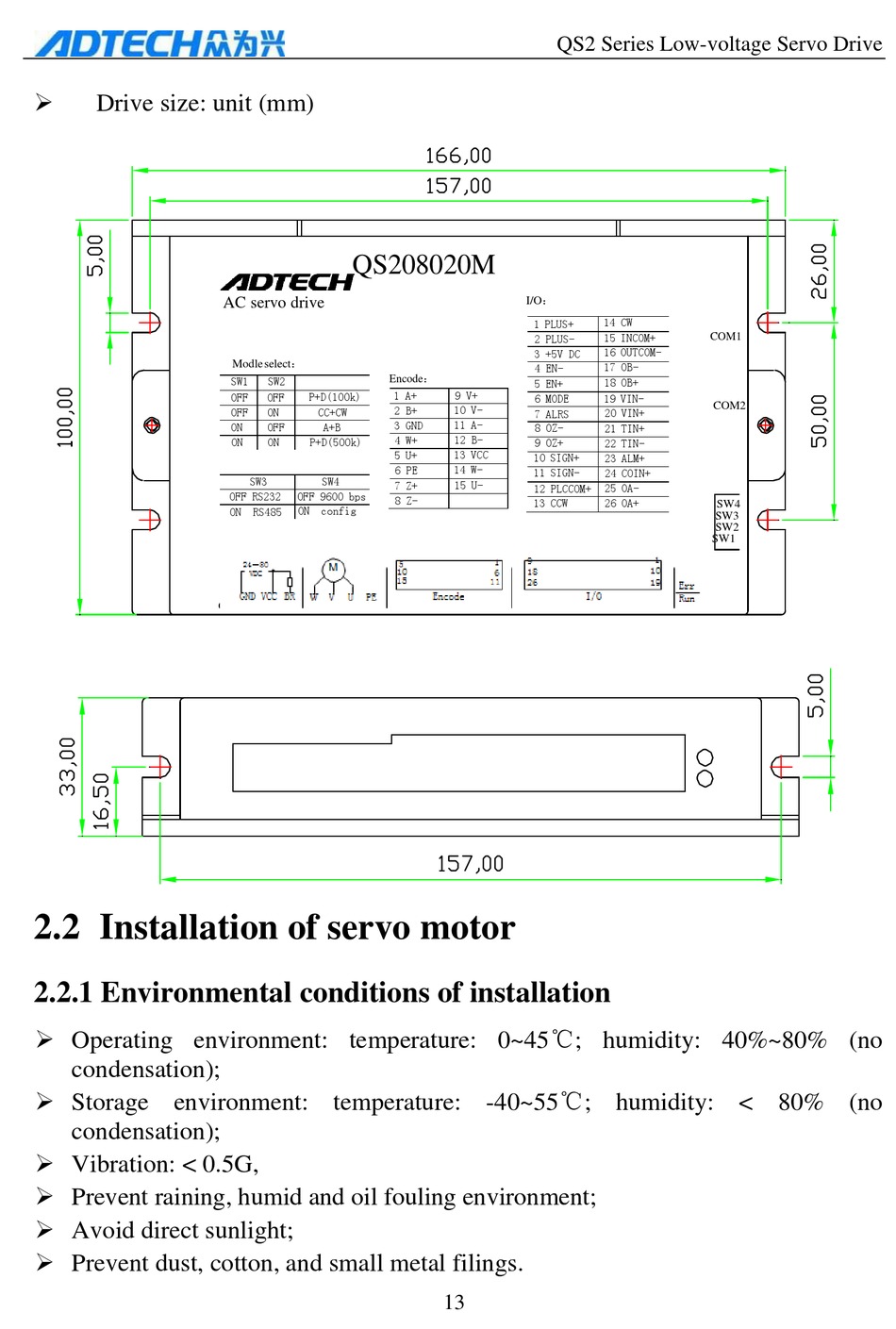

Drive size: unit (mm)

2.2 Installation of servo motor

2.2.1 Environmental conditions of installation
 Operating environment: temperature: 0~45℃; humidity: 40%~80% (no
condensation);
 Storage environment: temperature: -40~55℃; humidity: < 80% (no
condensation);
 Vibration: < 0.5G,
 Prevent raining, humid and oil fouling environment;
 Avoid direct sunlight;
 Prevent dust, cotton, and small metal filings.
QS208020M
AC servo drive
Modle select：
SW1 SW2
OFF P+D(100k)
OFF
CC+CW
OFF ON
ON OFF
A+B
ON ON P+D(500k)
SW3 SW4
OFF RS232 OFF 9600 bps
ON config
ON RS485
24～80
M
VDC
GND VCC BR
QS2 Series Low-voltage Servo Drive
I/O：
1 PLUS+
2 PLUS-
3 +5V DC
4 EN-
Encode：
5 EN+
1 A+ 9 V+
6 MODE
10 V-
2 B+
7 ALRS
11 A-
3 GND
8 OZ-
12 B-
4 W+
9 OZ+
5 U+ 13 VCC
10 SIGN+
6 PE 14 W-
11 SIGN-
7 Z+ 15 U-
12 PLCCOM+
8 Z-
13 CCW
9
1
5
10
26
11
15
Encode
13
14 CW
15 INCOM+
COM1
16 OUTCOM-
17 OB-
18 OB+
19 VIN-
COM2
20 VIN+
21 TIN+
22 TIN-
23 ALM+
24 COIN+
25 OA-
26 OA+
SW4
SW3
SW2
SW1
