Comnet CNGE24FX12TX12MSPOE Quick Start Manual

This guide serves the following
ComNet Model Numbers:
CNGE24FX12TX12MS
CNGE24FX12TX12MSPOE
QUICK START GUIDE
CNGE24FX12TX12MS[POE]
Industrial Grade Managed Ethernet Switch w/
12 × 100/1000Base-FX + 12 × 10/100/1000Base-TX Ports
w/ Optional 30W PoE

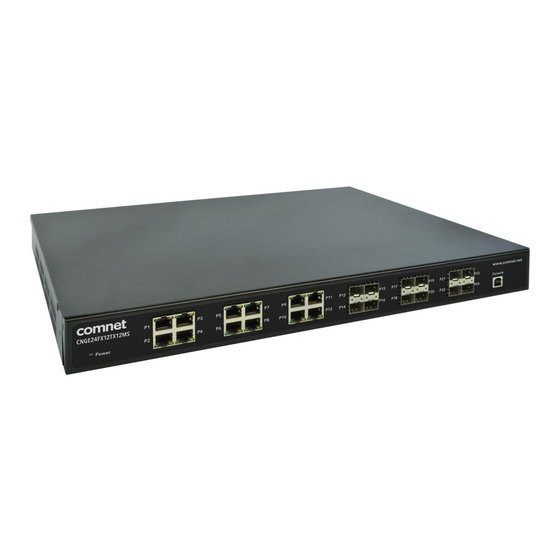

The ComNet CNGE24FX12TX12MS[POE] has twelve 100/1000Base-FX SFP* ports
and twelve 10/100/1000Base-TX ports. All SFP ports utilize ComNet SFP modules
for fiber and connector type and distance. The IEEE802.3-compliant unit offers
multiple Ethernet redundancy protocols (MSTP/RSTP/STP/ERPS (G.8032)) which
protect your applications from network interruptions or temporary malfunctions by
redirecting transmission within the network. The switch provides advanced IP-based
management that can limit the maximum bandwidth for each connected IP device,
allowing the user to adjust usage. Application-based QoS can set a higher priority
for data streaming. The Device-Binding function can prevent unauthorized network
access, increasing security.
The CNGE24FX12TX12MSPOE models provide twelve electrical ports supporting up to
thirty watts of power. All PoE ports are IEEE 802.3at compliant.
Each model is provided with redundant power inputs which can be either one mains
voltage and one or two low voltage DC inputs or two low voltage DC inputs.
Rev. 2.22.18
