Front Panel LEDs

LED Color
PWR Green
PW1 Green
PW2 Green
R.M Green
Ring Green
Fault Amber
Gigabit Ethernet ports
LNK/ACT Green
Full Duplex Amber
Gigabit SFP ports
LNK/ACT Green
1
1. Power socket of power input for AC 100V~240V / 50~60Hz
2. Relay output to carry capacity of 1A at 24VDC
TECH SUPPORT: 1.888.678.9427
Status Description
On DC power module active
On DC power module 1 activated.
On DC Power module 2 activated.
On System Operating in Ring Master Mode.
On Ring enabled.
On Fault relay. Power failure or Port down/fail.
Blinking Data transmitted.
On Port is Connected
On Port working under full duplex.
Off Port working in full half duplex mode
Blinking Data transmitted.
On Port is Connected
2

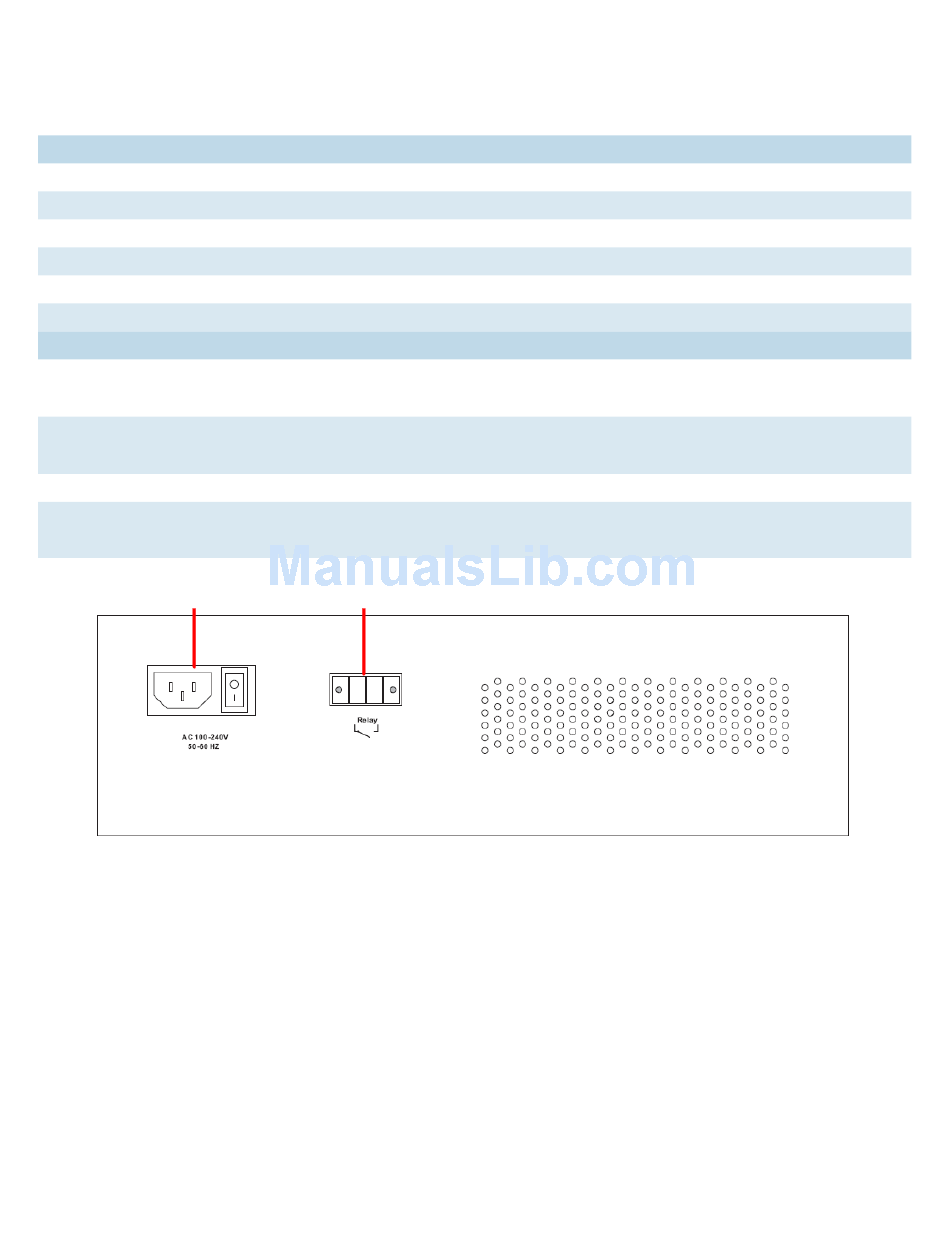

CNGE24MS-OB(M,S) Rear Panel
CNGE24MS-OB(M,S)
INS_CNGE24MS-OB(M,S)_REV–
