Label Description
Port State The current state of the port. It can undertake one of the following values:
Globally Disabled: NAS is globally disabled.
Link Down: NAS is globally enabled, but there is no link on the port.
Authorized: The port is in Force Authorized or a single-supplicant mode and the
supplicant is authorized.
Unauthorized: The port is in Force Unauthorized or a single-supplicant mode and the
supplicant is not successfully authorized by the RADIUS server.
X Auth/Y Unauth: The port is in a multi-supplicant mode. Currently X clients are
authorized and Y are unauthorized.
Restart Two buttons are available for each row. The buttons are only enabled when
authentication is globally enabled and the port's Admin State is in an EAPOL-based or
MAC-based mode.
Clicking these buttons will not cause settings changed on the page to take effect.
Reauthenticate: Schedules a reauthentication whenever the quiet-period of the port
runs out (EAPOL-based authentication). For MAC-based authentication, reauthentication
will be attempted immediately.
The button only has effect for successfully authenticated clients on the port and will not
cause the clients to get temporarily unauthorized.
Reinitialize: Forces a reinitialization of the clients on the port and thereby a
reauthentication immediately. The clients will transfer to the unauthorized state while the
reauthentication is in progress.

Switch

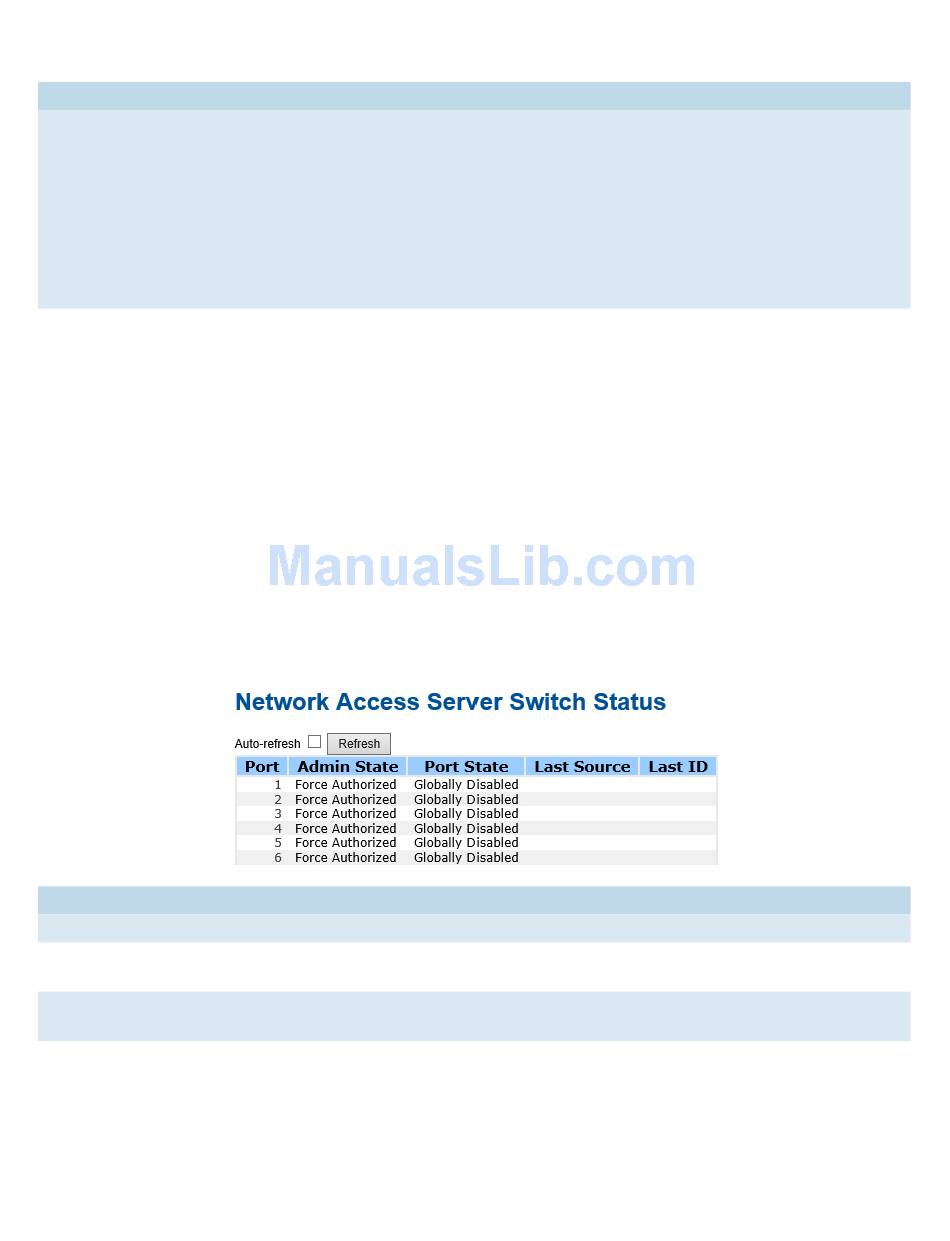

This page provides an overview of the current NAS port states.
Label Description
Port The switch port number. Click to navigate to detailed 802.1X statistics for this port.
Admin State The port's current administrative state. Refer to NAS Admin State for a description of
possible values.
Port State The current state of the port. Refer to NAS Port State for a description of the individual
states.
Last Source The source MAC address carried in the most recently received EAPOL frame for EAPOL-
based authentication, and the most recently received frame from a new client for MAC-
based authentication.
