INSTALLATION AND OPERATION MANUAL
Label Description
RARP SMAC Specify whether frames can hit the action according to their target hardware address
Match field (THA) settings.
0: RARP frames where THA is not equal to the SMAC address.
1: RARP frames where THA is equal to the SMAC address.
Any: Any value is allowed ("don't-care").
IP/Ethernet Specify whether frames can hit the action according to their ARP/RARP hardware
Length address length (HLN) and protocol address length (PLN) settings.
0: ARP/RARP frames where the HLN is equal to Ethernet (0x06) and the (PLN) is equal to
IPv4 (0x04) must not match this entry.
1: ARP/RARP frames where the HLN is equal to Ethernet (0x06) and the (PLN) is equal to
IPv4 (0x04) must match this entry.
Any: Any value is allowed ("don't-care").
IP Specify whether frames can hit the action according to their ARP/RARP hardware
address space (HRD) settings.
0: ARP/RARP frames where the HLD is equal to Ethernet (1) must not match this entry.
1: ARP/RARP frames where the HLD is equal to Ethernet (1) must match this entry.
Any: Any value is allowed ("don't-care").
Ethernet Specify whether frames can hit the action according to their ARP/RARP protocol address
space (PRO) settings.
0: ARP/RARP frames where the PRO is equal to IP (0x800) must not match this entry.
1: ARP/RARP frames where the PRO is equal to IP (0x800) must match this entry.
Any: Any value is allowed ("don't-care").

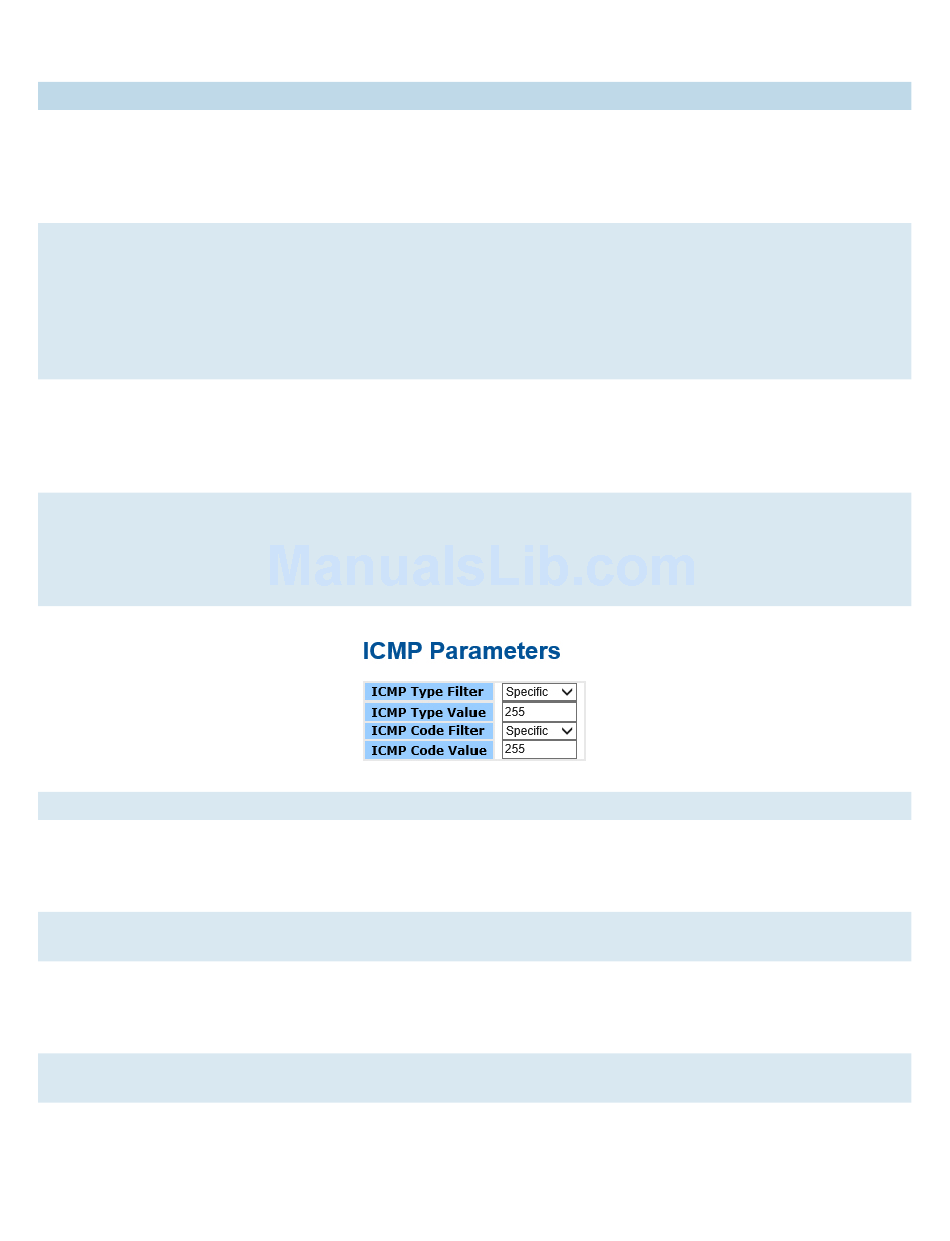

Label Description
ICMP Type Specify the ICMP filter for this ACE.
Filter Any: No ICMP filter is specified (ICMP filter status is "don't-care").
Specific: If you want to filter a specific ICMP filter with this ACE, you can enter a specific
ICMP value. A field for entering an ICMP value appears.
ICMP Type When "Specific" is selected for the ICMP filter, you can enter a specific ICMP value. The
Value allowed range is 0 to 255. A frame that hits this ACE matches this ICMP value.
ICMP Code Specify the ICMP code filter for this ACE.
Filter Any: No ICMP code filter is specified (ICMP code filter status is "don't-care").
Specific: If you want to filter a specific ICMP code filter with this ACE, you can enter a
specific ICMP code value. A field for entering an ICMP code value appears.
ICMP Code When "Specific" is selected for the ICMP code filter, you can enter a specific ICMP code value.
Value The allowed range is 0 to 255. A frame that hits this ACE matches this ICMP code value.
